DH-20-J05SX-03-401

Old part Number: DH-20-J05SX-01-001

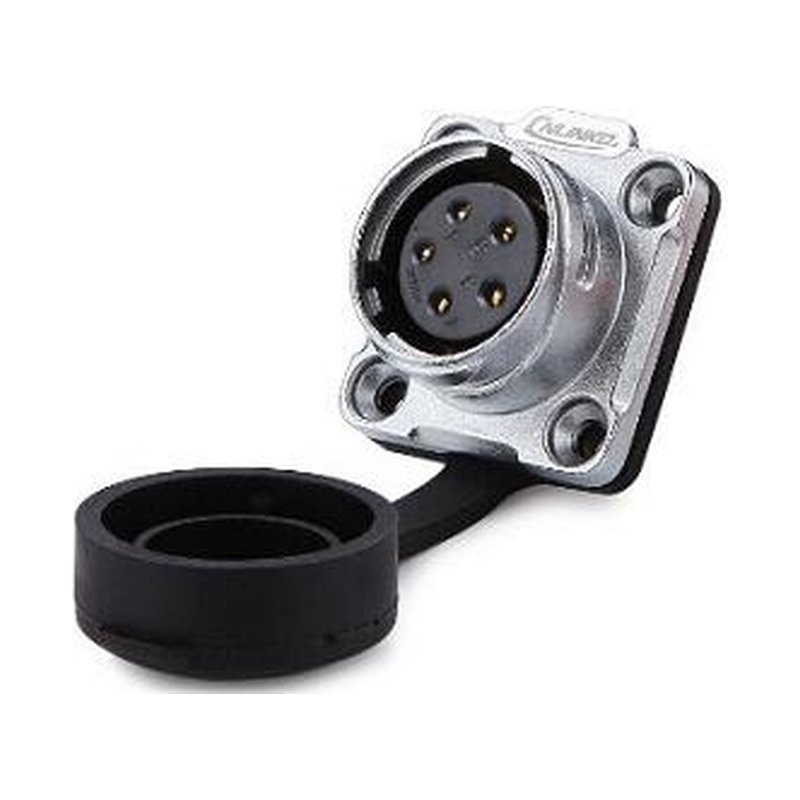

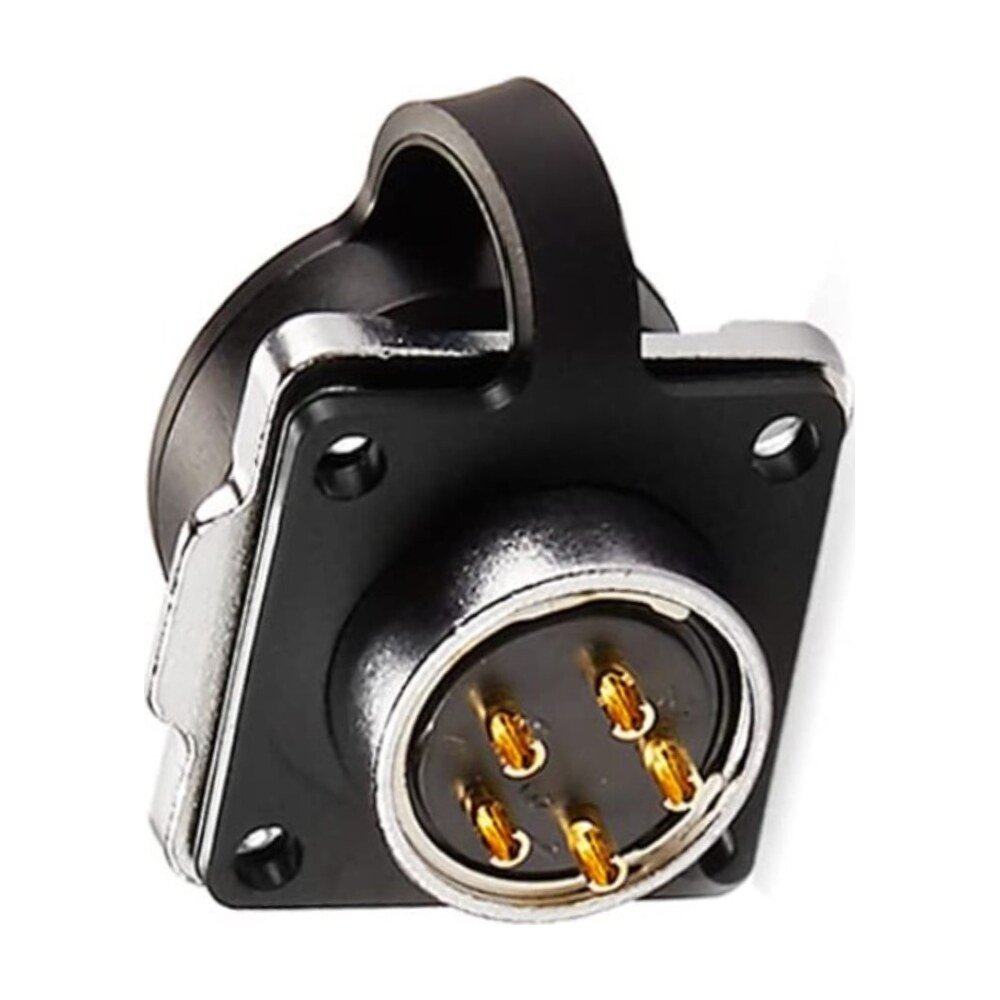

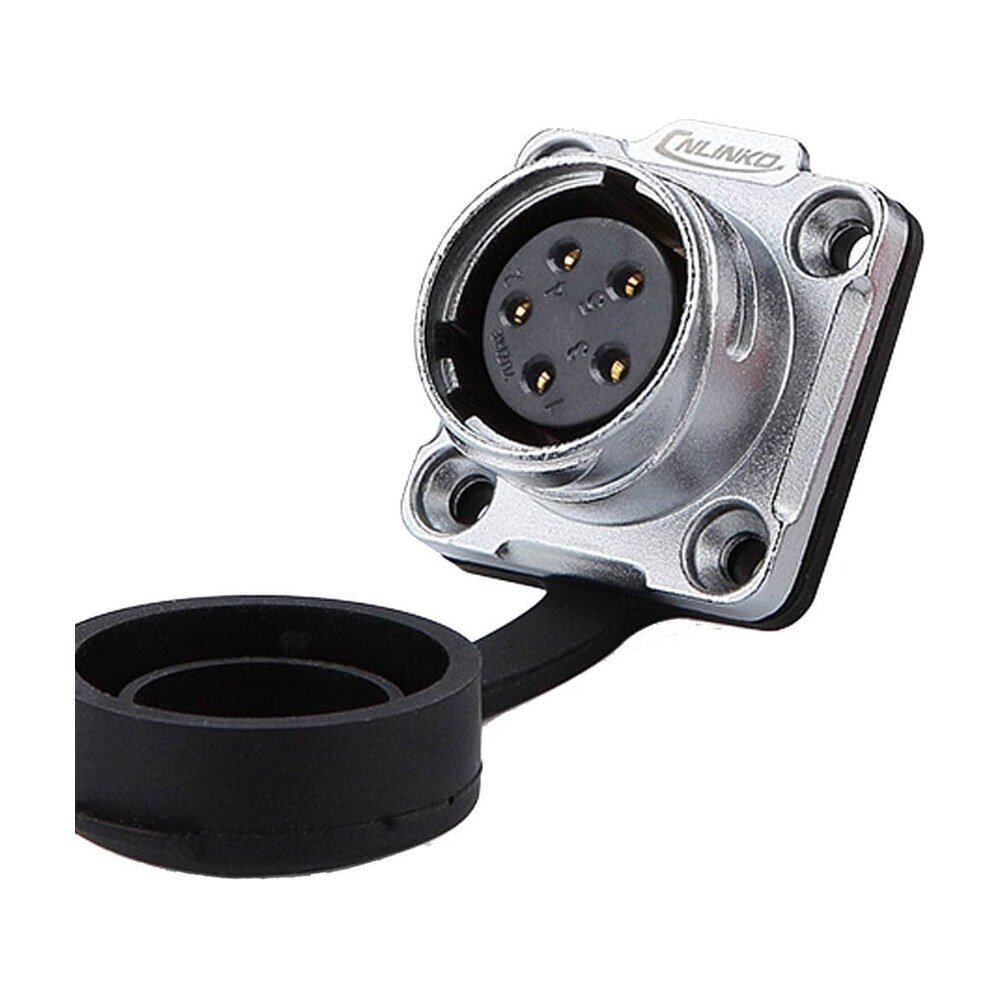

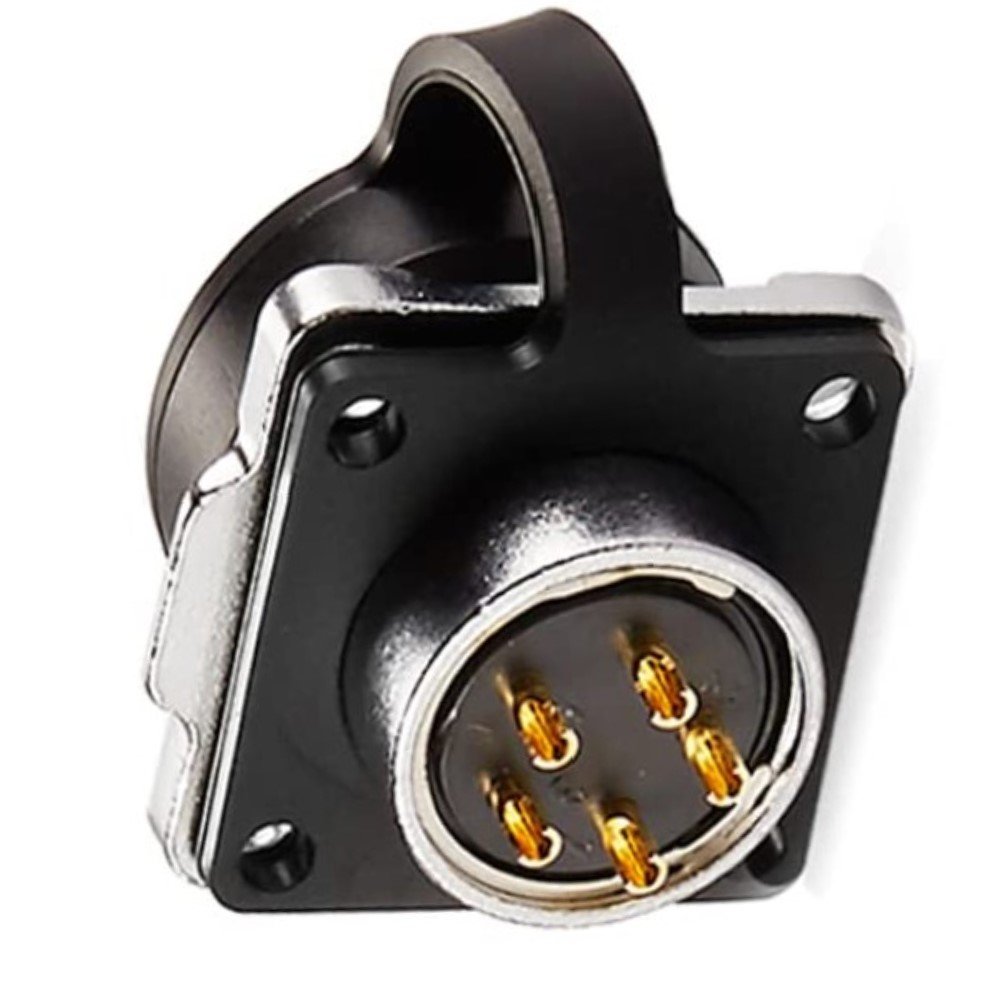

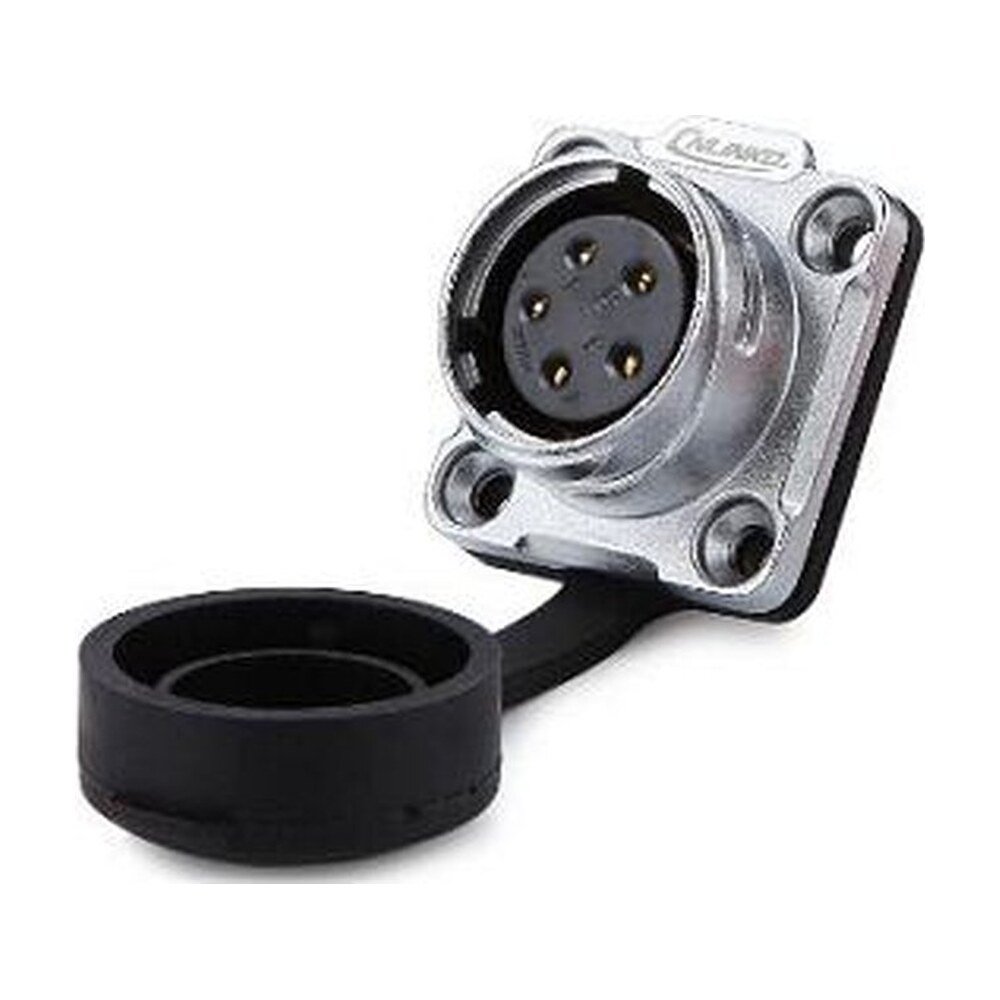

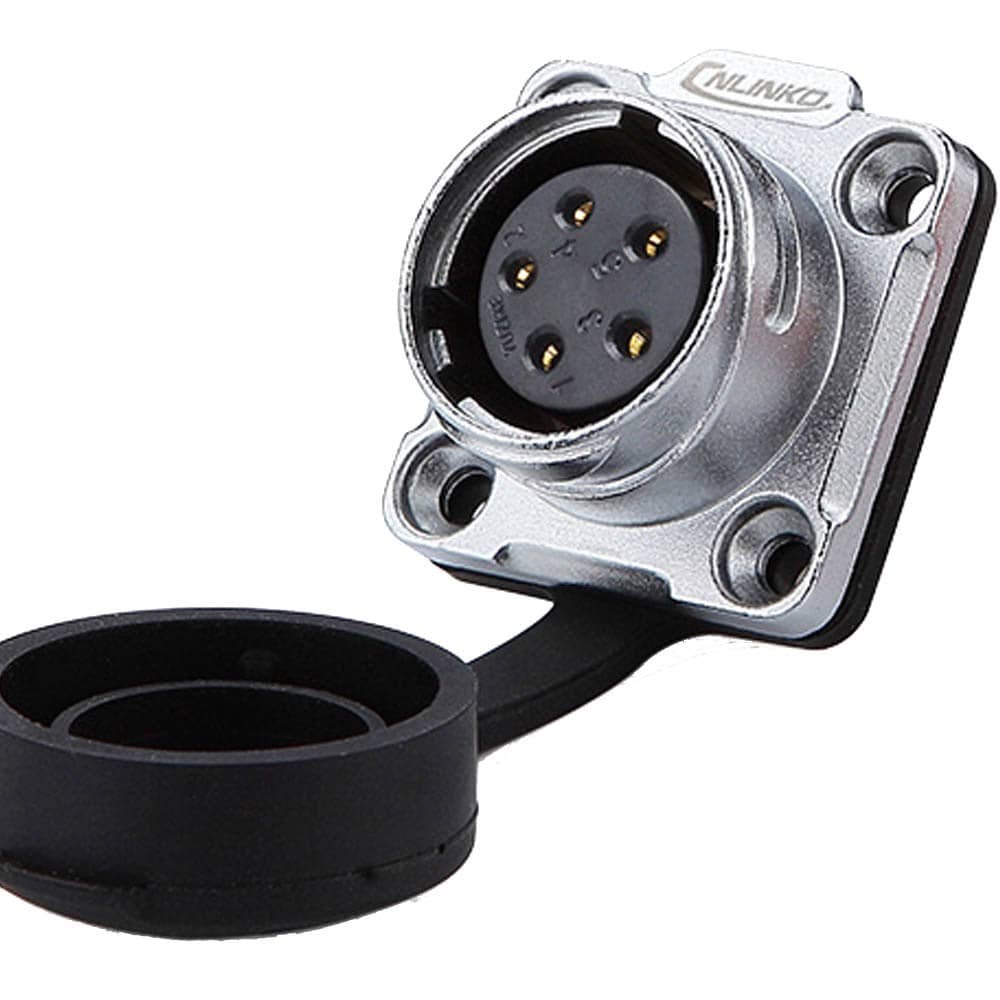

The Cnlinko DH-20-J05SX-03-401 is a brand new durable, reliable 5 pins female panel mount Power  connector specifically designed for power applications, including LED displays, industrial equipment, and stage lighting. Able to accommodate 18-16 AWG cable, it is rated for 500V and 12 A, making it a versatile choice for a variety of applications. And with its secure screw type locking system, water tight, you can trust the Cnlinko DH-20-J05SX-03-401 to stay firmly in place, even in demanding environments.

Specifications

• Dimensions (without cap)- 32.7 mm Height x 30 mm Width x 30.5 mm Depth (1.3″ x 1.18″ x 1.2″)
• Number of Pins- 5
• Wire Gauge- 18-16 AWG
• Diameter Range- 7-9mm
• Contact Diameter- 1.8mm
• Rated Current- 12A
• Operating Voltage- 500V
• Contact Resistance- < 2.5mOhm
• Withstanding Voltage- 2500V
• Insulation Resistance- > 500MOhm
• Ingress Protection- IP65/67
• Durability- > 500 times
• Operating Temperature- -40 C to 80 C (-40 F to 176 F)
• Housing Material- Zinc Alloy
• Contact Material- Gold Plated Copper Alloy
• Flammability Rating- UL94-V0
• Approvals- CE, CCC, RoHS, ISO900
