DH-20-C02PE-03-001

DH-20-C02PE-03-001

Old Part Number: DH-20-C02PE-01-001

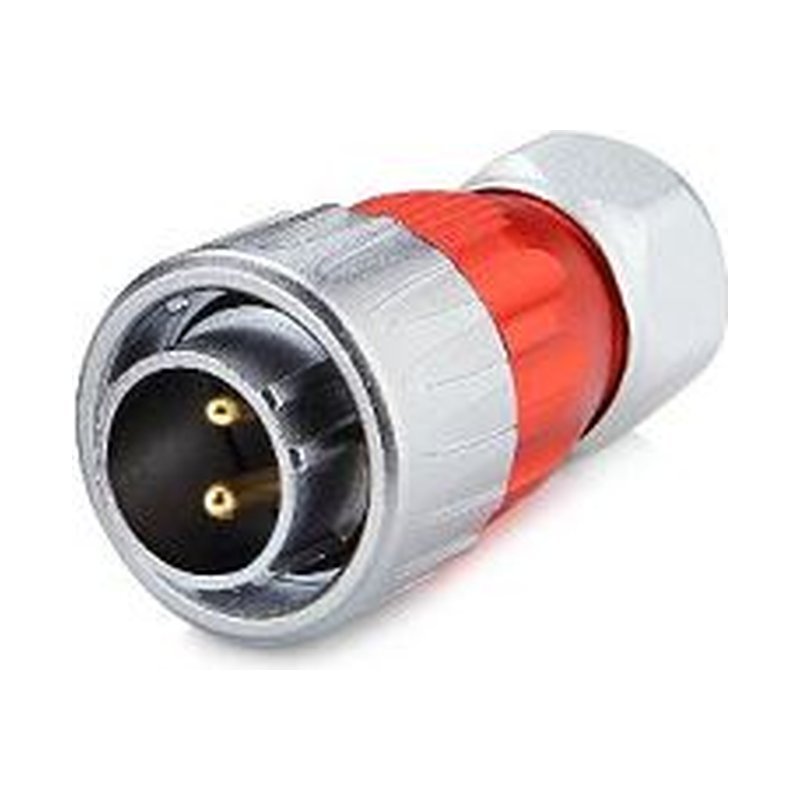

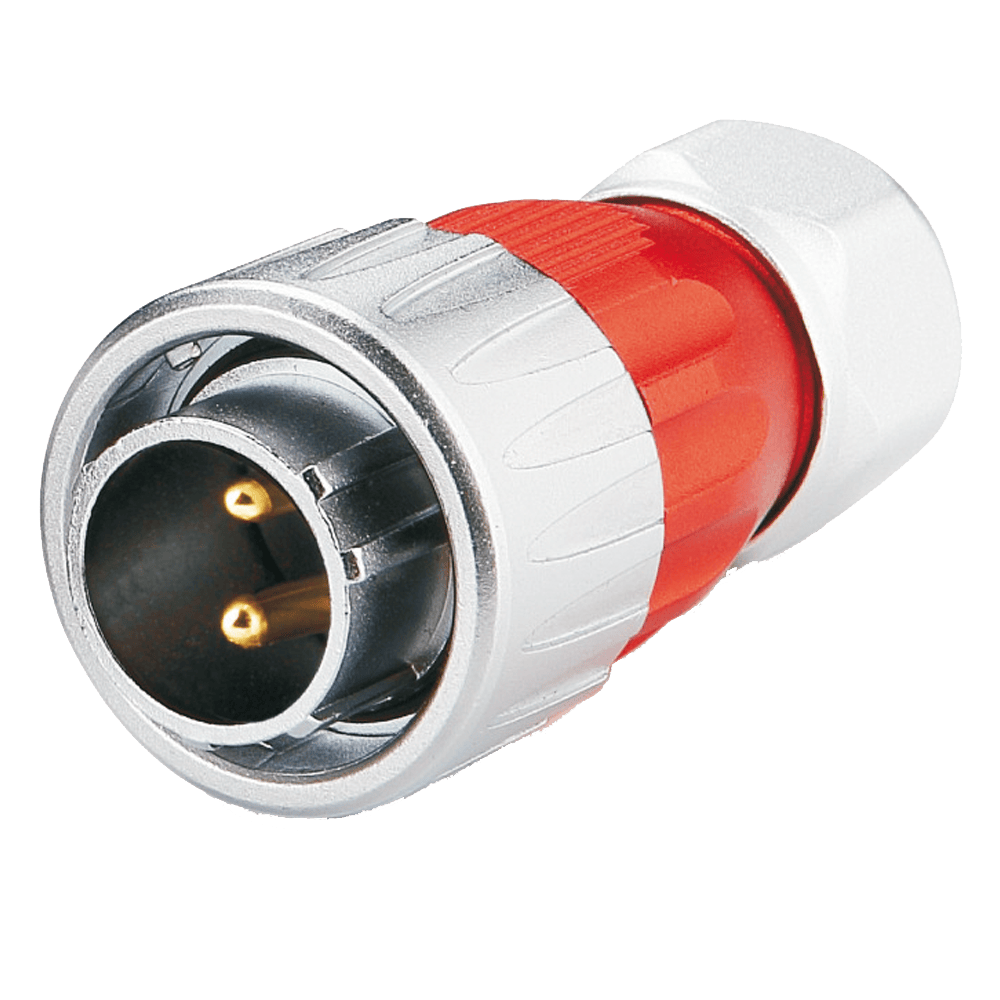

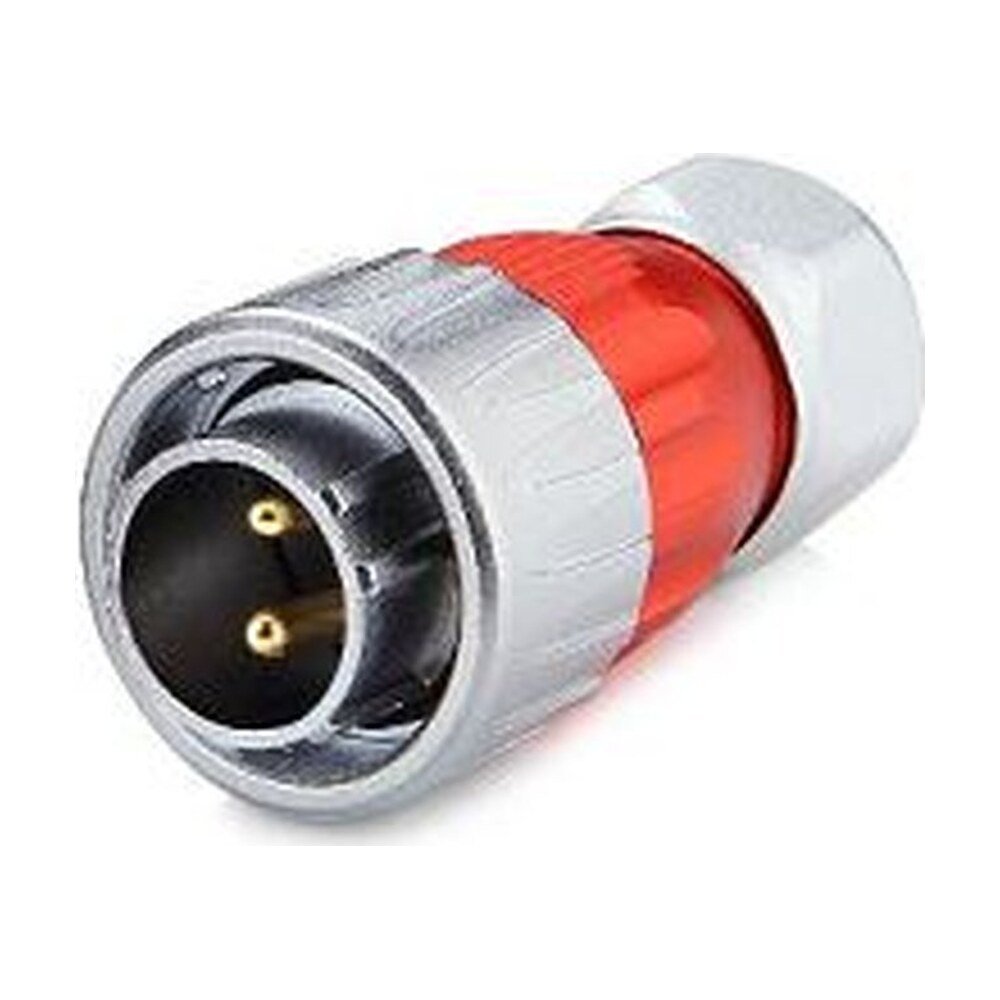

If you’re looking for a reliable 2 pin male cable plug that is perfect for power applications, the Cnlinko DH-20-C02PE-03-001 is definitely worth considering. This cable plug is designed to accommodate 14-12 AWG cable and is rated for 500V and 20 A, making it a highly effective choice for lighting equipment and LED displays.

One of the standout features of this cable plug is its screw-type locking system, which ensures a secure and reliable connection. Additionally, it’s also known as DH-20-C02PE-01-001, so you might see it marketed under that name as well.

Overall, if you need a dependable 2 pin male cable plug that offers strong performance and durability, the Cnlinko DH-20-C02PE-03-001 is definitely worth considering. Whether you’re working in the lighting industry or need an effective solution for your power applications, this cable plug is an excellent option.

Description

DH-20-C02PE-03-001

Old Part Number: DH-20-C02PE-01-001

DH-20-C02PE-03-001

  • Metal alloy housing
  • Easy to grip shell
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Waterproof gasket in housing

Specifications

  • Dimensions- 62.5mm x 29.2mm
  • Number of Pins- 2
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 2.7mm
  • Rated Current- 20A
  • Operating Voltage- 500V
  • Contact Resistance- <1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001
  • Wiring Mode- Soldering



Additional information

Style

DH-20-C02PE-01-001, DH-20-C03PE-01-001, DH-20-C03SX-01-001

Reviews

There are no reviews yet.

Be the first to review “DH-20-C02PE-03-001”

Your email address will not be published. Required fields are marked *

SKU DH-20-C02PE-01-001 Category

$15.60

DH-20-C02PE-03-001

Old Part Number: DH-20-C02PE-01-001

If you’re looking for a reliable 2 pin male cable plug that is perfect for power applications, the Cnlinko DH-20-C02PE-03-001 is definitely worth considering. This cable plug is designed to accommodate 14-12 AWG cable and is rated for 500V and 20 A, making it a highly effective choice for lighting equipment and LED displays.

One of the standout features of this cable plug is its screw-type locking system, which ensures a secure and reliable connection. Additionally, it’s also known as DH-20-C02PE-01-001, so you might see it marketed under that name as well.

Overall, if you need a dependable 2 pin male cable plug that offers strong performance and durability, the Cnlinko DH-20-C02PE-03-001 is definitely worth considering. Whether you’re working in the lighting industry or need an effective solution for your power applications, this cable plug is an excellent option.

Available on backorder

Quantity Discount
Quantity Discount Discounted price
1 - 50 - $15.60
51 - 250 4% $14.98
251 - 500 8% $14.35
501 - 1000 12% $13.73
