DH-20-C12SX-03-401

Description

DH-20-C12SX-03-401

Old Part Number: DH-20-C12SX–01-001

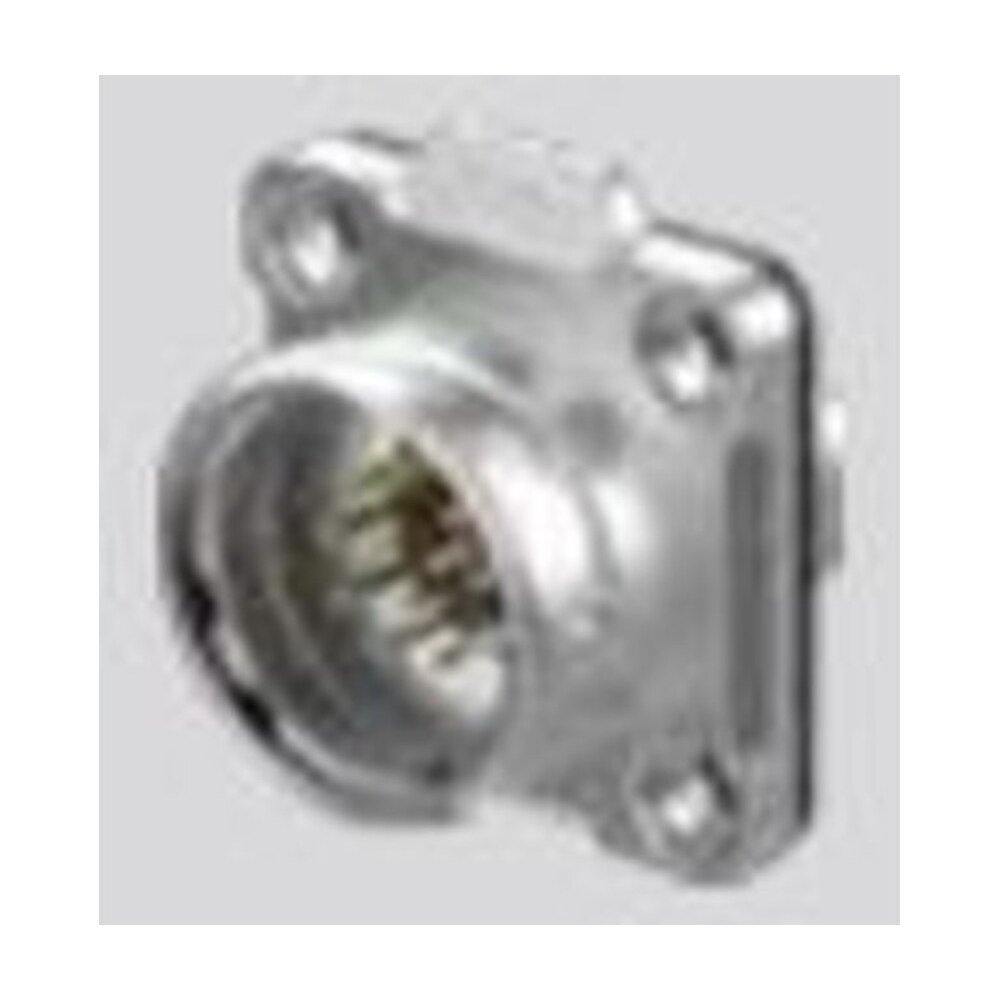

The Cnlinko DH-20-C12SX-03-401 is a 12 pin male socket for signal applications. Accommodates 26-24 AWG cable. Rated for 400V and 5 A. Ideal for applications such as LED displays and stage lighting equipment.

Reviews

There are no reviews yet.

Be the first to review “DH-20-C12SX-03-401”

Your email address will not be published. Required fields are marked *

SKU DH-20-C12SX-03-401 Category
  • Metal alloy housing
  • Screw tightening design
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Includes waterproof cover

Specifications

  • Dimensions (without cap)- 32.7 mm Height x 30 mm Width x 30.5 mm Depth (1.3″ x 1.18″ x 1.2″)
  • Number of Pins- 12
  • Wire Gauge- 26-24 AWG
  • Diameter Range- 5.5-7mm
  • Contact Diameter- 1mm
  • Rated Current- 5A
  • Operating Voltage- 400V
  • Contact Resistance- < 5mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001

$9.19

Available on backorder

Quantity Discount
Quantity Discount Discounted price
1 - 50 - $9.19
51 - 250 4% $8.82
251 - 500 8% $8.45
501 - 1000 12% $8.09
Bulk pricing will be applied to package:
