LP-20-C02PP-01-001

Description

LP-20-C02PP-01-001

LP-20 Series connector is widely used in variety of challenging environments due to its high precision, high quality automatic insertion, self-locking devices and waterproof, In LED screen ,audio visual equipment, medical equipment, industrial control, testing and measurement equipment,AV system and others.




Reviews

There are no reviews yet.

Be the first to review “LP-20-C02PP-01-001”

Your email address will not be published. Required fields are marked *

SKU LP-20-C02PP-01-001 Category

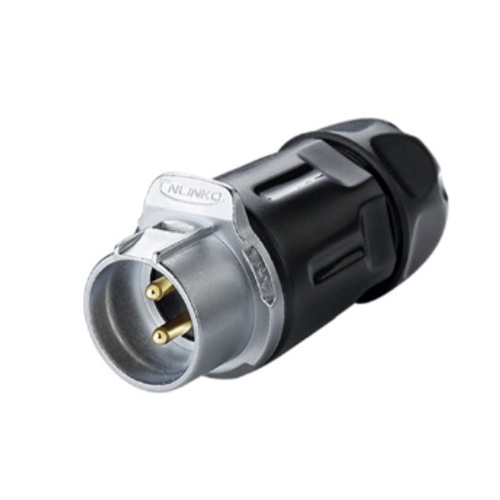

Cnlinko LP-20-C02PP-01-001 2 Pin Male Power Connector

  • Multi-core design
  • Gold plated contacts for greater corrosion protection
  • PBT shell
  • High temp & pressure resistant
  • Rated IP65/67 when connected

Specifications

  • Dimensions- 64 mm Length x 31.4 mm Diameter (2.52″ x 1.24″)
  • Number of Pins- 2
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 2.7mm
  • Rated Current- 20A
  • Operating Voltage- 500V
  • Contact Resistance- <1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- High Performance Plastic
  • Hardware- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Wiring Mode- Soldering

$12.25

Available on backorder

Quantity Discount
Quantity Discount Discounted price
1 - 50 - $12.25
51 - 250 4% $11.76
251 - 500 8% $11.27
501 - 1000 12% $10.78
