LP-20-J02PP-01-001

Description

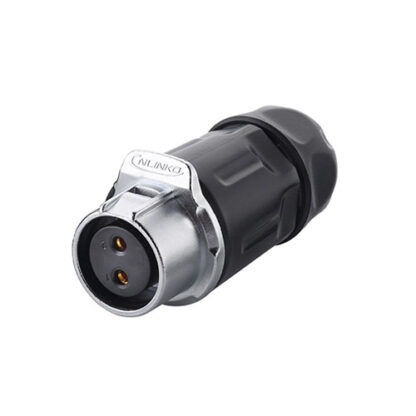

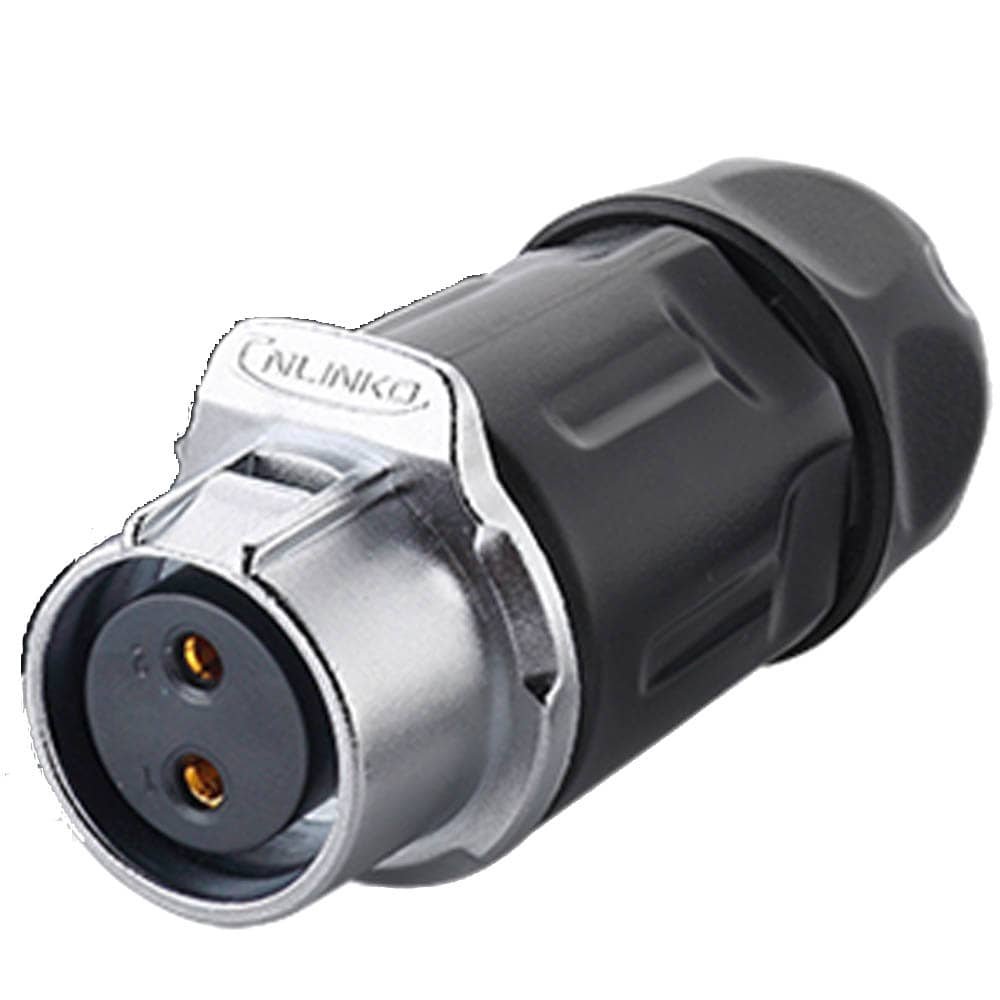

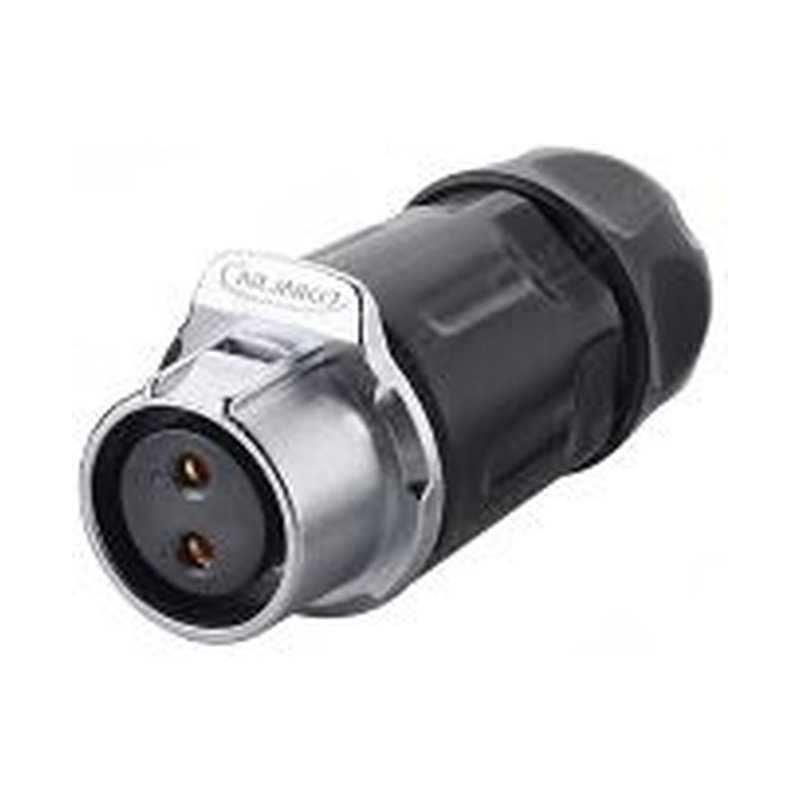

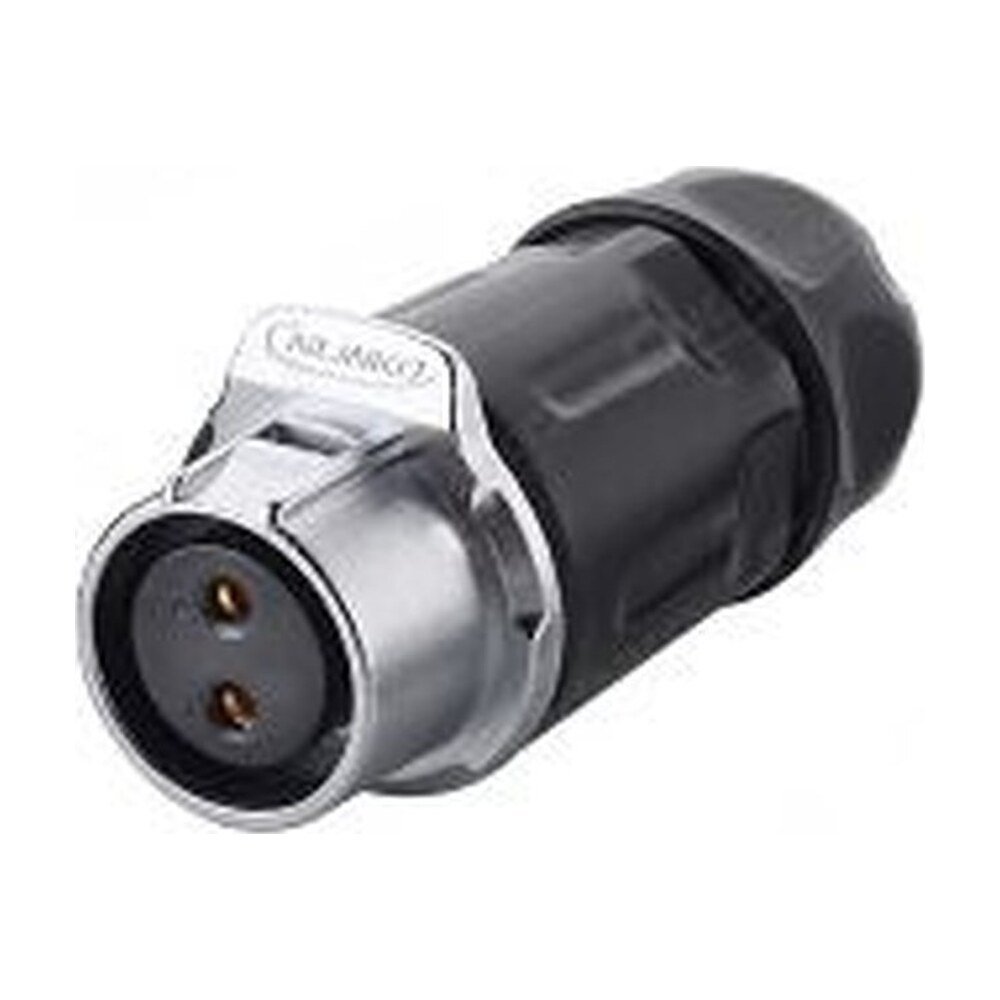

LP-20-J02PP-01-001

2 pins female docking plug

  • Multi-core design
  • Gold plated contacts for greater corrosion protection
  • PBT shell
  • High temp & pressure resistant
  • Rated IP65/67 when connected

Specifications

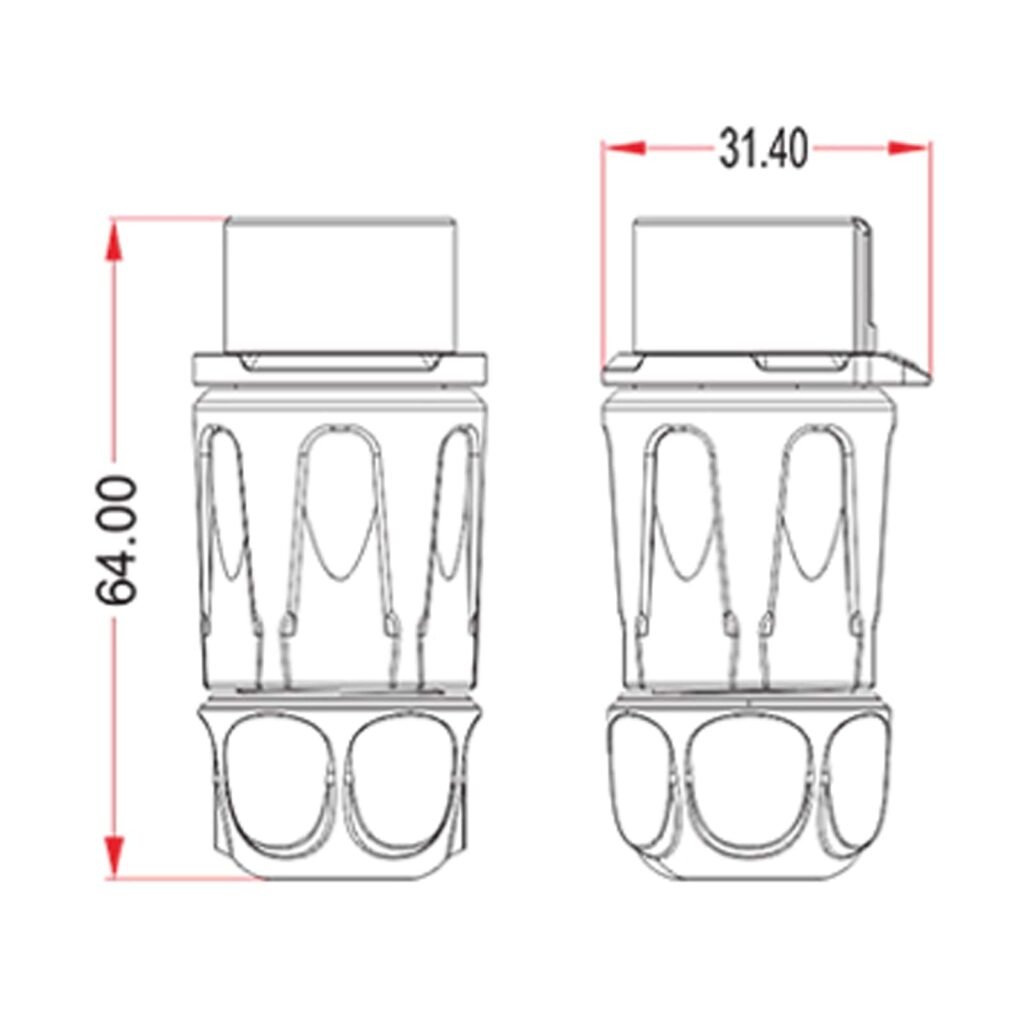

  • Dimensions- 64 mm Length x 31.4 mm Diameter (2.52″ x 1.24″)
  • Number of Pins- 2
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 2.7mm
  • Rated Current- 20A
  • Operating Voltage- 500V
  • Contact Resistance- <1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- High Performance Plastic
  • Hardware- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Wiring Mode- Soldering

Reviews

There are no reviews yet.

Be the first to review “LP-20-J02PP-01-001”

Your email address will not be published. Required fields are marked *

SKU LP-20-J02PP-01-001 Category

LP-20-J02PP-01-001

2 pins female docking plug

The Cnlinko LP-20-C02PP-01-001 is an excellent choice for power applications, as it is a highly reliable 2 pin male connector. Its durability and functionality are top-notch, capable of accommodating 14-12 AWG cable with a rating of 500V and 20A. You can be confident knowing that it will remain locked into its corresponding female cable plug, but will also be easy to release when necessary. The Cnlinko LP-20-C02PP-01-001 is a versatile connector that can be used for all kinds of applications, ranging from audio and visual equipment to medical devices, testing and measurement equipment, as well as industrial control. This connector is sure to provide a secure connection and meet your power needs. Invest in the Cnlinko LP-20-C02PP-01-001, and enjoy its high-quality performance!

$12.25

Available on backorder

Quantity Discount
Quantity Discount Discounted price
1 - 50 - $12.25
51 - 250 4% $11.76
251 - 500 8% $11.27
501 - 1000 12% $10.78
Bulk pricing will be applied to package:
