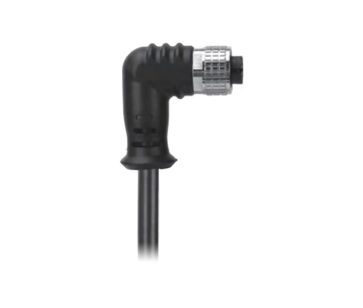

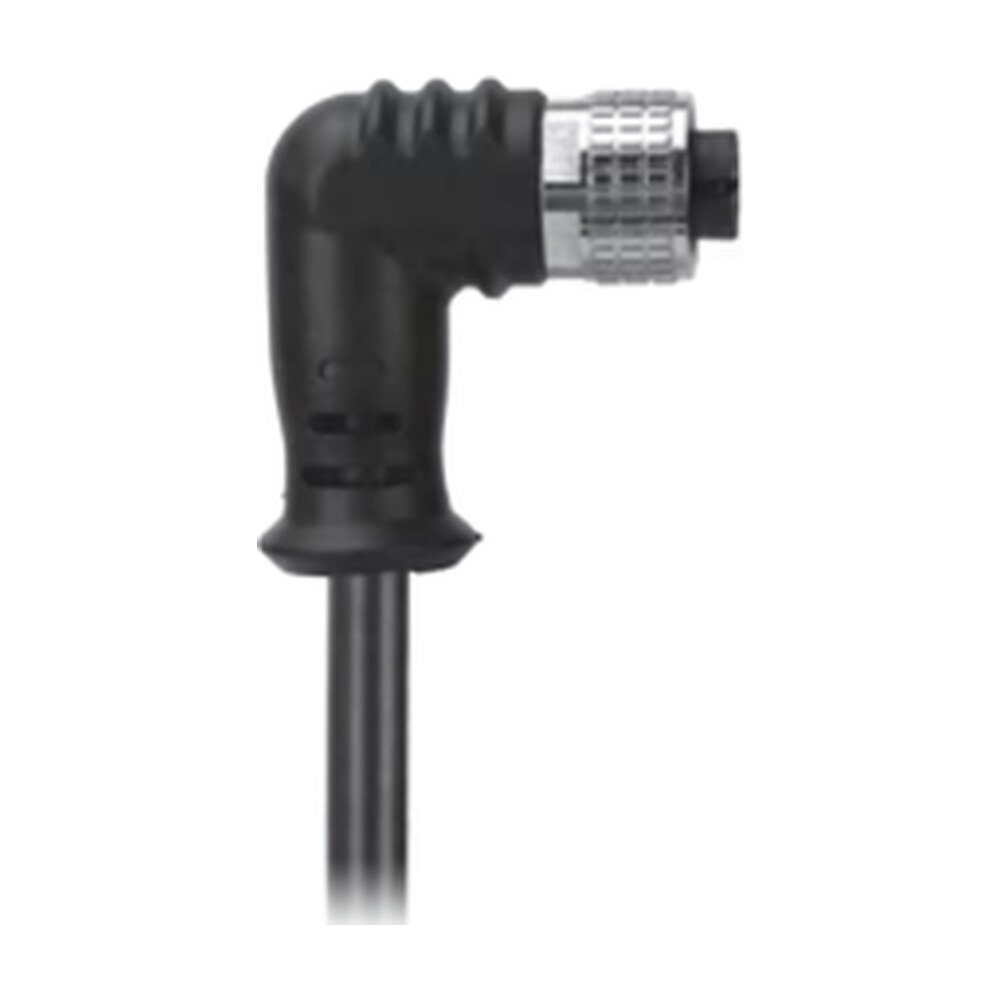

New M12 4 Pin Female Right Angle to Open End Cord set

Description

Introducing Micro-Ray’s MR-YL121003 4 Position A-Coded Female Right Angle to Unterminated Black Cable. This high-quality cord Set is available in an array of lengths, or can be custom ordered to your desired length. Contact Micro-Ray Sales for more information.

M12 4 Position A-Coded Female Right Angle to Unterminated Black Cable
4 Position A-Coded Female Right Angle to Unterminated Black Cord Set



Customize the pin configuration with available pins 3, 4, 5, 8, 12, 17 to suit your specific needs.

Upgrade your connectivity with this versatile and reliable cable solution. Order yours today!”

Feel free to customize or add more details as needed. Let me know if you need any further assistance!









Additional information

Please Choose PVC or PUR Jacket and Lengths.....

01.1 Meter, 02 Meter PUR, 2.5 Meter PUR, 05 Meter PUR, 06 Meter PUR, 7.5 Meter PUR, 10 Meter PUR, 15 Meter PUR, 20 Meter PUR, 25 Meter PUR

Reviews

There are no reviews yet.

Be the first to review “New M12 4 Pin Female Right Angle to Open End Cord set”

Your email address will not be published. Required fields are marked *

“Elevate your connectivity with MR-YL121003 A-Coded Female Right Angle to Unterminated Cable, 4 Pin . This premium cable features high-quality stranded conductors and undergoes rigorous 100% factory testing to ensure reliability.

Available in Female to Pigtail configurations, this cable is crafted with durable PUR or PVC jackets for long-lasting performance.

Designed for a range of applications, the A-Code classification makes it ideal for sensors, DC power supplies, and 1 Gbit Ethernet connections.

Experience enhanced performance and reliability with the trusted MR-YL121003 connector. Upgrade your setup with this top-notch cable solution today!”



Circular Connectors Features to Open End:
Series: M12 Connectors
Coded: A
Pin: 4Pin,
Gender: Female
Rated Current: 1.5-4A
Rated Voltage: 30-250V AC/DC
Waterproof Degree:  IP67/IP68
Shielding:  Optional
Type:
Molded Type: Right Angle
Panel Mount Type: With Solder Cup/PCB
Field Wireable: Solder Type

$14.00$43.50

Quantity Discount
Quantity Discount Discounted price
1 - 50 - -
51 - 250 4% -
251 - 500 8% -
501 - 1000 12% -
Bulk pricing will be applied to package:


M12 Circular Connector Parameter


Cores34581217
CodedAA A AAA
Pin for reference dvlmcf (3) dvlmcf (1)  dvlmcf (2)  dvlmcf (5) dvlmcf (7) dvlmcf (6)
Mounting typeStraight
Rated current4A4A4A4A4A2A1.5A1.5A
Rated voltage250V250V250V250V250V60V30V30V
Operating temperature -20℃ ~ +80℃
Durability>500 mating cycles
Waterproof ratingIP67/IP68
Connector insertPA+GF
Contact platingBrass with 3u gold plated
Connector ShellBrass with nickel plated
Contacts terminationOvermolded
CouplingThreaded Coupling
Cable diameterФ 3.5mm~Ф 9.0mm
Wire guage26AWG-18AWG
ShieldingNot Available
StandardIEC 61076-2-101
