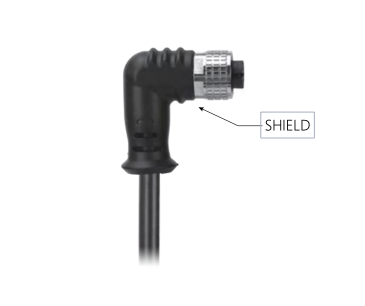

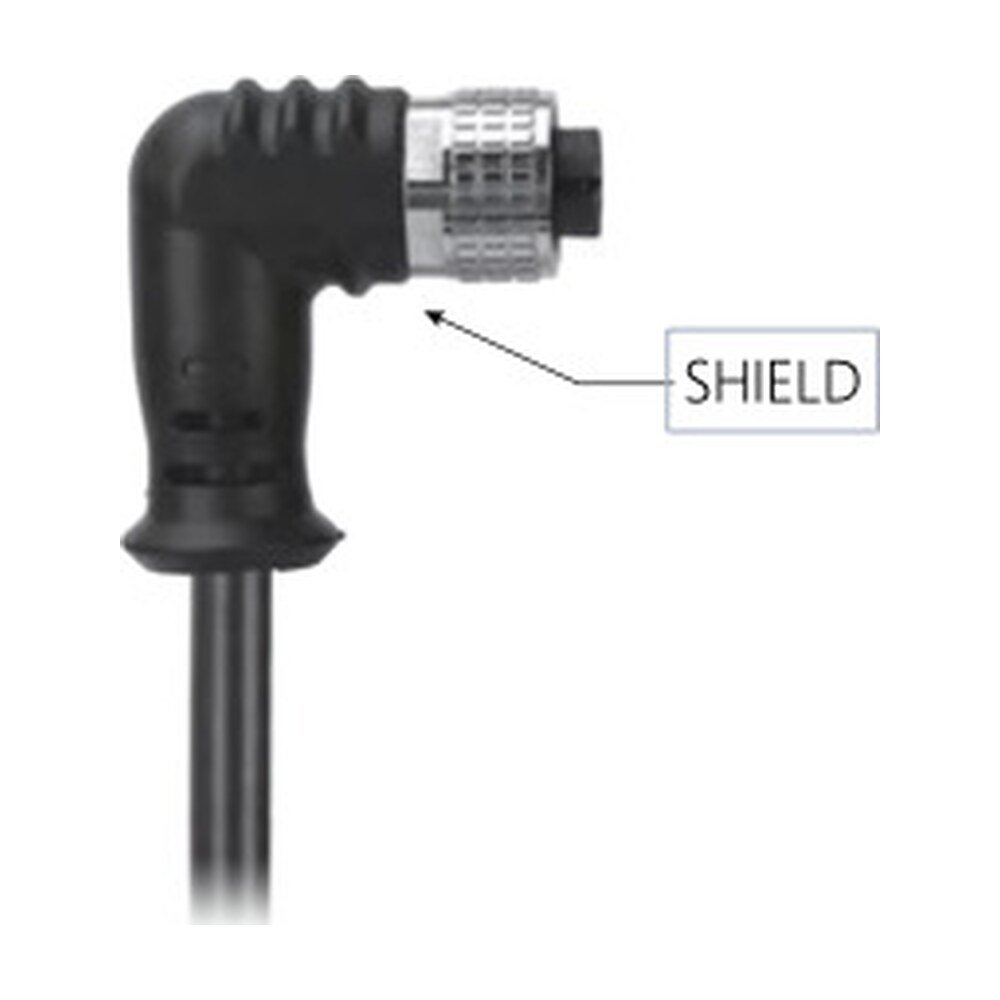

M12, A-Coded Female Right Angle Shielded to Unterminated Pigtail Cable Available Pins 3, 4, 5, 8, 12, 17, MR-YL121007, available in 1Meter, 3Meter, 5Meter or special order lengths available. Please contact Micro-Ray Sales for further information.
| Please Choose Number of Connector Pins Below.... | 3 Pins, 4 Pins, 5 Pins, 8 Pins, 12 Pins, 17 Pins |
|---|---|
| Please Choose PVC or PUR Jacket and Lengths..... | 01 Meter PVC, 03 Meter PVC, 05 Meter PVC |
Looking for a reliable M12 Cable Assembly for your sensor and Fieldbus applications? Try our MR-YL121007 cable, featuring premium stranded conductors and 100% factory testing. This Cable is Female to Pigtail configurations, made with PUR or PVC jackets.
Our cables are categorized by code:
A-Code: for sensors, DC power supplies, and 1 Gbit Ethernet.
Trust the MR-YL121007 connector for enhanced performance and reliability.
$18.50 – $22.50
| Quantity | Discount | Discounted price |
| 1 - 50 | - | - |
| 51 - 250 | 4% | - |
| 251 - 500 | 8% | - |
| 501 - 1000 | 12% | - |
| Cores | 3 | 4 | 5 | 8 | 12 | 17 | ||
| Coded | A | A | A | A | A | A | ||
| Pin for reference |  |  |  |  |  |  | ||
| Mounting type | Straight | |||||||
| Rated current | 4A | 4A | 4A | 4A | 4A | 2A | 1.5A | 1.5A |
| Rated voltage | 250V | 250V | 250V | 250V | 250V | 60V | 30V | 30V |
| Operating temperature | -20℃ ~ +80℃ | |||||||
| Durability | ＞500 mating cycles | |||||||
| Waterproof rating | IP67/IP68 | |||||||
| Connector insert | PA+GF | |||||||
| Contact plating | Brass with 3u gold plated | |||||||
| Connector Shell | Brass with nickel plated | |||||||
| Contacts termination | Overmolded | |||||||
| Coupling | Threaded Coupling | |||||||
| Cable diameter | Ф 3.5mm~Ф 9.0mm | |||||||
| Wire guage | 26AWG-18AWG | |||||||
| Shielding | Not Available | |||||||
| Standard | IEC 61076-2-101 | |||||||
