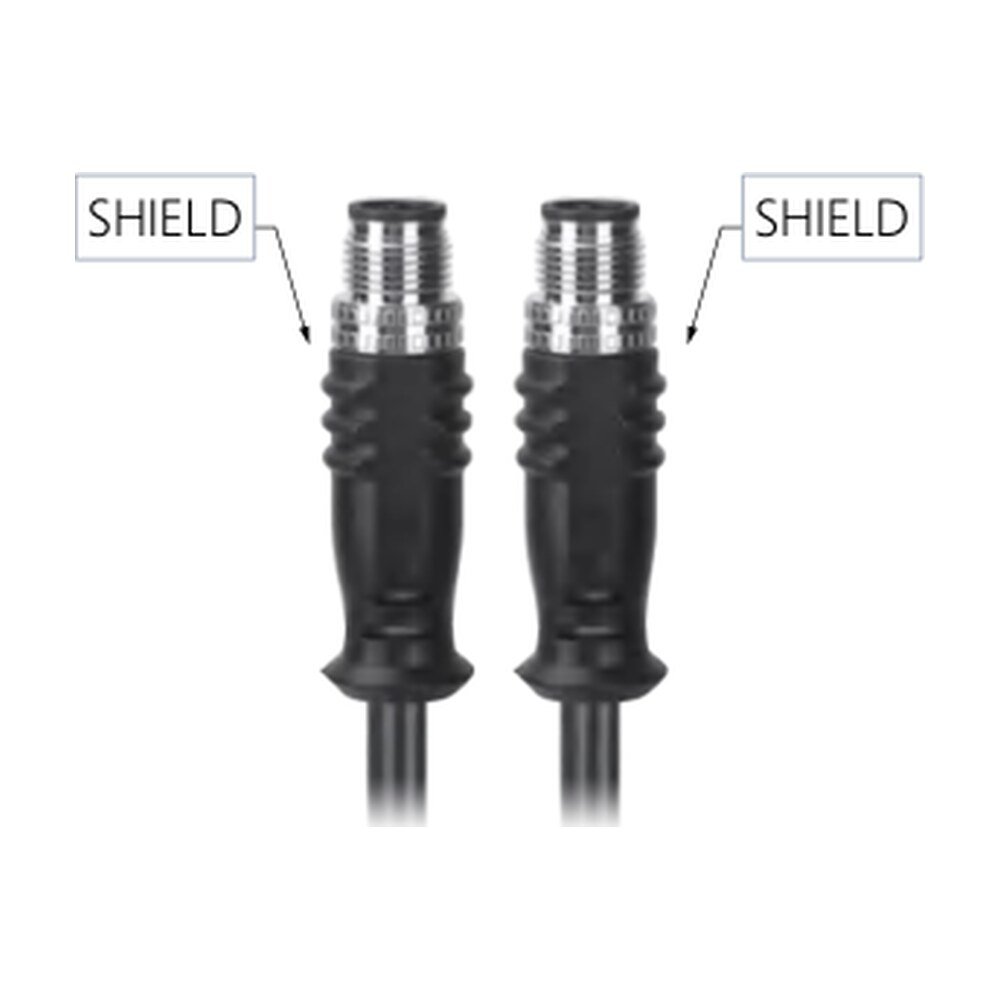

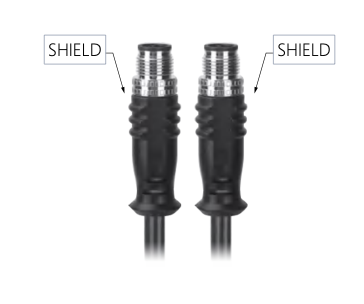

Introducing the M12 A-Coded High-Quality Female Straight Connector to Female Straight Connector Molded Shielded Cable. This versatile cable is available with pins in 3, 4, 5, 8, 12, and 17 configurations, with the model number MR-YL121077. Choose from standard lengths of 1 meter, 3 meters, and 5 meters, or contact Micro-Ray Sales for special order lengths.
For more information or to place an order, please reach out to Micro-Ray Sales.
| Please Choose Number of Connector Pins Below.... | 3 Pins, 4 Pins, 5 Pins, 8 Pins, 12 Pins, 17 Pins |
|---|---|
| Please Choose PVC or PUR Jacket and Lengths..... | 01 Meter PVC, 03 Meter PVC, 05 Meter PVC |
Discover the ultimate solution for your sensor and Fieldbus applications with our MR-YL121077 M12 Cable Assembly. This high-quality cable features premium stranded conductors and undergoes 100% factory testing to ensure reliability and performance.

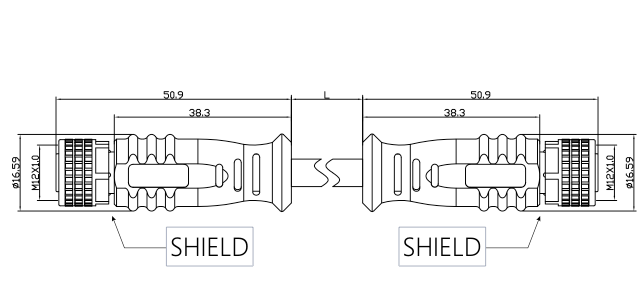

The MR-YL121077 cable is designed as a Female Socket to Female Socket configuration, molded and shielded, with the option to choose between PUR or PVC jackets for added durability.
Categorized under the A-Code classification, this cable is ideal for sensors, DC power supplies, and 1 Gbit Ethernet applications. Trust the MR-YL121077 connector to deliver enhanced performance and unmatched reliability for your critical operat
Our cables are categorized by code:
A-Code: for sensors, DC power supplies, and 1 Gbit Ethernet.
Trust the MR-YL121077 connector for enhanced performance and reliability.
$18.50 – $22.50
| Quantity | Discount | Discounted price |
| 1 - 50 | - | - |
| 51 - 250 | 4% | - |
| 251 - 500 | 8% | - |
| 501 - 1000 | 12% | - |
| Cores | 3 | 4 | 5 | 8 | 12 | 17 | ||
| Coded | A | A | A | A | A | A | ||
| Pin for reference |  |  |  |  |  |  | ||
| Mounting type | Straight | |||||||
| Rated current | 4A | 4A | 4A | 4A | 4A | 2A | 1.5A | 1.5A |
| Rated voltage | 250V | 250V | 250V | 250V | 250V | 60V | 30V | 30V |
| Operating temperature | -20℃ ~ +80℃ | |||||||
| Durability | ＞500 mating cycles | |||||||
| Waterproof rating | IP67/IP68 | |||||||
| Connector insert | PA+GF | |||||||
| Contact plating | Brass with 3u gold plated | |||||||
| Connector Shell | Brass with nickel plated | |||||||
| Contacts termination | Overmolded | |||||||
| Coupling | Threaded Coupling | |||||||
| Cable diameter | Ф 3.5mm~Ф 9.0mm | |||||||
| Wire guage | 26AWG-18AWG | |||||||
| Shielding | Not Available | |||||||
| Standard | IEC 61076-2-101 | |||||||
