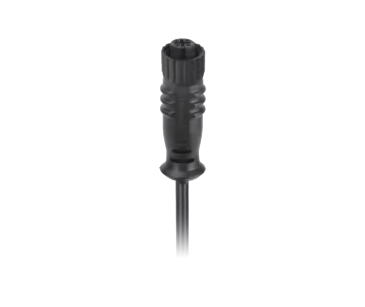

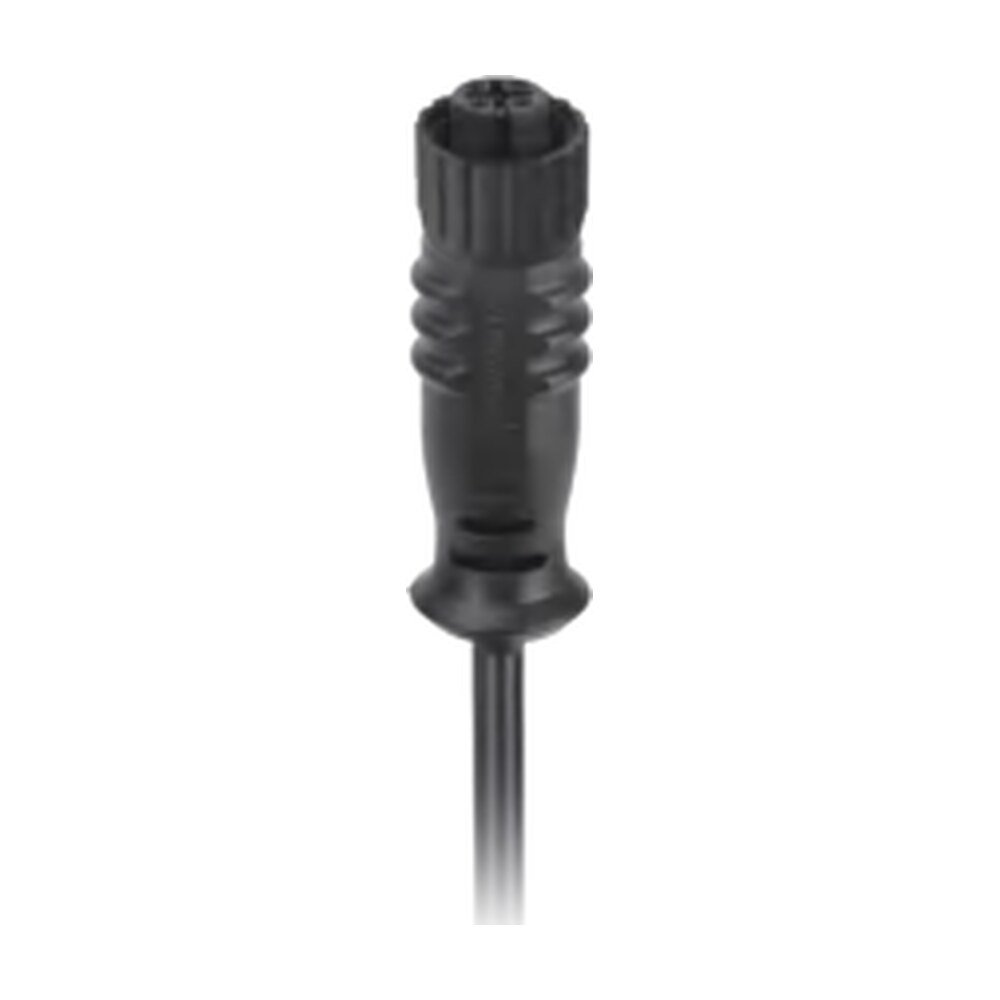

M12, Straight Plastic Female Connector, A-Coded to Unterminated Pigtail Cable, Available Pins 3, 4, 5, 8, 12, 17 MR-YL126000

Description

M12, Straight Plastic Female Connector, A-Coded to Unterminated Pigtail Cable, Available Pins 3, 4, 5, 8, 12, 17 MR-YL126000, available in 1Meter, 2Meter, 5 meter or special order lengths.  Please contact Micro-Ray Sales for further information.



MR-YL126000, optimized connectivity with Micro-Ray 3, 4, 5, 8, 12, 17 Position, Straight Female Connector A-coded, (A–Code: is used for sensors, DC power supplies and 1 Gbit Ethernet)

M12 cable assemblies, specially designed for reliable sensor and Fieldbus applications. These cables are built tough with durable PUR or PVC  jackets and premium 26AWG-18AWG stranded conductors, ensuring uninterrupted performance that is 100% factory tested. Available in versatile configurations such as Male to Male, Male to Female and Female to Pigtail, our cable assemblies are your go-to choice for seamless connectivity. Make your purchase online today and enjoy enhanced connectivity like never before.

Encoding Defination:
A–Code: is used for sensors, DC power supplies and 1 Gbit Ethernet

$14.50$18.50

Quantity Discount
Quantity Discount Discounted price
1 - 50 - -
51 - 250 4% -
251 - 500 8% -
501 - 1000 12% -

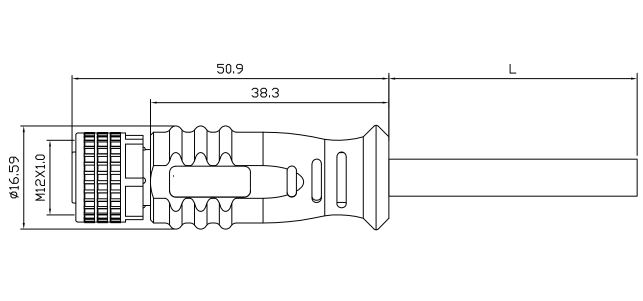

M12 Circular Connector Parameter


Cores34581217
CodedAA A AAA
Pin for reference dvlmcf (3) dvlmcf (1)  dvlmcf (2)  dvlmcf (5) dvlmcf (7) dvlmcf (6)
Mounting typeStraight
Rated current4A4A4A4A4A2A1.5A1.5A
Rated voltage250V250V250V250V250V60V30V30V
Operating temperature -20℃ ~ +80℃
Durability>500 mating cycles
Waterproof ratingIP67/IP68
Connector insertPA+GF
Contact platingBrass with 3u gold plated
Connector ShellBrass with nickel plated
Contacts terminationOvermolded
CouplingThreaded Coupling
Cable diameterФ 3.5mm~Ф 9.0mm
Wire guage26AWG-18AWG
ShieldingNot Available
StandardIEC 61076-2-101
