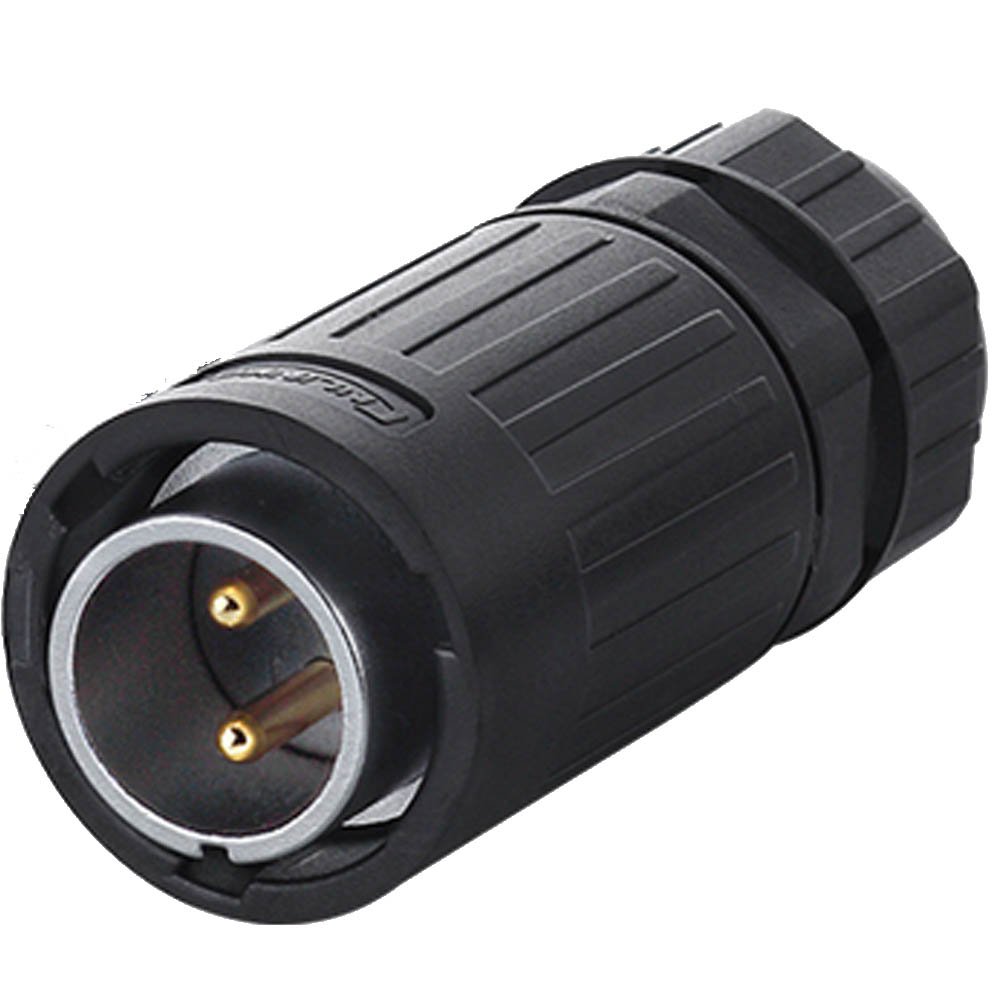

YA-20-C02PE-03-001, 2 pin male plug, pin plastic circular waterproof aviation plug connector
$10.45

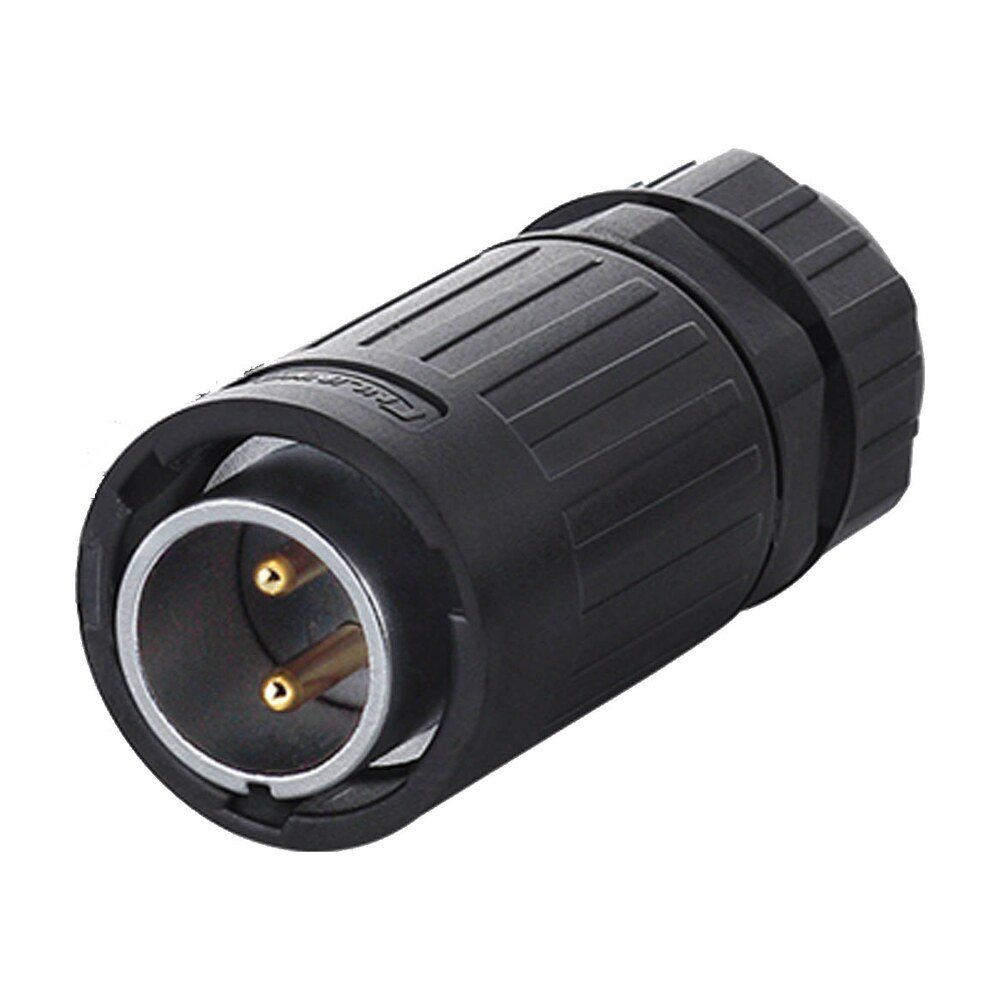

Cnlinko Locking Bayonet 2 Pin Plug YA-20-C02PE-01-001
The Cnlinko YA-20-C02PE-01-001 is a versatile 2 pin male cable plug designed for power applications. With the ability to accommodate 14-12 AWG cable and rated for 500V and 20A, this plug offers reliable and safe use. The twist lock bayonet design increases connection stability, making it an ideal choice for LED displays, audio equipment, stage equipment, and DMX lighting. Trust the Cnlinko YA-20-C02PE-01-001 for your power needs!
Available on backorder
Quantity Discount
| Quantity | Discount | Discounted price |
| 1 - 50 | - | $10.45 |
| 51 - 250 | 4% | $10.03 |
| 251 - 500 | 8% | $9.61 |
| 501 - 1000 | 12% | $9.20 |
Description
YA-20-C02PE-01-001
Old Part Number: YA-20-C02PE-03-001
2 pin male plug, pin plastic circular waterproof aviation plug connector
- Gold plated copper contacts
- PBT shell
- Skid resistant housing
- 1/4 bayonet connector
- Resistant to corrosion
- Waterproof rubber gasket in housing
Specifications
- Dimensions- 65mm x 26.8mm
- Number of Pins- 2
- Wire Gauge- 14-12 AWG
- Diameter Range- 8-12mm
- Contact Diameter- 2.7mm
- Rated Current- 20A
- Operating Voltage- 500V
- Contact Resistance- <1mOhm
- Withstanding Voltage- 2500V
- Insulation Resistance- > 500MOhm
- Ingress Protection- IP65/67
- Durability- > 500 times
- Operating Temperature- -40 C to 80 C (-40 F to 176 F)
- Housing Material- High Performance Plastic
- Hardware- Zinc Alloy
- Contact Material- Gold Plated Copper Alloy
- Flammability Rating- UL94-V0
- Approvals- CE, CCC, RoHS, ISO9001
