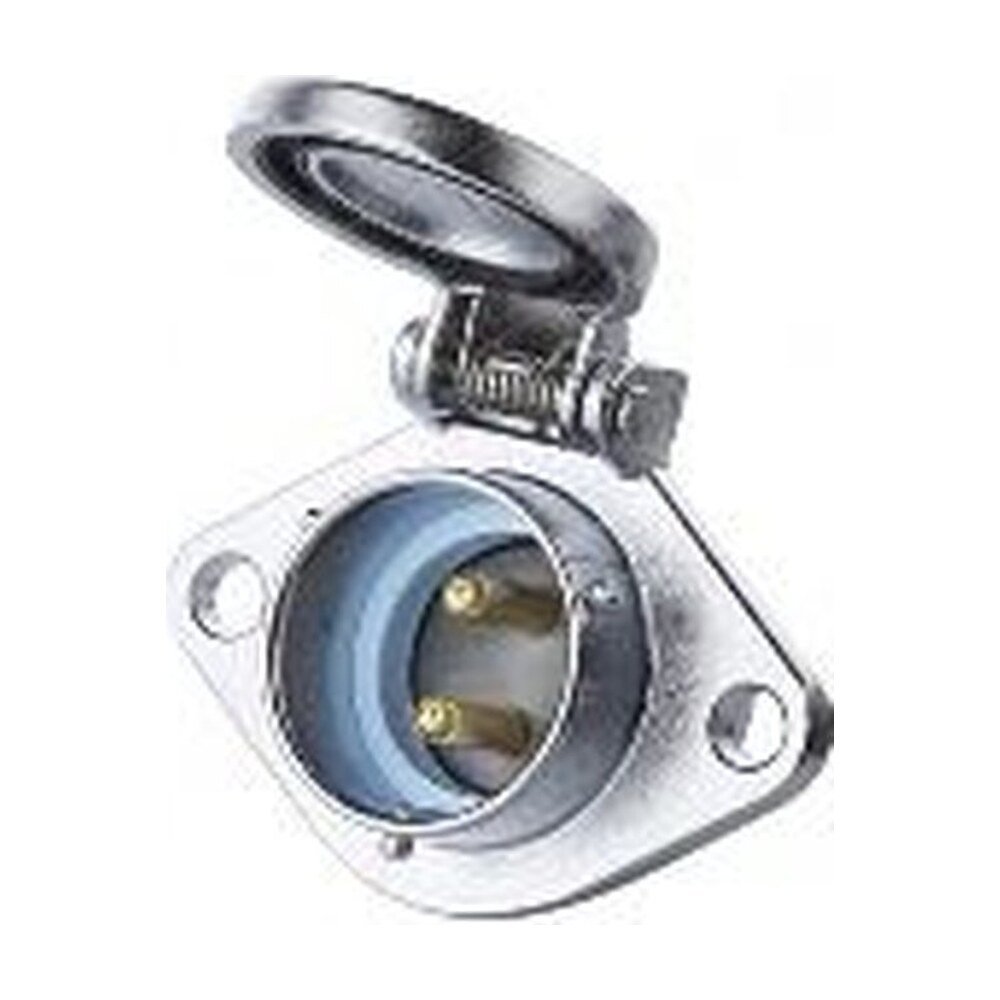

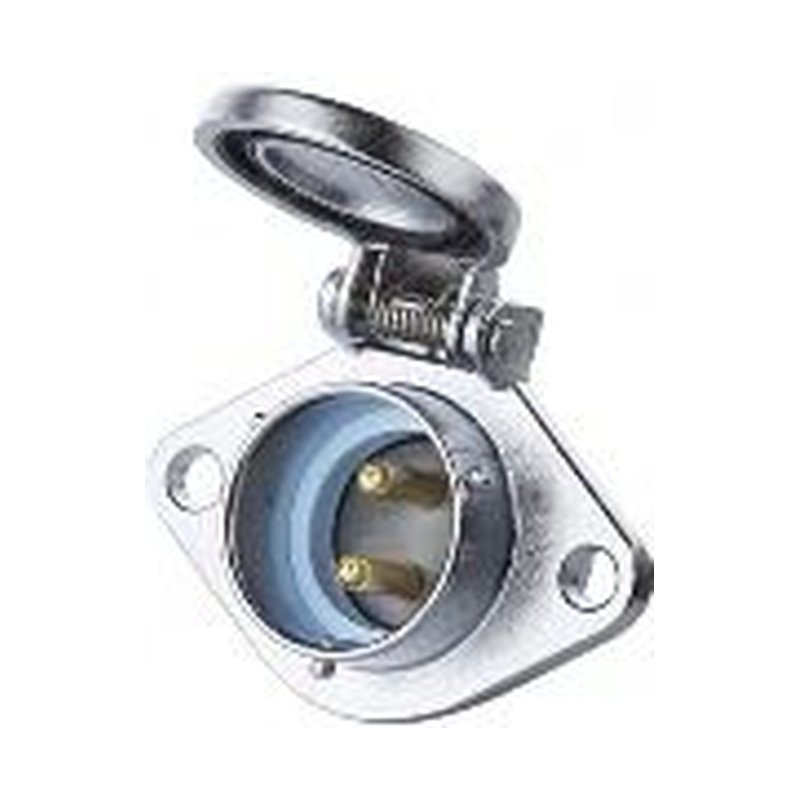

YA-20-C02SX-03-201, YA-20 Series 2 Pin Male Chassis Mount Connector
$9.40
YA-20-C02SX-03-201
Old part Number: YA-20-C02SX-01-001
2 Pin Male Chassis Mount Connector
The Cnlinko YA-20-C02SX-03-201 is a high-quality 2 pin male surface mount connector that can be used in a variety of power applications. This connector is capable of accommodating 14-12 AWG cable. With a rating of 500V and 20 A, it is perfect for a wide range of applications, including LED displays, audio & stage equipment, and DMX lighting. Don’t settle for subpar connectors when you can enjoy the exceptional performance of the Cnlinko YA-20-C02SX-03-201.
Available on backorder
Quantity Discount
| Quantity | Discount | Discounted price |
| 1 - 50 | - | $9.40 |
| 51 - 250 | 4% | $9.02 |
| 251 - 500 | 8% | $8.65 |
| 501 - 1000 | 12% | $8.27 |
Description
YA-20-C02SX-03-201, 2 pins male socket (3 holes)
- EMI and RFI protection
- Rated for water & dirt protection
- Waterproof gasket
- Corrosion resistant contacts
- Comes with metal flip-top cover
Specifications
- Dimensions- 44mm x 34.6mm x 30mm
- Number of Pins- 2
- Wire Gauge- 14-12 AWG
- Diameter Range- 8-12mm
- Contact Diameter- 2.7mm
- Rated Current- 20A
- Operating Voltage- 500V
- Contact Resistance- < 1mOhm
- Withstanding Voltage- 2500V
- Insulation Resistance- > 500MOhm
- Ingress Protection- IP65/67
- Durability- > 500 times
- Operating Temperature- -40 C to 80 C (-40 F to 176 F)
- Housing Material- Zinc Alloy
- Contact Material- Gold Plated Copper Alloy
- Flammability Rating- UL94-V0
- Approvals- CE, CCC, RoHS, ISO9001
