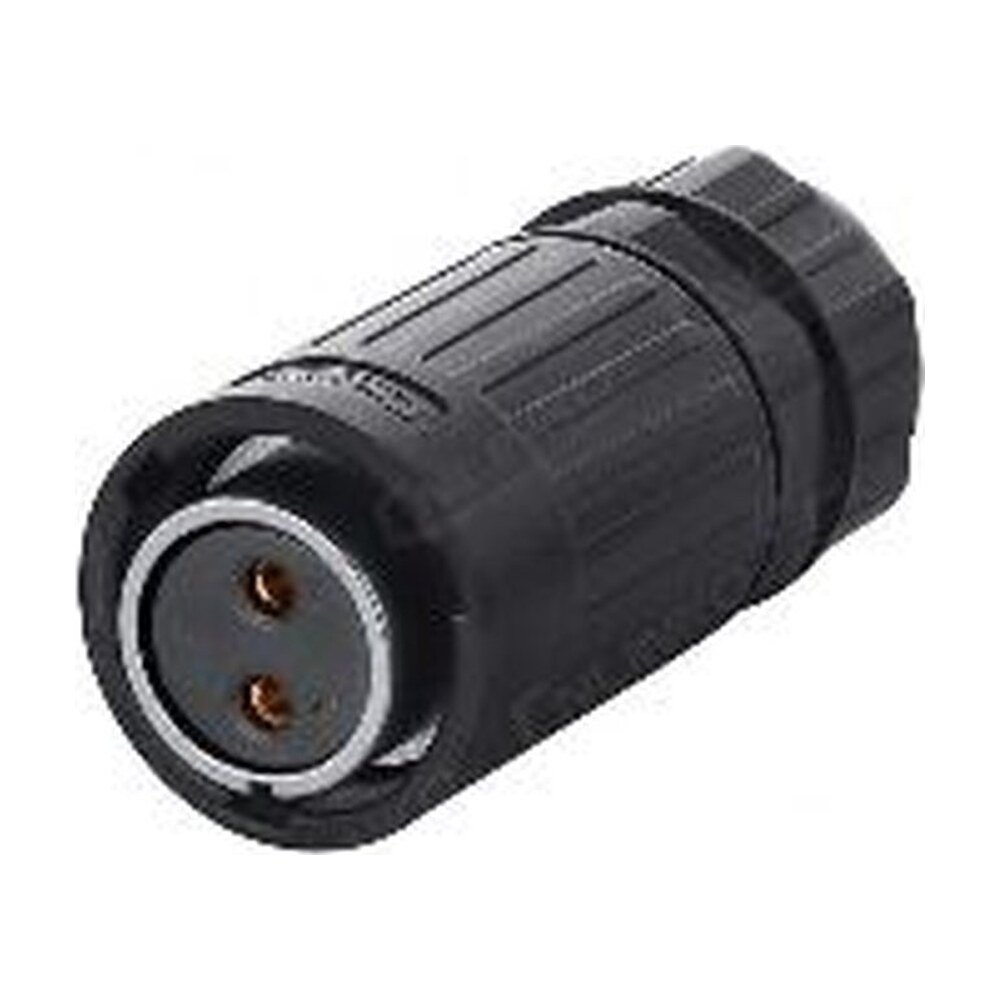

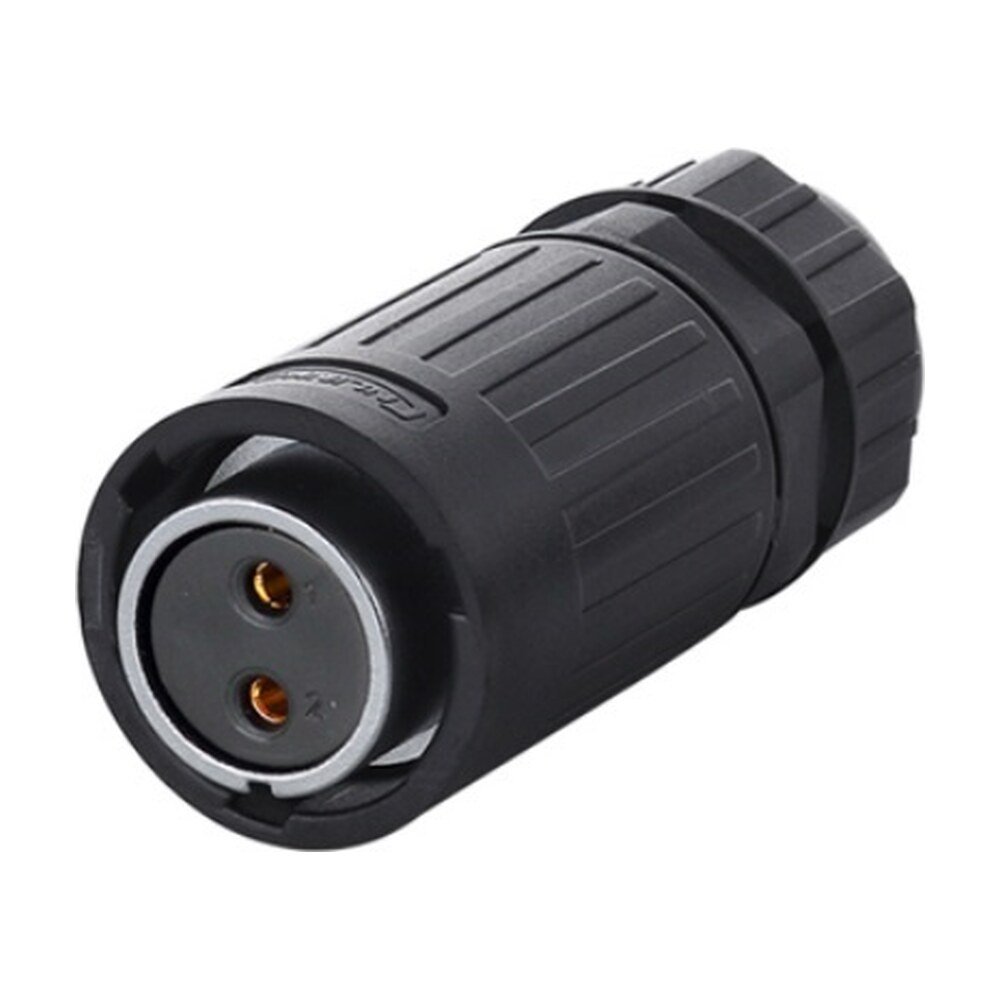

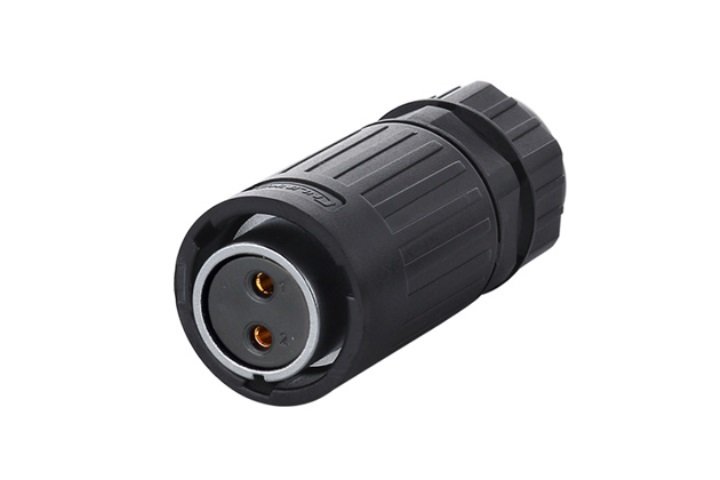

YA-20-J02PE-01-001, Twist Lock Bayonet 2 Pin Female Plug
$10.45
YA-20-J02PE-01-001
Old Part Number: YA-20-J02PE-03-001
Twist Lock Bayonet 2 Pin Female Plug .
The Cnlinko YA-20-J02SX-01-001 is a high-quality 2-pin female surface mount connector designed specifically for power applications. With improved cable accommodations for 14-12 AWG alongside an impressive 500V and 20 A rating, this connector is the perfect solution for LED displays, audio equipment, stage equipment and DMX lighting. On top of its functional capabilities, the sleek and modern design ensures that it will look great anywhere it’s installed.
Available on backorder
Quantity Discount
| Quantity | Discount | Discounted price |
| 1 - 50 | - | $10.45 |
| 51 - 250 | 4% | $10.03 |
| 251 - 500 | 8% | $9.61 |
| 501 - 1000 | 12% | $9.20 |
Description
- Gold plated copper contacts
- PBT shell
- Skid resistant housing
- 1/4 bayonet connector
- Resistant to corrosion
- Waterproof rubber gasket in housing
Specifications

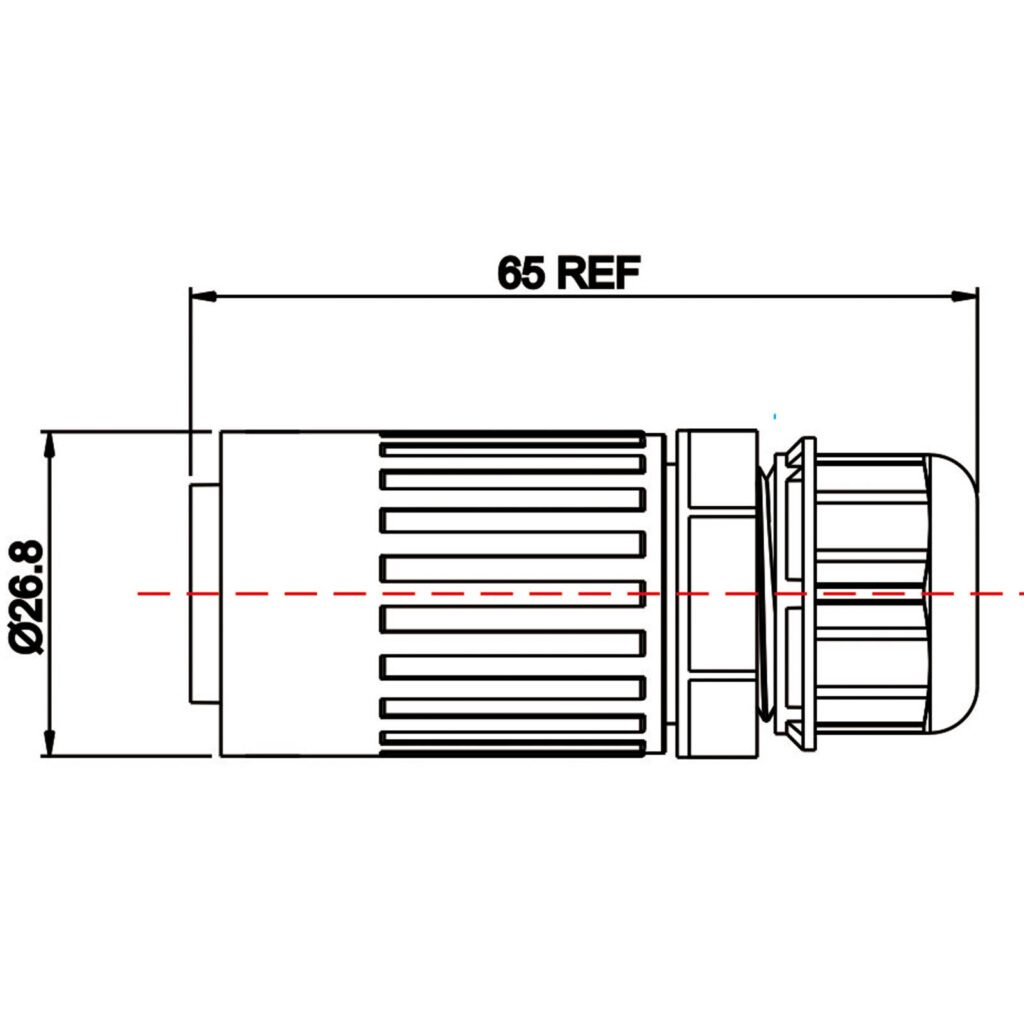

- Dimensions- 65mm x 26.8mm
- Number of Pins- 2
- Wire Gauge- 14-12 AWG
- Diameter Range- 8-12mm
- Contact Diameter- 2.7mm
- Rated Current- 20A
- Operating Voltage- 500V
- Contact Resistance- <1mOhm
- Withstanding Voltage- 2500V
- Insulation Resistance- > 500MOhm
- Ingress Protection- IP65/67
- Durability- > 500 times
- Operating Temperature- -40 C to 80 C (-40 F to 176 F)
- Housing Material- High Performance Plastic
- Hardware- Zinc Alloy
- Contact Material- Gold Plated Copper Alloy
- Flammability Rating- UL94-V0
- Approvals- CE, CCC, RoHS, ISO9001
