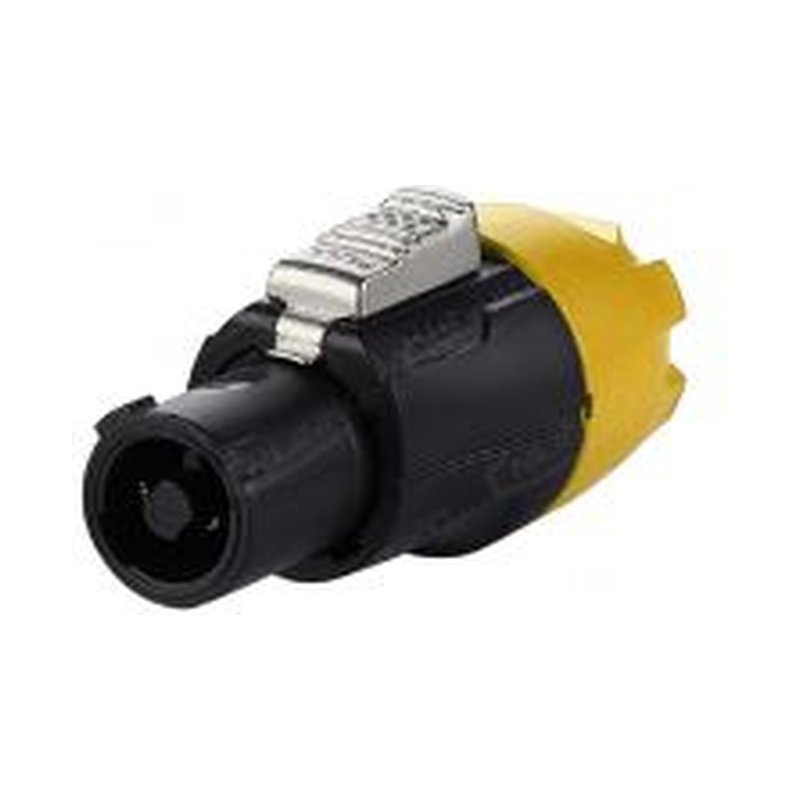

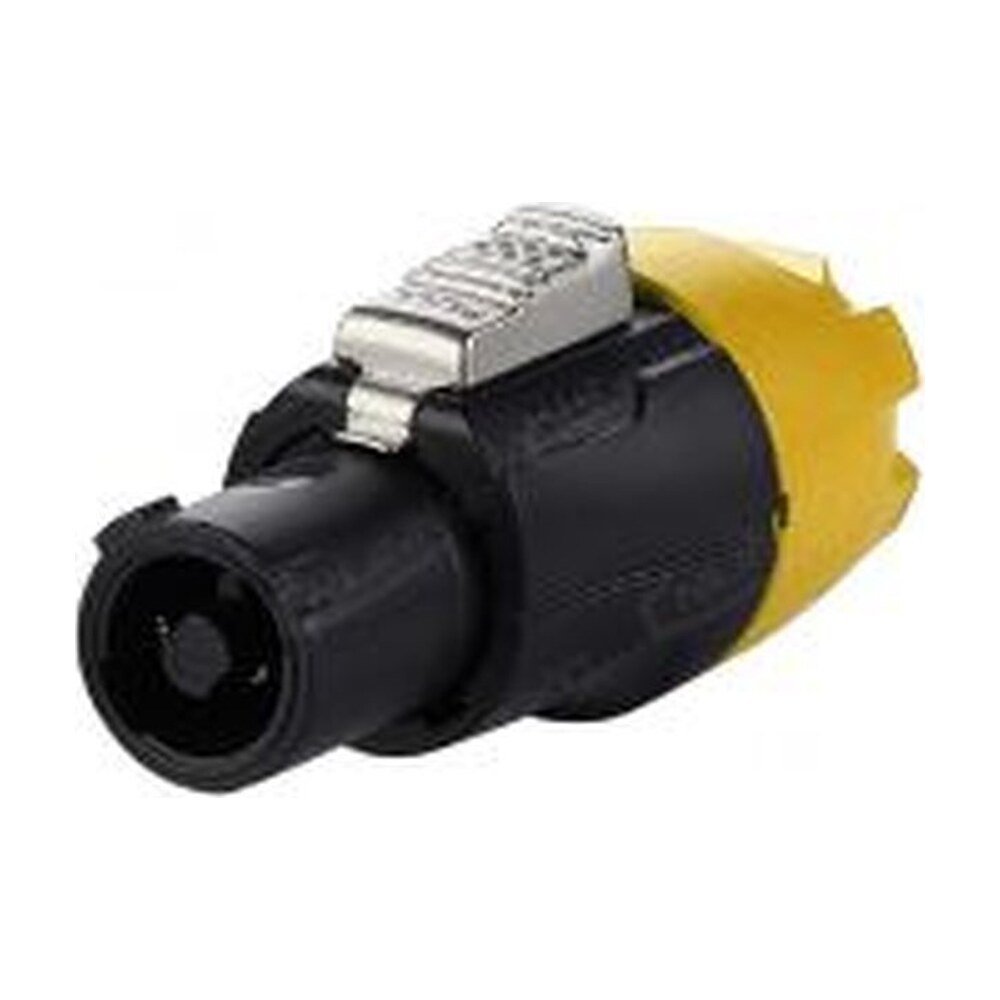

YF-24-C03PE-02-002, cable connector IP65 / 67, 3-pin

YF-24-C03PE-02-002

Old Part Number: YF-24-C03PE-04-001

CnLinko YF-24-C03PE-02-002 is a top-quality locking cable connector with superior IP65 / 67 protection, making it a truly reliable connection for all kinds of devices. With a 3-pin configuration that accommodates high current capacity up to 20A / 250VAC, and a rating of 20A  The YF-24 connectors are designed with a unique connection system that is easy to operate and maintain. The input / output connectors are color-coded to ensure that users can connect them accurately and safely, making them an ideal choice for use in audio-video equipment and power systems across a range of applications.

Materials:

  • Assembling wire: solder and locking screw
  • Housing, insulation parts: High-performance engineering plastic
  • Contact pin: Copper alloy(gold-plated)
  • Hardware: Zinc alloy (pearl hard chrome)
  • Waterproof circuit: Silicon gel
  • Certificates: ISO9001 / CE / ROHS / UL / CUL / TUV

Description

Technical characteristics:

  • Contact tip: plug
  • Type: Powercon connector
  • For connecting part with: YF-24-J03SX-02-002- panel contact / socket
  • Number of pins: 3 pcs
  • Connection mode: Lock
  • Cable specification: 2.5mm²≈ 4mm² / 12-14AWG
  • Contact resistance: <3mΩ
  • Contact diameter × number: Ф2.0 × 3
  • Diameter range: Ф8.00-12mm
  • M / F plug / socket: MALE plug
  • Rated current: 20A
  • Operating voltage (AC.V.rms): 500V
  • Insulation resistance:> 500MΩ
  • Durability: > 500 times
  • Dialectric endurance voltage test (AC.V) 1 minute: 2500V
  • Operating temperature: -40 ° C ～ 80 ° C
  • Temperature rise: 20A contact temperature below 30 ° C, 25A below 40 ° C, 30A below 50 ° C
  • Degree of protection: IP65/67
  • Flammability rating: UL94-V0







Reviews

There are no reviews yet.

Be the first to review “YF-24-C03PE-02-002, cable connector IP65 / 67, 3-pin”

Your email address will not be published. Required fields are marked *

SKU YF-24-C03PE-02-002 Category

YF-24-C03PE-02-002

Old Part Number: YF-24-C03PE-04-001

CnLinko YF-24-C03PE-02-002 is a top-quality locking cable connector with superior IP65 / 67 protection, making it a truly reliable connection for all kinds of devices. With a 3-pin configuration that accommodates high current capacity up to 20A / 250VAC, and a rating of 20A  The YF-24 connectors are designed with a unique connection system that is easy to operate and maintain. The input / output connectors are color-coded to ensure that users can connect them accurately and safely, making them an ideal choice for use in audio-video equipment and power systems across a range of applications.

Materials:

  • Assembling wire: solder and locking screw
  • Housing, insulation parts: High-performance engineering plastic
  • Contact pin: Copper alloy(gold-plated)
  • Hardware: Zinc alloy (pearl hard chrome)
  • Waterproof circuit: Silicon gel
  • Certificates: ISO9001 / CE / ROHS / UL / CUL / TUV

$9.72

2 in stock (can be backordered)

Quantity Discount
Quantity Discount Discounted price
1 - 50 - $9.72
51 - 250 4% $9.33
251 - 500 8% $8.94
501 - 1000 12% $8.55
Bulk pricing will be applied to package:
