Old Part Number: DH-20-J02PE-01-001

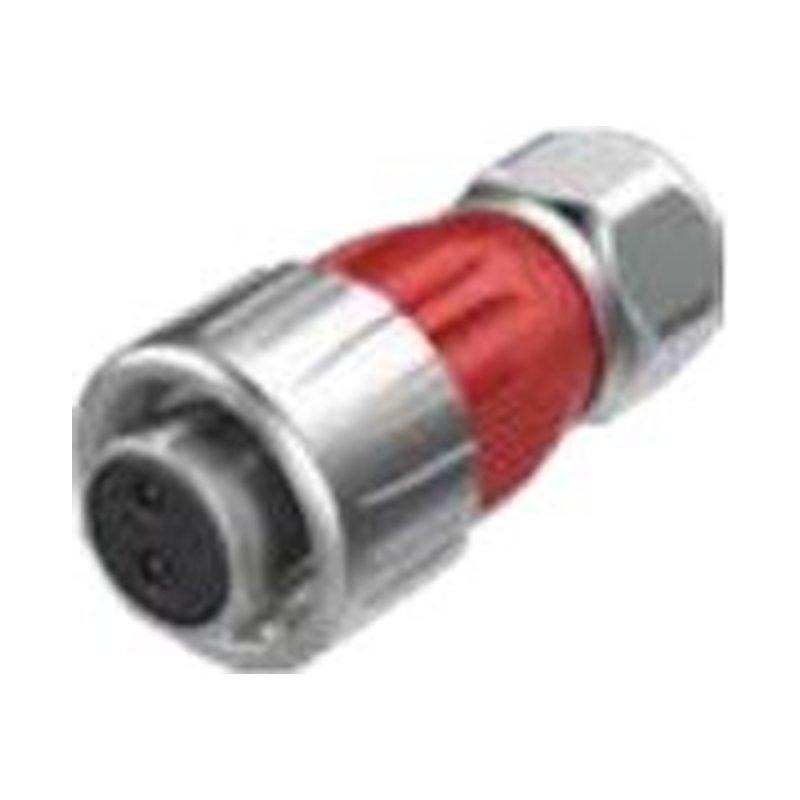

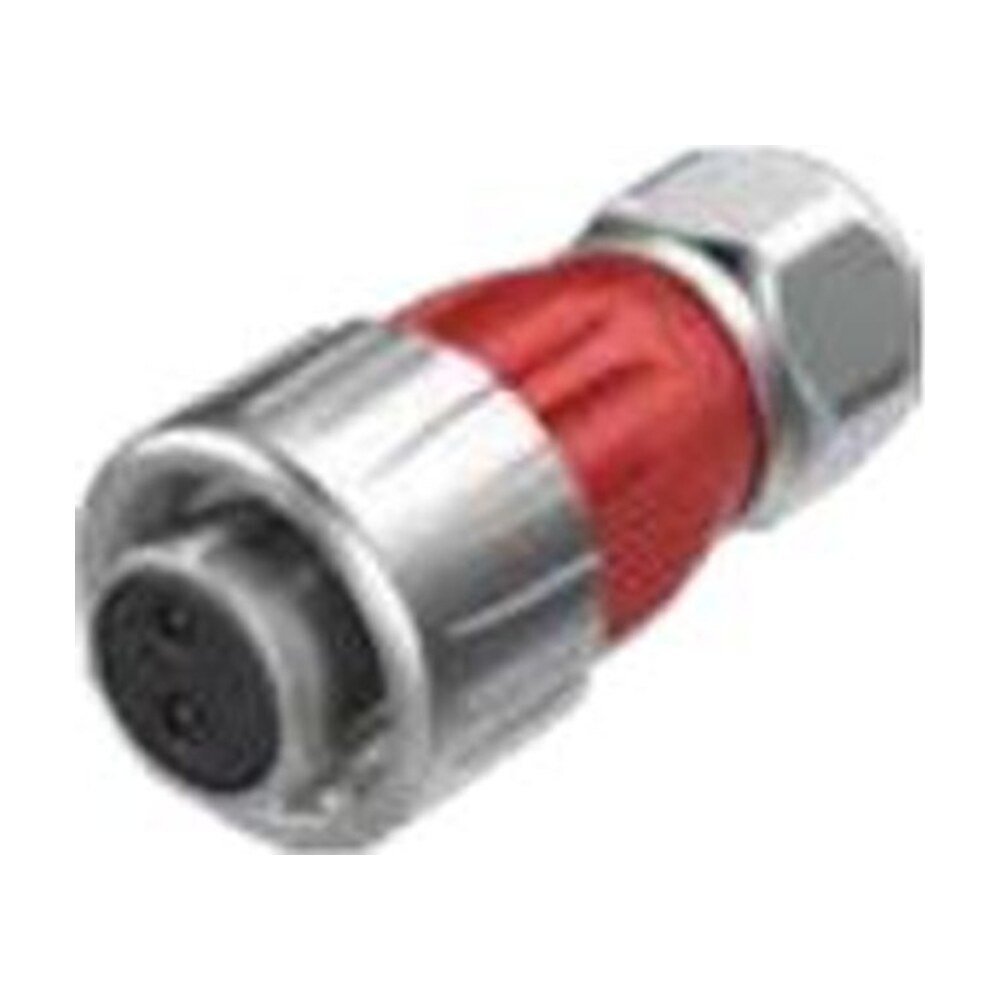

The Cnlinko DH-20-J02PE-03-001 is a high-quality 2 pin female cable plug specially designed for power applications. This versatile cable plug is capable of accommodating cables ranging from 14-12 AWG and boasts a remarkable rating of 500V and 20 A. What’s more, it features a user-friendly screw type locking system that ensures a secure and stable connection. Its outstanding features make it the perfect solution for a wide range of applications such as LED displays, stage lighting equipment, and many more. Additionally, it’s worth mentioning that this product goes by another name, namely DH-20-J02PE-01-001. Therefore, if you’re looking for a reliable and top-performing cable plug for your power applications, the Cnlinko DH-20-J02PE-03-001, also known as the DH-20-J02PE-01-001, is definitely an excellent choice to consider.



Old Part Number:   DH-20-J02PE-01-001

  • Metal alloy housing
  • Easy to grip shell
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Categorized by red housing color for power applications
  • Waterproof gasket in housing


  • Dimensions- 62.5 mm Length x 29.2 mm Diameter (2.46″ x 1.15″)
  • Number of Pins- 2
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 2.7mm
  • Rated Current- 20A
  • Operating Voltage- 500V
  • Contact Resistance- <1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001
  • Wiring Mode- Soldering
