DH-24-C03PE-03-001, DH-24 Series 3 Pin Male Cable Plug

3 pin male cable plug for power applications, including LED displays, industrial equipment, and stage lighting. Able to accommodate 14-12 AWG cable, it is rated for 500 Volts and 25A

DH-24-C03PE-03-001

Old Part Number: DH-24-C03PE-01-001

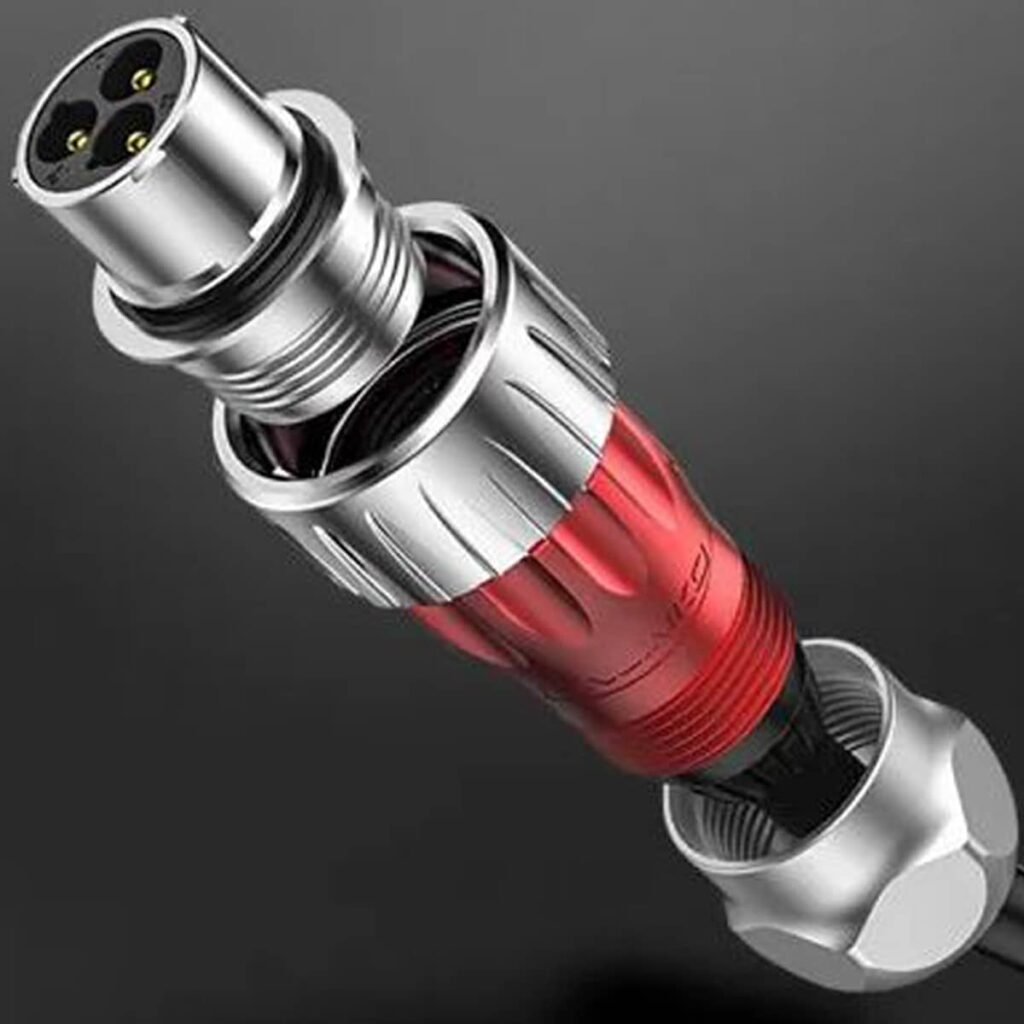

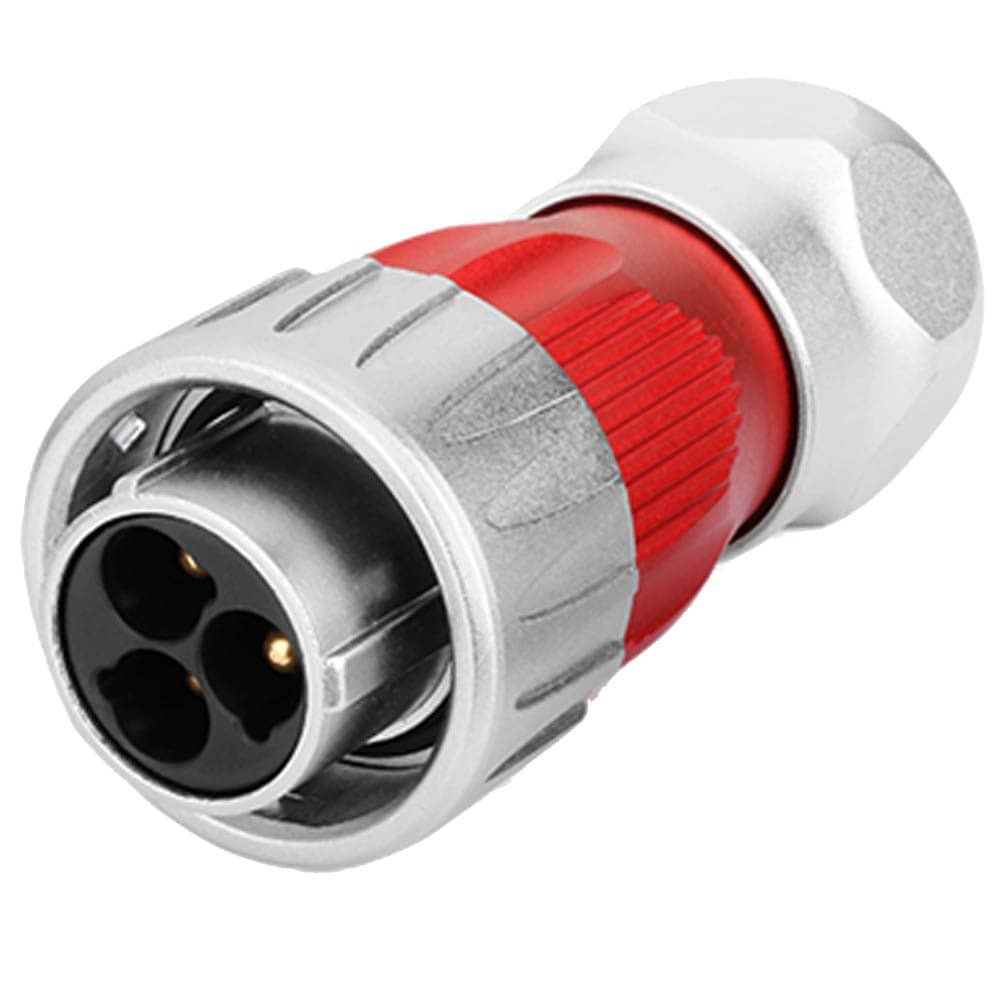

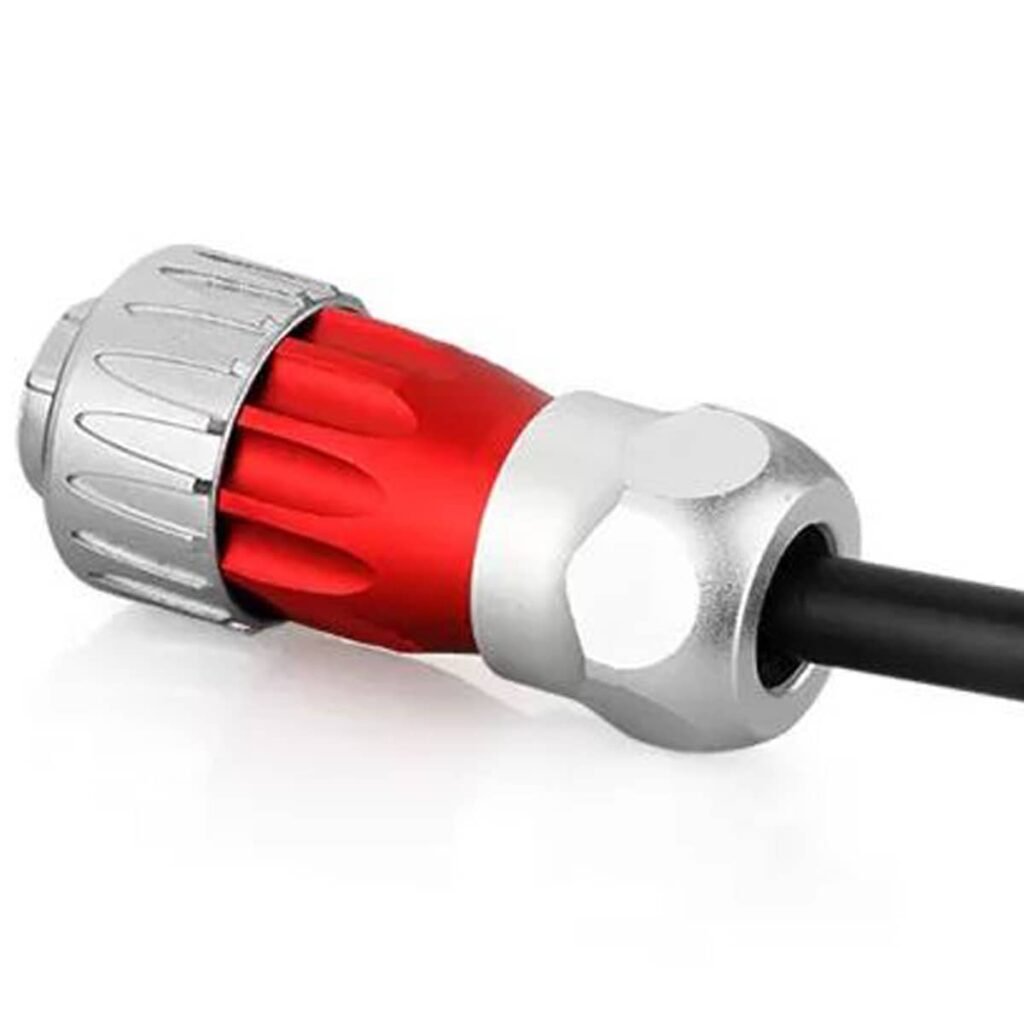

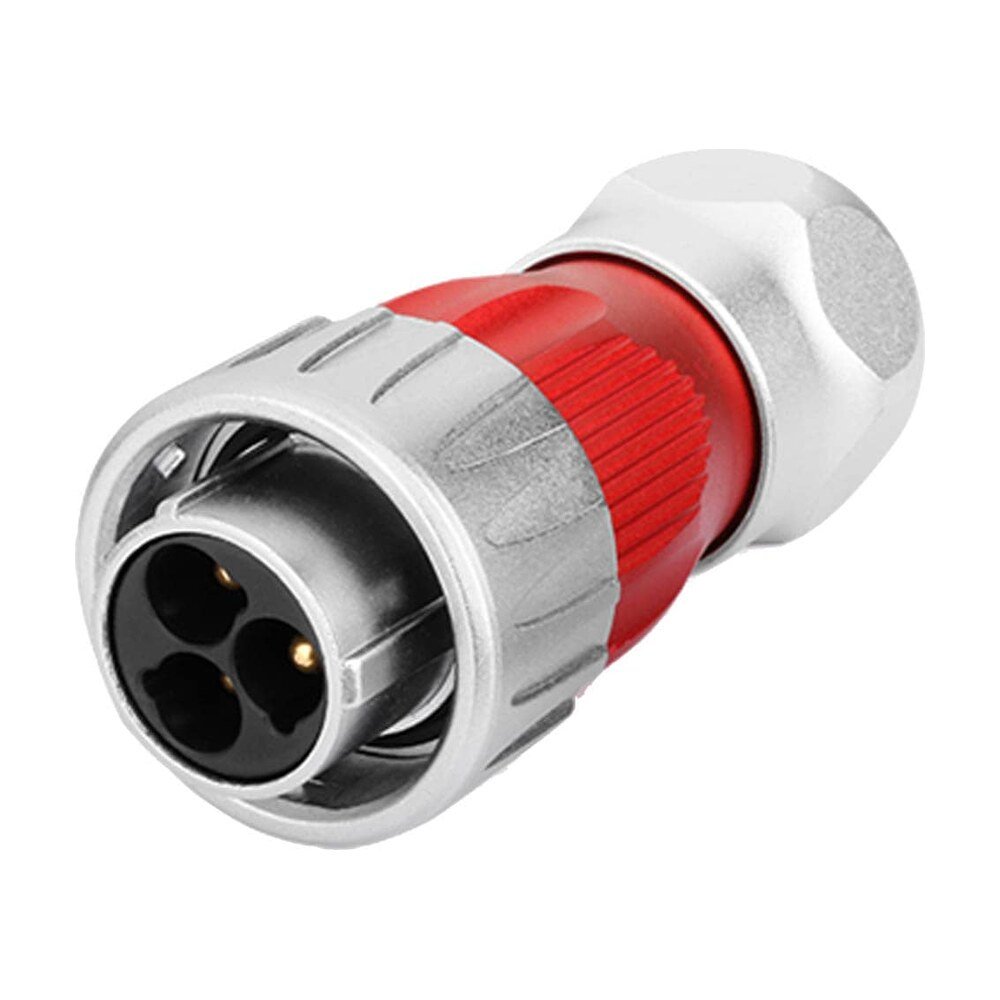

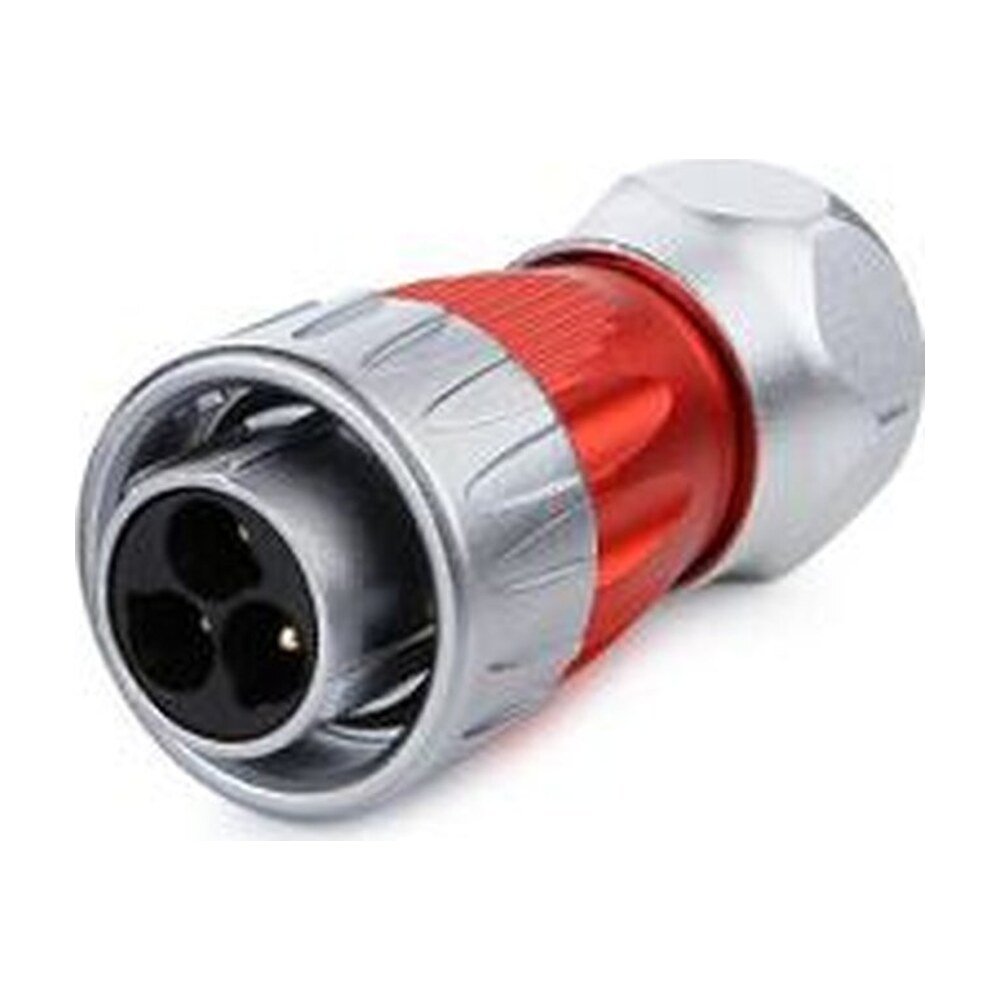

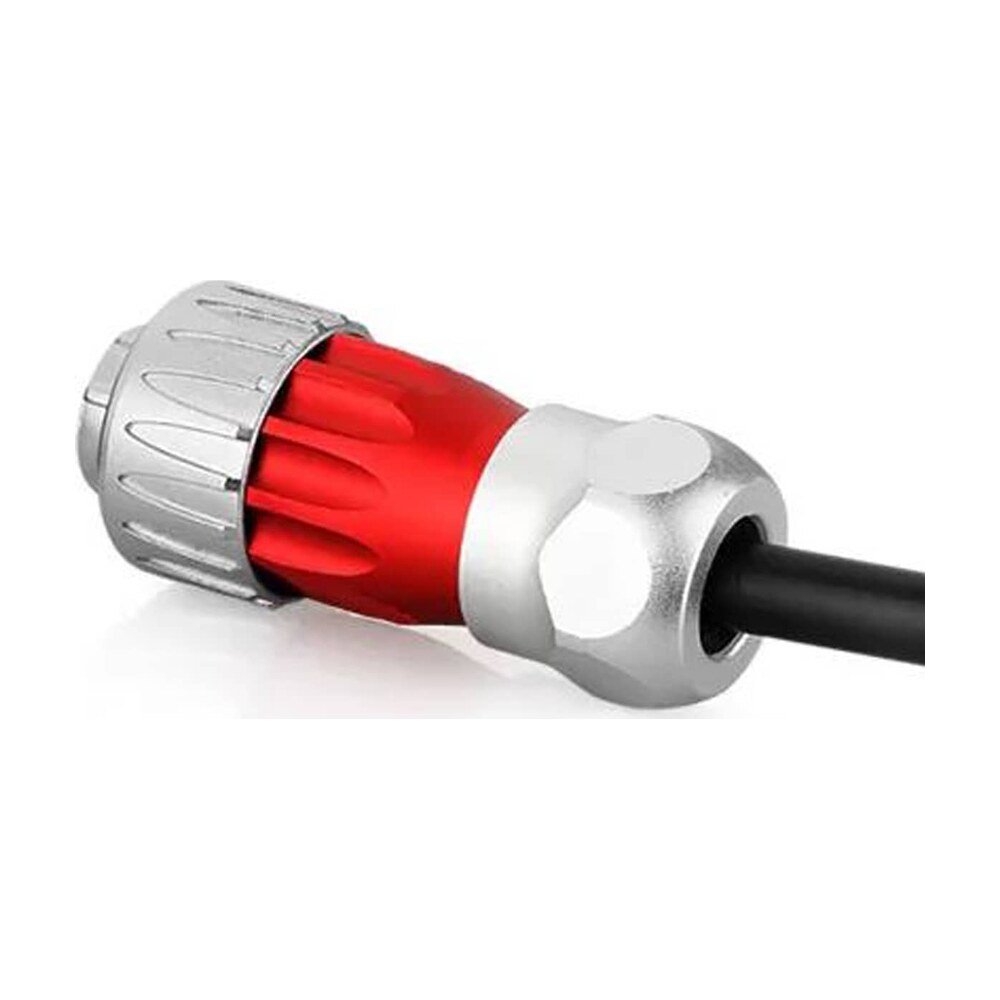

The Cnlinko DH-24-C03PE-03-001 is a durable, reliable 3 pin male cable plug specifically designed for power applications, including LED displays, industrial equipment, and stage lighting. Able to accommodate 14-12 AWG cable, it is rated for 500V and 25 A, making it a versatile choice for a variety of applications. And with its secure screw type locking system, you can trust the Cnlinko DH-24-C03PE-03-001 to stay firmly in place, even in demanding environments.

Description

Cnlinko 500V Metal 3 Pin Male Power Connector DH-24-C03PE-03-001

  • Metal alloy housing
  • Easy to grip
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Categorized by red color for power applications
  • Waterproof gasket in housing

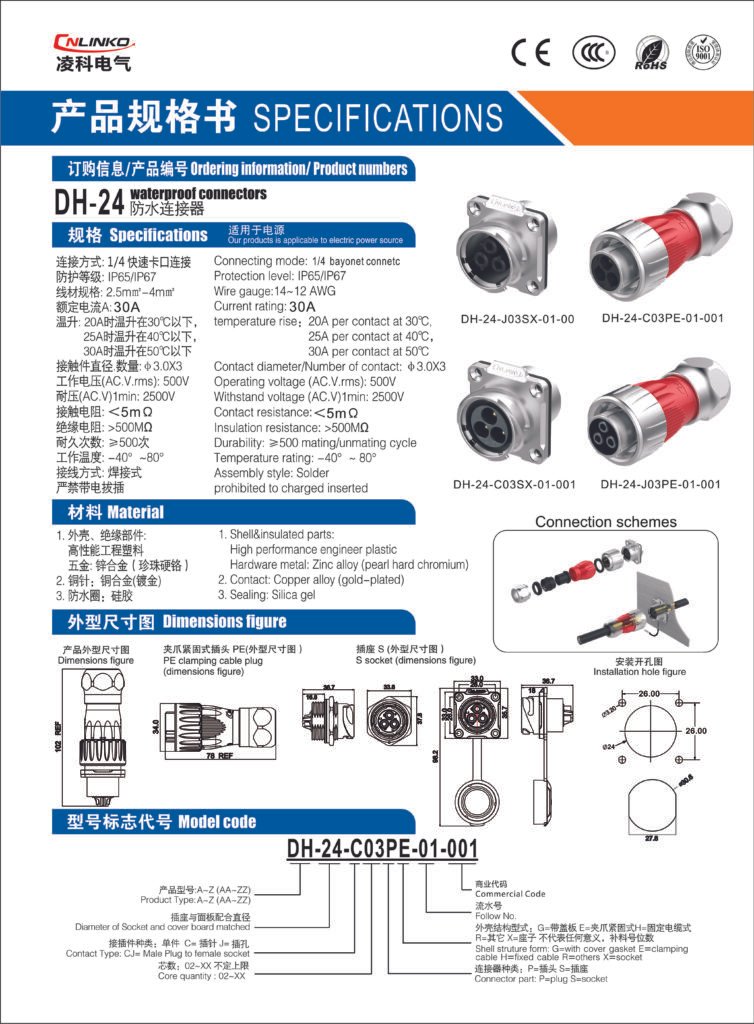

Specifications

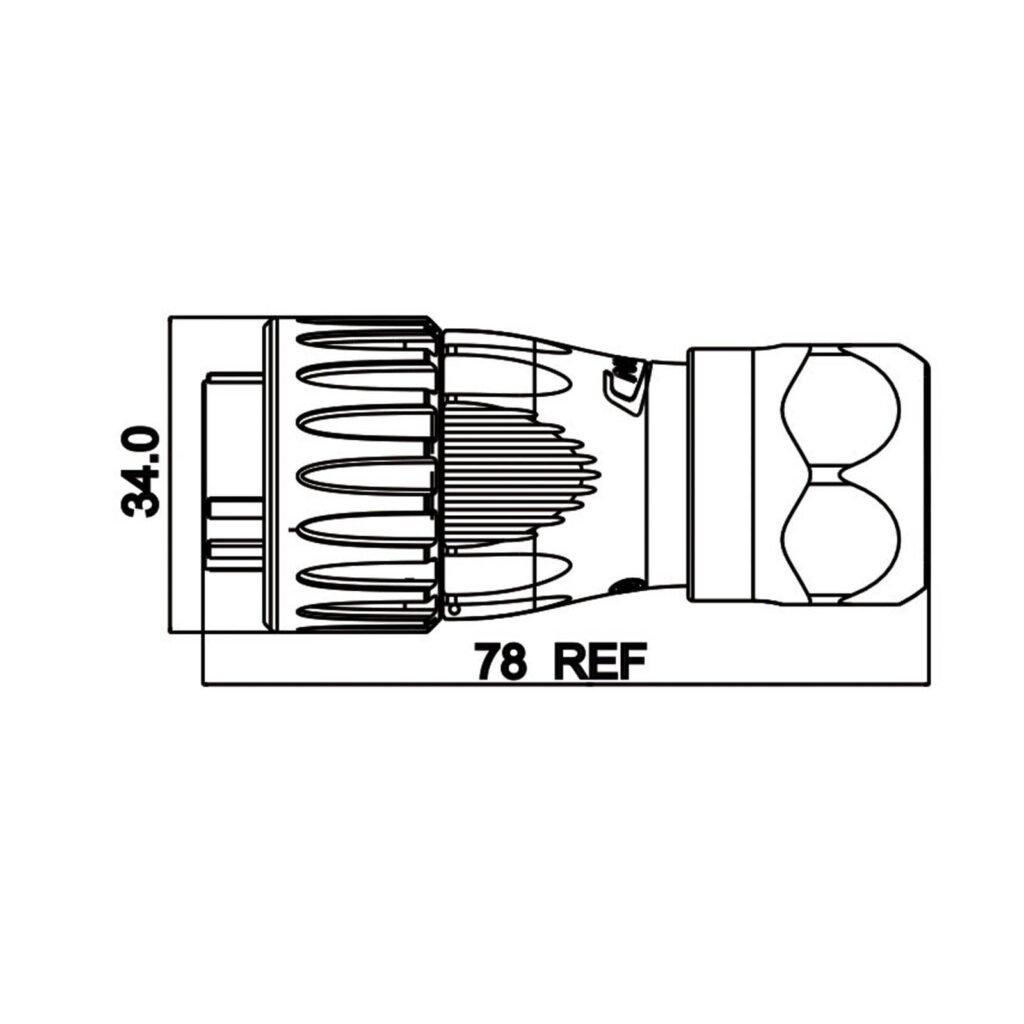

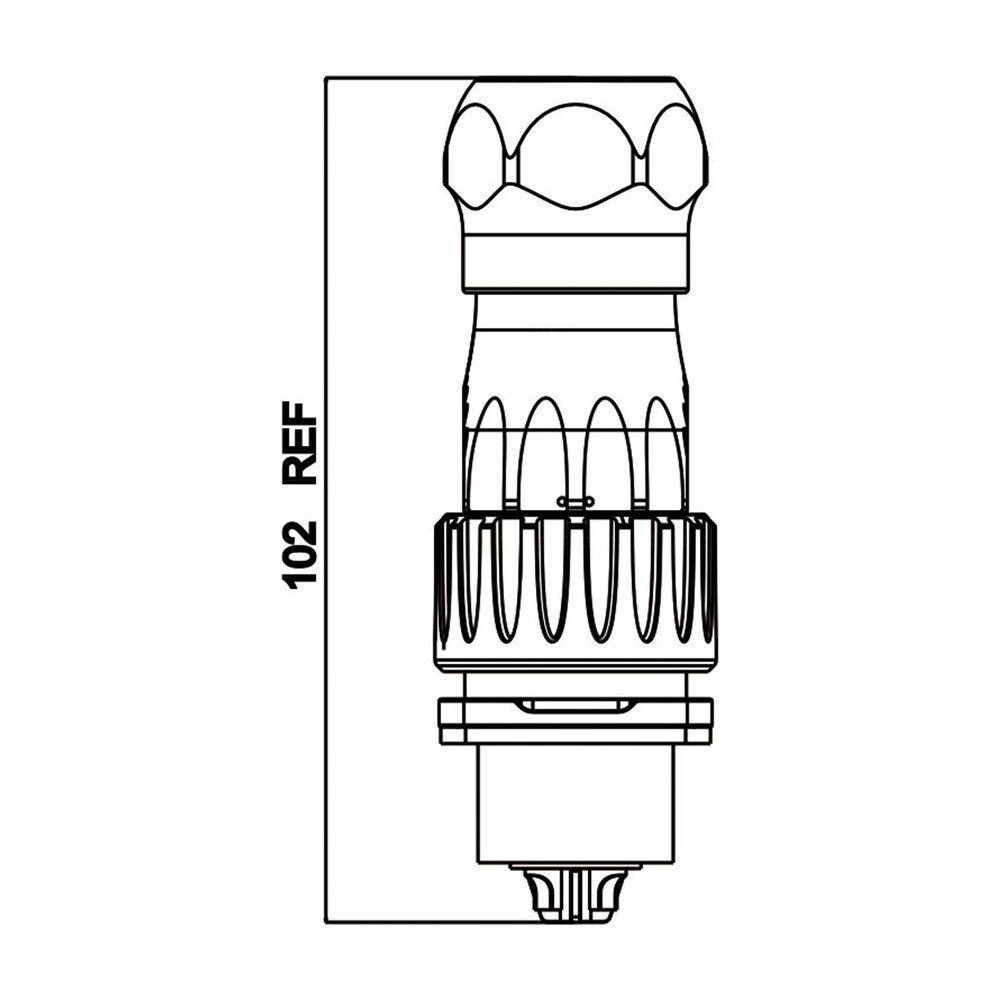

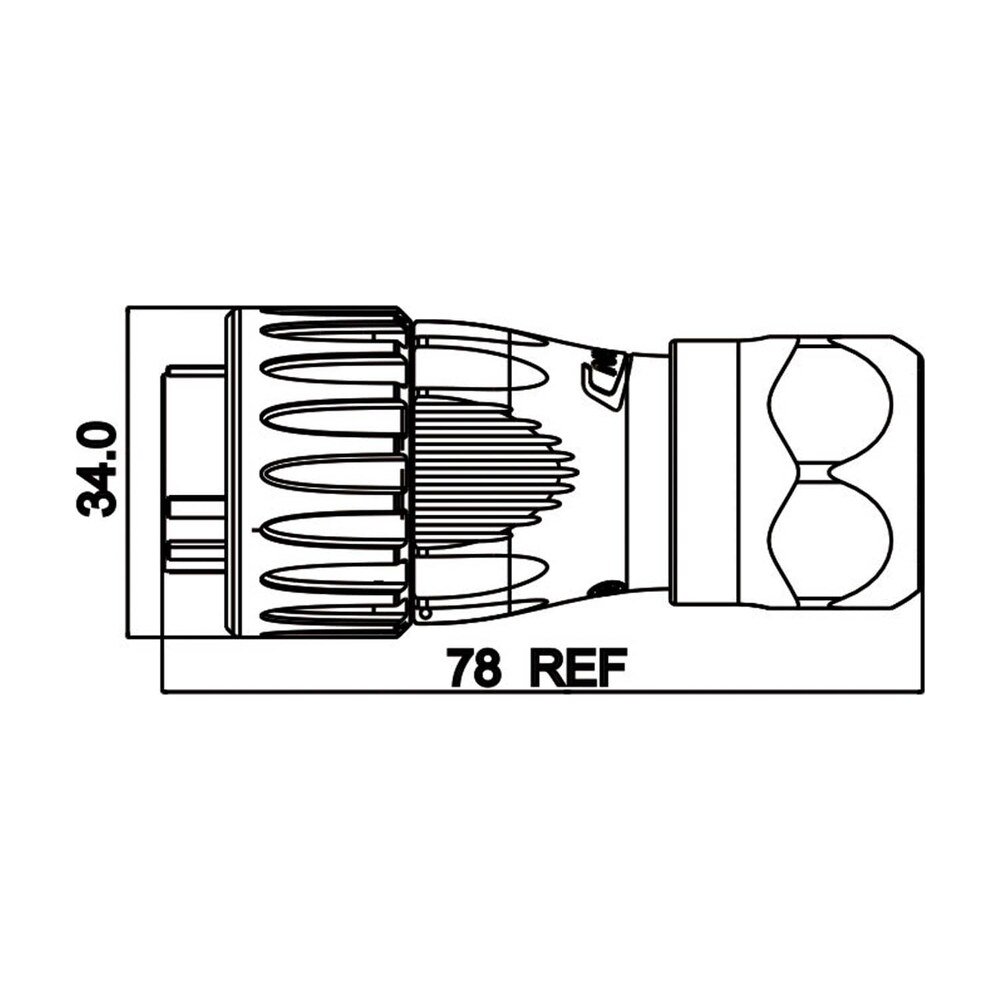

  • Dimensions- 78 mm Length x 34 mm Diameter (3.07″ x 1.34″)
  • Number of Pins- 3
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 3mm
  • Rated Current- 25 A
  • Operating Voltage- 500V
  • Contact Resistance- < 1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001
  • Wiring Mode- Soldering
