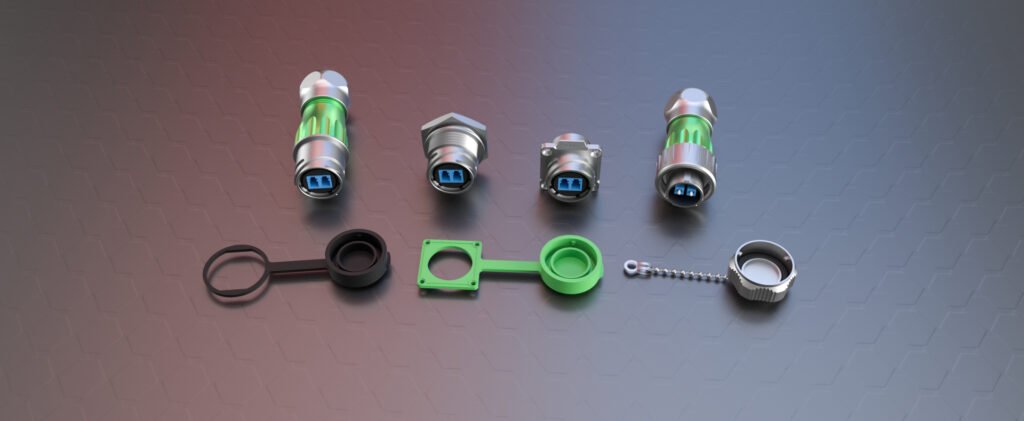

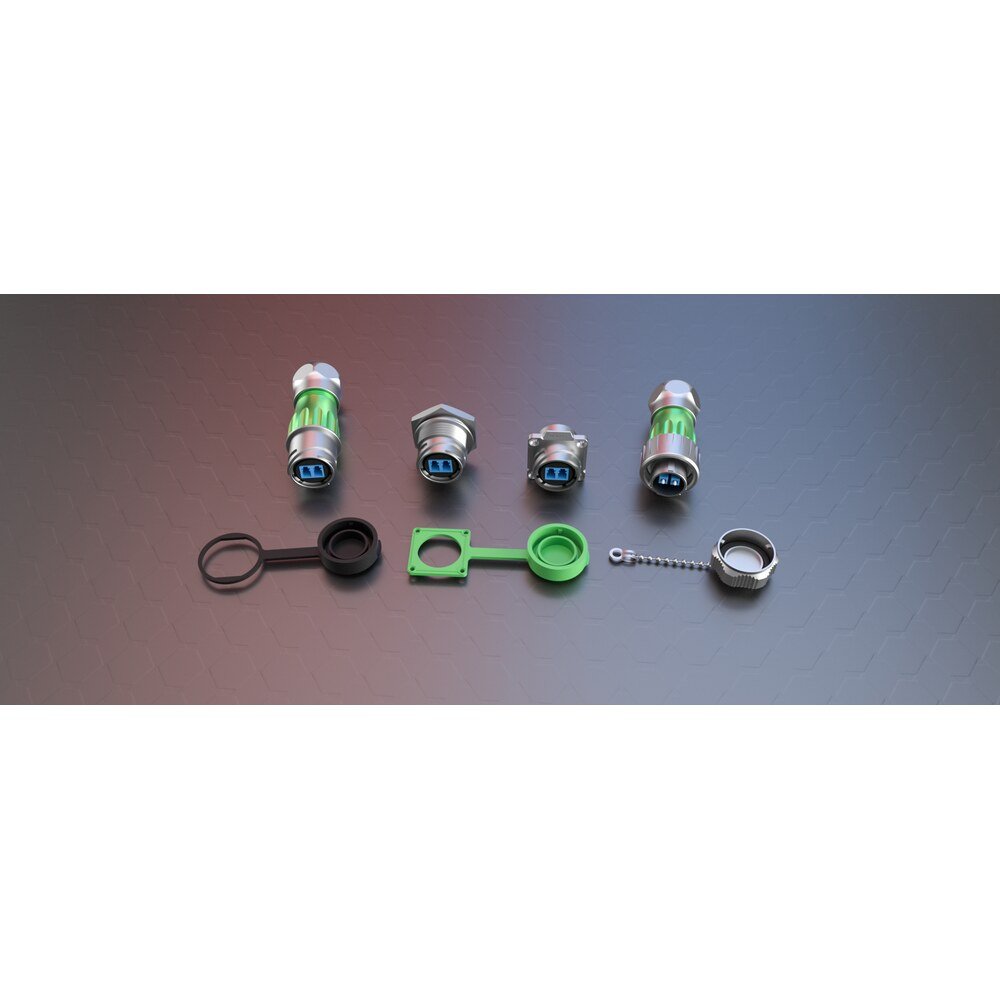

CNLinko DH-24 Series Fiber Optic (LC) plug (cable mount) waterproof aviation connector module. IP68 / IPX9K sealing.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Factory Stock to 8-10 weeks
DH-24-C/LC/016/PE-43-001
Specifications
Specifications sourced from CNLinko's official site (cnlinko.com), verified 2026-08-20.
| Part Number (SKU) | DH-24-C/LC/016/PE-43-001 |
|---|---|
| Category | Circular Connectors, DH-24 Series |
| Weight | 0.2 lbs |
| Dimensions | 3.09 × 1.34 × 1.34 in |
| Wiring | Direct-through |
| Model | DH-24 (Fiber Optic (LC) module) |
| Contacts | Fiber optic (LC-type) |
| Wire Gauge | 16 AWG (1.5mm²) |
| Cable Diameter Range | Φ5.0-Φ6.5mm |
| Rated Current | n/a |
| Rated Voltage | n/a |
| Withstand Voltage | n/a |
| Contact Resistance | n/a |
| Insulation Resistance | n/a |
| Ingress Protection | IP68 / IPX9K |
| Durability | ≥500 times |
| Operating Temperature | -40°C to +85°C |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
