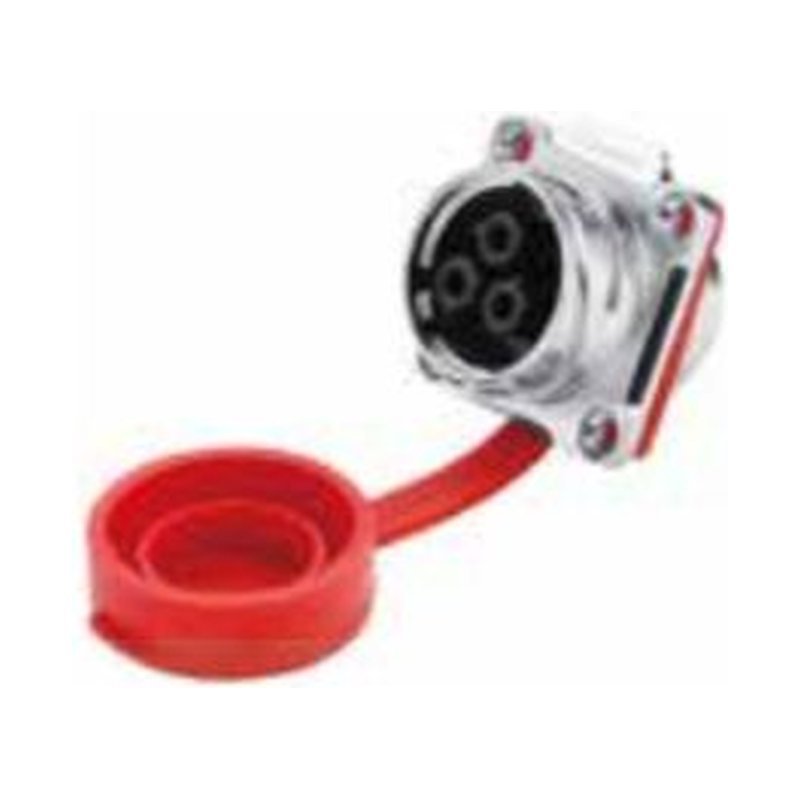

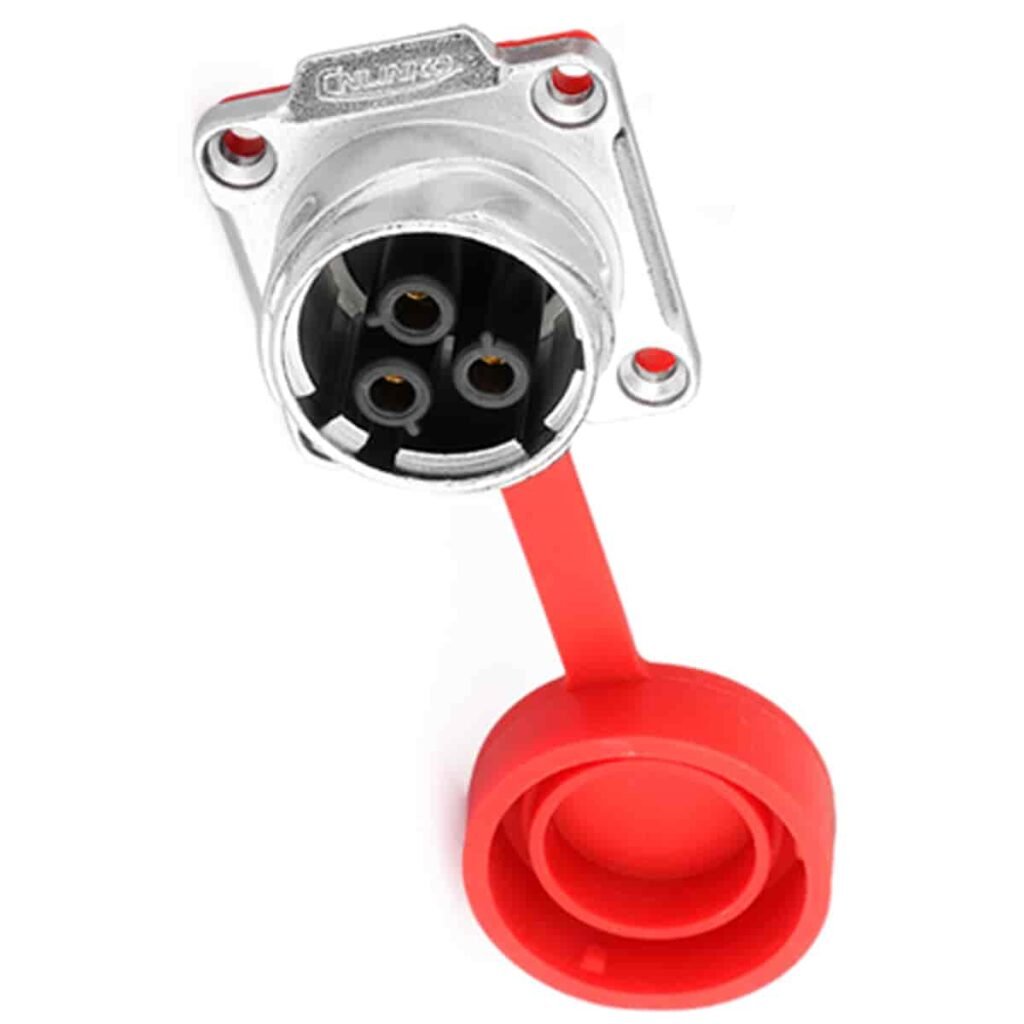

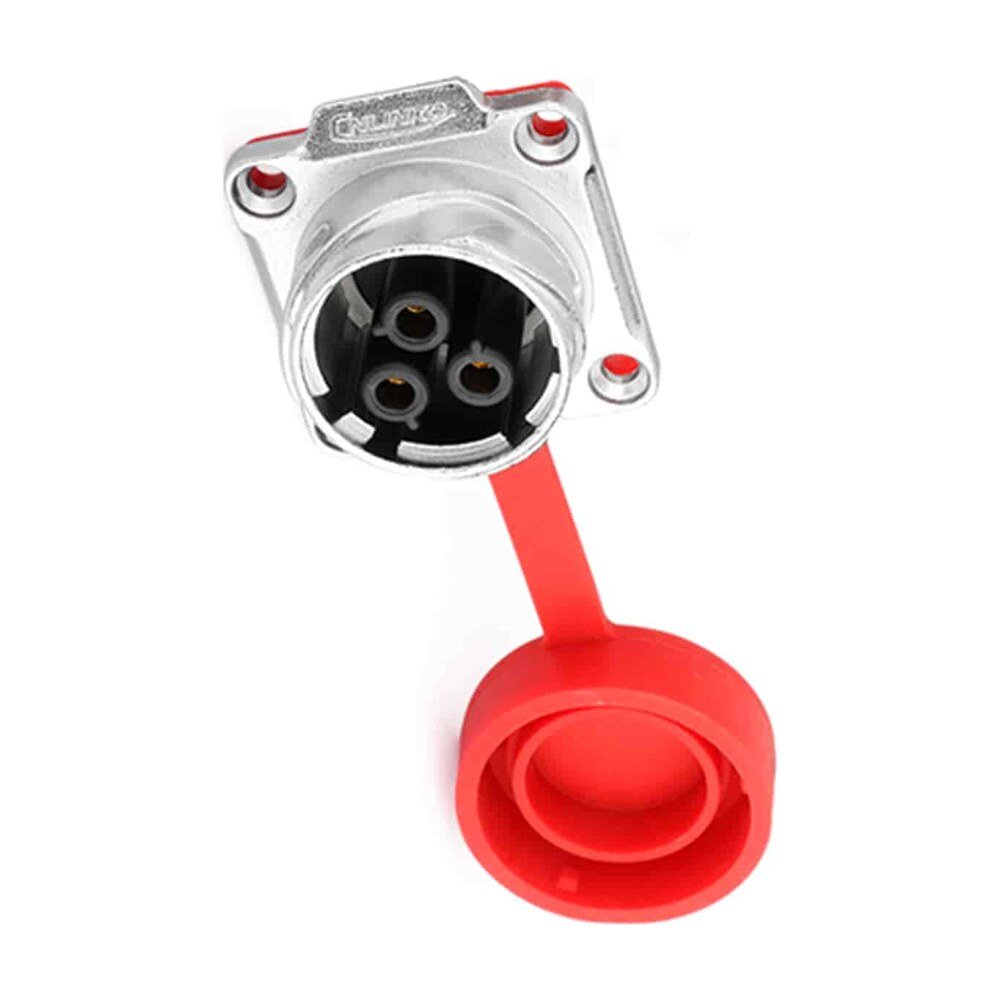

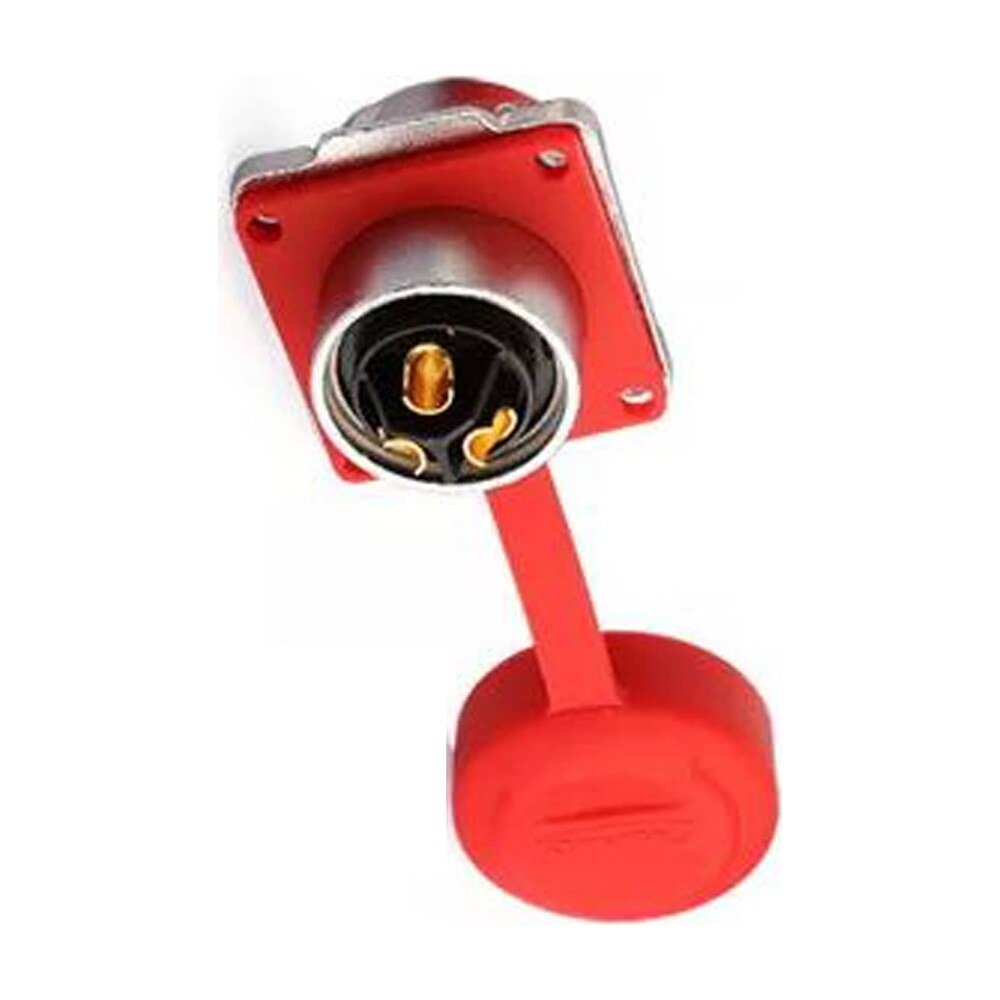

DH-24-J03SX-03-401, DH-24 Series 3 Pin Female Socket Signal Connector

DH-24-J03SX-03-401

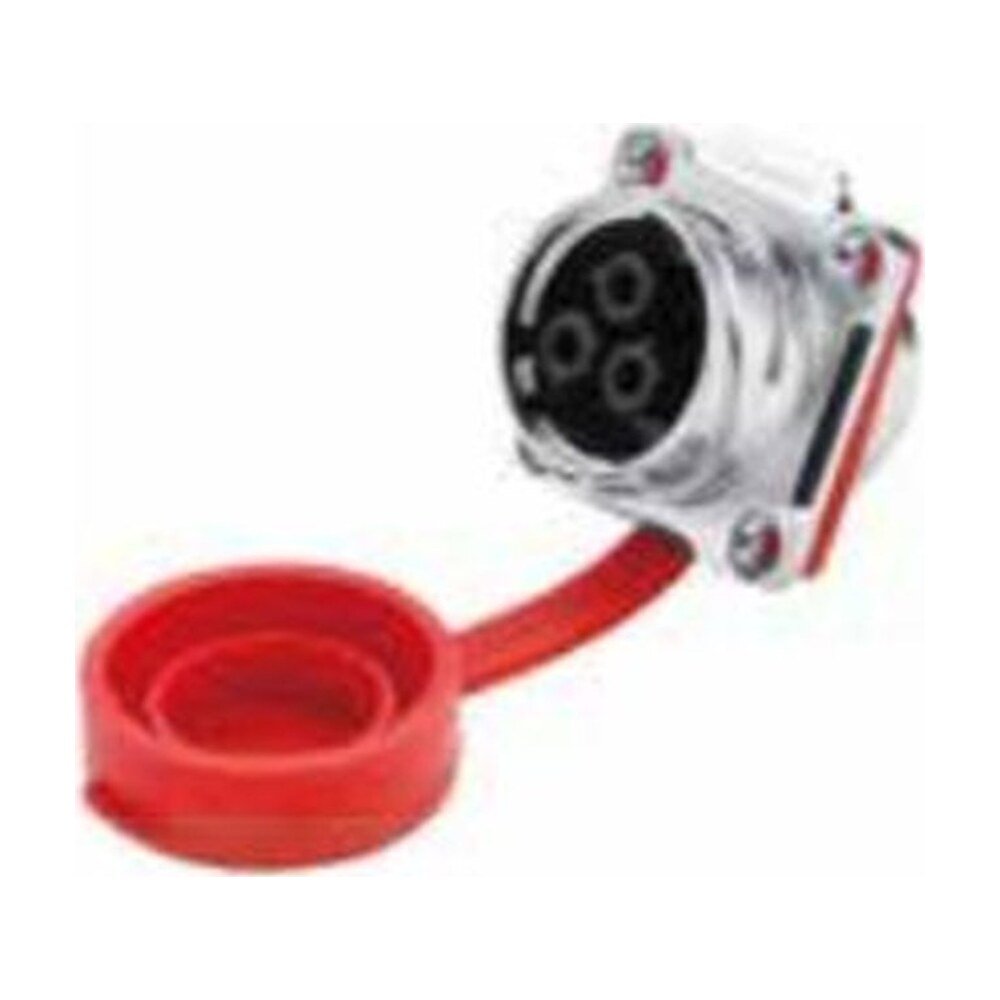

Old Part Number: DH-24-J03SX-01-001, 3 pins female socket

The Cnlinko DH-24-J03SX-03-401 is a versatile 3 pin female socket designed for use in power applications and equipment. With a cable range of 14-12 AWG and a rating of 500V and 25A, this socket is perfect for use in a variety of industries, including LED displays, industrial equipment, and stage lighting equipment. Its durable construction ensures reliable performance, making it an ideal choice for any power application.

Description

Cnlinko 25A 3 Pin Female Socket DH-24-J03SX-03-401

  • Metal alloy housing
  • Screw tightening design
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Includes red waterproof cover

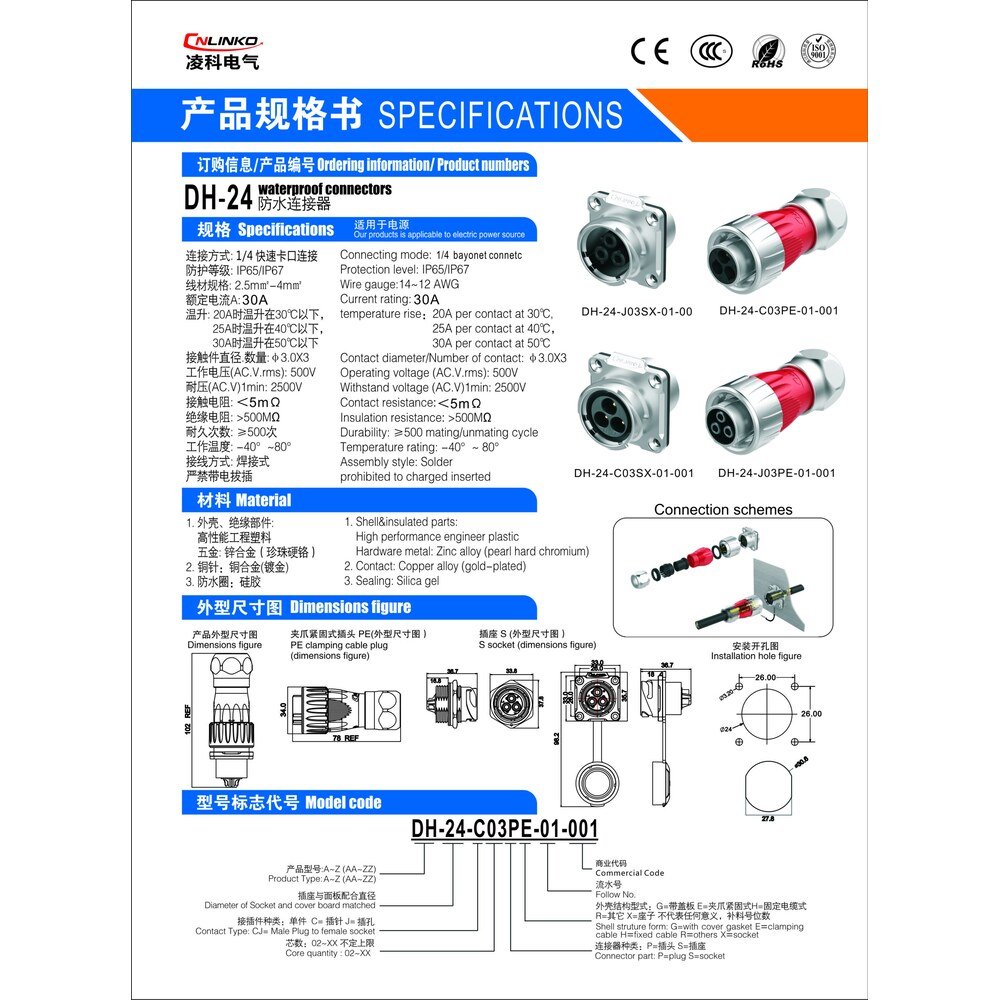

Specifications

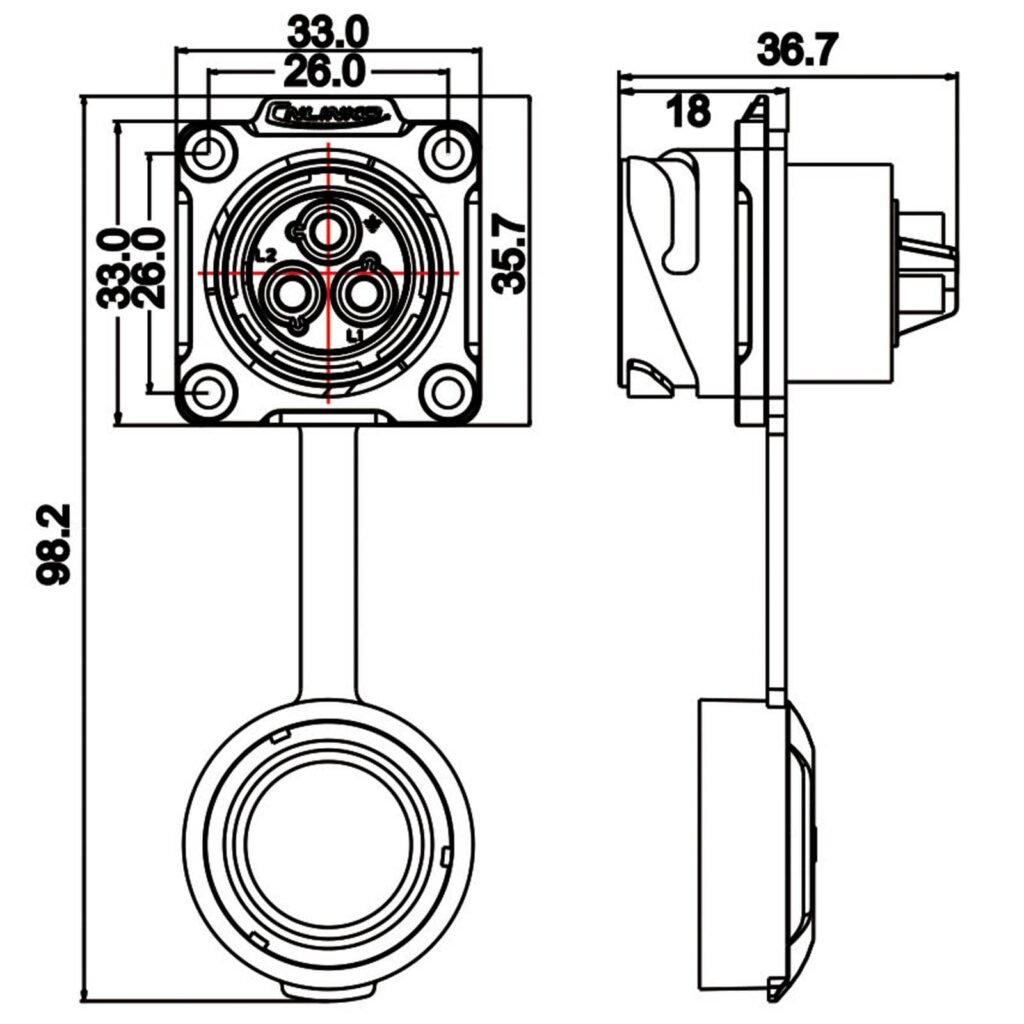

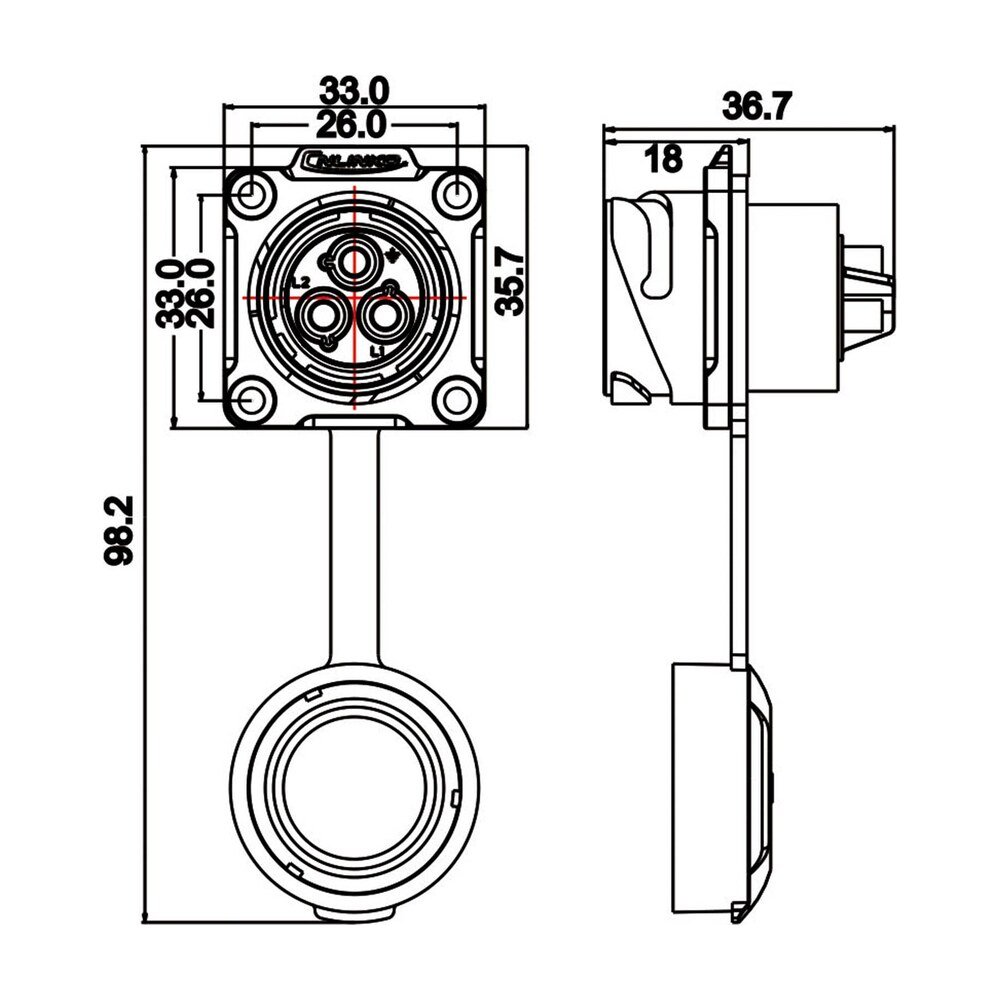

  • Dimensions (without cap)- 35.7 mm Height x 33 mm Width x 36.7 mm Depth (1.4″ x 1.3″ x 1.44″)
  • Number of Pins- 3
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 3mm
  • Rated Current- 25A
  • Operating Voltage- 500V
  • Contact Resistance- < 1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)

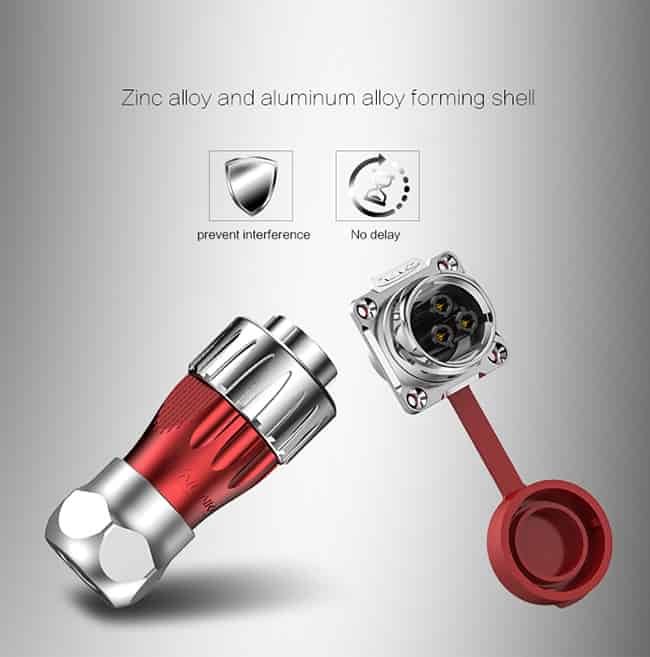

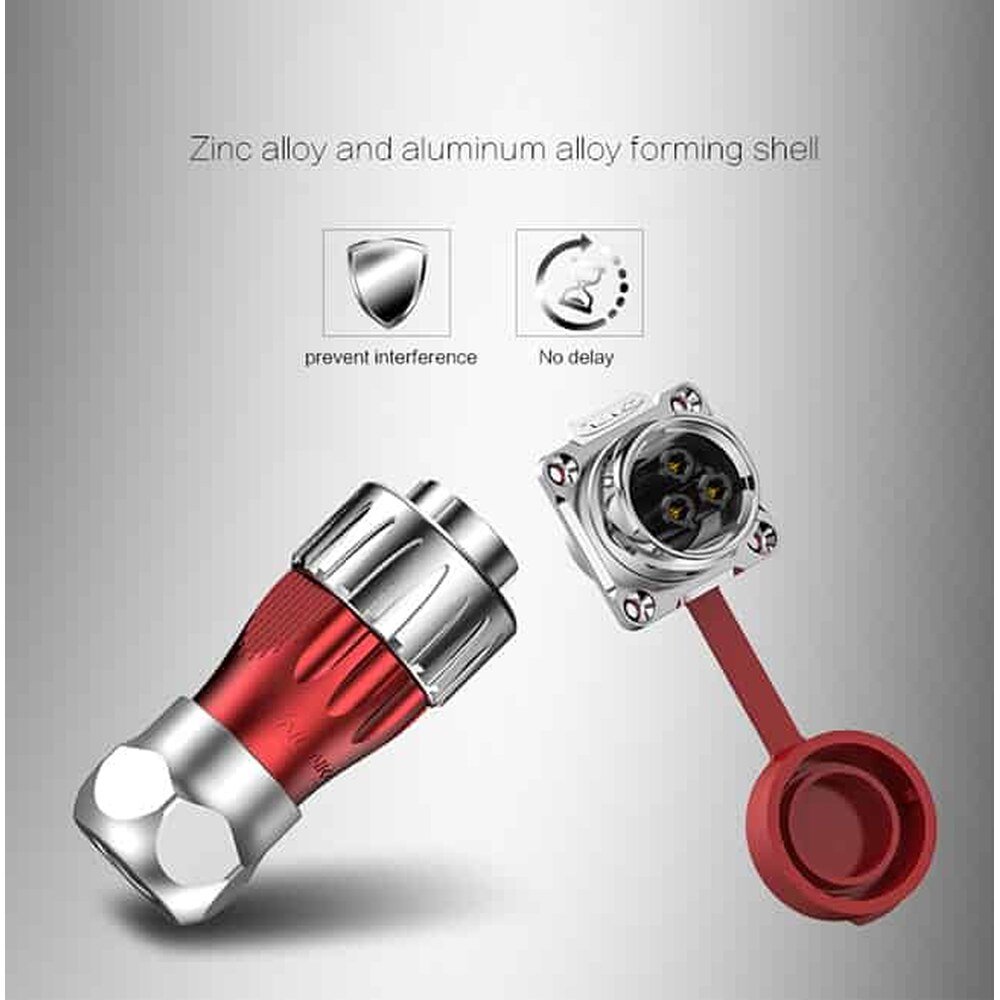

  • Housing Material- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001
