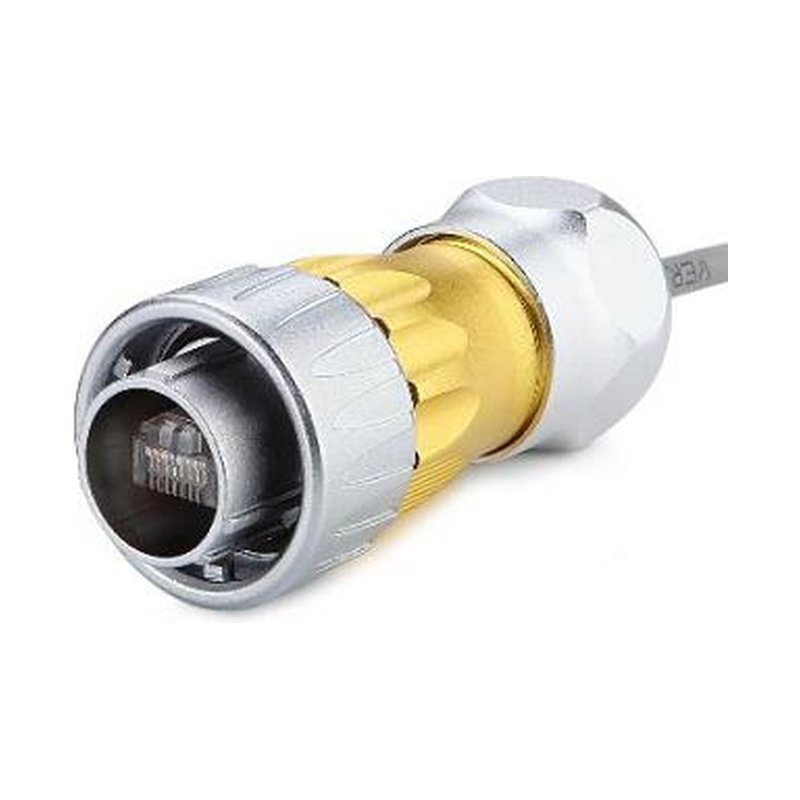

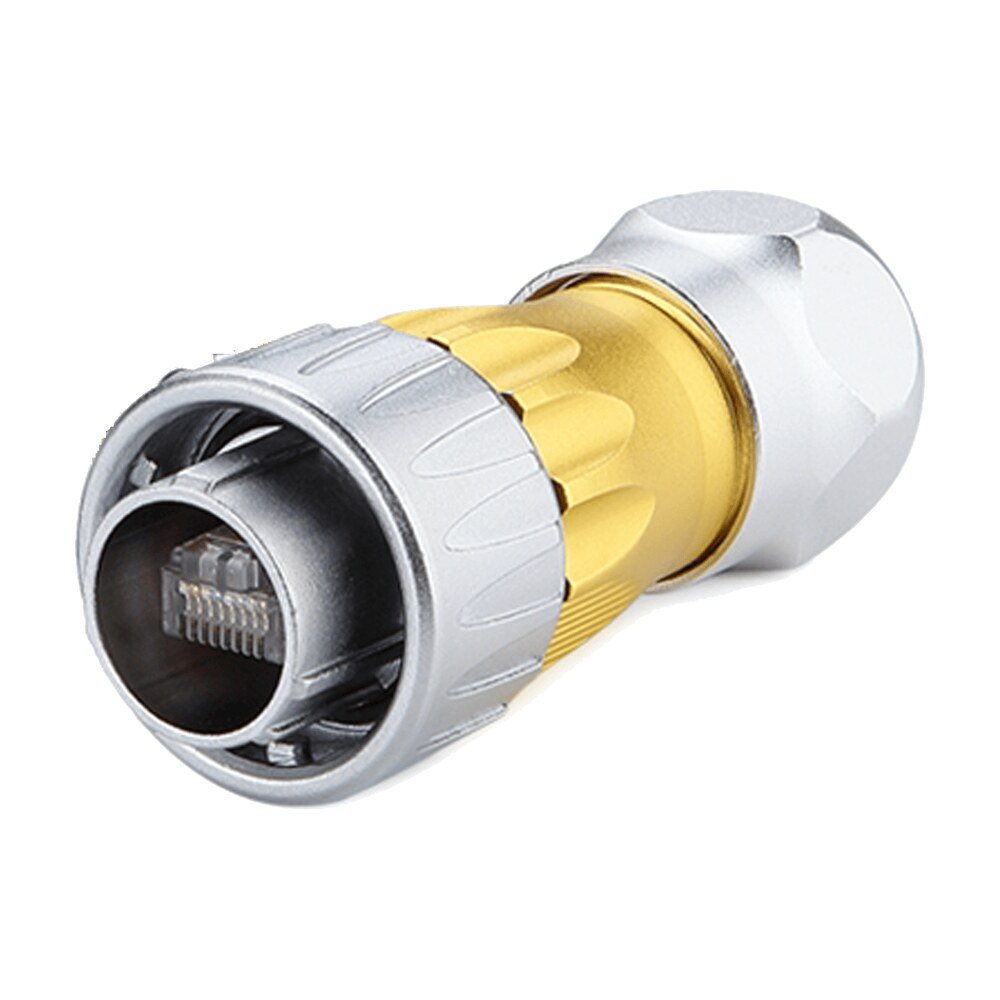

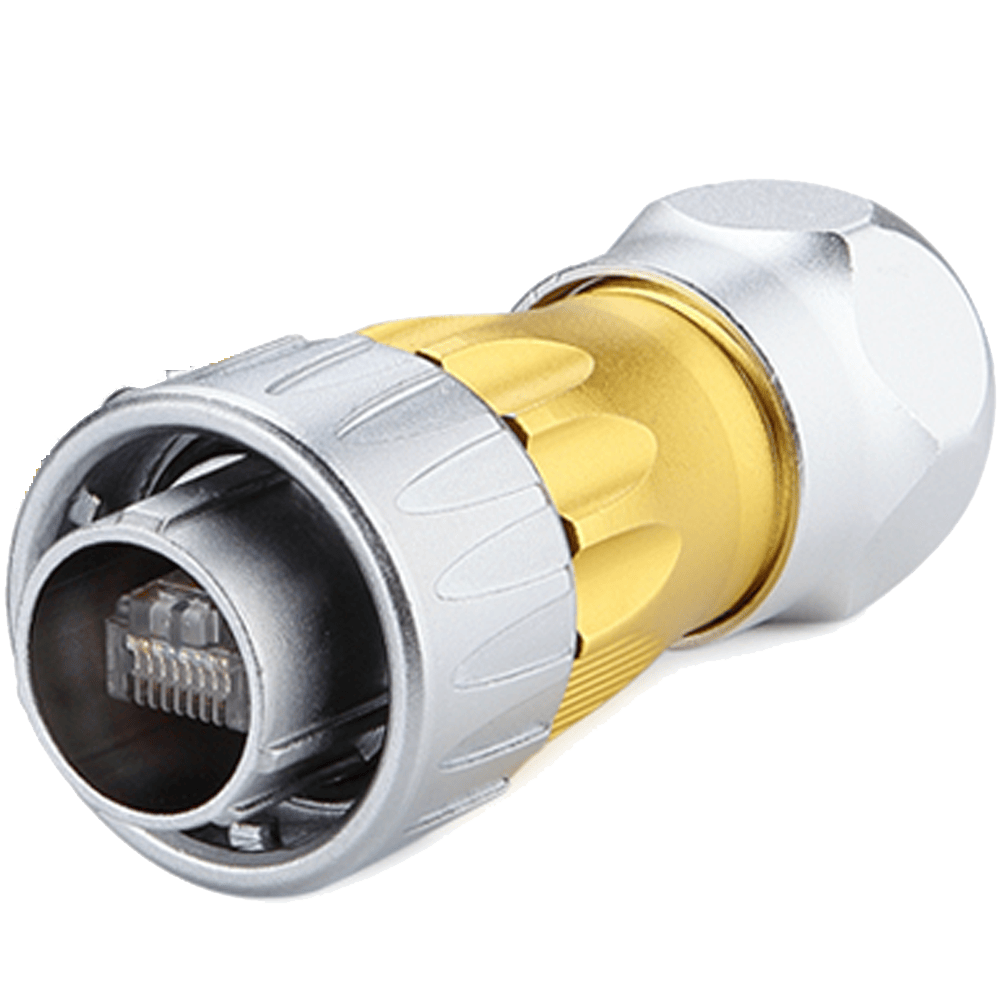

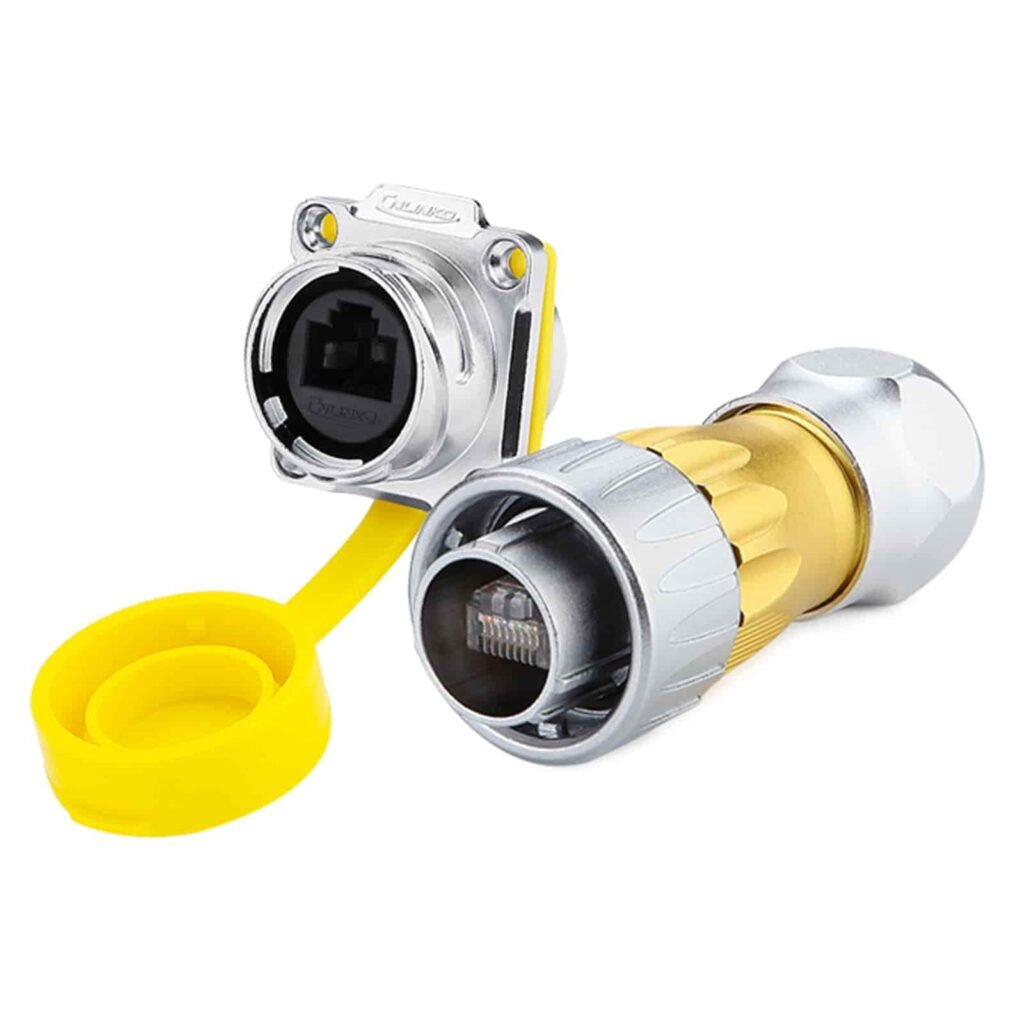

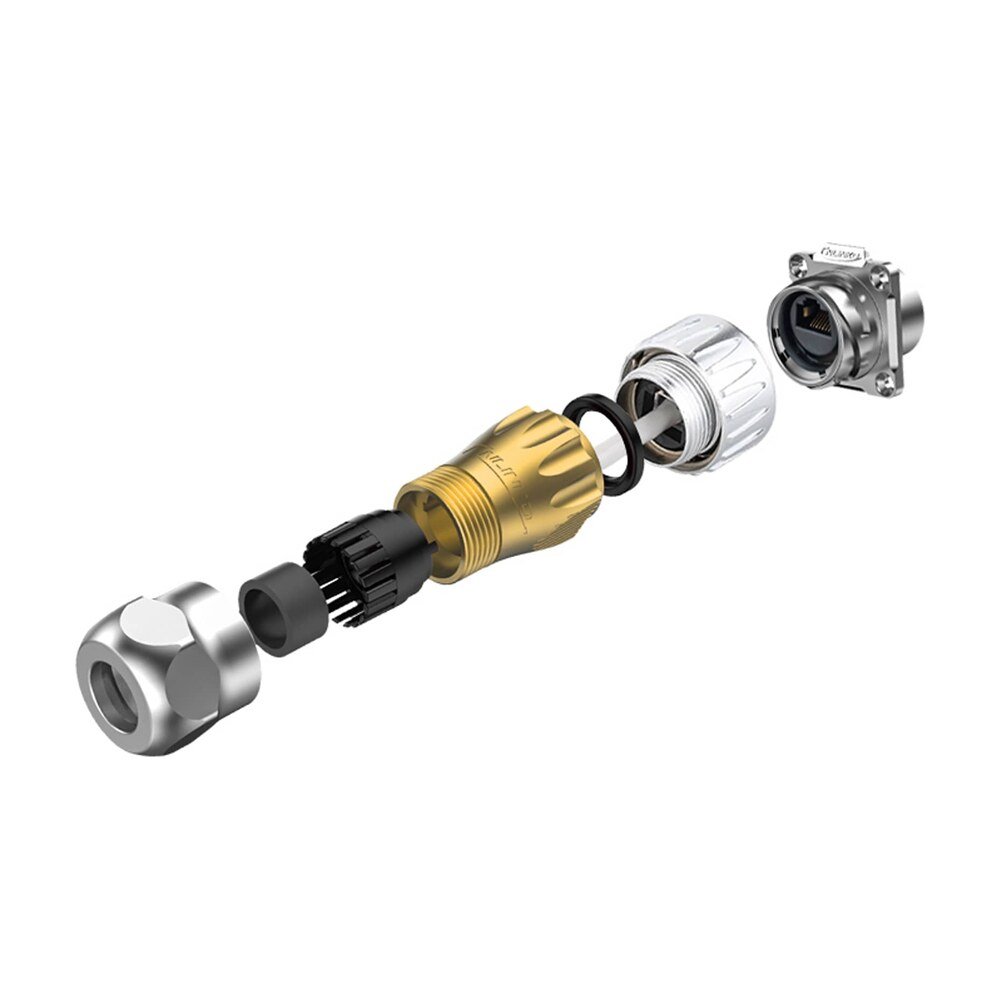

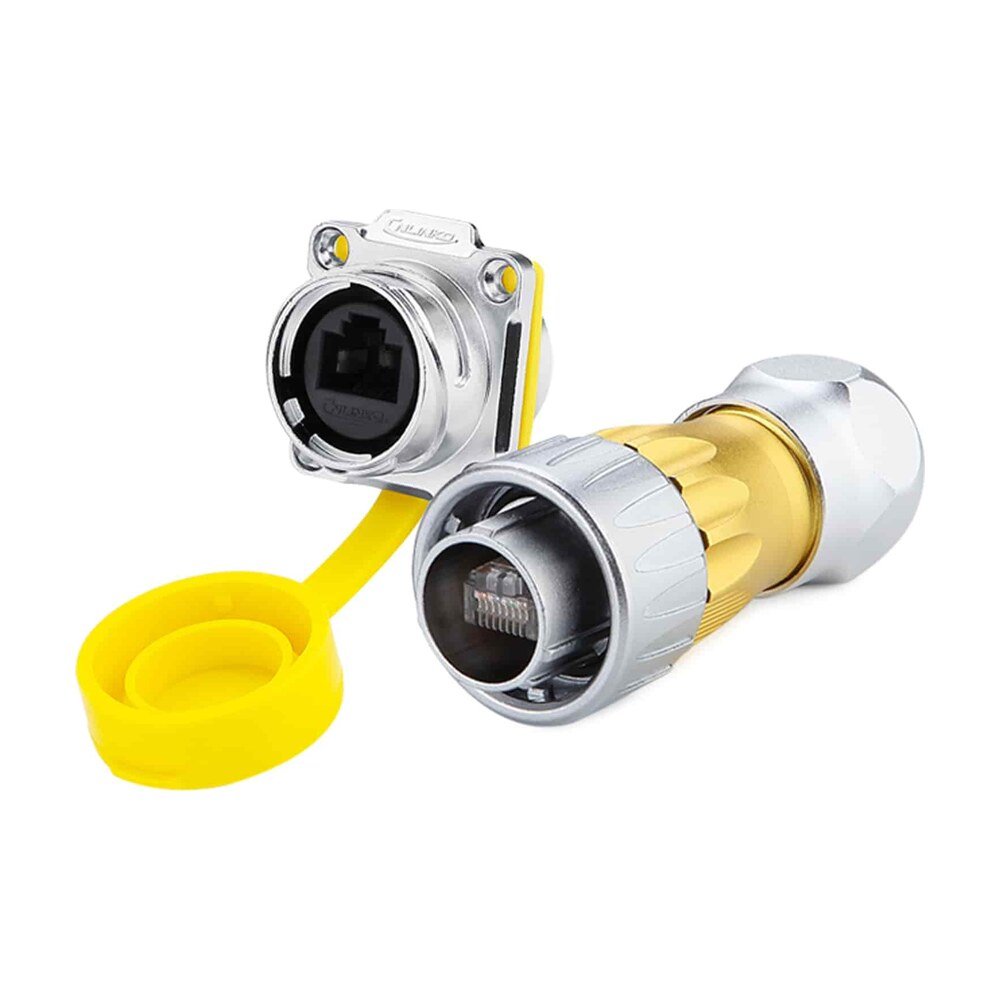

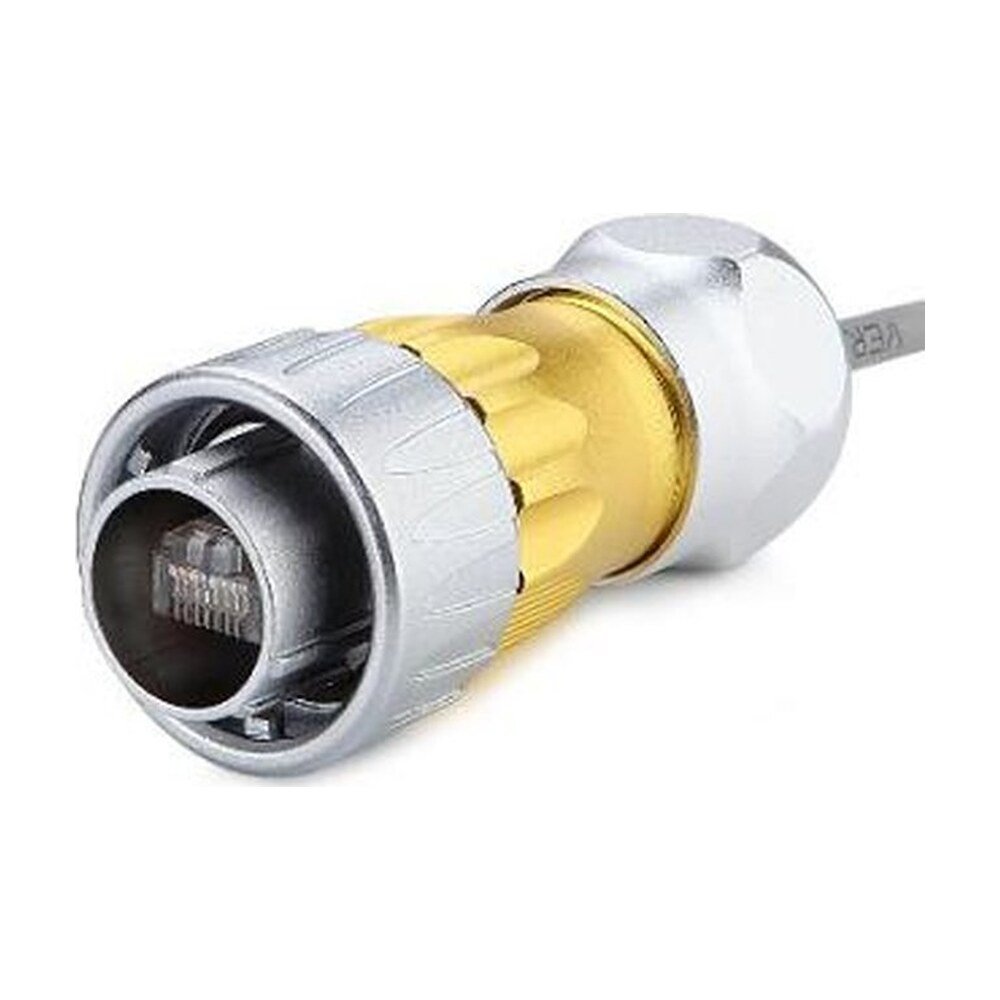

CNLinko DH-24 Series RJ45 Ethernet plug (cable mount) waterproof aviation connector module. IP68 / IPX9K sealing.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Please call for lead-time
DH-24-C/RJ45/015/PE-43-001
Specifications
Specifications sourced from CNLinko's official site (cnlinko.com), verified 2026-08-20.
| Part Number (SKU) | DH-24-C/RJ45/015/PE-43-001 |
|---|---|
| Positions Available | 8 |
| Category | Circular Connectors, DH-24 Series |
| Weight | 0.2 lbs |

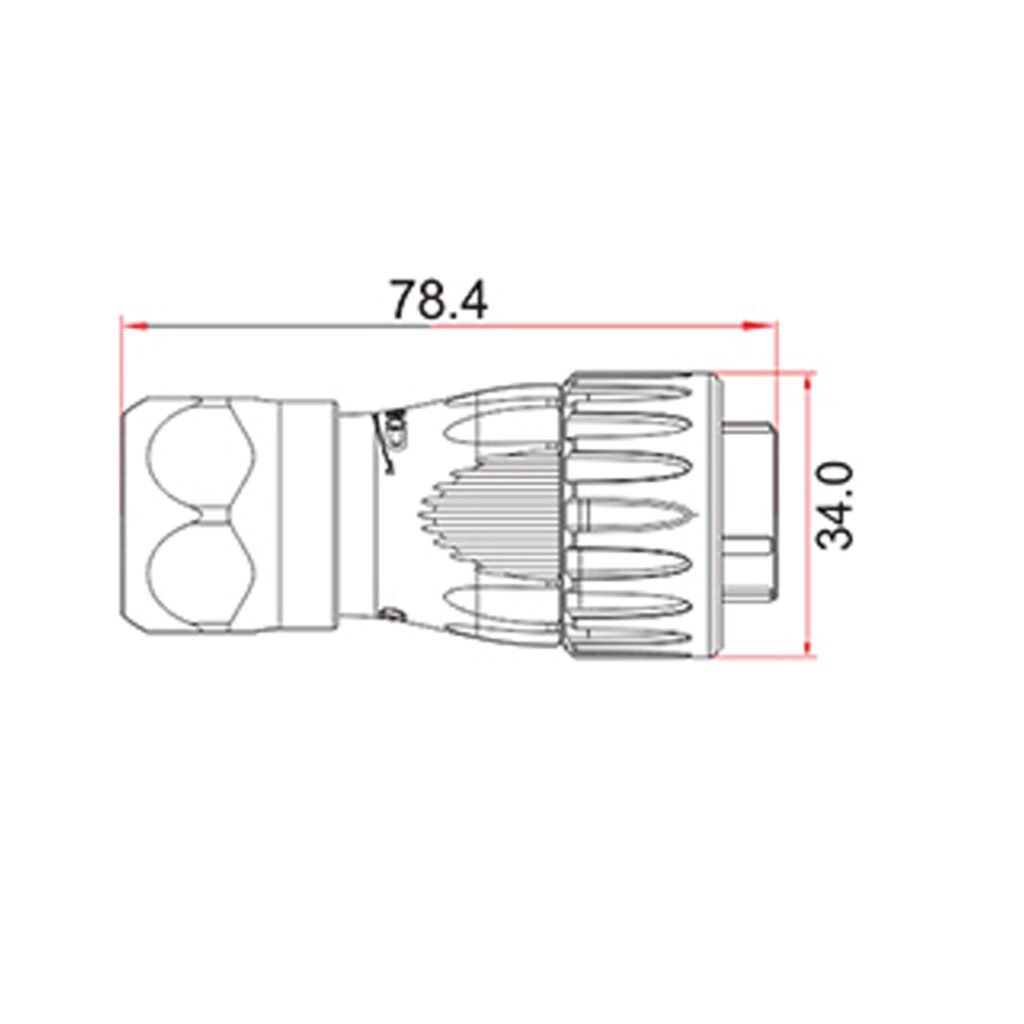

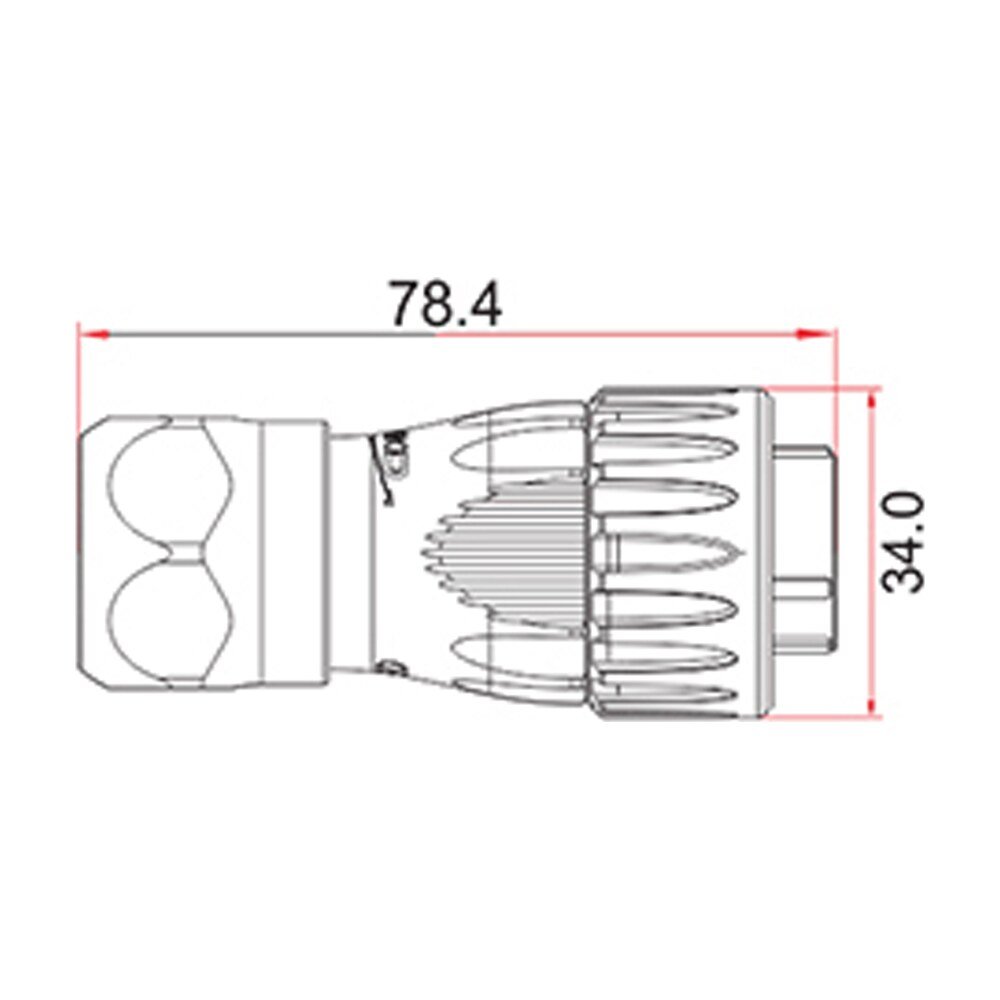

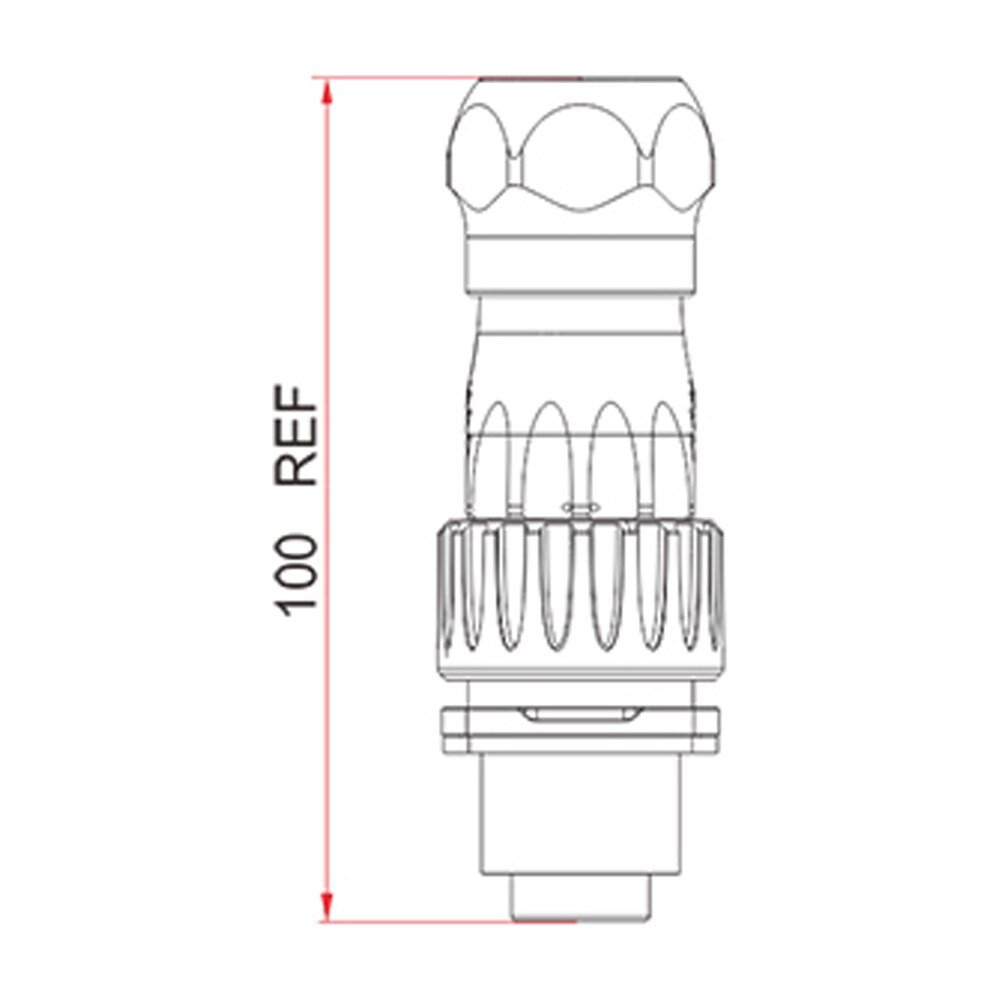

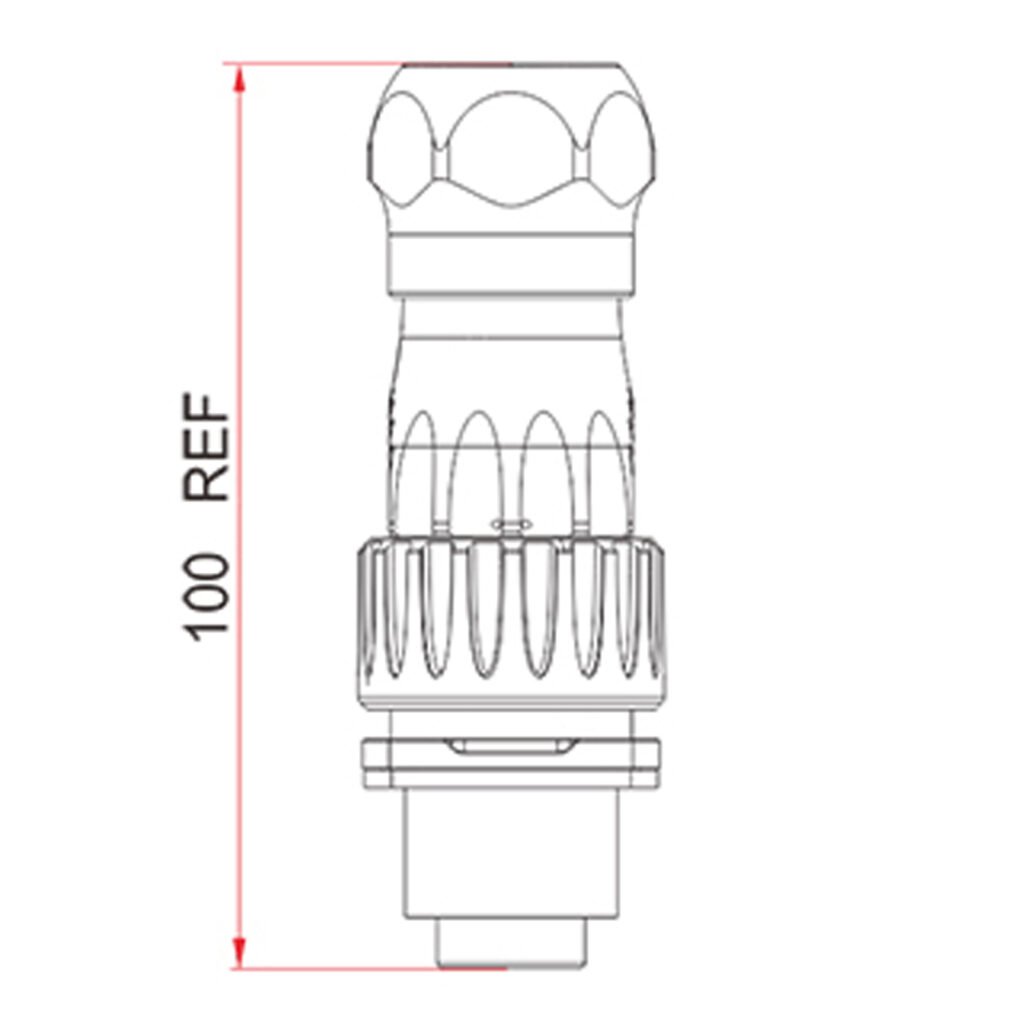

| Dimensions | 3.09 × 1.34 × 1.34 in |
| Connection rate | CAT.3 - CAT.6 |
| Model | DH-24 (RJ45 Ethernet module) |
| Contacts | 8-position RJ45 |
| Wire Gauge | 26 AWG |
| Cable Diameter Range | Φ5.0-Φ7.0mm |
| Rated Current | 1.5A |
| Rated Voltage | 125V AC |
| Withstand Voltage | n/a |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥500MΩ |
| Ingress Protection | IP68 / IPX9K |
| Durability | ≥500 times |
| Operating Temperature | -40°C to +85°C |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
