The new 42 to 71" Full Motion TV Wall Mount - Dual Arm VESA 800x400 is a full-motion mount for large size TV, with a weight capacity of 200lbs (90.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Out of Stock Contact sales for a date

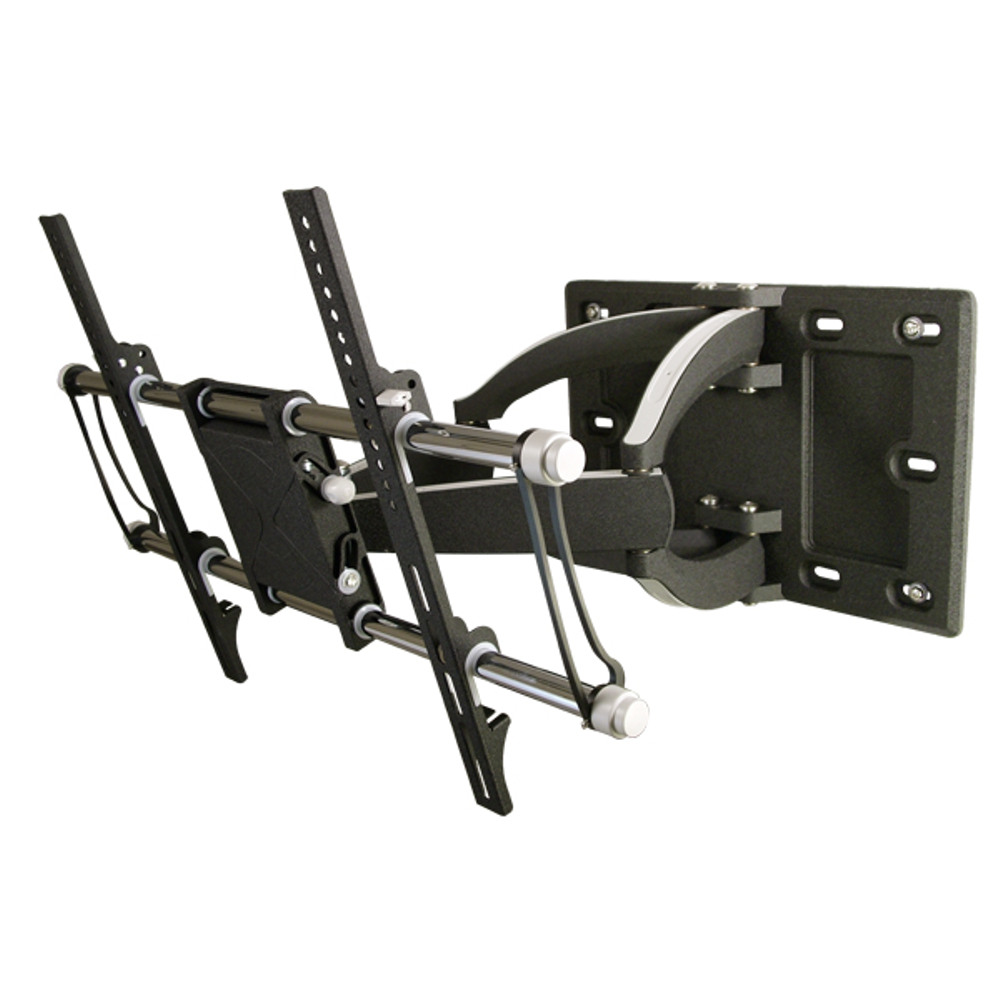

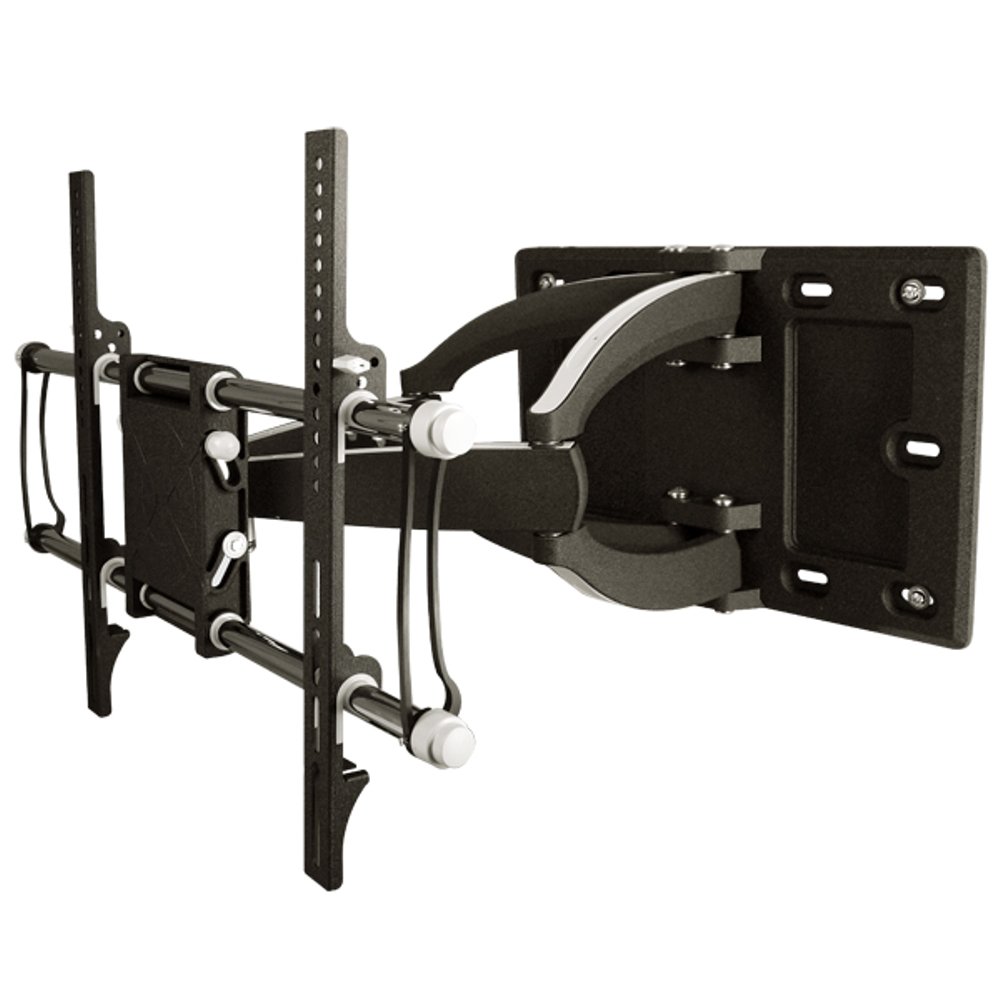

The new 42 to 71" Full Motion TV Wall Mount - Dual Arm VESA 800x400 is a full-motion mount for large size TV, with a weight capacity of 200lbs (90.9kgs), featuring 5 - 15-degree tilt, 180-degree swivel, 23.1-inch full extension & -3 to 3-degree roll. This cantilever TV wall mount is our latest breakthrough in flat panel mount design. The TV mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here. Please note that this TV wall mount is specially designed for mounting patterns up to 800x400. For TVs with mounting patterns no larger than 600x400, you may choose MW-5D1VB instead. Comparision Downloads Installation Manual These downloads require Adobe Reader. To get Adobe Reader to click here.
| Fits most | 42" to 71" flat panels |
|---|---|
| Weight Capacity | Supports up to 90.9kg(200lbs) |
| Tilt | 5° / - 15° |
| Swivel | Max 180° |

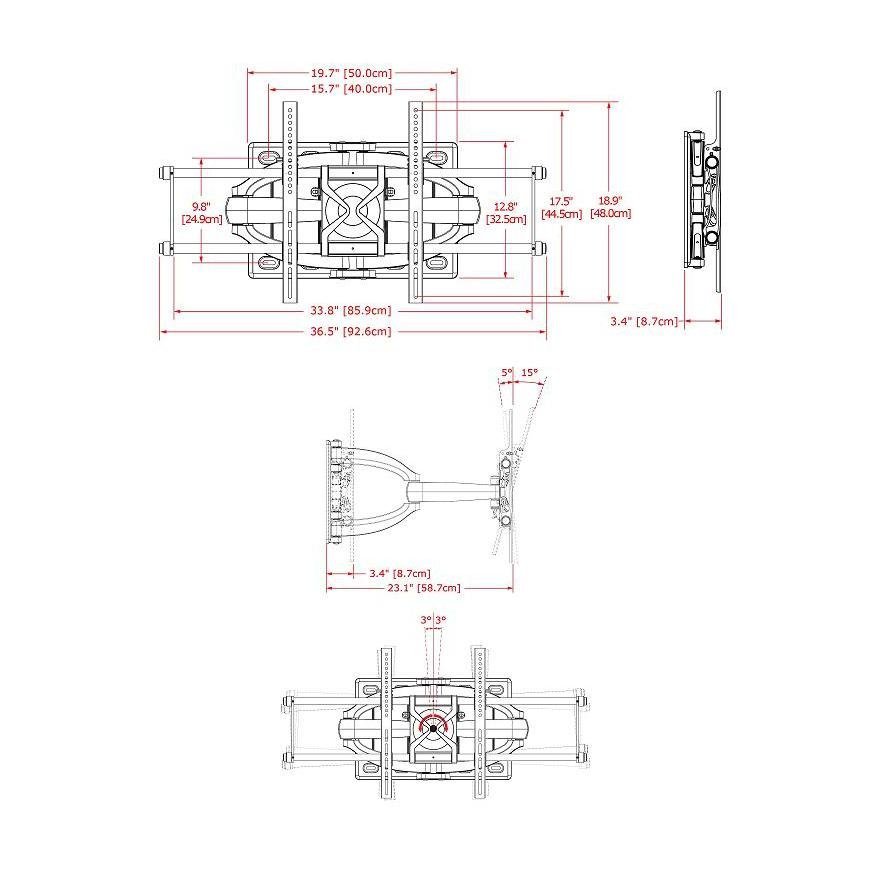

| Mounting profile | 3.4" (86.9mm) Depth From Wall |
| Maximum extension | 23.1" (586.9mm) |
| Mounts on Studs | double-stud (mount spacing of 16") |
| Mounting Pattern | Universal & VESA compliant: 200x200 to 800x400 |
| Roll | 3° / - 3° |
| Brand | Cotytech |
| Manufacturer part number | MW-6D1VB |
| Ships from | Drop shipped from California |
| Availability | Stock to 10 weeks |
Specifications as published by the manufacturer for model MW-6D1VB. Shipping weight and current pricing are being confirmed with the factory.
| Part Number (SKU) | MW-6D1VB |
|---|---|
| Category | Monitor Mounts & Arms, TV Wall Mounts & Stands |
| Fits most | 42" to 71" flat panels |
| Weight Capacity | Supports up to 90.9kg(200lbs) |
| Tilt | 5° / - 15° |
| Swivel | Max 180° |
| Mounting profile | 3.4" (86.9mm) Depth From Wall |
| Maximum extension | 23.1" (586.9mm) |
| Mounts on Studs | double-stud (mount spacing of 16") |
| Mounting Pattern | Universal & VESA compliant: 200x200 to 800x400 |
| Roll | 3° / - 3° |
| Brand | Cotytech |
| Manufacturer part number | MW-6D1VB |
| Ships from | Drop shipped from California |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
