Epson LabelWorks heat shrink tube cartridges and bulk heat shrink tapes print a wire marker that then shrinks onto the wire. We list 24 Epson part numbers: 3 mm to 21 mm tube for wire from AWG 22 up to AWG 0000, in 98 inch cassettes, 15 m bulk tube and pre-cut rolls. Please call for pricing and availability.
| Tube | Wire range | Cassette (98 in) | Bulk tube and rolls |
|---|---|---|---|

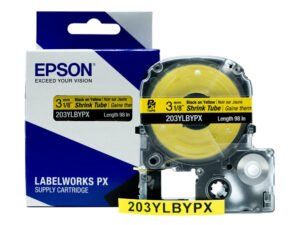

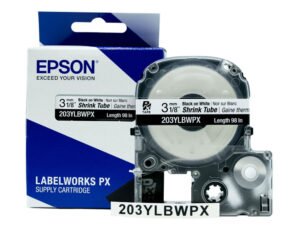

| 3 mm (1/8 in) | AWG 16-22 | 203YLBWPX (black on white), 203YLBYPX (black on yellow) | B203YLBYPX (15 m), BL203STBWX25PX (AWG 14-22, 25 mm pieces, 500/roll), BL203STBYX25PX (AWG 14-22, 25 mm pieces, 500/roll) |

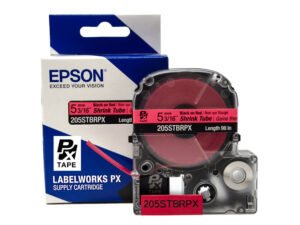

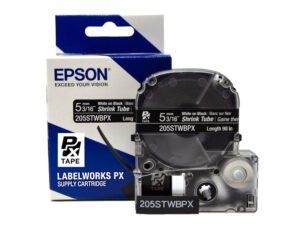

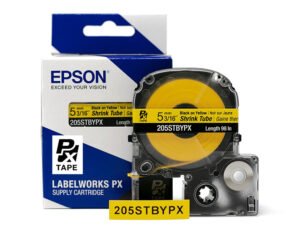

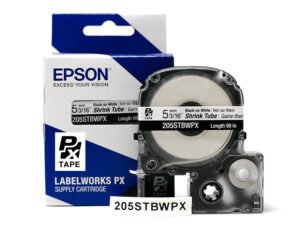

| 5 mm (3/16 in) | AWG 8-12 | 205STBWPX (black on white), 205STBYPX (black on yellow), 205STBRPX (black on red), 205STWBPX (white on black) | None |

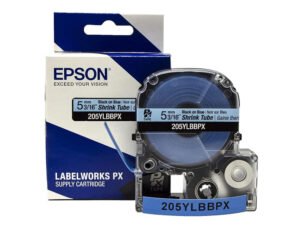

| 5 mm (3/16 in) | AWG 10-18 | 205YLBBPX (black on blue) | None |

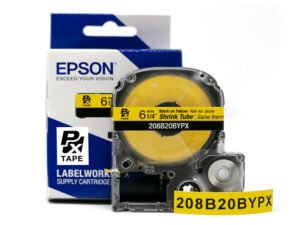

| 6 mm (1/4 in) | AWG 6-18 | 208B20BWPX (black on white), 208B20BYPX (black on yellow) | B208STBWPX (15 m), B208STBYPX (15 m), BL208STBWX35PX (35 mm pieces, 400/roll), BL208STBYX35PX (35 mm pieces, 400/roll) |
| 10 mm (3/8 in) | AWG 4-12 | 210STBWPX-90 (black on white, 90 in) | None |

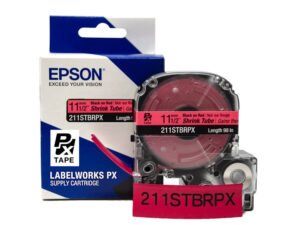

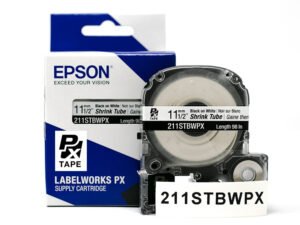

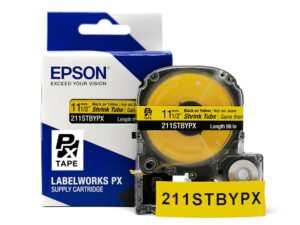

| 11 mm (1/2 in) | AWG 2-8 | 211STBWPX (black on white), 211STBYPX (black on yellow), 211STBRPX (black on red), 211STWBPX (white on black) | None |
| 14 mm (9/16 in) | AWG 0-5 | 214STBWPX (black on white) | None |
| 21 mm (7/8 in) | AWG 0000-1 | 221STBWPX (black on white), 221STBYPX (black on yellow) | None |
The quickest way to the right part number is the wire range printed on it, because that is what the tube has to recover onto. The range runs: AWG 16-22 (3mm), AWG 8-12 and AWG 10-18 (5mm), AWG 6-18 (6mm and the bulk 8ST numbers), AWG 4-12 (10mm), AWG 2-8 (11mm), AWG 0-5 (14mm) and AWG 0000-1 (21mm). Ordering by millimetres alone is where most wrong orders start – a 5mm tube and a 6mm tube cover overlapping but not identical gauges.
Black on white and black on yellow across almost the whole range, plus black on red at 5mm and 11mm, white on black at 5mm and 11mm for dark harnesses, and black on blue at 5mm. Yellow is the usual choice where the mark has to be found quickly in a loom; white reads best under a photograph in a service manual.
The 3 mm (1/8 in) tube we list for AWG 16-22 is 203YLBWPX, black on white, and 203YLBYPX, black on yellow, with the bulk versions beside them in the table above. Send us the part number printed on your cassette and we will confirm which one matches before we quote.
Both. The 98 inch cassettes are the cartridges that load into a LabelWorks printer. The B20 numbers are 15 m of continuous tube, and the Bulk-LD numbers are pre-cut pieces on a roll for production marking.
Tell us the LabelWorks model you run and we will confirm the cartridge suits it before we quote. Printers, power supplies and cutters are under Epson LabelWorks printers.
Tell us the wire gauge and the quantity and we will quote the matching part number with a lead-time. If we do not have stock and you have a requirement for these parts, we will source and release the material as you need it.
