DIN rail terminal blocks, also called DIN rail terminal block connectors or terminal strips, clamp field wiring to a 35 mm DIN rail inside control panels and machine cabinets. Micro-Ray supplies 355 Dinkle DIN rail terminal blocks in screw, push-in, spring clamp and stud connection, sold by the piece, with the manufacturer datasheet and dimensioned drawing on every part page.
| Type | How the wire is held | Best for | Parts |
|---|---|---|---|
| Screw connection | A captive screw tightens a clamping yoke onto the conductor | General panel wiring, the widest wire range and the largest power blocks | 102 |
| Push-in | Solid or ferruled wire is pushed straight in; a release button frees it | Fast wiring with no tool, high-density panels | 161 |
| Spring clamp | A steel spring holds the conductor; opened with a screwdriver | Machines with vibration, no re-torquing | 60 |
| Stud connection | A ring or fork lug sits under a nut on a threaded stud | High current and large conductors | 23 |
| Busbar | Blocks that tap a common busbar | Power distribution inside the panel | 9 |
Function blocks share the same rail and accessories as the feed-through range, so one row can mix them: feed-through, grounding (PE), disconnect and test, knife disconnect, fuse holders, diode blocks and panel-mount blocks. Each part page carries that part’s own rated data, wire range and dimensions, taken from the manufacturer data sheet.
A finished row needs more than the blocks: end brackets (end stops) keep the row from sliding on the rail, end plates close the open side of the last block, jumpers bridge neighbouring blocks, partition plates separate circuits, and marker strips label each terminal. Ask us for the matching accessories for any block on this page.
A modular connector that snaps onto a DIN rail and joins two or more wires, so field wiring can be landed, tested and changed without touching the equipment it feeds.
A screw block clamps the wire with a screw and takes the widest range of wire sizes. A push-in block accepts solid or ferruled wire pushed straight in, which is faster to wire and needs no tightening.
Yes. Feed-through, ground, fuse and disconnect blocks of the same series share the rail and accessories, so they can be mixed in one row.
Every block is sold by the piece with quantity pricing on request. Call (732) 892-8799, email sales@micro-ray.com, or use the quote form and attach your parts list.
Micro-Ray also builds the panels these go into — control panels, PC board and cable assemblies, standard and custom. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
355 parts in this range
Featuring push-in design, screw connection, spring clamp connection, stud connection and busbar terminal blocks. Click any part for full specifications.

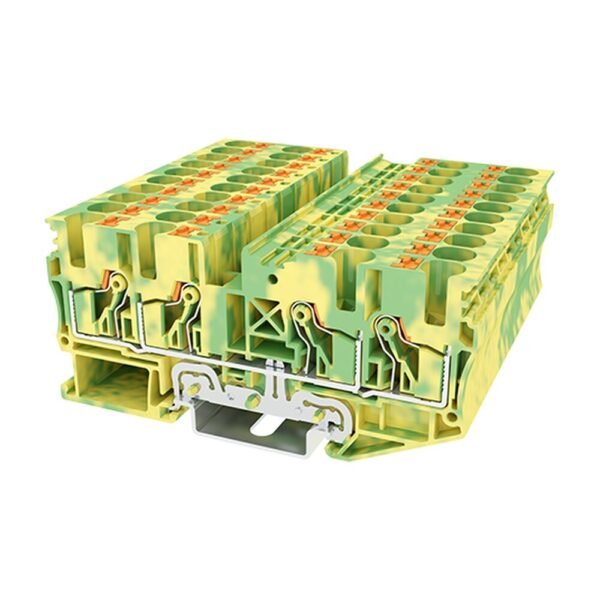

DP6N-TR-PEDP6N-TR-PE — Grounding Terminal Block, Push-in Design

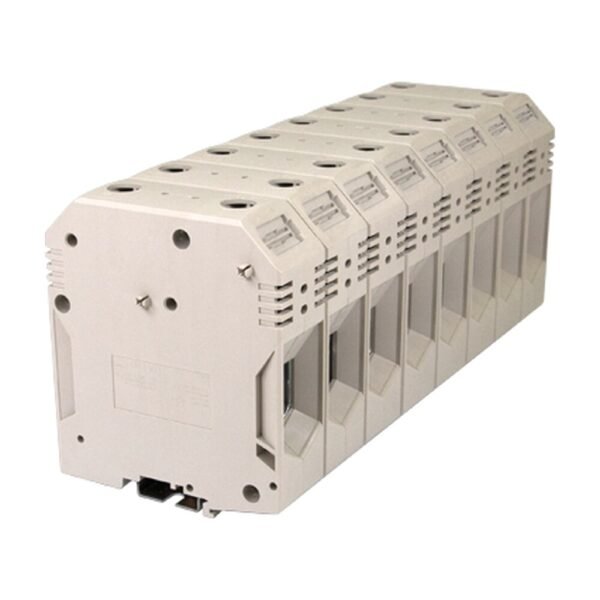

DK150DK150 — DIN rail terminal blocks, Feed through terminal blocks

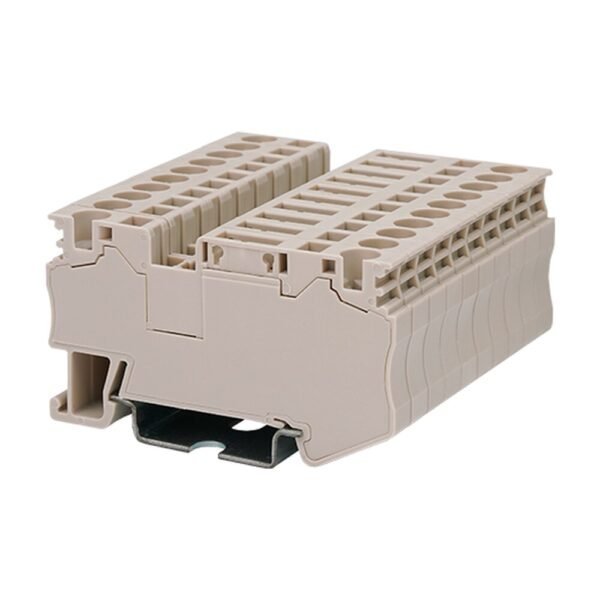

AK4-TAK4-T — Disconnect Terminal Block, Spring Clamp Connection

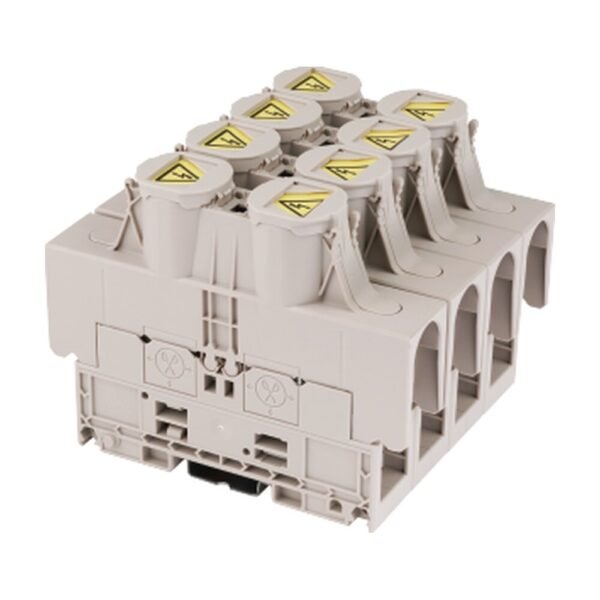

DKM35-UDKM35-U — Feed-through Single Level, Stud Connection

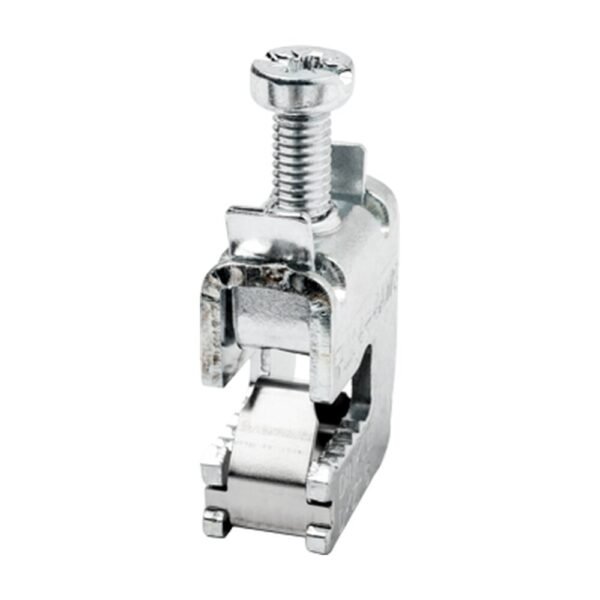

DKZ16DKZ16 — DIN Rail terminal blocks, Busbar terminal blocks

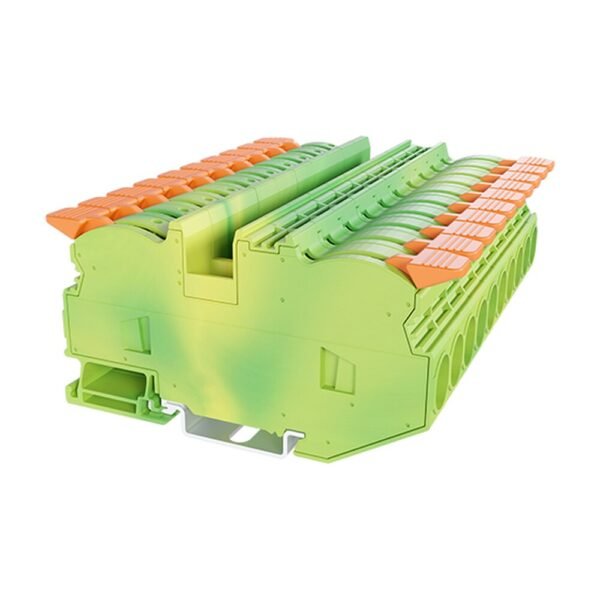

DPH16-PEDPH16-PE — Grounding Terminal Block, Push-in Design
