Gearmotors

Gearmotors – 37 Molon models. 115 V AC shaded pole and PSC reversible, 12 and 24 VDC parallel shaft, 0.4 to 154 RPM, to 150 in-lb. Please call for pricing and availability.

The two ranges

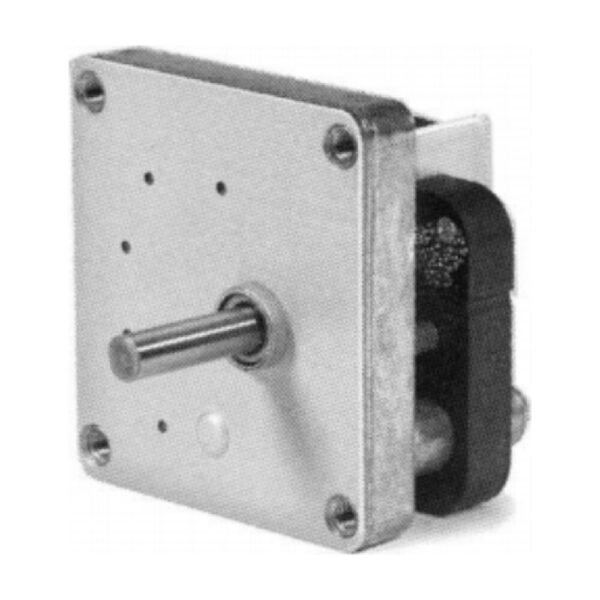

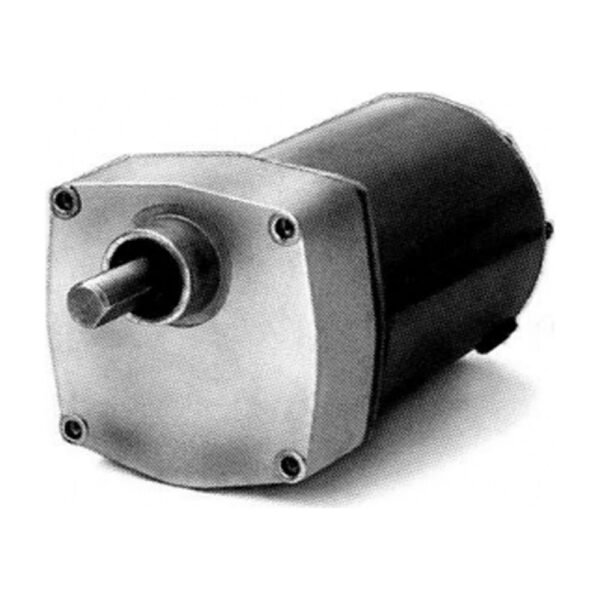

• AC gearmotors – 17 models on 115 V AC 60 Hz. Shaded pole in the HGM and ZEM series, 1 to 50 RPM; PSC reversible in the EM5H and EM5R series, 14 to 154 RPM and up to 67 in-lb.

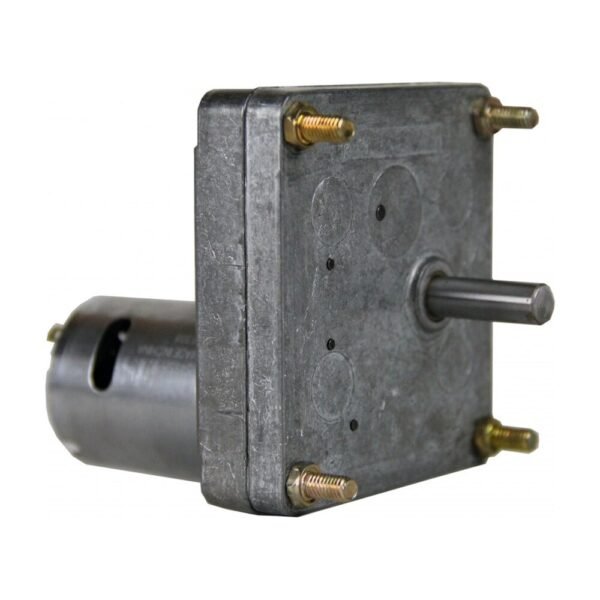

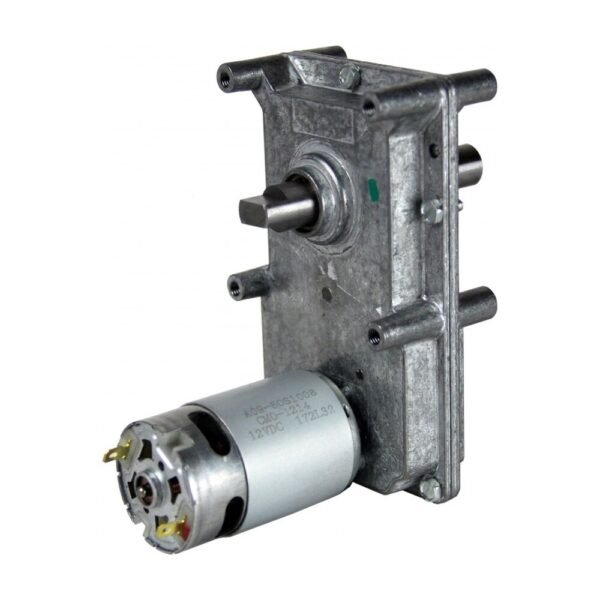

• DC gearmotors – 20 models in the CEM and CHM series, permanent magnet parallel shaft, 12 and 24 VDC, 0.4 to 50 RPM and up to 150 in-lb.

Where they are used

• Vending machines, coin and bill changers, and dispensing equipment.
• Door and gate operators, augers, conveyors and light industrial drives.
• Anywhere a low-speed, high-torque drive has to run from a 115 V AC line or a 12 or 24 V supply without a separate gearbox.

Choosing one

Match the speed and the rated torque first, then the supply voltage, then the shaft and the mounting. Every model lists its RPM and its rated torque in in-lb on its own page. If the speed you need is not listed, tell us the RPM and the torque and we will quote it. Micro-Ray Electronics, Brick, New Jersey since 1984. Please call for pricing and availability.
