MR-HBJD-55A-1L - Signal Tower Light, 55 Series - 1 Layer, LED, Steady or Flashing, Optional Buzzer.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

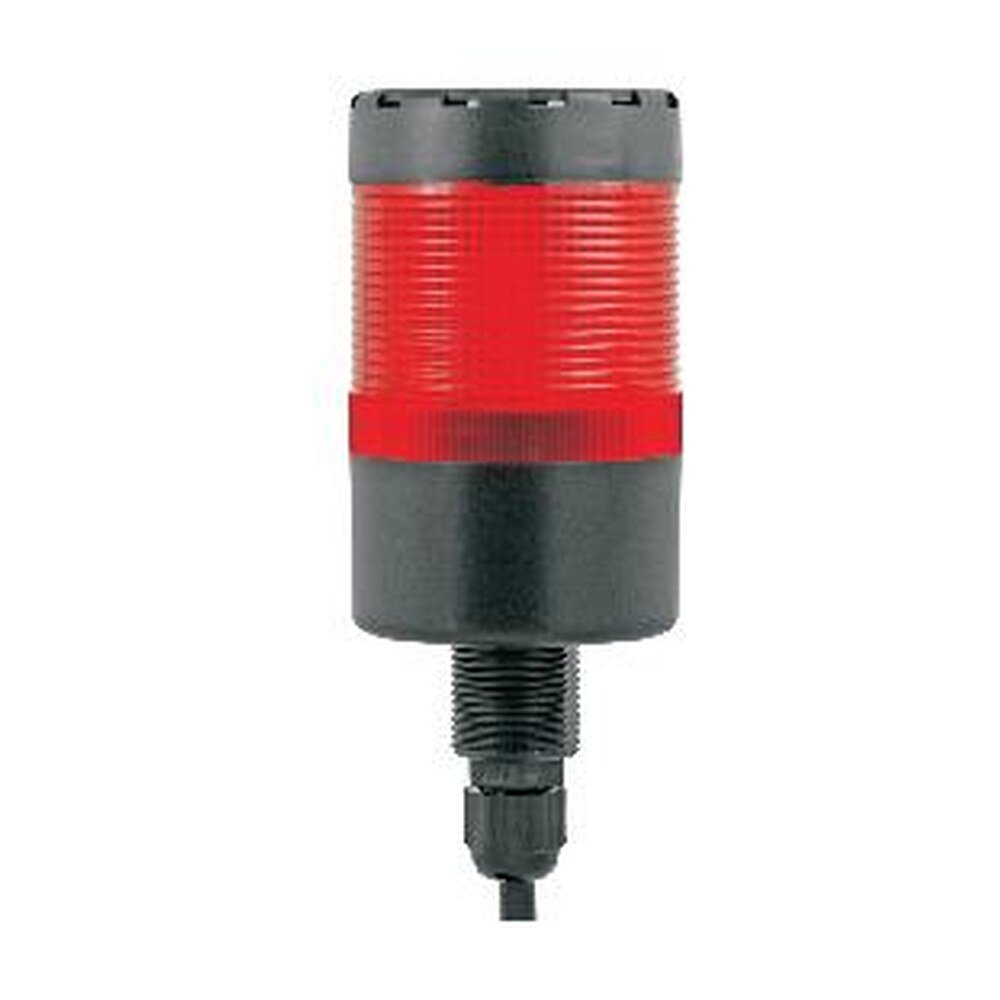

The MR-HBJD-55A-1L is a 1-layer LED signal tower light from the 55 series, steady or flashing by wiring, with an optional buzzer, for 24 V to 220 V AC/DC, in five mounting styles.
Ordering. The ordering code is MR-HBJD-55A1-X-X-X-X: each X is replaced by the option you need - status (D = Steady or flashing light, DB = Steady or flashing light with continuous or intermittent sound); colours (R = Red, Y = Yellow, G = Green, B = Blue, W = White); voltage (24V = 24 V (works on 24 V to 220 V AC/DC), 12VDC = DC 12 V (to order)); mounting (A = Standard (nut and water joint), B = Pole mounting with round base, C = Side mounting, D = Pole mounting with foldable base, E = Foldable base). The part numbers are listed below.
Still being confirmed. The current draw is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-HBJD-55A-1L |
|---|---|
| Also ordered as | HBJD-55A1 |
| Category | Indicator Lights, Switches |
| Ordering code | MR-HBJD-55A1-X-X-X-X |
| Series | HBJD signal tower lights |
| Operating temperature | −25 °C to +55 °C |
| Air humidity | 98 % max |
| Altitude | 2000 m max |
| Vibration resistance | 50 Hz, amplitude about 1.2 mm |
| LED life | 40,000 hours steady, 25,000 hours flashing |
| Buzzer volume | 80 dB to 90 dB at 1 m |
| Pollution degree | 3 |
| Type | Signal tower light, 55 series, 1 layer, steady or flashing |
| Layers | 1 |
| Height | 134 mm overall (111 mm, 90 mm body) |
| Wiring | Black supply wire (24 V to 220 V); purple common for steady light and continuous sound, brown common for flashing light and intermittent sound; grey buzzer, red, yellow, green, blue and white lamp wires; the two commons must not both be connected to the same lamp or buzzer wire; fit a fuse |
| Mounting | A: Ø22.5 mm hole with 20.5 mm flat, B, D, E: base with 4 × Ø5.5 mm holes on 56.5 mm, C: side bracket with 4 × Ø4.4 mm holes, 30 × 10 mm |
| Mounting parts | Side mount base HBJD-CZ-4, Sleeve HBJD-LJT-1, Aluminium pole 10 cm HBJD-LG-1 / HBJD-LG-2, Round base HBJD-SZ-2, Foldable base A HBJD-SZ-3, Foldable base B HBJD-SZ-4 |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-HBJD-55A-1L is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-HBJD-55A1-D-R-24V-A | Steady or flashing light status, Red colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-D-R-24V-B | Steady or flashing light status, Red colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-D-R-24V-C | Steady or flashing light status, Red colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Side mounting mounting |
| MR-HBJD-55A1-D-R-24V-D | Steady or flashing light status, Red colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-D-R-24V-E | Steady or flashing light status, Red colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Foldable base mounting |
| MR-HBJD-55A1-D-R-12VDC-A | Steady or flashing light status, Red colours, DC 12 V (to order) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-D-R-12VDC-B | Steady or flashing light status, Red colours, DC 12 V (to order) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-D-R-12VDC-C | Steady or flashing light status, Red colours, DC 12 V (to order) voltage, Side mounting mounting |
| MR-HBJD-55A1-D-R-12VDC-D | Steady or flashing light status, Red colours, DC 12 V (to order) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-D-R-12VDC-E | Steady or flashing light status, Red colours, DC 12 V (to order) voltage, Foldable base mounting |
| MR-HBJD-55A1-D-Y-24V-A | Steady or flashing light status, Yellow colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-D-Y-24V-B | Steady or flashing light status, Yellow colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-D-Y-24V-C | Steady or flashing light status, Yellow colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Side mounting mounting |
| MR-HBJD-55A1-D-Y-24V-D | Steady or flashing light status, Yellow colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-D-Y-24V-E | Steady or flashing light status, Yellow colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Foldable base mounting |
| MR-HBJD-55A1-D-Y-12VDC-A | Steady or flashing light status, Yellow colours, DC 12 V (to order) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-D-Y-12VDC-B | Steady or flashing light status, Yellow colours, DC 12 V (to order) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-D-Y-12VDC-C | Steady or flashing light status, Yellow colours, DC 12 V (to order) voltage, Side mounting mounting |
| MR-HBJD-55A1-D-Y-12VDC-D | Steady or flashing light status, Yellow colours, DC 12 V (to order) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-D-Y-12VDC-E | Steady or flashing light status, Yellow colours, DC 12 V (to order) voltage, Foldable base mounting |
| MR-HBJD-55A1-D-G-24V-A | Steady or flashing light status, Green colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-D-G-24V-B | Steady or flashing light status, Green colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-D-G-24V-C | Steady or flashing light status, Green colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Side mounting mounting |
| MR-HBJD-55A1-D-G-24V-D | Steady or flashing light status, Green colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-D-G-24V-E | Steady or flashing light status, Green colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Foldable base mounting |
| MR-HBJD-55A1-D-G-12VDC-A | Steady or flashing light status, Green colours, DC 12 V (to order) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-D-G-12VDC-B | Steady or flashing light status, Green colours, DC 12 V (to order) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-D-G-12VDC-C | Steady or flashing light status, Green colours, DC 12 V (to order) voltage, Side mounting mounting |
| MR-HBJD-55A1-D-G-12VDC-D | Steady or flashing light status, Green colours, DC 12 V (to order) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-D-G-12VDC-E | Steady or flashing light status, Green colours, DC 12 V (to order) voltage, Foldable base mounting |
| MR-HBJD-55A1-D-B-24V-A | Steady or flashing light status, Blue colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-D-B-24V-B | Steady or flashing light status, Blue colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-D-B-24V-C | Steady or flashing light status, Blue colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Side mounting mounting |
| MR-HBJD-55A1-D-B-24V-D | Steady or flashing light status, Blue colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-D-B-24V-E | Steady or flashing light status, Blue colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Foldable base mounting |
| MR-HBJD-55A1-D-B-12VDC-A | Steady or flashing light status, Blue colours, DC 12 V (to order) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-D-B-12VDC-B | Steady or flashing light status, Blue colours, DC 12 V (to order) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-D-B-12VDC-C | Steady or flashing light status, Blue colours, DC 12 V (to order) voltage, Side mounting mounting |
| MR-HBJD-55A1-D-B-12VDC-D | Steady or flashing light status, Blue colours, DC 12 V (to order) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-D-B-12VDC-E | Steady or flashing light status, Blue colours, DC 12 V (to order) voltage, Foldable base mounting |
| MR-HBJD-55A1-D-W-24V-A | Steady or flashing light status, White colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-D-W-24V-B | Steady or flashing light status, White colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-D-W-24V-C | Steady or flashing light status, White colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Side mounting mounting |
| MR-HBJD-55A1-D-W-24V-D | Steady or flashing light status, White colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-D-W-24V-E | Steady or flashing light status, White colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Foldable base mounting |
| MR-HBJD-55A1-D-W-12VDC-A | Steady or flashing light status, White colours, DC 12 V (to order) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-D-W-12VDC-B | Steady or flashing light status, White colours, DC 12 V (to order) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-D-W-12VDC-C | Steady or flashing light status, White colours, DC 12 V (to order) voltage, Side mounting mounting |
| MR-HBJD-55A1-D-W-12VDC-D | Steady or flashing light status, White colours, DC 12 V (to order) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-D-W-12VDC-E | Steady or flashing light status, White colours, DC 12 V (to order) voltage, Foldable base mounting |
| MR-HBJD-55A1-DB-R-24V-A | Steady or flashing light with continuous or intermittent sound status, Red colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-DB-R-24V-B | Steady or flashing light with continuous or intermittent sound status, Red colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-DB-R-24V-C | Steady or flashing light with continuous or intermittent sound status, Red colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Side mounting mounting |
| MR-HBJD-55A1-DB-R-24V-D | Steady or flashing light with continuous or intermittent sound status, Red colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-DB-R-24V-E | Steady or flashing light with continuous or intermittent sound status, Red colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Foldable base mounting |
| MR-HBJD-55A1-DB-R-12VDC-A | Steady or flashing light with continuous or intermittent sound status, Red colours, DC 12 V (to order) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-DB-R-12VDC-B | Steady or flashing light with continuous or intermittent sound status, Red colours, DC 12 V (to order) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-DB-R-12VDC-C | Steady or flashing light with continuous or intermittent sound status, Red colours, DC 12 V (to order) voltage, Side mounting mounting |
| MR-HBJD-55A1-DB-R-12VDC-D | Steady or flashing light with continuous or intermittent sound status, Red colours, DC 12 V (to order) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-DB-R-12VDC-E | Steady or flashing light with continuous or intermittent sound status, Red colours, DC 12 V (to order) voltage, Foldable base mounting |
| MR-HBJD-55A1-DB-Y-24V-A | Steady or flashing light with continuous or intermittent sound status, Yellow colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-DB-Y-24V-B | Steady or flashing light with continuous or intermittent sound status, Yellow colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-DB-Y-24V-C | Steady or flashing light with continuous or intermittent sound status, Yellow colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Side mounting mounting |
| MR-HBJD-55A1-DB-Y-24V-D | Steady or flashing light with continuous or intermittent sound status, Yellow colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-DB-Y-24V-E | Steady or flashing light with continuous or intermittent sound status, Yellow colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Foldable base mounting |
| MR-HBJD-55A1-DB-Y-12VDC-A | Steady or flashing light with continuous or intermittent sound status, Yellow colours, DC 12 V (to order) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-DB-Y-12VDC-B | Steady or flashing light with continuous or intermittent sound status, Yellow colours, DC 12 V (to order) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-DB-Y-12VDC-C | Steady or flashing light with continuous or intermittent sound status, Yellow colours, DC 12 V (to order) voltage, Side mounting mounting |
| MR-HBJD-55A1-DB-Y-12VDC-D | Steady or flashing light with continuous or intermittent sound status, Yellow colours, DC 12 V (to order) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-DB-Y-12VDC-E | Steady or flashing light with continuous or intermittent sound status, Yellow colours, DC 12 V (to order) voltage, Foldable base mounting |
| MR-HBJD-55A1-DB-G-24V-A | Steady or flashing light with continuous or intermittent sound status, Green colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-DB-G-24V-B | Steady or flashing light with continuous or intermittent sound status, Green colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-DB-G-24V-C | Steady or flashing light with continuous or intermittent sound status, Green colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Side mounting mounting |
| MR-HBJD-55A1-DB-G-24V-D | Steady or flashing light with continuous or intermittent sound status, Green colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-DB-G-24V-E | Steady or flashing light with continuous or intermittent sound status, Green colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Foldable base mounting |
| MR-HBJD-55A1-DB-G-12VDC-A | Steady or flashing light with continuous or intermittent sound status, Green colours, DC 12 V (to order) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-DB-G-12VDC-B | Steady or flashing light with continuous or intermittent sound status, Green colours, DC 12 V (to order) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-DB-G-12VDC-C | Steady or flashing light with continuous or intermittent sound status, Green colours, DC 12 V (to order) voltage, Side mounting mounting |
| MR-HBJD-55A1-DB-G-12VDC-D | Steady or flashing light with continuous or intermittent sound status, Green colours, DC 12 V (to order) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-DB-G-12VDC-E | Steady or flashing light with continuous or intermittent sound status, Green colours, DC 12 V (to order) voltage, Foldable base mounting |
| MR-HBJD-55A1-DB-B-24V-A | Steady or flashing light with continuous or intermittent sound status, Blue colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-DB-B-24V-B | Steady or flashing light with continuous or intermittent sound status, Blue colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-DB-B-24V-C | Steady or flashing light with continuous or intermittent sound status, Blue colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Side mounting mounting |
| MR-HBJD-55A1-DB-B-24V-D | Steady or flashing light with continuous or intermittent sound status, Blue colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-DB-B-24V-E | Steady or flashing light with continuous or intermittent sound status, Blue colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Foldable base mounting |
| MR-HBJD-55A1-DB-B-12VDC-A | Steady or flashing light with continuous or intermittent sound status, Blue colours, DC 12 V (to order) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-DB-B-12VDC-B | Steady or flashing light with continuous or intermittent sound status, Blue colours, DC 12 V (to order) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-DB-B-12VDC-C | Steady or flashing light with continuous or intermittent sound status, Blue colours, DC 12 V (to order) voltage, Side mounting mounting |
| MR-HBJD-55A1-DB-B-12VDC-D | Steady or flashing light with continuous or intermittent sound status, Blue colours, DC 12 V (to order) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-DB-B-12VDC-E | Steady or flashing light with continuous or intermittent sound status, Blue colours, DC 12 V (to order) voltage, Foldable base mounting |
| MR-HBJD-55A1-DB-W-24V-A | Steady or flashing light with continuous or intermittent sound status, White colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-DB-W-24V-B | Steady or flashing light with continuous or intermittent sound status, White colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-DB-W-24V-C | Steady or flashing light with continuous or intermittent sound status, White colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Side mounting mounting |
| MR-HBJD-55A1-DB-W-24V-D | Steady or flashing light with continuous or intermittent sound status, White colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-DB-W-24V-E | Steady or flashing light with continuous or intermittent sound status, White colours, 24 V (works on 24 V to 220 V AC/DC) voltage, Foldable base mounting |
| MR-HBJD-55A1-DB-W-12VDC-A | Steady or flashing light with continuous or intermittent sound status, White colours, DC 12 V (to order) voltage, Standard (nut and water joint) mounting |
| MR-HBJD-55A1-DB-W-12VDC-B | Steady or flashing light with continuous or intermittent sound status, White colours, DC 12 V (to order) voltage, Pole mounting with round base mounting |
| MR-HBJD-55A1-DB-W-12VDC-C | Steady or flashing light with continuous or intermittent sound status, White colours, DC 12 V (to order) voltage, Side mounting mounting |
| MR-HBJD-55A1-DB-W-12VDC-D | Steady or flashing light with continuous or intermittent sound status, White colours, DC 12 V (to order) voltage, Pole mounting with foldable base mounting |
| MR-HBJD-55A1-DB-W-12VDC-E | Steady or flashing light with continuous or intermittent sound status, White colours, DC 12 V (to order) voltage, Foldable base mounting |
