MR-GQ12-CH-10ZE - 12 mm Latching Metal Push Button - High Round Head, Ring Illuminated, 1NO.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

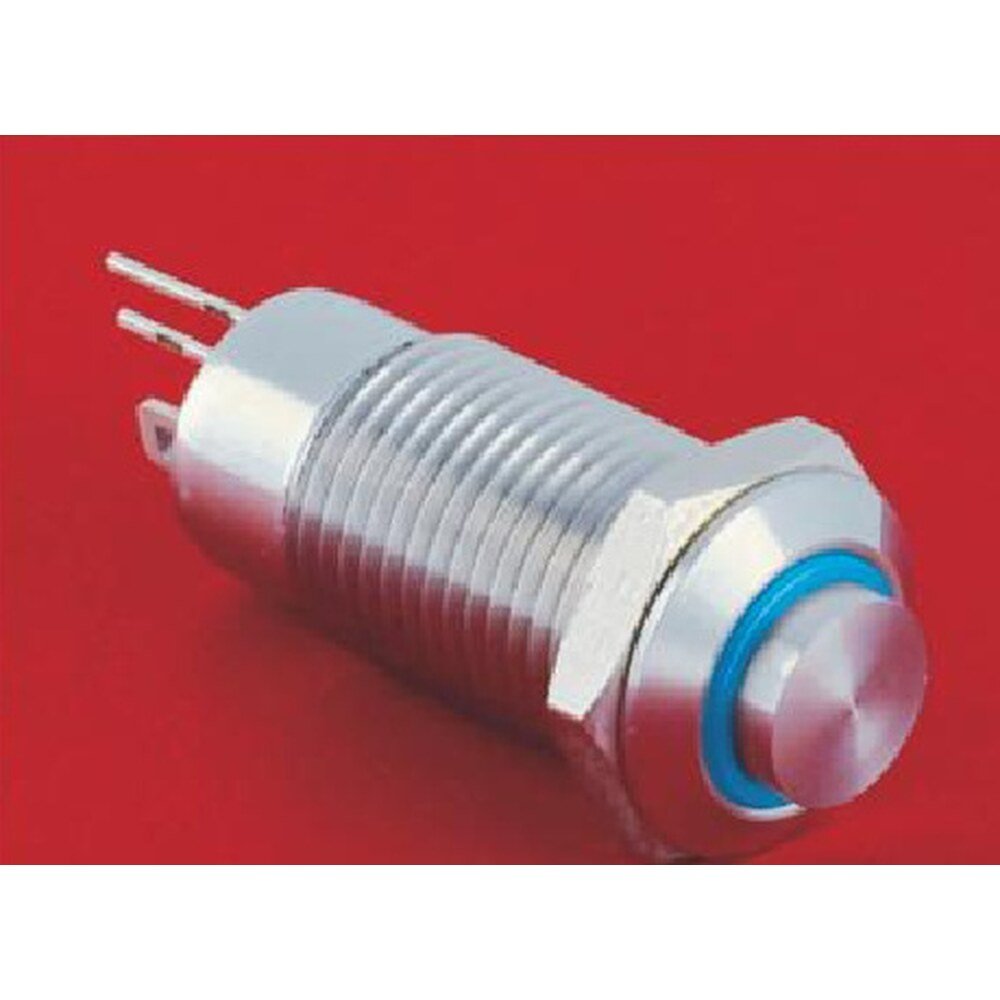

The MR-GQ12-CH-10ZE is the ring-illuminated version of the 12 mm latching stainless-steel push button, with an LED ring in red, green, yellow, blue or white at 6 V, 12 V or 24 V. The contact is a single normally-open rated 1 A at 36 V DC.
Ordering. The ordering code is MR-GQ12-CH-10ZE-J-X-X-S: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); led voltage (6V = 6 V DC, 12V = 12 V DC, 24V = 24 V DC). The part numbers are listed below.
Still being confirmed. The terminal count, the IK impact rating and whether this model is latching or momentary - its ordering code carries Z for latching but the catalogue row prints momentary are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ12-CH-10ZE |
|---|---|
| Also ordered as | GQ12-CH-10ZE |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ12-CH-10ZE-J-X-X-S |
| Series | GQ12-C |
| Contact structure | 1NO |
| Head shape | H = high round |
| Switch rating | 1 A at 36 V DC |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 200,000 cycles |
| Electrical life | 50,000 cycles |
| Operation travel | 2.5 mm approx |
| Operating force | 3.5 N approx |
| Nut torque | 0.6 Nm approx |
| Base material | PA66 |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP40 (IP65 can be customised) |
| Standard | EN 61058-1:2018, CE marked (certificate UDEM/M.2021.206.C62197) |
| Panel cut-out | Ø12 mm |
| Mounting | M12 × 1 threaded bush |
| Bezel diameter | Ø14 mm |
| Bezel height | 10 mm max |
| Body length behind panel | 27.5 mm |
| Housing material | Stainless steel |
| Termination | Solder tab (wiring patch) 2.8 × 0.5 mm |
| Operation type | Z = latching (the catalogue row for this model prints momentary - being confirmed) |
| Illuminated type | E = ring illuminated |
| Ring width | 0.65 mm |
| LED colour | R red, G green, Y yellow, B blue, W white |
| LED voltage | 6 V, 12 V, 24 V (built-in resistor; white and yellow lamp beads are DC only) |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less |
| LED voltage fluctuation | DC ±10 % |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-GQ12-CH-10ZE is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-GQ12-CH-10ZE-J-R-6V-S | Red led colour, 6 v dc led voltage |
| MR-GQ12-CH-10ZE-J-R-12V-S | Red led colour, 12 v dc led voltage |
| MR-GQ12-CH-10ZE-J-R-24V-S | Red led colour, 24 v dc led voltage |
| MR-GQ12-CH-10ZE-J-G-6V-S | Green led colour, 6 v dc led voltage |
| MR-GQ12-CH-10ZE-J-G-12V-S | Green led colour, 12 v dc led voltage |
| MR-GQ12-CH-10ZE-J-G-24V-S | Green led colour, 24 v dc led voltage |
| MR-GQ12-CH-10ZE-J-Y-6V-S | Yellow led colour, 6 v dc led voltage |
| MR-GQ12-CH-10ZE-J-Y-12V-S | Yellow led colour, 12 v dc led voltage |
| MR-GQ12-CH-10ZE-J-Y-24V-S | Yellow led colour, 24 v dc led voltage |
| MR-GQ12-CH-10ZE-J-B-6V-S | Blue led colour, 6 v dc led voltage |
| MR-GQ12-CH-10ZE-J-B-12V-S | Blue led colour, 12 v dc led voltage |
| MR-GQ12-CH-10ZE-J-B-24V-S | Blue led colour, 24 v dc led voltage |
| MR-GQ12-CH-10ZE-J-W-6V-S | White led colour, 6 v dc led voltage |
| MR-GQ12-CH-10ZE-J-W-12V-S | White led colour, 12 v dc led voltage |
| MR-GQ12-CH-10ZE-J-W-24V-S | White led colour, 24 v dc led voltage |
