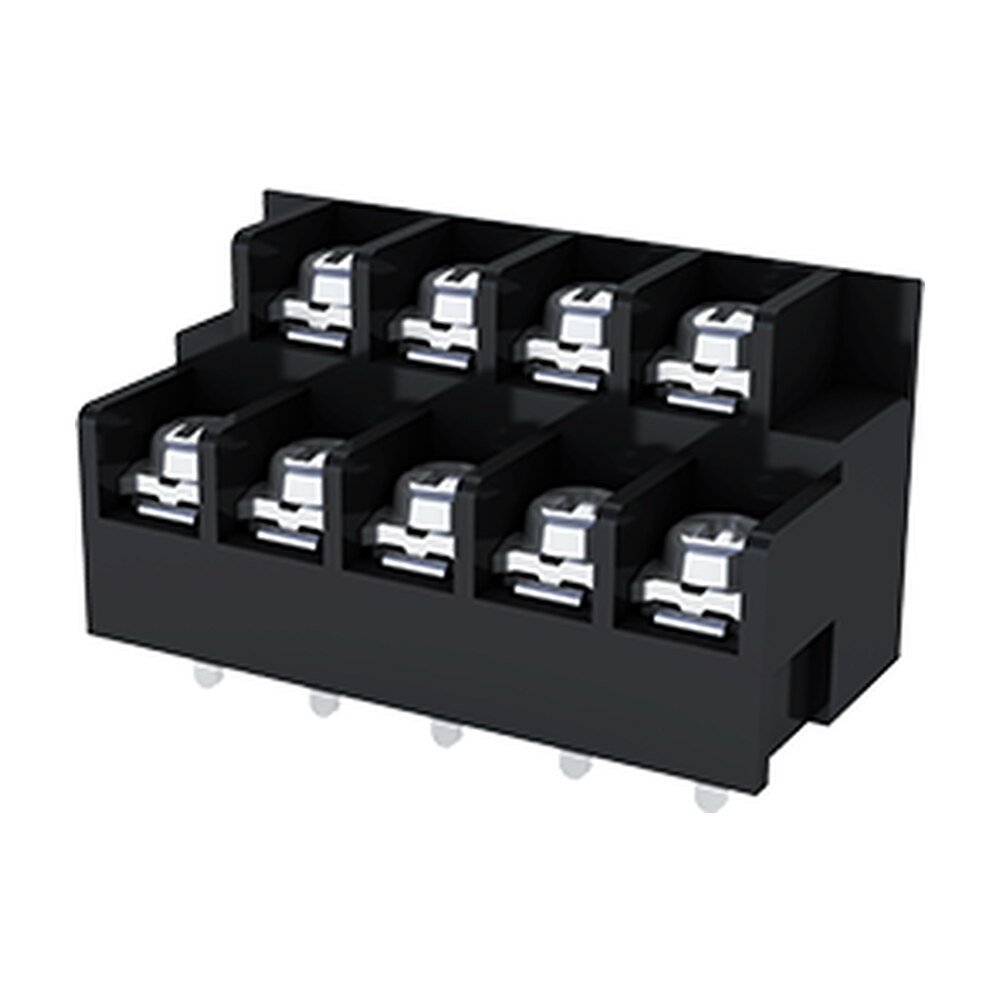

0032-23XX — Bi-level, Screw Connection, Pitch :7.62mm, M3, 300V, 20A. Pitch: 7.62mm, M3, 300V, 20A.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle 0032-23XX — Bi-level, Screw Connection. Distributed by Micro-Ray Electronics.
Barrier terminal blocks land wires between insulating barriers on a panel or chassis, keeping adjacent circuits separated and each screw reachable for test and re-termination. They are used throughout machine control, instrumentation, HVAC and appliance wiring.
Bi-level, Screw Connection, Pitch :7.62mm, M3, 300V, 20A
Published by Dinkle for the 0032-23XX series.
| Category | Bi-level |
|---|---|
| Pitch (mm) | 7.62 |
| Color | Black (default) |
| Connection method | Screw connection |
| Type of locking | Without |
| Soldering method | Wave Soldering |

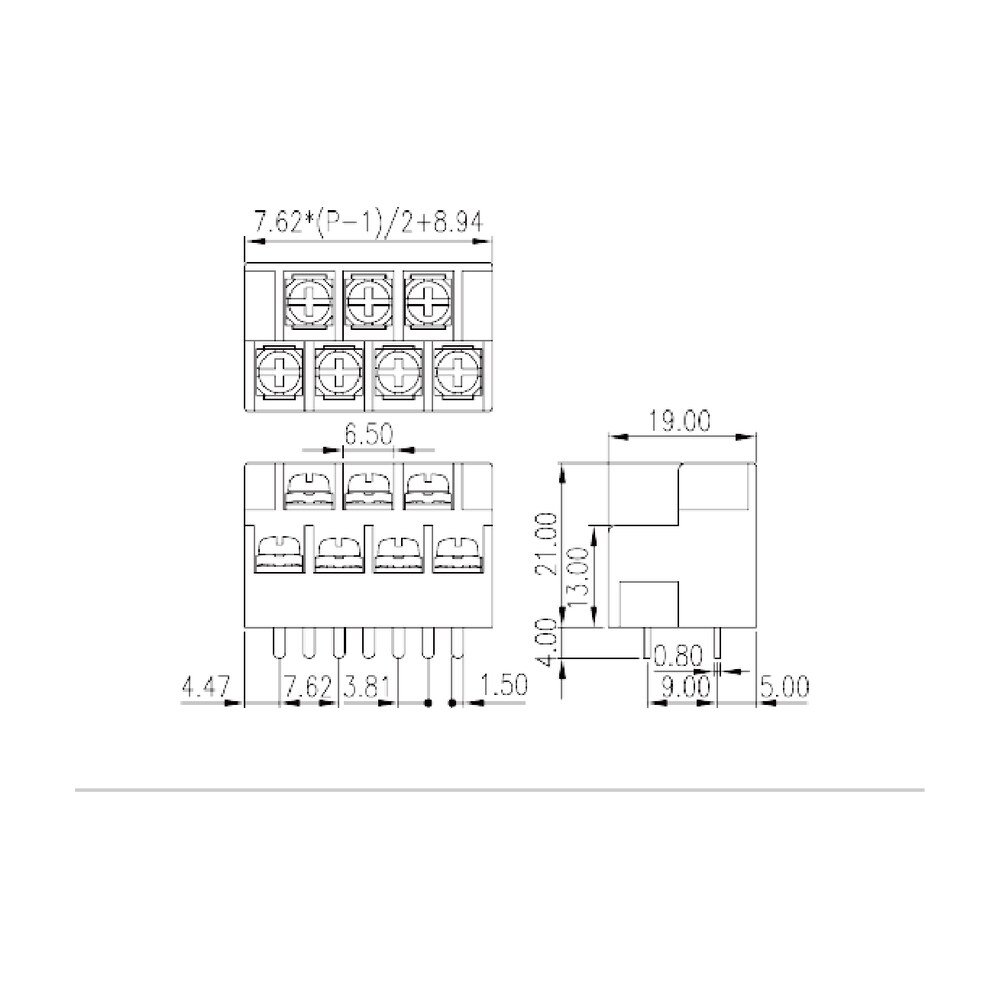

| Length (mm) | 7.62*(P-1)/2+8.94 |
| Width (mm) | 19 |
| Height (mm) | 21 |
| Pin demensions (Thickness x Width)(mm) | 0.8x1.5 |
| PCB hole diameter (mm) | 2.2 |
| Number of positions | 03P~23P |
| Level | Bi-level |
| Connection points | 3~23 |
| Insulation material | PBT |
|---|---|
| Insulation material group | IIIa |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥1000MΩ at DC 500V |
| Conductor material | COPPER ALLOY |
| Plating of conductor surface | Tin PLATED |
| Rated voltage (V) | 320 |
|---|---|
| Rated current (A) | 24 |
| Rated voltage (II/2)(V) | 320 |
| Rated voltage (III/2) (V) | 320 |
| Rated voltage (III/3)(V) | 200 |
| Rated impulse voltage (II/2)(KV) | 4 |
| Rated impulse voltage (III/2)(KV) | 4 |
| Rated impulse voltage (III/3)(KV) | 4 |
| Conductor cross section solid. min (mm²) | 0.34 |
| Conductor cross section solid.max (mm²) | 2.5 |
| Conductor cross section stranded. min (mm²) | 0.34 |
| Conductor cross section stranded. max (mm²) | 2.5 |
| 2 conductors with same cross section, solid, min (mm²) | 0.34 |
| 2 conductors with same cross section, solid, max (mm²) | 2.5 |
| 2 conductors with same cross section, stranded, min (mm²) | 0.34 |
| 2 conductors with same cross section, stranded, max (mm²) | 2.5 |
| Screw thread | M3 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 0.8x4 |
| Philips screwdriver size | PH2 |
| Recommend tightening torque. min (N.m) | 0.5 |
| Recommend tightening torque. max (N.m) | 0.6 |
| Stripping Length (mm) | 8~9 |
| Rated voltage (UL/CUL Group B)(V) | 300 |
|---|---|
| Rated current (UL/CUL Group B)(A) | 20 |
| Rated voltage (UL/CUL Group D)(V) | 300 |
| Rated current (UL/CUL Group D)(A) | 10 |
| Min. solid wire connection (AWG) acc. to UL/CUL | 22 |
| Max. solid wire connection AWG acc. to UL/CUL | 12 |
| Min. stranded wire connection AWG acc. to UL/CUL | 22 |
| Max. stranded wire connection AWG acc. to UL/CUL | 12 |
| Back of the hand protection (YES or NO) | YES |
|---|---|
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | 0032-23XX |
|---|---|
| Pins Available | 21 |
| Category | Bi-level |
| Block Type | Bi-level |
| Connection Method | Screw connection |
| Level | Bi-level |
| Connection Points | 3~23 |
| Number of Positions | 03P~23P |
| Pitch (mm) | 7.62 |
| Rated Voltage (UL) | 300 |
| Rated Current (UL) | 20 |
| Rated Voltage (IEC) | 320 |
| Rated Current (IEC) | 24 |
| Stripping Length (mm) | 8~9 |
| Screw Thread | M3 |
| Length (mm) | 7.62*(P-1)/2+8.94 |
| Width (mm) | 19 |
| Height (mm) | 21 |
| Insulation Material | PBT |
| Flame Rating (UL94) | V0 |
| Color | Black (default) |
| Operating Temperature | -40 to 120 °C |
| Type of locking | Without |
| Soldering method | Wave Soldering |
| Pin demensions (Thickness x Width)(mm) | 0.8x1.5 |
| PCB hole diameter (mm) | 2.2 |
| Insulation material group | IIIa |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥1000MΩ at DC 500V |
| Conductor material | COPPER ALLOY |
| Plating of conductor surface | Tin PLATED |
| Rated voltage (V) | 320 |
| Rated current (A) | 24 |
| Rated voltage (II/2)(V) | 320 |
| Rated voltage (III/2) (V) | 320 |
| Rated voltage (III/3)(V) | 200 |
| Rated impulse voltage (II/2)(KV) | 4 |
| Rated impulse voltage (III/2)(KV) | 4 |
| Rated impulse voltage (III/3)(KV) | 4 |
| Conductor cross section solid. min (mm²) | 0.34 |
| Conductor cross section solid.max (mm²) | 2.5 |
| Conductor cross section stranded. min (mm²) | 0.34 |
| Conductor cross section stranded. max (mm²) | 2.5 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 0.8x4 |
| Philips screwdriver size | PH2 |
| Recommend tightening torque. min (N.m) | 0.5 |
| Recommend tightening torque. max (N.m) | 0.6 |
| Rated voltage (UL/CUL Group B)(V) | 300 |
| Rated current (UL/CUL Group B)(A) | 20 |
| Rated voltage (UL/CUL Group D)(V) | 300 |
| Rated current (UL/CUL Group D)(A) | 10 |
| Min. solid wire connection (AWG) acc. to UL/CUL | 22 |
| Max. solid wire connection AWG acc. to UL/CUL | 12 |
| Min. stranded wire connection AWG acc. to UL/CUL | 22 |
| Max. stranded wire connection AWG acc. to UL/CUL | 12 |
| Back of the hand protection (YES or NO) | YES |
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
