0168-35XX — Barrier terminal blocks , Screw connection , Pitch : 13mm , M4 , 600V , 50A. Pitch: 13mm , M4, 600V, 50A.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle 0168-35XX — Barrier terminal blocks , Screw connection. Distributed by Micro-Ray Electronics.

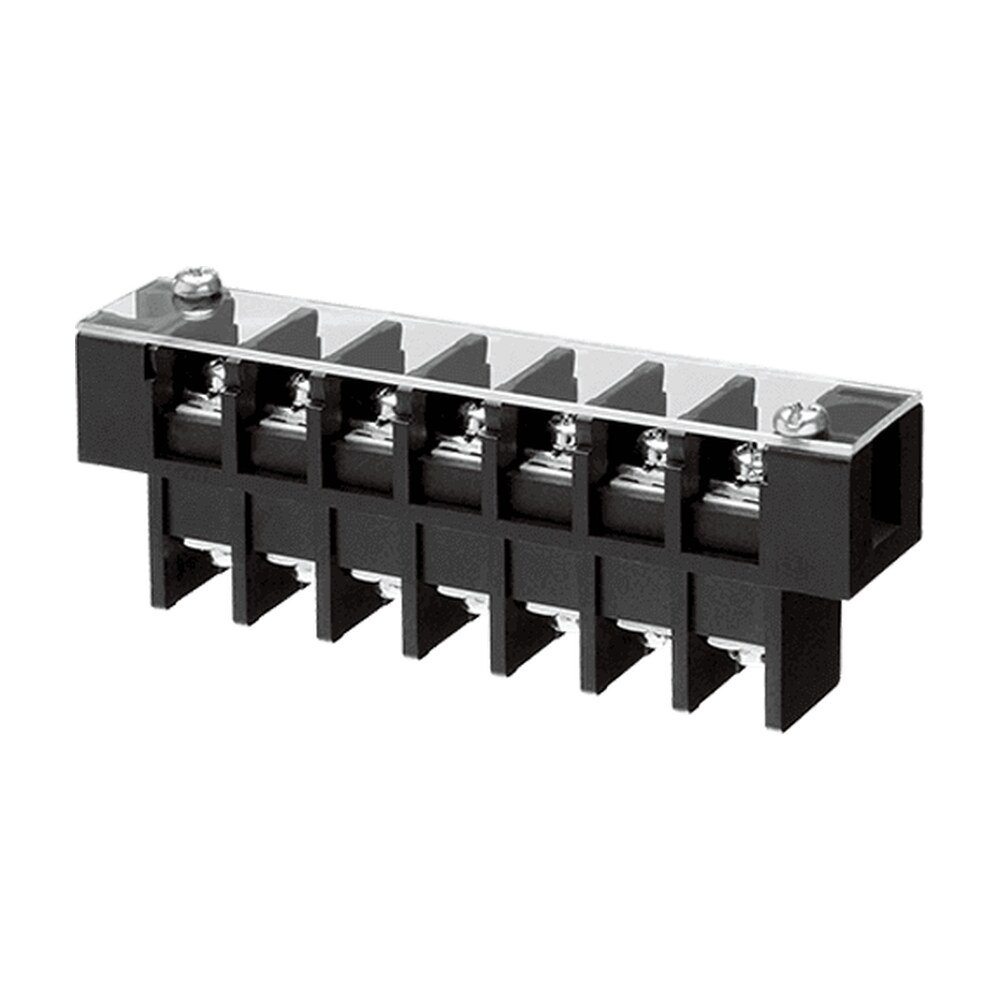

Barrier terminal blocks land wires between insulating barriers on a panel or chassis, keeping adjacent circuits separated and each screw reachable for test and re-termination. They are used throughout machine control, instrumentation, HVAC and appliance wiring.
Barrier terminal blocks , Screw connection , Pitch : 13mm , M4 , 600V , 50A
Published by Dinkle for the 0168-35XX series.
| Category | Panel Feed Through Terminal Blocks |
|---|---|
| Pitch (mm) | 13 |
| Color | Black(default) |
| Connection method | Screw connection |
| Type of locking | With mounting flange |
| Level | Single level |
| Insulation material | PBT |
|---|---|
| Insulation material group | IIIa |
| Flame retardant rating , compliant with UL94 | V0 |
| Conductor material | Copper Alloy |
| Plating of conductor surface | Tinned |
| Rated voltage (V) | 630 |
|---|---|
| Rated current (A) | 57 |
| Rated voltage (II/2)(V) | 1000 |
| Rated voltage (III/2) (V) | 1000 |
| Rated voltage (III/3)(V) | 630 |
| Rated impulse voltage (II/2)(KV) | 8 |
| Rated impulse voltage (III/2)(KV) | 8 |
| Rated impulse voltage (III/3)(KV) | 8 |
| Conductor cross section solid. min (mm²) | 0.34 |
| Conductor cross section solid.max (mm²) | 10 |
| Conductor cross section stranded. min (mm²) | 0.34 |
| Conductor cross section stranded. max (mm²) | 10 |
| 2 conductors with same cross section, solid, max (mm²) | 6 |
| 2 conductors with same cross section, stranded, max (mm²) | 6 |
| Screw thread | M4 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 1.0x5.5 |
| Philips screwdriver size | PH2 |
| Rated torque (N.m) | 1.8 |
| Recommend tightening torque. min (N.m) | 1.2 |
| Recommend tightening torque. max (N.m) | 1.8 |
| Stripping Length (mm) | 8 |
| Rated voltage (UL/CUL Group B)(V) | 600 |
|---|---|
| Rated current (UL/CUL Group B)(A) | 50 |
| Rated voltage (UL/CUL Group C)(V) | 600 |
| Rated current (UL/CUL Group C)(A) | 50 |
| Min. solid wire connection (AWG) acc. to UL/CUL | 22 |
| Max. solid wire connection AWG acc. to UL/CUL | 8 |
| Min. stranded wire connection AWG acc. to UL/CUL | 22 |
| Max. stranded wire connection AWG acc. to UL/CUL | 8 |
| Back of the hand protection (YES or NO) | YES |
|---|---|
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Wire Range (Group B)(AWG) | 22~8 |
|---|---|
| Rated voltage (Group B)(V) | 600 |
| Rated current (Group B)(A) | 50 |
| Wire Range (Group C)(AWG) | 22~8 |
| Rated voltage (Group C)(V) | 600 |
| Rated current (Group C)(A) | 50 |
| Wire Range (Group B)(AWG) | 22~8 |
|---|---|
| Rated voltage (Group B)(V) | 600 |
| Rated current (Group B)(A) | 50 |
| Wire Range (Group C)(AWG) | 22~8 |
| Rated voltage (Group C)(V) | 600 |
| Rated current (Group C)(A) | 50 |
| Wire Range (mm²) | 0.34~10 |
|---|---|
| Rated voltage (V) | 630 |
| Rated current (A) | 57 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | 0168-35XX |
|---|---|
| Category | Panel Feed-Through |
| Block Type | Panel Feed Through Terminal Blocks |
| Connection Method | Screw connection |
| Type of Locking | With mounting flange |
| Level | Single level |
| Pitch (mm) | 13 |
| Rated Voltage (UL) | 600 |
| Rated Current (UL) | 50 |
| Wire Range (UL) | 22~8 |
| Rated Voltage (IEC) | 630 |
| Rated Current (IEC) | 57 |
| Wire Range (IEC) | 0.34~10 |
| Stripping Length (mm) | 8 |
| Screw Thread | M4 |
| Insulation Material | PBT |
| Flame Rating (UL94) | V0 |
| Color | Black(default) |
| Operating Temperature | -40 to 120 °C |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |

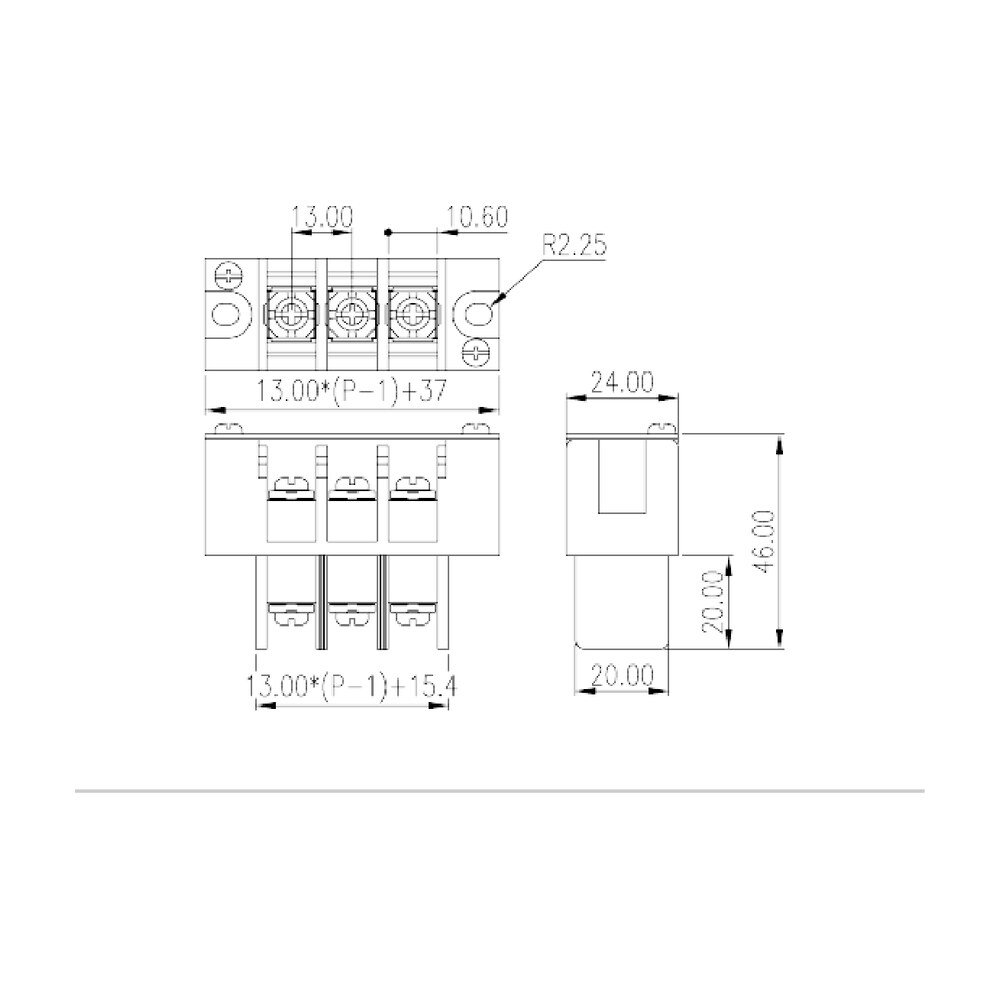

Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
