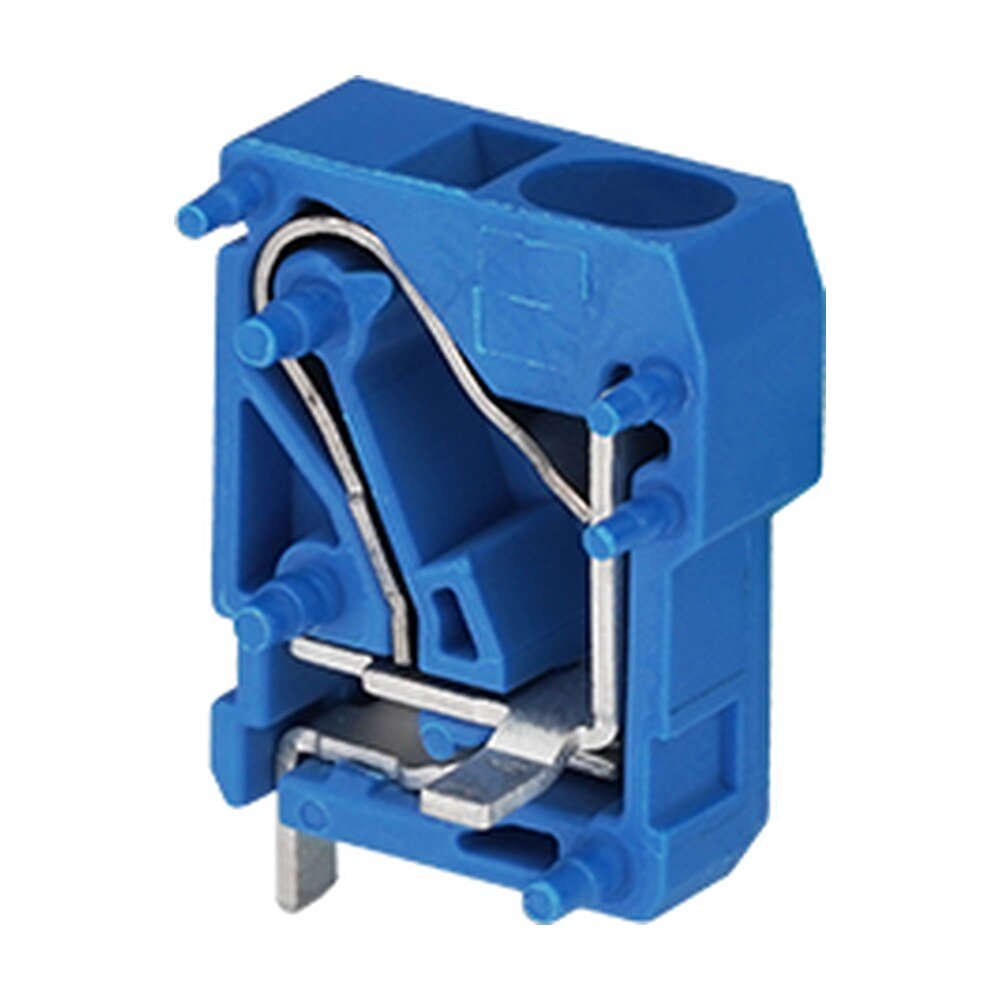

0207-0100 — Sensor Terminal Block, Push-in Design, Pitch: 5.08mm, 300V, 10A
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle 0207-0100 — Sensor Terminal Block, Push-in Design. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.
Sensor Terminal Block, Push-in Design, Pitch: 5.08mm, 300V, 10A
Published by Dinkle for the 0207-0100 series.
| Category | Sensor Terminal Block |
|---|---|
| Pitch (mm) | 5.08 |
| Connection method | Push-in Design |
| Length (mm) | 5.08 |
| Width (mm) | 13.1 |
| Height (mm) | 16.5 |
| Pin demensions (Thickness x Width)(mm) | 3 |
| Number of positions | 02P~24P |
| Level | Single level |
| Insulation material | PA |
|---|---|
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥500MΩ at DC 500V |
| Rated voltage (V) | 400 |
|---|---|
| Rated current (A) | 17.5 |
| Rated voltage (II/2)(V) | 400 |
| Rated voltage (III/2) (V) | 400 |
| Rated voltage (III/3)(V) | 250 |
| Rated impulse voltage (II/2)(KV) | 2.5 |
| Rated impulse voltage (III/2)(KV) | 4 |
| Rated impulse voltage (III/3)(KV) | 4 |
| Conductor cross section solid. min (mm²) | 0.5 |
| Conductor cross section solid.max (mm²) | 2.5 |
| Conductor cross section stranded. min (mm²) | 0.5 |
| Conductor cross section stranded. max (mm²) | 2.5 |
| Conductor cross section flexible, with min ferrule without plastic sleeve (mm²) | 0.5 |
| Conductor cross section flexible, with max ferrule without plastic sleeve (mm²) | 1.5 |
| Conductor cross section flexible, with min ferrule with plastic sleeve (mm²) | 0.5 |
| Conductor cross section flexible, with max ferrule with plastic sleeve (mm²) | 1.5 |
| 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²) | 0.5 |
| 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²) | 0.75 |
| Philips screwdriver size | 0.6x3.5 |
| Stripping Length (mm) | 8~10 |
| Mounting rail | TS-35N、TS-35/15N |
| Rated voltage (UL/CUL Group B)(V) | 300 |
|---|---|
| Rated current (UL/CUL Group B)(A) | 10 |
| Rated voltage (UL/CUL Group C)(V) | 150 |
| Rated current (UL/CUL Group C)(A) | 10 |
| Rated voltage (UL/CUL Group D)(V) | 300 |
| Rated current (UL/CUL Group D)(A) | 10 |
| Min. solid wire connection (AWG) acc. to UL/CUL | 26 |
| Max. solid wire connection AWG acc. to UL/CUL | 14 |
| Min. stranded wire connection AWG acc. to UL/CUL | 26 |
| Max. stranded wire connection AWG acc. to UL/CUL | 14 |
| Finger protection (YES or NO) | YES |
|---|---|
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Wire Range (Group B)(AWG) | 26~14 |
|---|---|
| Rated voltage (Group B)(V) | 300 |
| Rated current (Group B)(A) | 10 |
| Wire Range (Group C)(AWG) | 26~14 |
| Rated voltage (Group C)(V) | 150 |
| Rated current (Group C)(A) | 10 |
| Wire Range (Group D)(AWG) | 26~14 |
| Rated voltage (Group D)(V) | 300 |
| Rated current (Group D)(A) | 10 |
| Wire Range (Group B)(AWG) | 26~14 |
|---|---|
| Rated voltage (Group B)(V) | 300 |
| Rated current (Group B)(A) | 10 |
| Wire Range (Group C)(AWG) | 26~14 |
| Rated voltage (Group C)(V) | 150 |
| Rated current (Group C)(A) | 10 |
| Wire Ranget (Group D)(AWG) | 26~14 |
| Rated voltage (Group D)(V) | 300 |
| Rated current (Group D)(A) | 10 |
| Wire Range (mm²) | 0.5~2.5 |
|---|---|
| Rated voltage (V) | 400 |
| Rated current (A) | 17.5 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | 0207-0100 |
|---|---|
| Category | Push-in Design |
| Block Type | Sensor Terminal Block |
| Connection Method | Push-in Design |
| Level | Single level |
| Number of Positions | 02P~24P |
| Pitch (mm) | 5.08 |
| Rated Voltage (UL) | 300 |
| Rated Current (UL) | 10 |
| Wire Range (UL) | 26~14 |
| Rated Voltage (IEC) | 400 |
| Rated Current (IEC) | 17.5 |
| Wire Range (IEC) | 0.5~2.5 |
| Stripping Length (mm) | 8~10 |
| Mounting Rail | TS-35N、TS-35/15N |
| Length (mm) | 5.08 |
| Width (mm) | 13.1 |
| Height (mm) | 16.5 |
| Insulation Material | PA |
| Flame Rating (UL94) | V0 |
| Operating Temperature | -40 to 120 °C |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
