22 to 37" Full Motion TV Wall Mount MW-3A2B is a completely full-motion mount, with a weight capacity of 80lbs (36.4kgs), featuring 5 – 20-degree tilt, 115-degree swivel & 11-inch full extension.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Please call for pricing and availability
22 to 37" Full Motion TV Wall Mount MW-3A2B is a completely full-motion mount, with a weight capacity of 80lbs (36.4kgs), featuring 5 – 20-degree tilt, 115-degree swivel & 11-inch full extension. This pivot TV wall mount can achieve optimal viewing positions with it's 2- pivot-points design. This aluminum TV mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here. Downloads Installation Manual These downloads require Adobe Reader. To get Adobe Reader to click here. Video
| Fits most | 22" to 37" flat panels |
|---|---|
| Weight Capacity | Supports up to 36.4kg(80lbs) |
| Tilt | 5° / - 20° |
| Swivel | Max 115° |

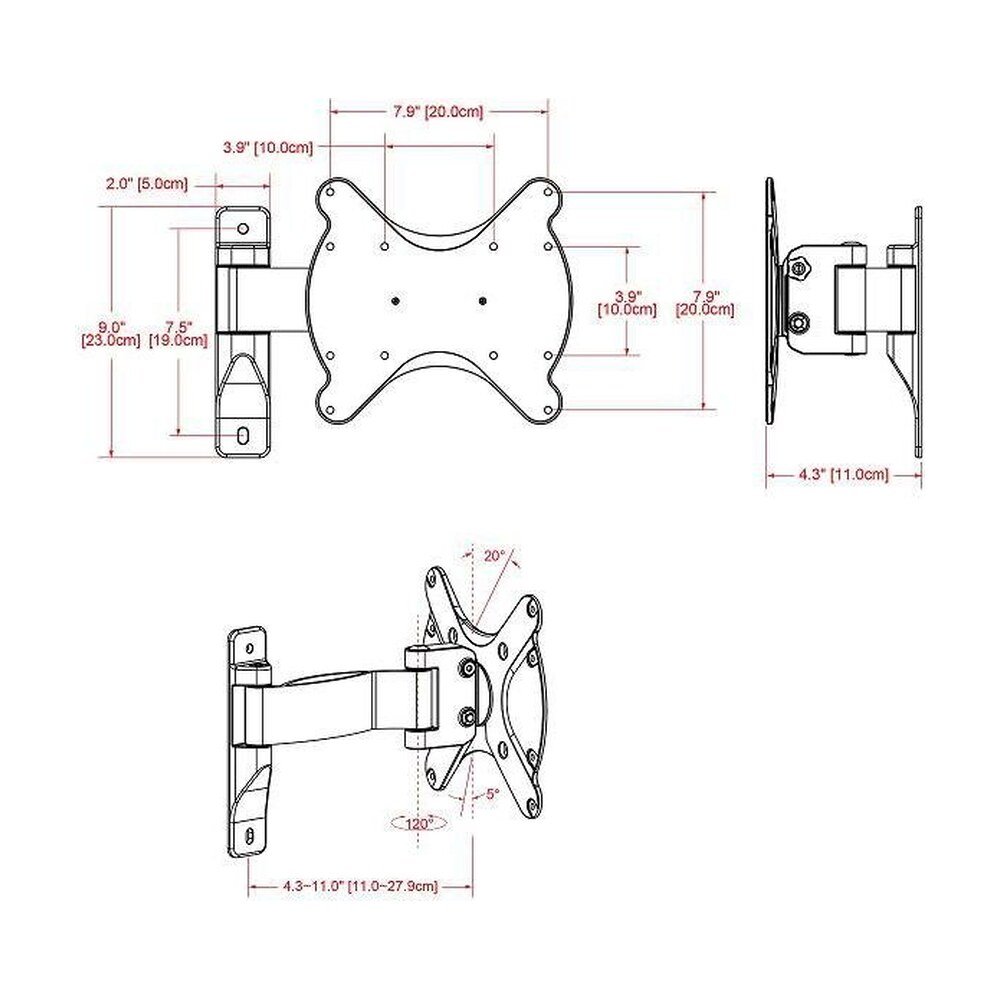

| Mounting profile | 4.3" (110mm) Depth From Wall |
| Maximum extension | 11" (279mm) |
| Mounts on Studs | single-stud |
| Mounting Pattern | VESA compliant: 100x100 to 200x200 |
| Brand | Cotytech |
| Manufacturer part number | MW-3A2B |
| Ships from | Drop shipped from California |
| Availability | Please call for stock check or lead-time |
Specifications as published by the manufacturer for model MW-3A2B. Shipping weight and current pricing are being confirmed with the factory.
| Part Number (SKU) | MW-3A2B |
|---|---|
| Category | Monitor Mounts & Arms, TV Wall Mounts & Stands |
| Weight | 5 lbs |
| Fits most | 22" to 37" flat panels |
| Weight Capacity | Supports up to 36.4kg(80lbs) |
| Tilt | 5° / - 20° |
| Swivel | Max 115° |
| Mounting profile | 4.3" (110mm) Depth From Wall |
| Maximum extension | 11" (279mm) |
| Mounts on Studs | single-stud |
| Mounting Pattern | VESA compliant: 100x100 to 200x200 |
| Brand | Cotytech |
| Manufacturer part number | MW-3A2B |
| Ships from | Drop shipped from California |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
