2DSDB-01-XX — Pluggable, Pitch:7.62mm, 300V, 12A. Pitch: 7.62mm, 300V, 12A.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.

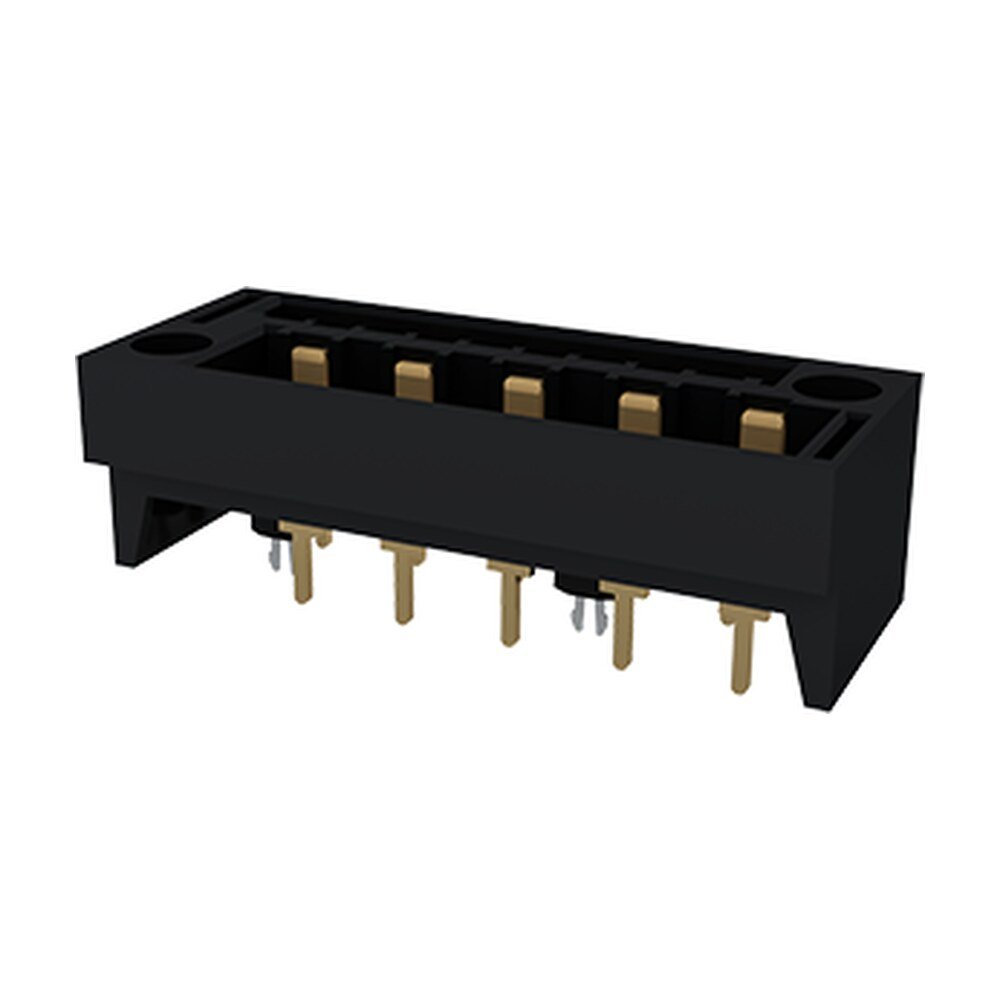

Dinkle 2DSDB-01-XX — Pluggable. Distributed by Micro-Ray Electronics.
Barrier terminal blocks land wires between insulating barriers on a panel or chassis, keeping adjacent circuits separated and each screw reachable for test and re-termination. They are used throughout machine control, instrumentation, HVAC and appliance wiring.
Pluggable, Pitch:7.62mm, 300V, 12A
Published by Dinkle for the 2DSDB-01-XX series.
| Category | Pluggable |
|---|---|
| Pitch (mm) | 7.62 |
| Color | Grey (default) |
| Connection method | Without |
| Type of locking | With threaded flange |
| Soldering method | Wave Soldering |

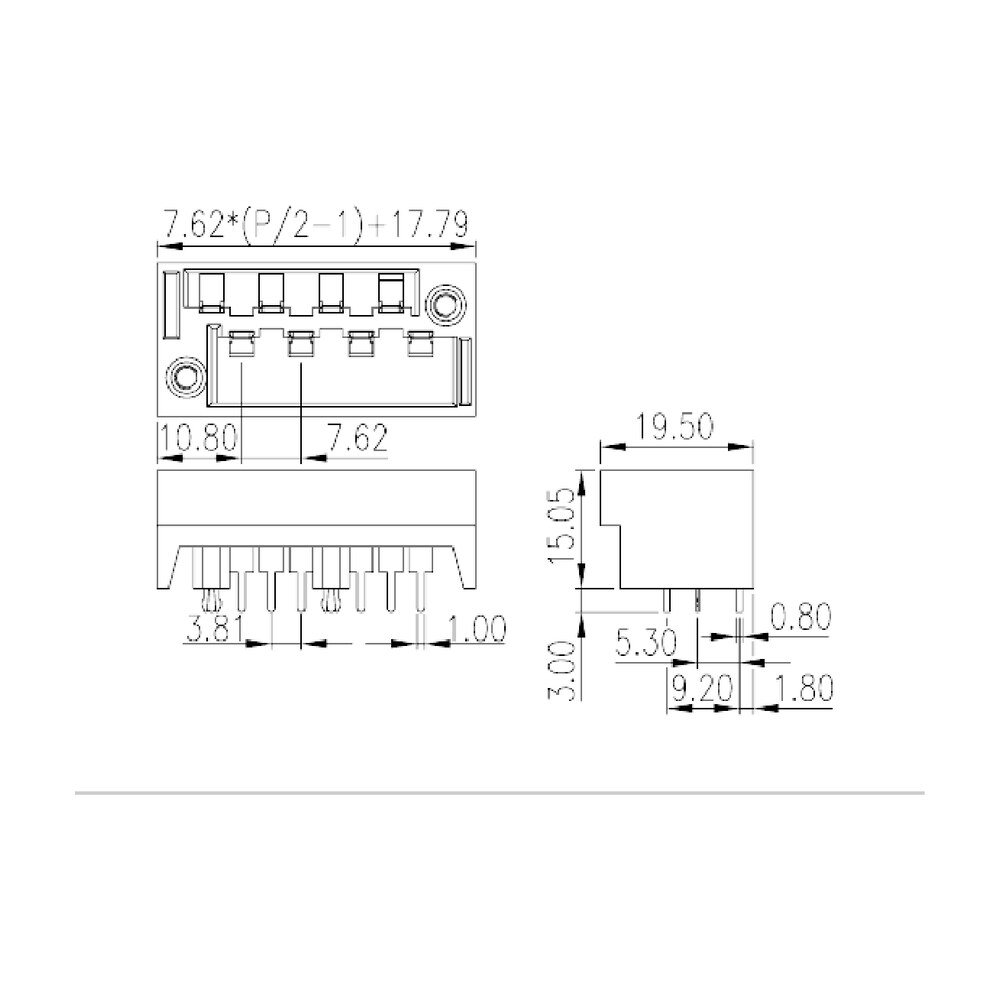

| Length (mm) | 7.62*(P/2- 1)+17.79 |
| Width (mm) | 19.5 |
| Height (mm) | 15.05 |
| Pin demensions (Thickness x Width)(mm) | 0.8x1 |
| PCB hole diameter (mm) | 1.7 |
| Number of positions | 06P~42P |
| Level | Bi-level |
| Connection points | 6~42 |
| Insulation material | PBT |
|---|---|
| Insulation material group | IIIa |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥1000MΩ at DC 500V |
| Conductor material | COPPER ALLOY |
| Plating of conductor surface | Au PLATED |
| Rated voltage (V) | 250 |
|---|---|
| Rated current (A) | 10 |
| Rated voltage (II/2)(V) | 500 |
| Rated voltage (III/2) (V) | 250 |
| Rated voltage (III/3)(V) | 250 |
| Rated impulse voltage (II/2)(KV) | 4 |
| Rated impulse voltage (III/2)(KV) | 4 |
| Rated impulse voltage (III/3)(KV) | 4 |
| Tightening torque with flange. max (N.m) | 0.5 |
| Rated voltage (UL/CUL Group B)(V) | 300 |
|---|---|
| Rated current (UL/CUL Group B)(A) | 12 |
| Rated voltage (UL/CUL Group D)(V) | 300 |
| Rated current (UL/CUL Group D)(A) | 10 |
| Back of the hand protection (YES or NO) | YES |
|---|---|
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | 2DSDB-01-XX |
|---|---|
| Category | Pluggable |
| Block Type | Pluggable |
| Type of Locking | With threaded flange |
| Level | Bi-level |
| Connection Points | 6~42 |
| Number of Positions | 06P~42P |
| Pitch (mm) | 7.62 |
| Rated Voltage (UL) | 300 |
| Rated Current (UL) | 12 |
| Rated Voltage (IEC) | 250 |
| Rated Current (IEC) | 10 |
| Length (mm) | 7.62*(P/2- 1)+17.79 |
| Width (mm) | 19.5 |
| Height (mm) | 15.05 |
| Insulation Material | PBT |
| Flame Rating (UL94) | V0 |
| Color | Grey (default) |
| Operating Temperature | -40 to 120 °C |
| Connection method | Without |
| Soldering method | Wave Soldering |
| Pin demensions (Thickness x Width)(mm) | 0.8x1 |
| PCB hole diameter (mm) | 1.7 |
| Insulation material group | IIIa |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥1000MΩ at DC 500V |
| Conductor material | COPPER ALLOY |
| Plating of conductor surface | Au PLATED |
| Rated voltage (V) | 250 |
| Rated current (A) | 10 |
| Rated voltage (II/2)(V) | 500 |
| Rated voltage (III/2) (V) | 250 |
| Rated voltage (III/3)(V) | 250 |
| Rated impulse voltage (II/2)(KV) | 4 |
| Rated impulse voltage (III/2)(KV) | 4 |
| Rated impulse voltage (III/3)(KV) | 4 |
| Tightening torque with flange. max (N.m) | 0.5 |
| Rated voltage (UL/CUL Group B)(V) | 300 |
| Rated current (UL/CUL Group B)(A) | 12 |
| Rated voltage (UL/CUL Group D)(V) | 300 |
| Rated current (UL/CUL Group D)(A) | 10 |
| Back of the hand protection (YES or NO) | YES |
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
