The new 32 to 63" Full Motion TV Wall Mount VESA 800x400 is a completely full-motion mount for both small and large size TV, with a weight capacity of 140lbs (63.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Please call for pricing and availability

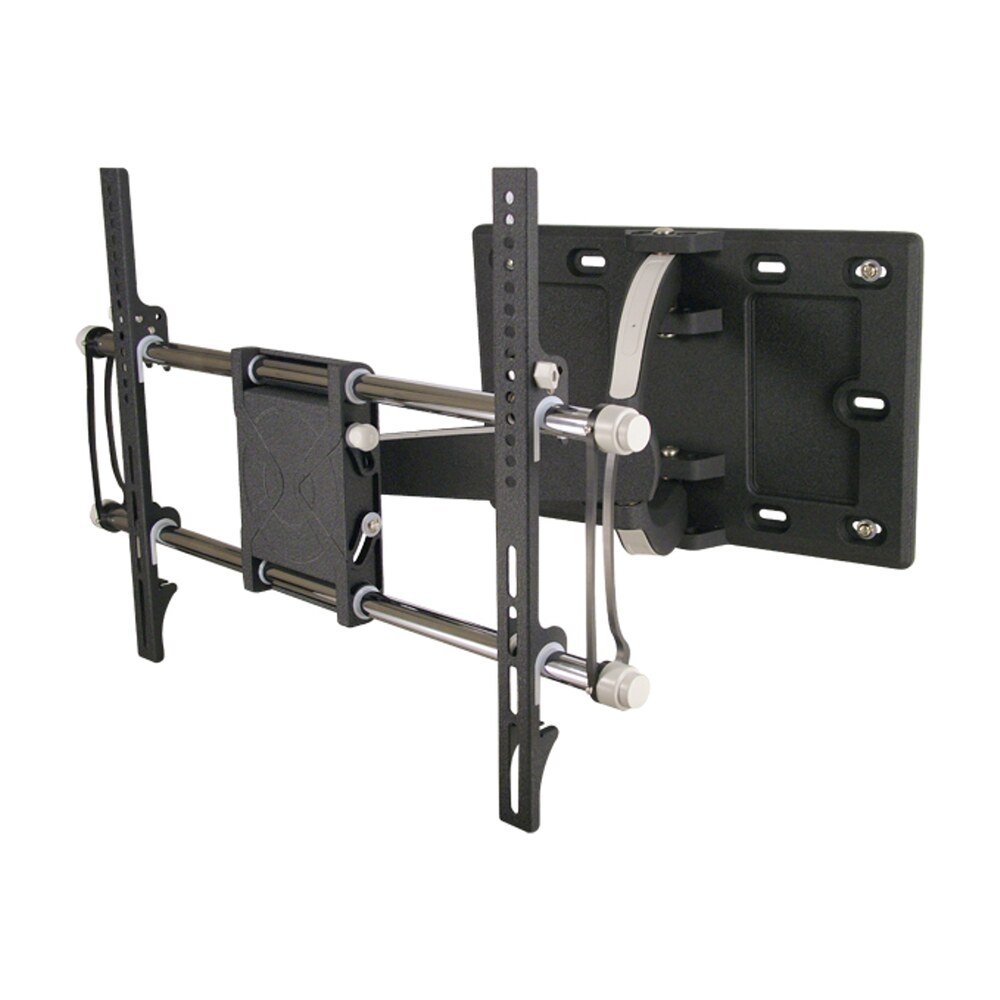

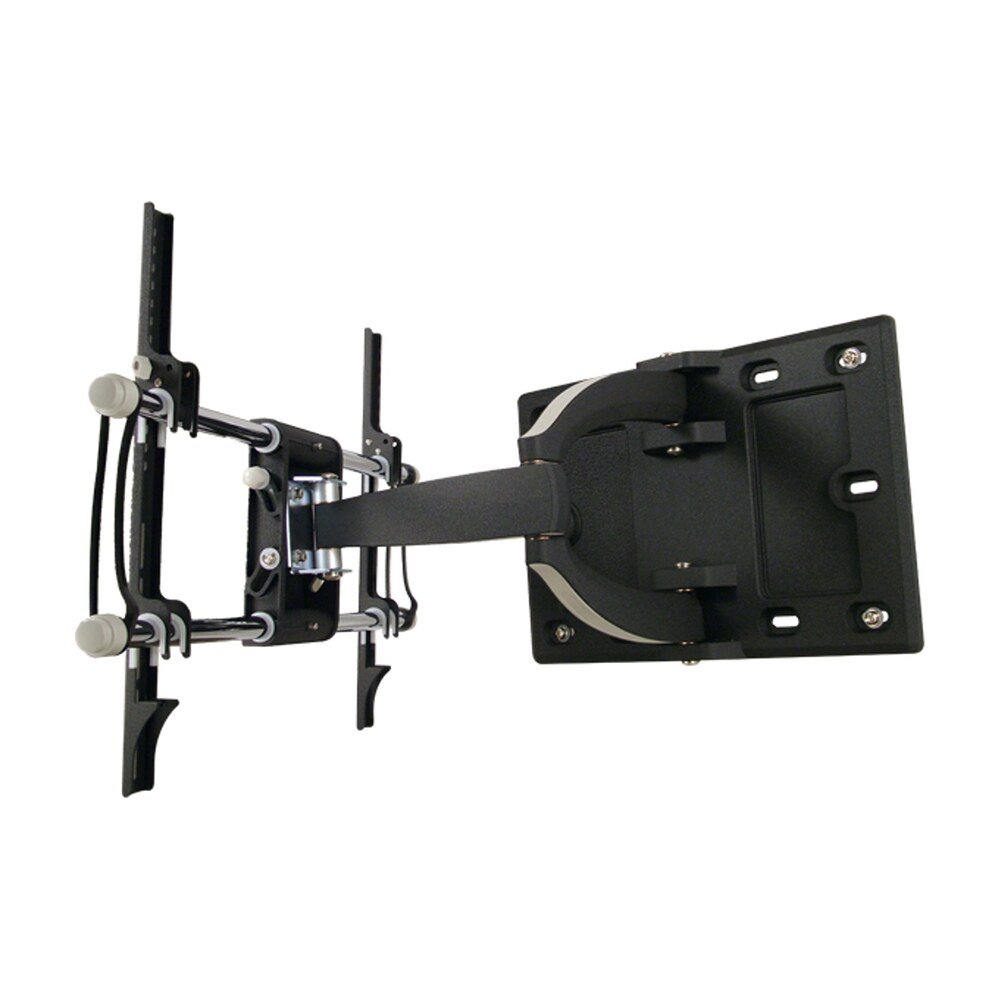

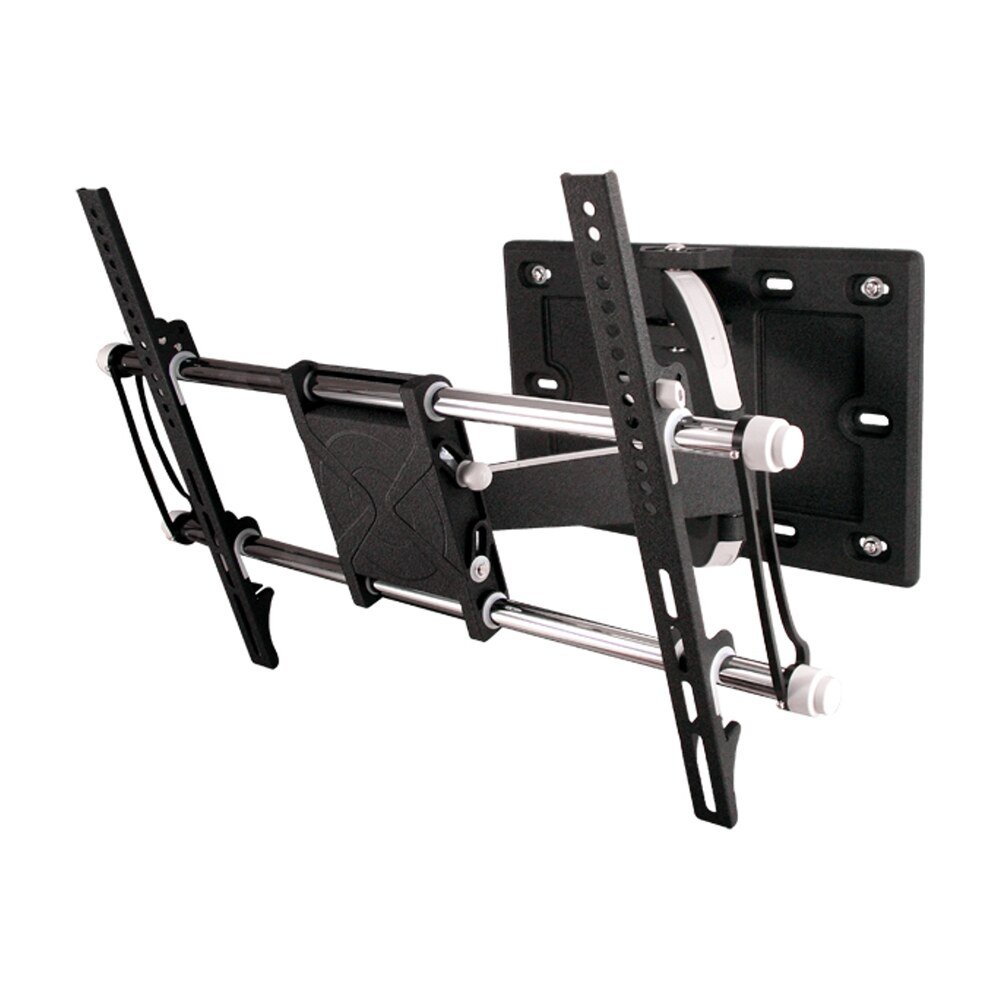

The new 32 to 63" Full Motion TV Wall Mount VESA 800x400 is a completely full-motion mount for both small and large size TV, with a weight capacity of 140lbs (63.6kgs), featuring 5 - 15-degree tilt, 180-degree swivel, 23.1-inch full extension & -3 to 3-degree roll. This articulating universal TV wall mount is our latest breakthrough in flat panel mount design. The wall mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech TV mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here. Features Work with plasma, LCD and LED TVs Compatible with large mounting patterns, which is usually hard to find wall mount for, for example, most of Sharp 65" + LCD TVs Effortless adjustments for premium viewing, making it easy to reduce glare and find the perfect TV angle at any height Sturdy die-cast aluminum structures maximize support in a lightweight mount; rock-solid construction secures your display investment The mounted TV can be hung on and off the horizontal bars easily; this quick release feature is most convenient when you need to take off TV often Hinged arm extends TV off the wall, providing easy access to cables Secure accessory attachment; quick-mounting design for easy installation Lock-in-place feature to conclude a secure installation Space-saving and aesthetic design make it perfect for the home or office Instruction manual and mounting screws are included Mounting Pattern You may usually find mounting patterns dimensions on the technical drawing page of your owner's manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your TV is different, and we are happy to help you out! Comparision Downloads Installation Manual These downloads require Adobe Reader. To get Adobe Reader to click here. Video

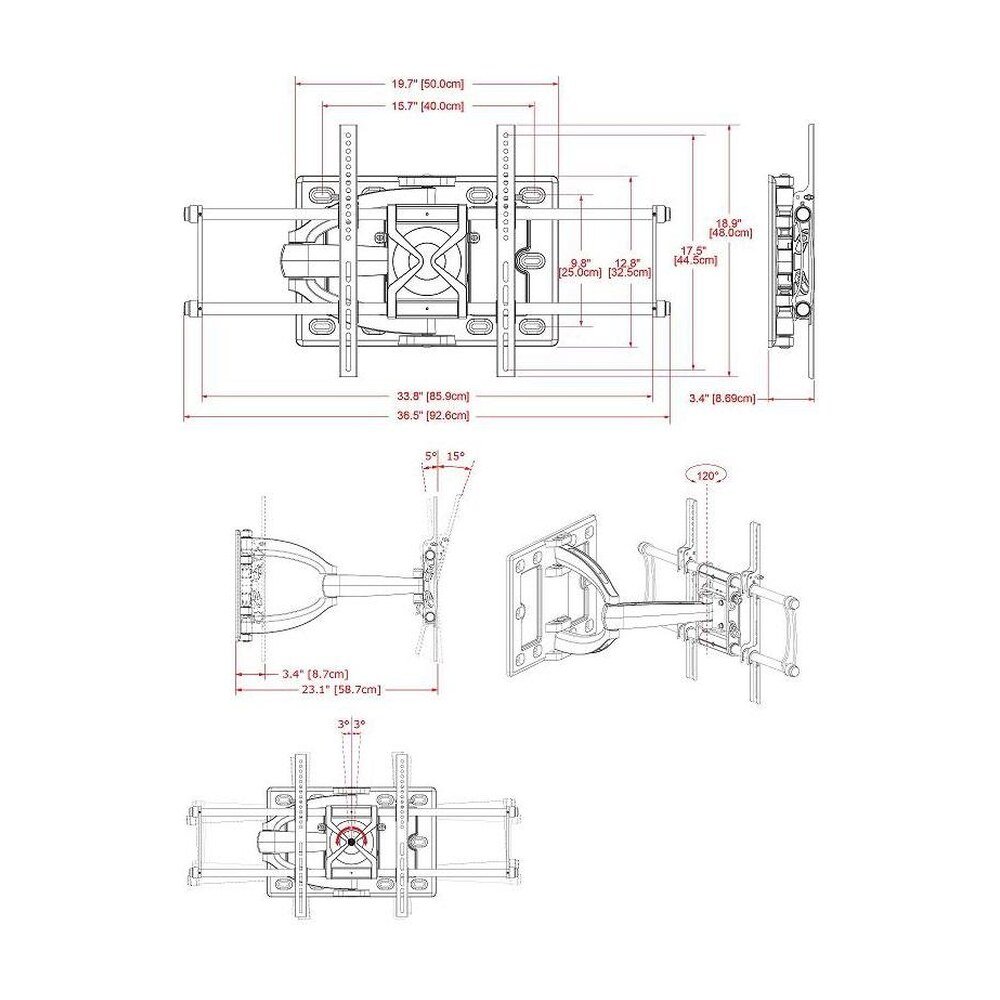

| Fits most | 32" to 63" flat panels |
|---|---|
| Weight Capacity | Supports up to 63.6kg(140lbs) |
| Tilt | 5° / - 15° |
| Swivel | Max 180° |
| Mounting profile | 3.4" (86.9mm) Depth From Wall |
| Maximum extension | 23.1" (586.9mm) |
| Mounts on Studs | double-stud (mount spacing of 16") |
| Mounting Pattern | Universal & VESA compliant: 100x100 to 800x400 |
| Roll | 3° / - 3° |
| Brand | Cotytech |
| Manufacturer part number | MW-6A1VB |
| Ships from | Drop shipped from California |
| Availability | Please call for stock check or lead-time |
Specifications as published by the manufacturer for model MW-6A1VB. Shipping weight and current pricing are being confirmed with the factory.
| Part Number (SKU) | MW-6A1VB |
|---|---|
| Category | Monitor Mounts & Arms, TV Wall Mounts & Stands |
| Weight | 43 lbs |
| Fits most | 32" to 63" flat panels |
| Weight Capacity | Supports up to 63.6kg(140lbs) |
| Tilt | 5° / - 15° |
| Swivel | Max 180° |
| Mounting profile | 3.4" (86.9mm) Depth From Wall |
| Maximum extension | 23.1" (586.9mm) |
| Mounts on Studs | double-stud (mount spacing of 16") |
| Mounting Pattern | Universal & VESA compliant: 100x100 to 800x400 |
| Roll | 3° / - 3° |
| Brand | Cotytech |
| Manufacturer part number | MW-6A1VB |
| Ships from | Drop shipped from California |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
