CNLinko BD-24 Series connector — 3 pin metal female socket.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Please call for pricing and availability

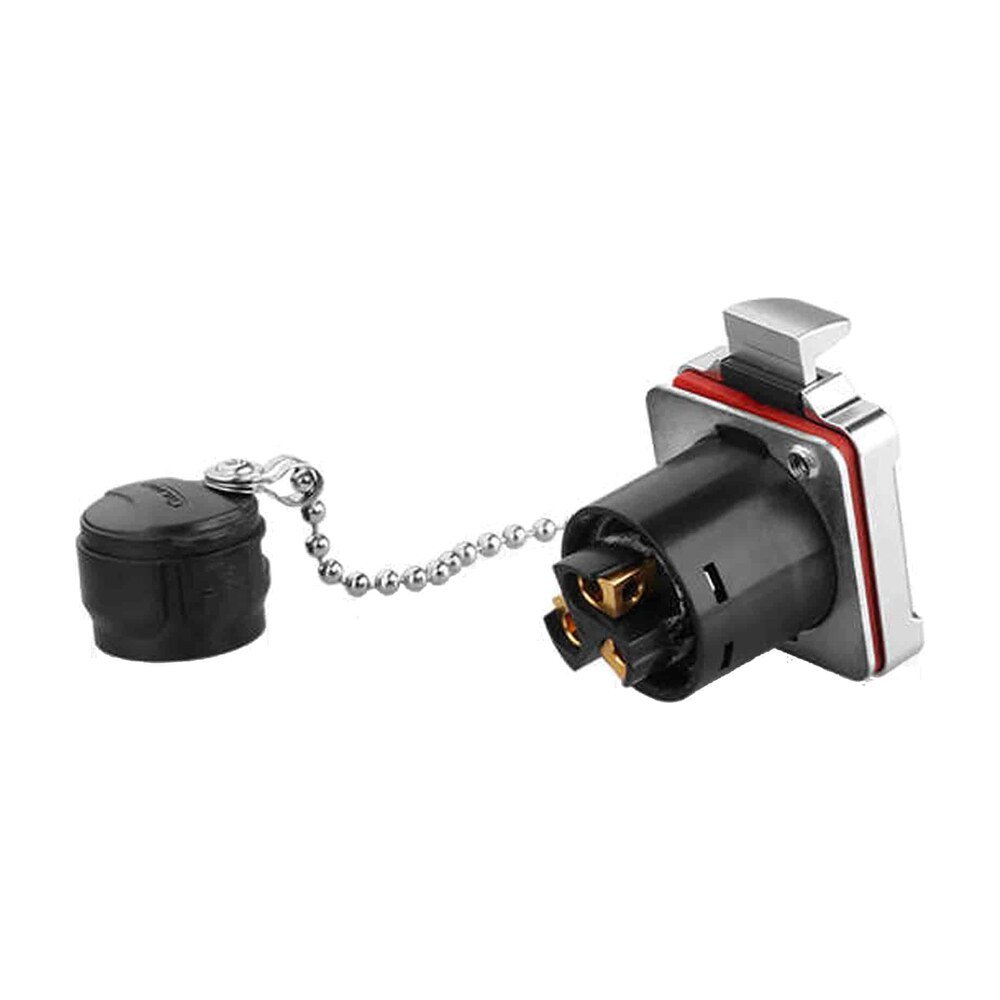

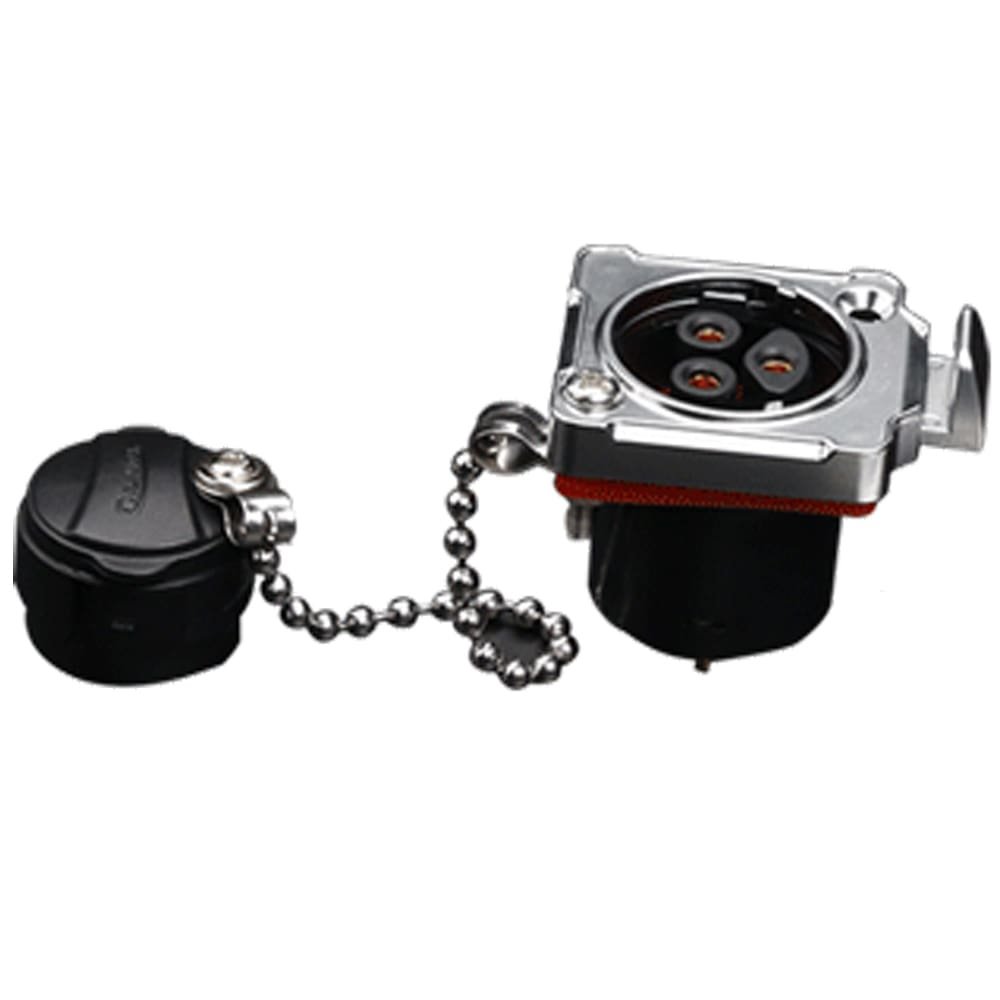

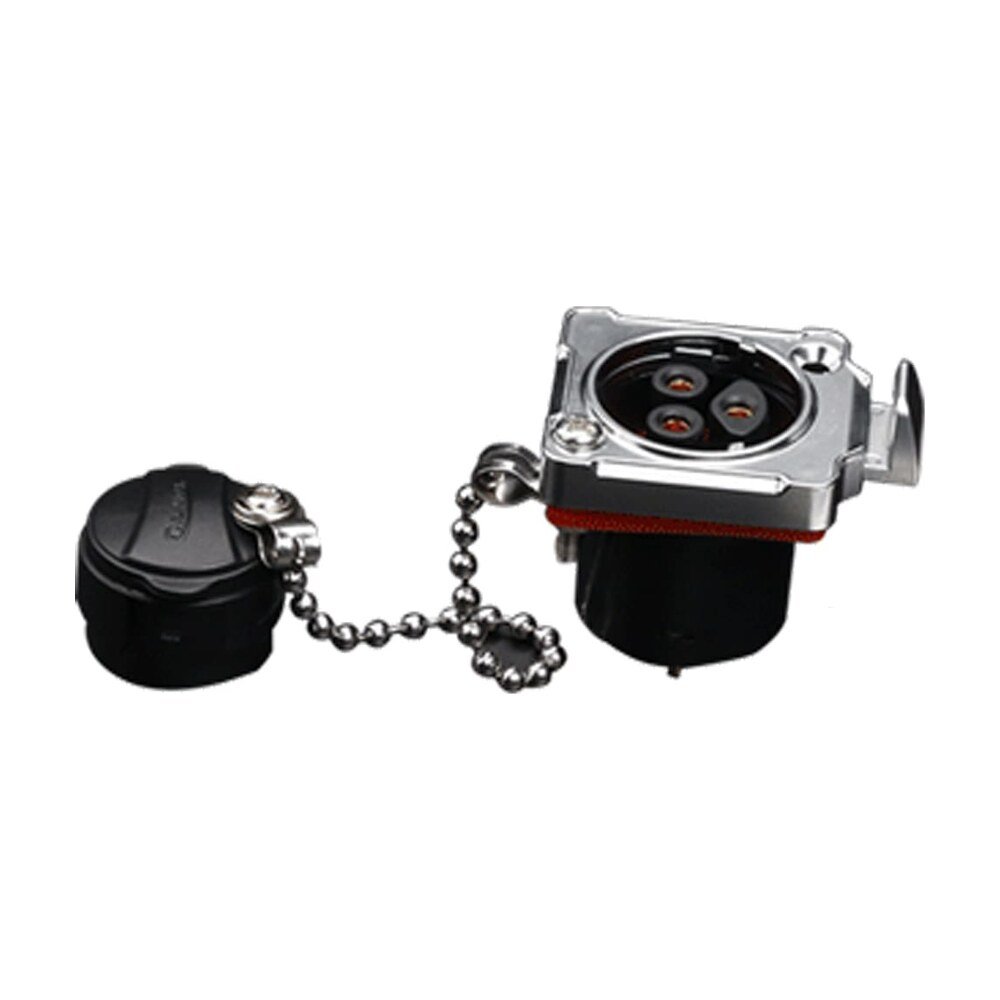

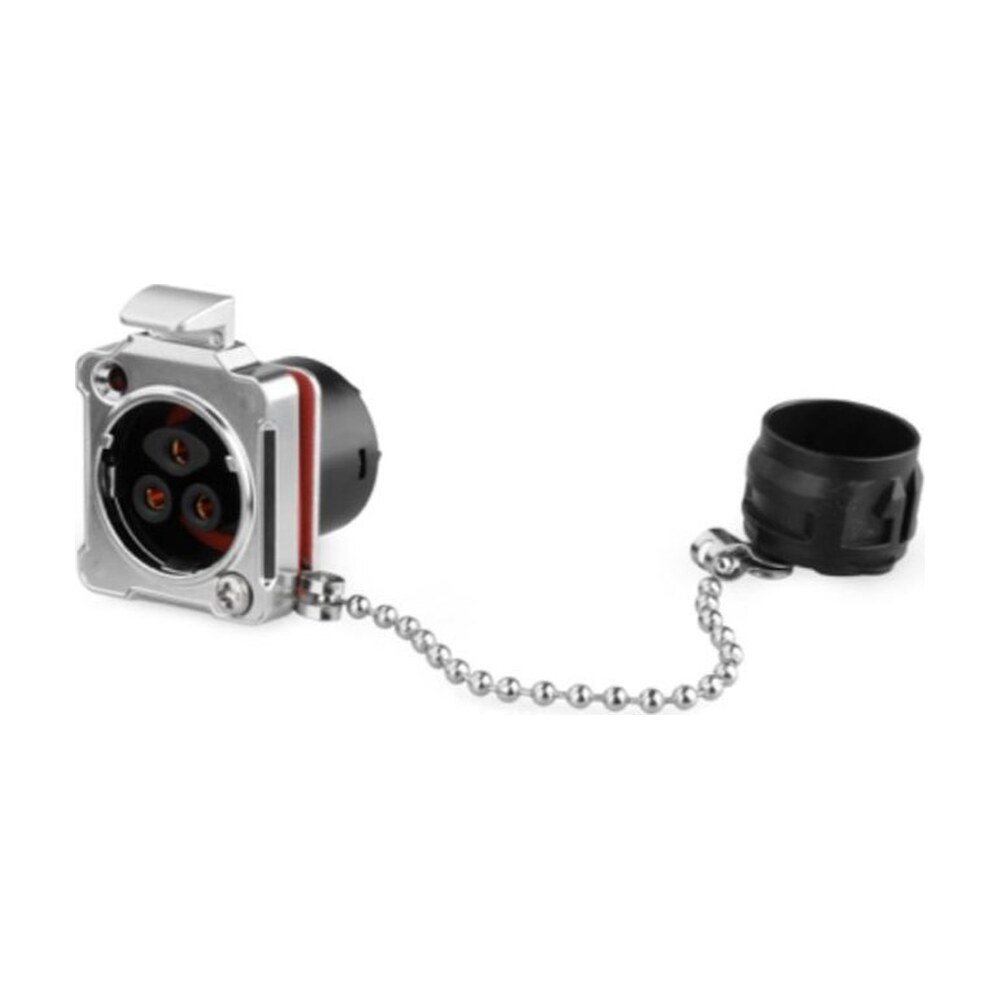

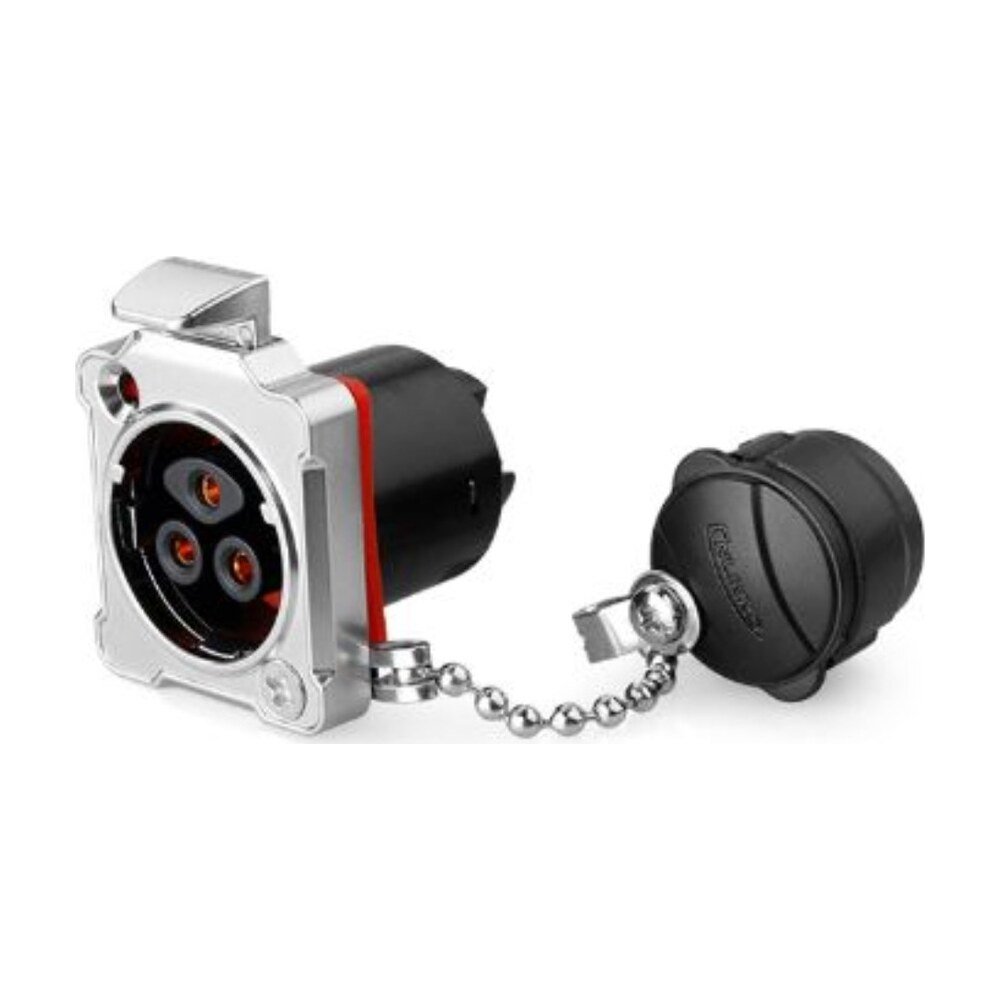

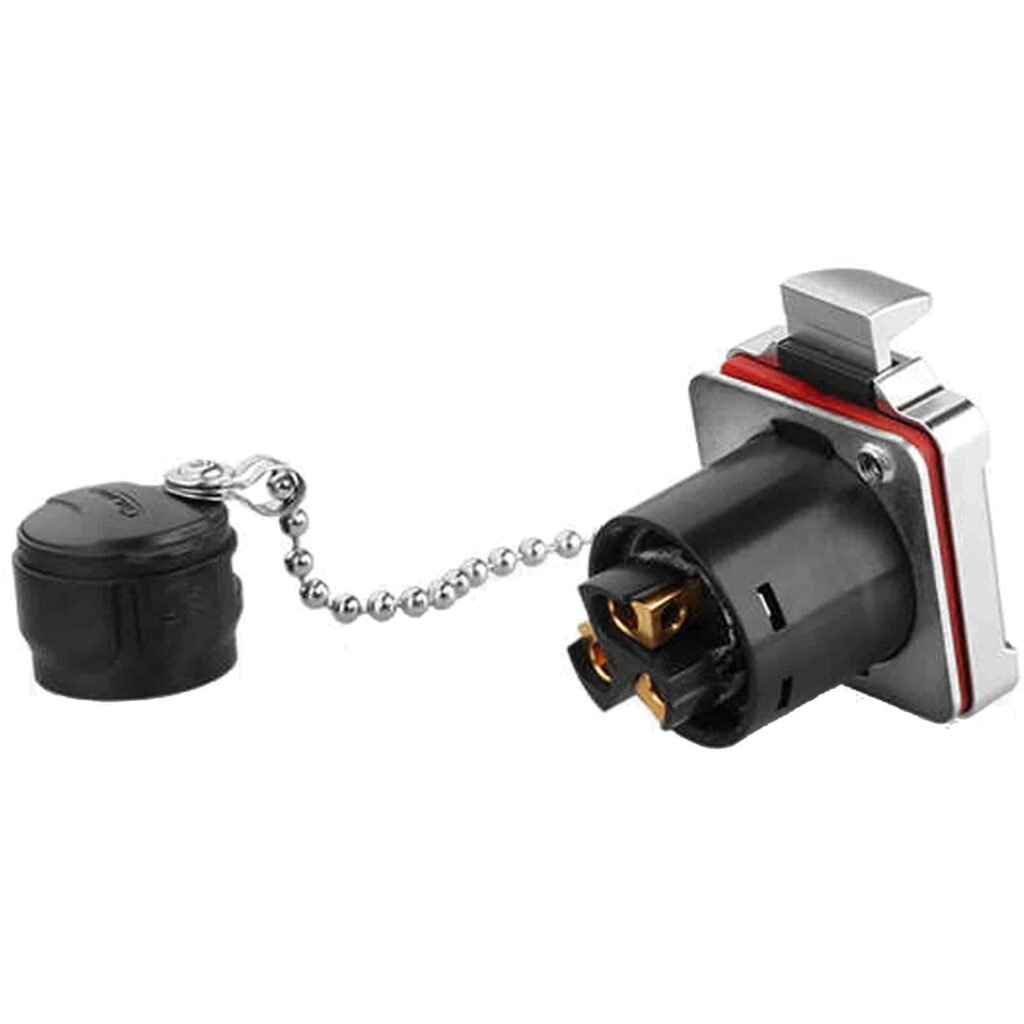

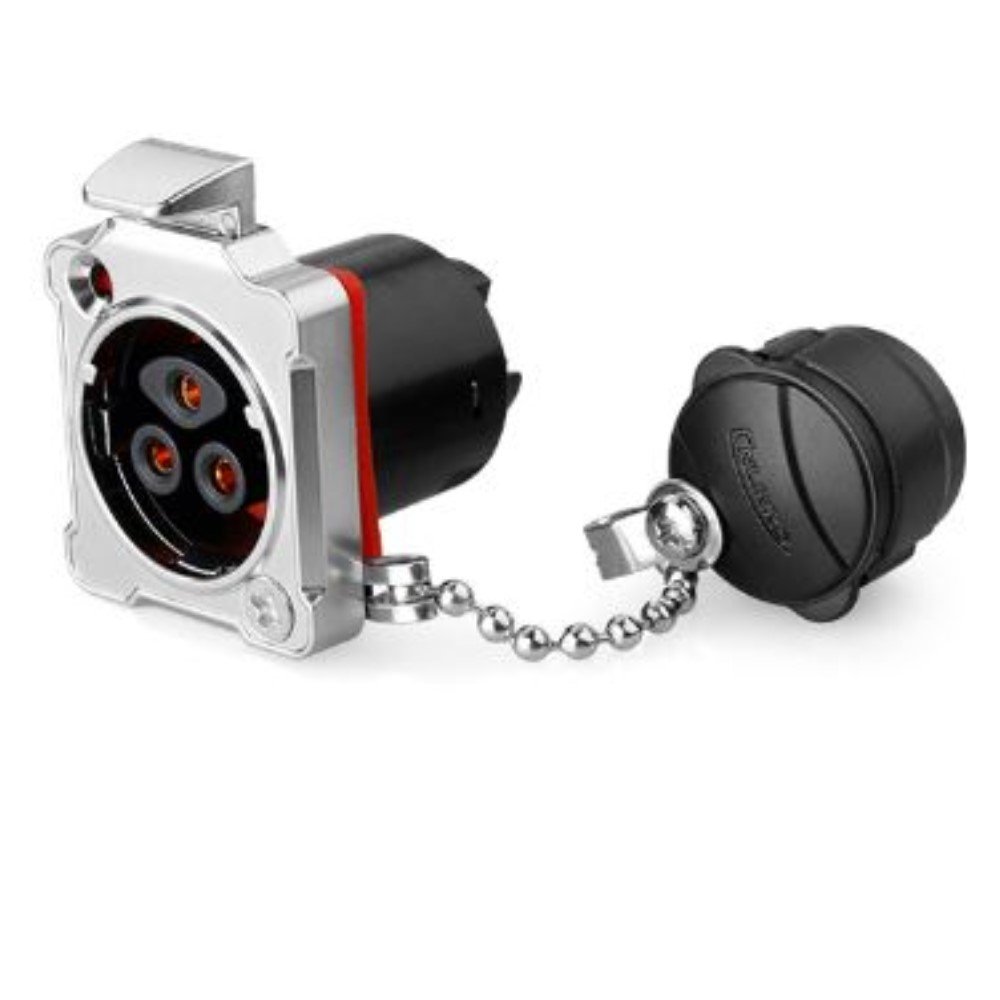

The BD-24-J03SX-23-301 is a 3-pin female panel-mount circular industrial connector, sealed for wet and outdoor use.

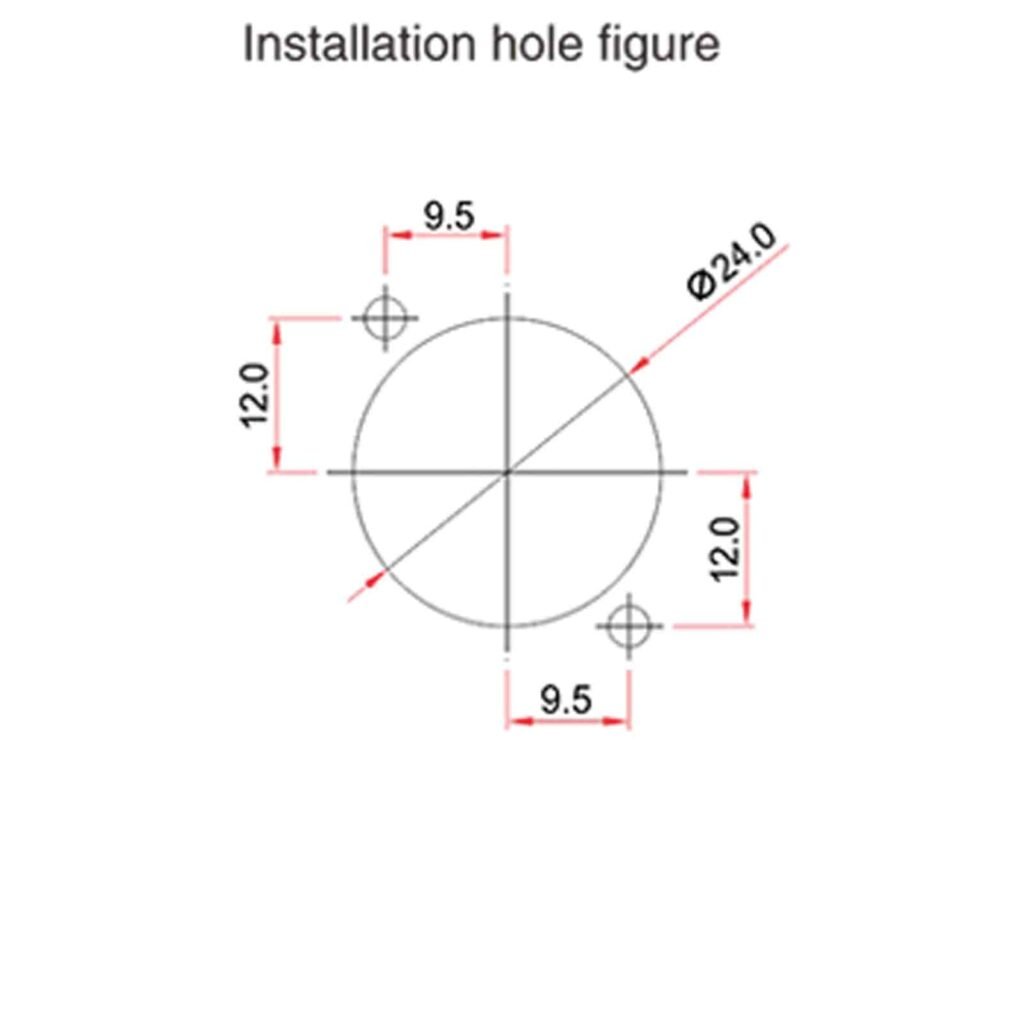

Panel-mount bodies fit through a cut-out in an enclosure wall and present the connection on the outside, so the equipment can be connected and disconnected without opening the housing.
Connectors of this type are used in LED lighting and signage, industrial sensors and actuators, agricultural and outdoor machinery, marine and washdown equipment, and portable gear that is connected and disconnected in service.

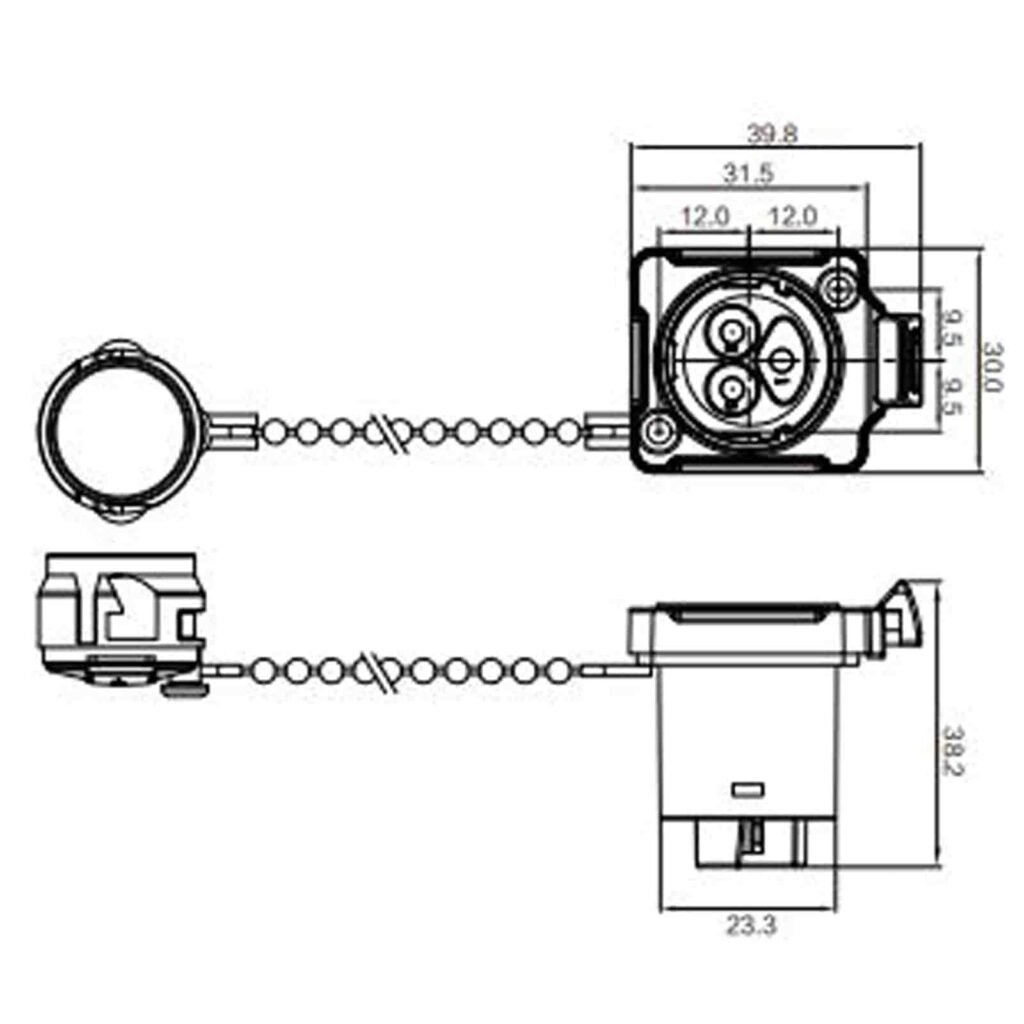

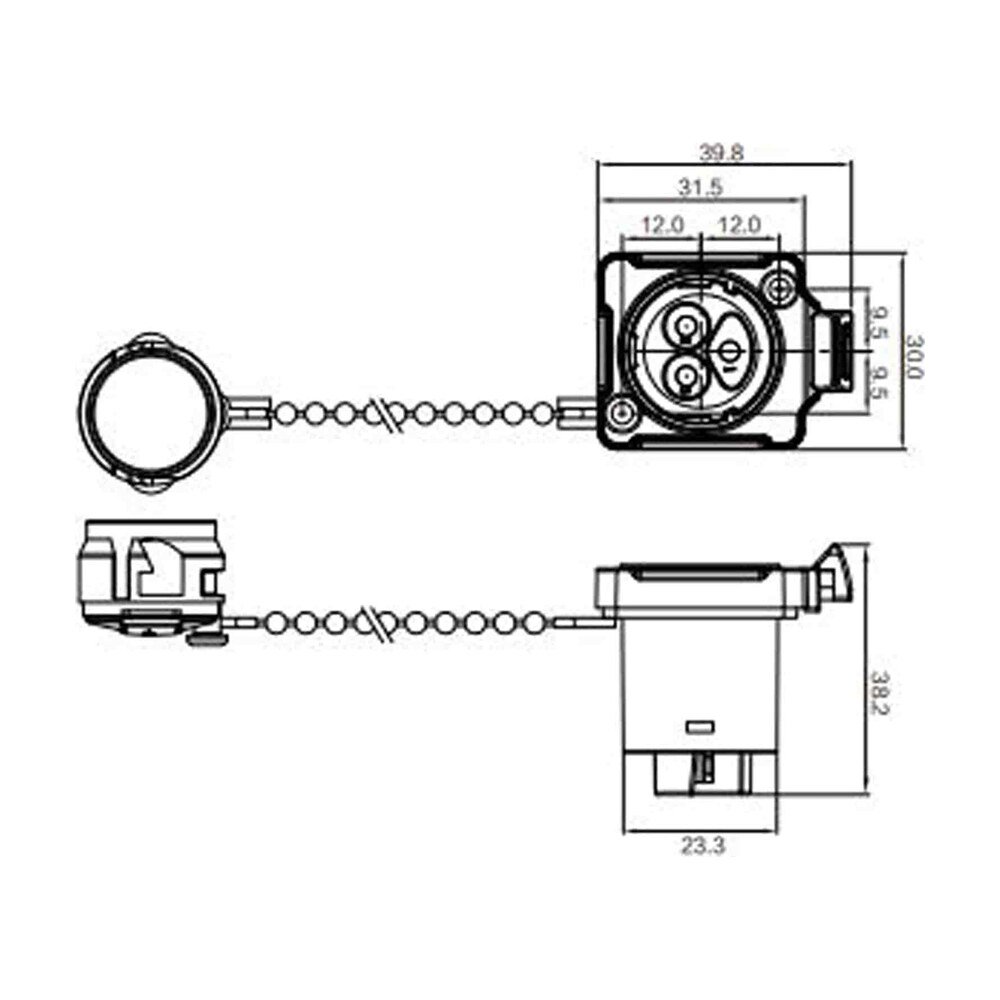

Contact arrangement, sealing rating, wire range and dimensions are given on the product drawing.
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | BD-24-J03SX-23-301 |
|---|---|
| Pins Available | 3 |
| Category | BD-24 Series |
| Dimensions | 1.5 × 1.18 × 1.57 in |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
