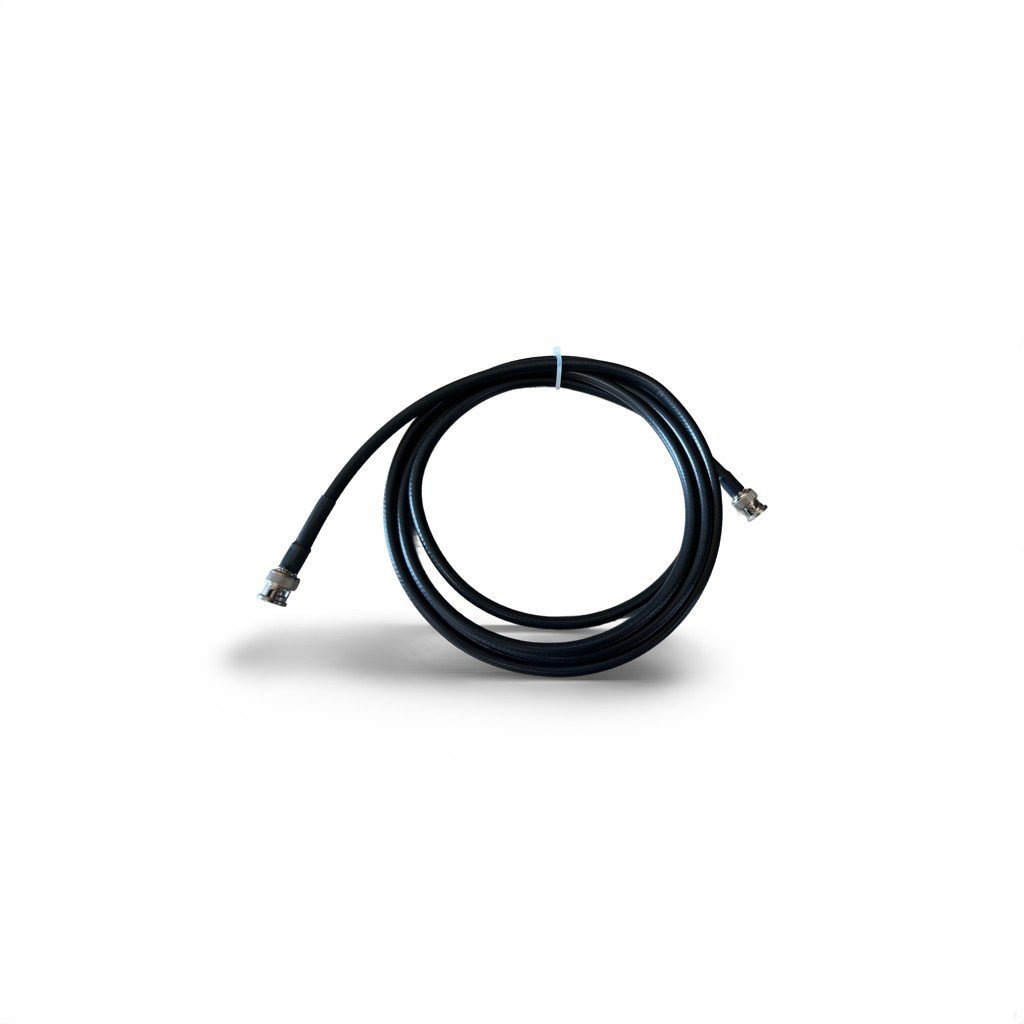

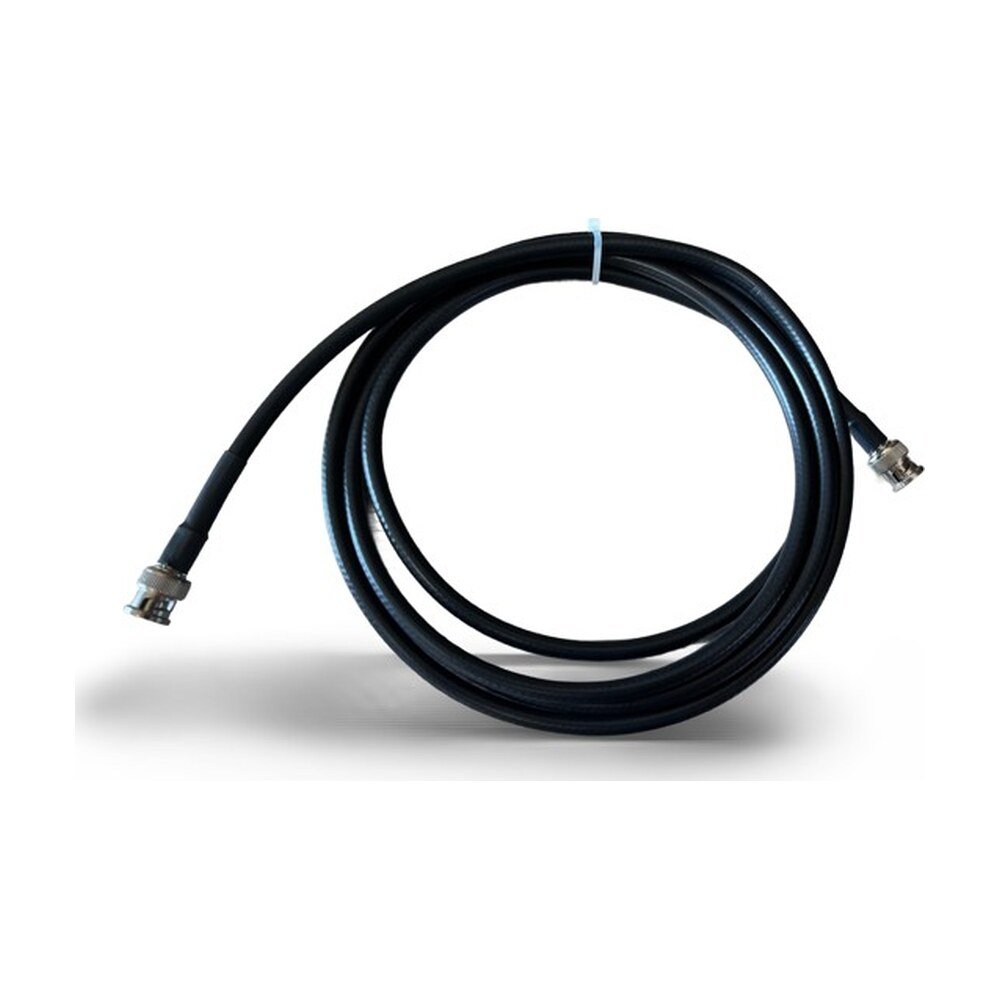

New BNC Cable Assembly

BNC (Bayonet Neill-Concelman) cables with RG6 coaxial cable are commonly used for a variety of audio/video and communication applications, such as surveillance systems, television connections, and data transmission. Here’s a description of this cable:

BNC Cable with RG6 Coaxial:

• Cable Type: RG6 is a type of coaxial cable that is often used for applications requiring higher bandwidth and longer distances. It has a thicker insulation and is capable of transmitting signals with minimal interference.

• Construction:

  • Center Conductor: Typically made of copper or copper-clad steel, the center conductor is responsible for transmitting the electrical signal.
  • Dielectric Insulation: Surrounding the center conductor is a layer of insulation (usually foam or solid polyethylene) that helps to maintain the signal integrity and minimize loss.
  • Shielding: RG6 cables usually have two layers of shielding — a foil shield and a braided shield. This helps to protect the signal from external interference and reduces signal loss.
  • Outer Jacket: The outer layer is typically made from a durable plastic, such as PVC, that provides protection to the internal components and makes the cable suitable for indoor or outdoor use.

• BNC Connectors: The BNC connectors on either end of the cable provide a quick connect/disconnect mechanism, using a bayonet-style lock. They are often used in professional video applications like CCTV, broadcast television, and other video-related systems.

• Applications:

  • Video Surveillance: Ideal for connecting security cameras to DVRs or monitors.
  • Broadcasting: Used in TV and radio broadcasting systems for signal transmission.
  • Satellite TV: Common in connecting satellite dishes to receivers.
  • Data Transmission: Can also be used in some data transmission systems, particularly in legacy systems.

• Key Benefits:

  • Signal Integrity: The RG6 cable construction helps ensure high-quality signal transmission with minimal loss, especially over long distances.
  • Low Interference: With multiple layers of shielding, RG6 cables are resistant to electromagnetic interference (EMI), making them a reliable choice for sensitive signals.
  • Durability: RG6 cables are designed for both indoor and outdoor use, with some versions being weather-resistant and able to withstand harsh environments.
