The unique and creative Corner TV Wall Mount - Full Motion 22 – 37” MW-3A3B has three pivot points.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Please call for pricing and availability

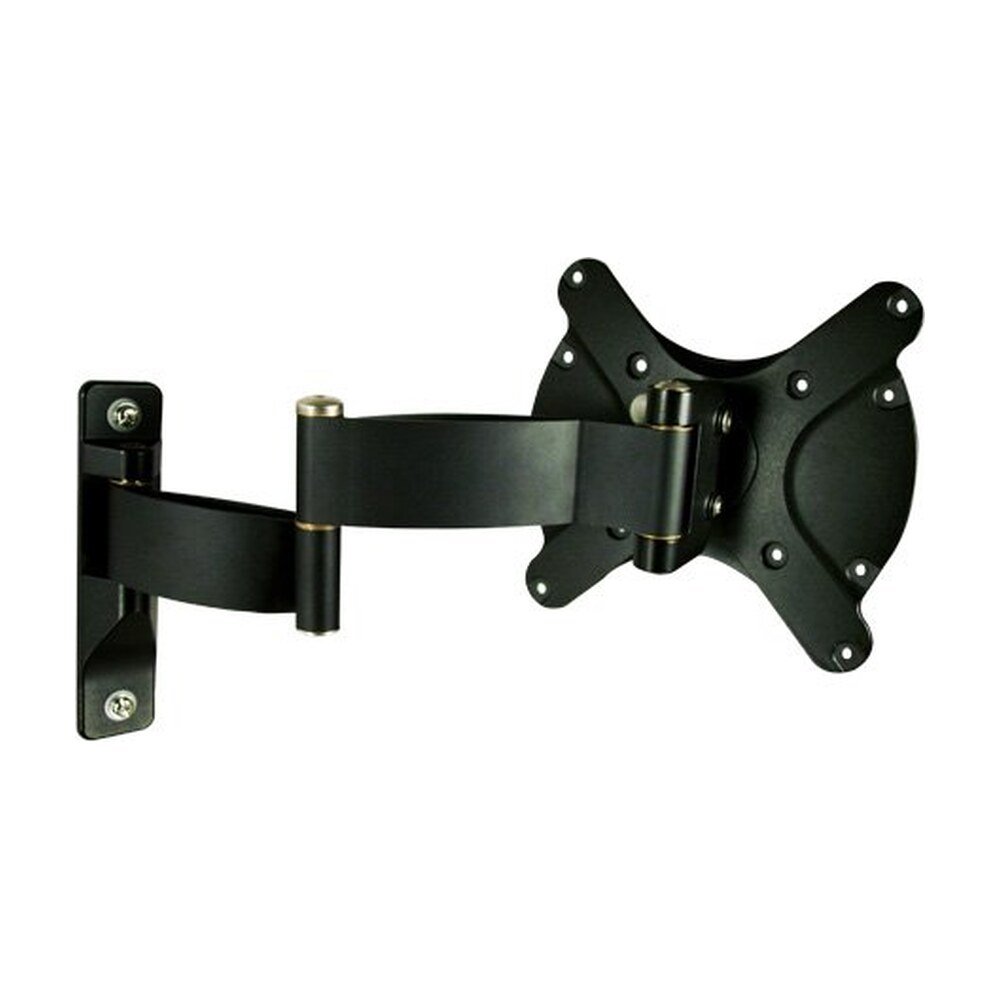

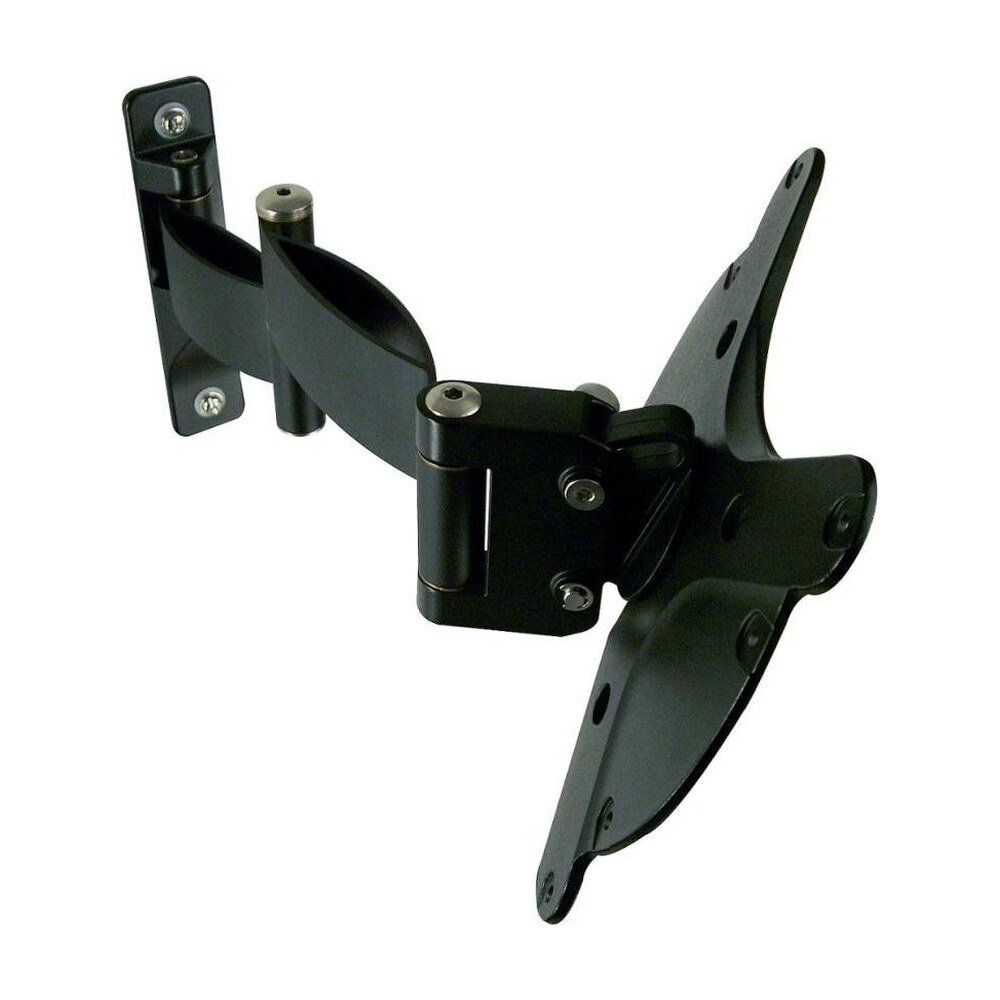

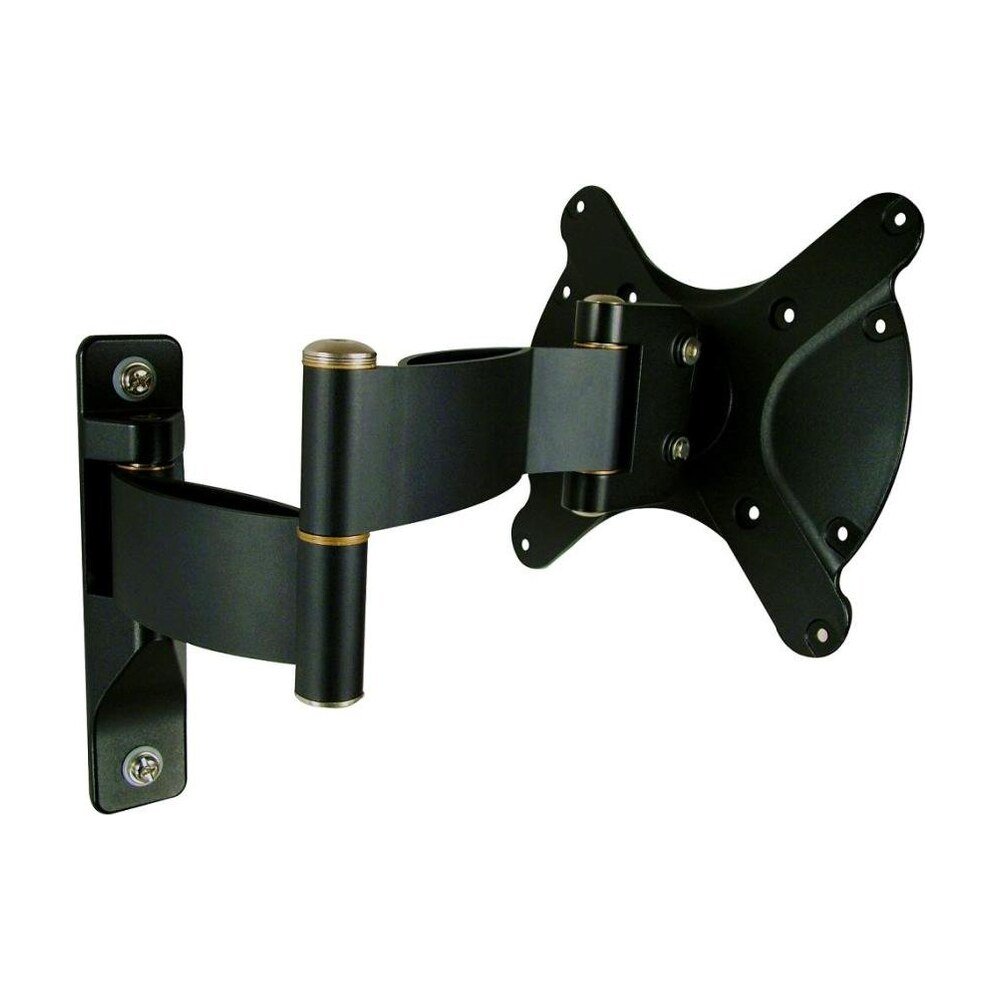

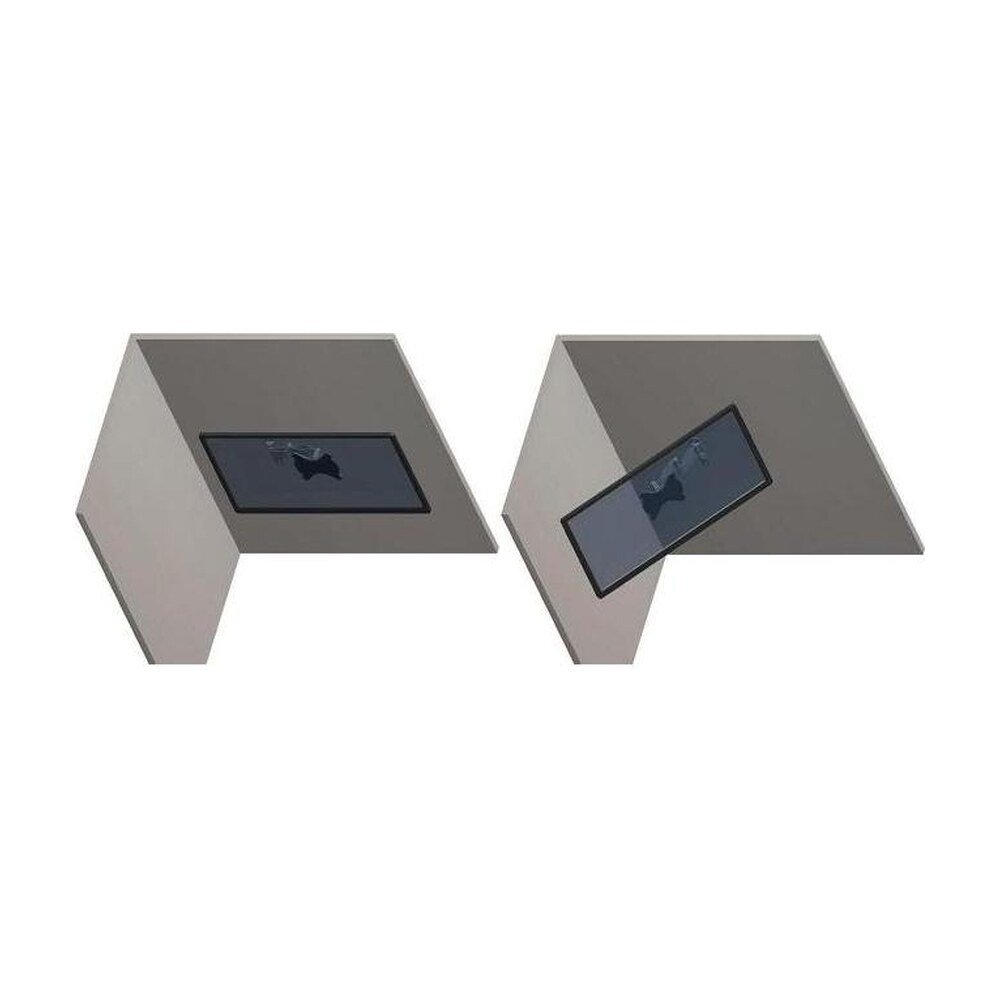

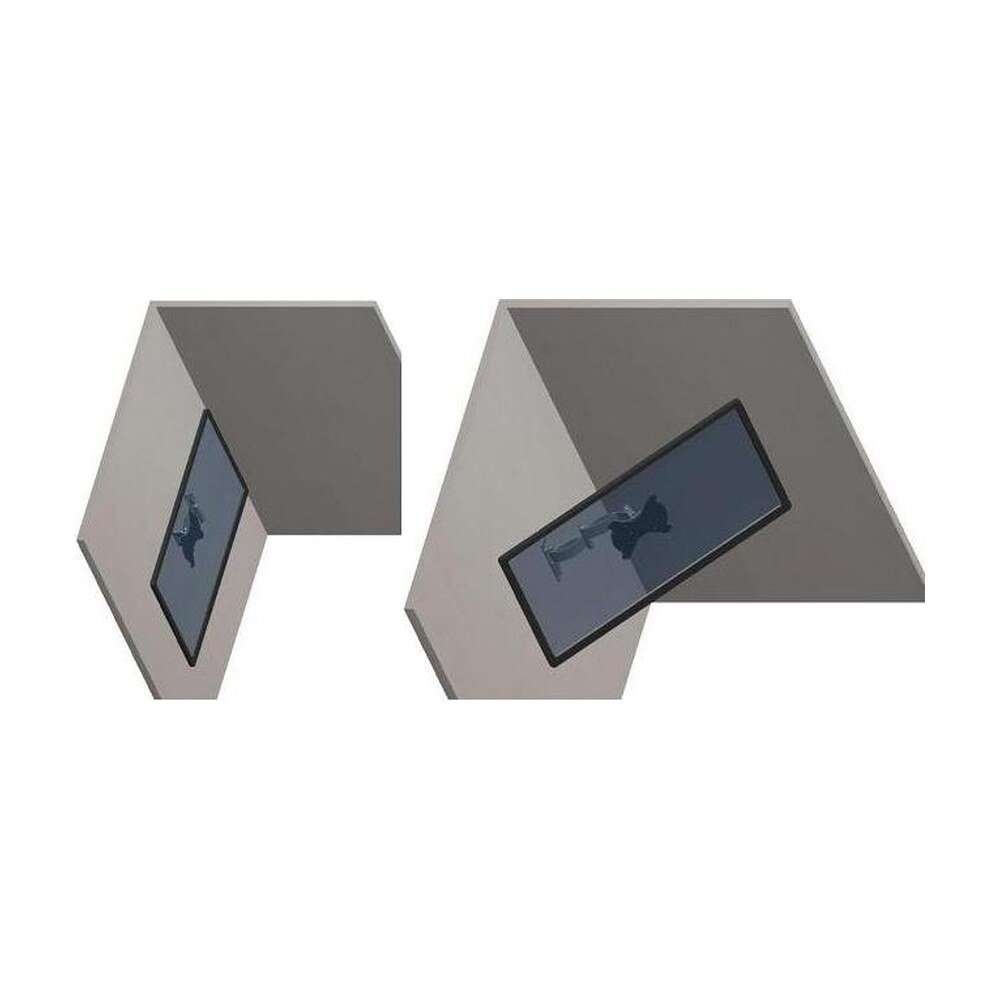

The unique and creative Corner TV Wall Mount - Full Motion 22 – 37” MW-3A3B has three pivot points. The TV mount can achieve the best viewing positions by full motion functionality, and it is especially ideal for corner mounting (works excellent on non-corner too!). The wall mount solution has a weight capacity of 60lbs (27.3kgs), featuring 5 - 20-degree tilt, 180-degree swivel & 16.4-inch full extension. This flat screen swivel TV wall mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The corner wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here. Corner Installation Demonstration Images When placing the corner wall mount on the right side of the wall, flat-screen TV can be extended leftward to be positioned at the center of the corner. After viewing, TV can be stored away flush against the right side of the wall. When placing the corner wall mount on the left side of the wall, flat-screen TV can be extended leftward to be positioned at the center of the corner. After viewing, TV can be stored away flush against the left side of the wall. Click here for other corner mounts choices. Downloads Installation Manual These downloads require Adobe Reader. To get Adobe Reader to click here. Q & A Q: What are the sizes of the screws included? A: The ones for the wall are M6 X 60; The ones for TV included are M4, M5, and M6. Each comes with 20mm and 40mm in length. There are plastic spacers included as well. Video

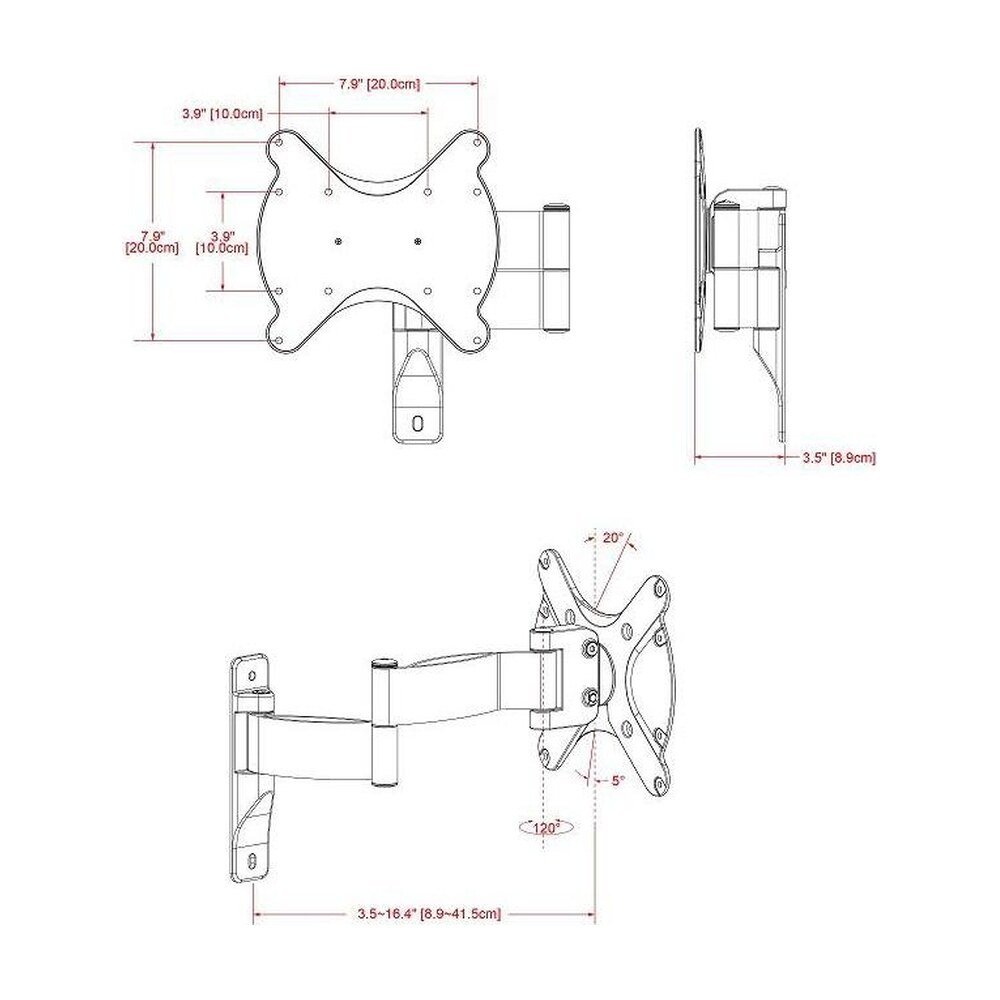

| Fits most | 22" to 37" flat panels |
|---|---|
| Weight Capacity | Supports up to 27.3kg(60lbs) |
| Tilt | 5° / - 20° |
| Swivel | Max 120° |
| Mounting profile | 3.5" (89.6mm) Depth From Wall |
| Maximum extension | 16.4" (415.6mm) |
| Mounts on Studs | Single-stud |
| Mounting Pattern | VESA compliant: 100x100 to 200x200 |
| Brand | Cotytech |
| Manufacturer part number | MW-3A3B |
| Ships from | Drop shipped from California |
| Availability | Please call for stock check or lead-time |
Specifications as published by the manufacturer for model MW-3A3B. Shipping weight and current pricing are being confirmed with the factory.
| Part Number (SKU) | MW-3A3B |
|---|---|
| Category | Monitor Mounts & Arms, TV Wall Mounts & Stands |
| Weight | 6 lbs |
| Fits most | 22" to 37" flat panels |
| Weight Capacity | Supports up to 27.3kg(60lbs) |
| Tilt | 5° / - 20° |
| Swivel | Max 120° |
| Mounting profile | 3.5" (89.6mm) Depth From Wall |
| Maximum extension | 16.4" (415.6mm) |
| Mounts on Studs | Single-stud |
| Mounting Pattern | VESA compliant: 100x100 to 200x200 |
| Brand | Cotytech |
| Manufacturer part number | MW-3A3B |
| Ships from | Drop shipped from California |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
