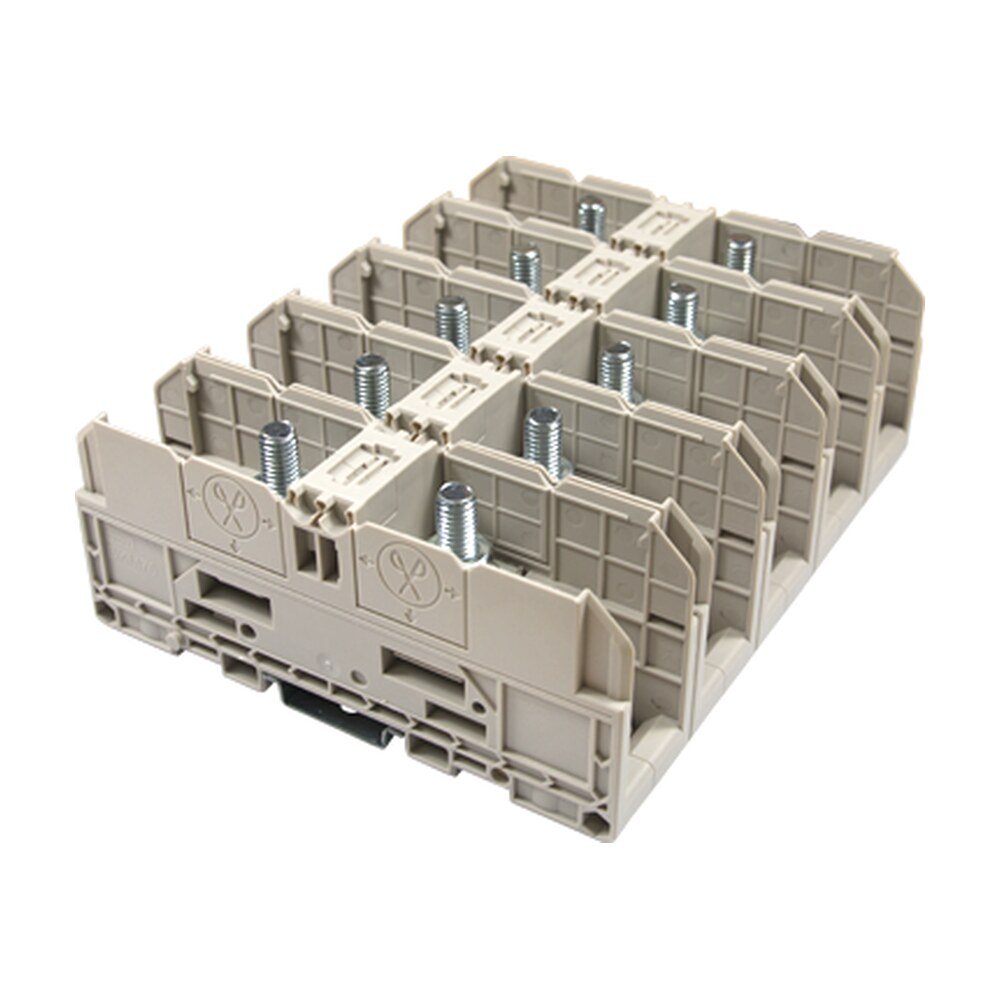

DKM70 — Feed-through Single Level, Stud Connection, Width：32mm, M8, 1500V, 230A. M8, 1500V, 230A, Beige (default).
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle DKM70 — Feed-through Single Level, Stud Connection. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.
Feed-through Single Level, Stud Connection, Width：32mm, M8, 1500V, 230A
Published by Dinkle for the DKM70 series.
| Category | Feed-through Single Level |
|---|---|
| Pitch (mm) | 32 |

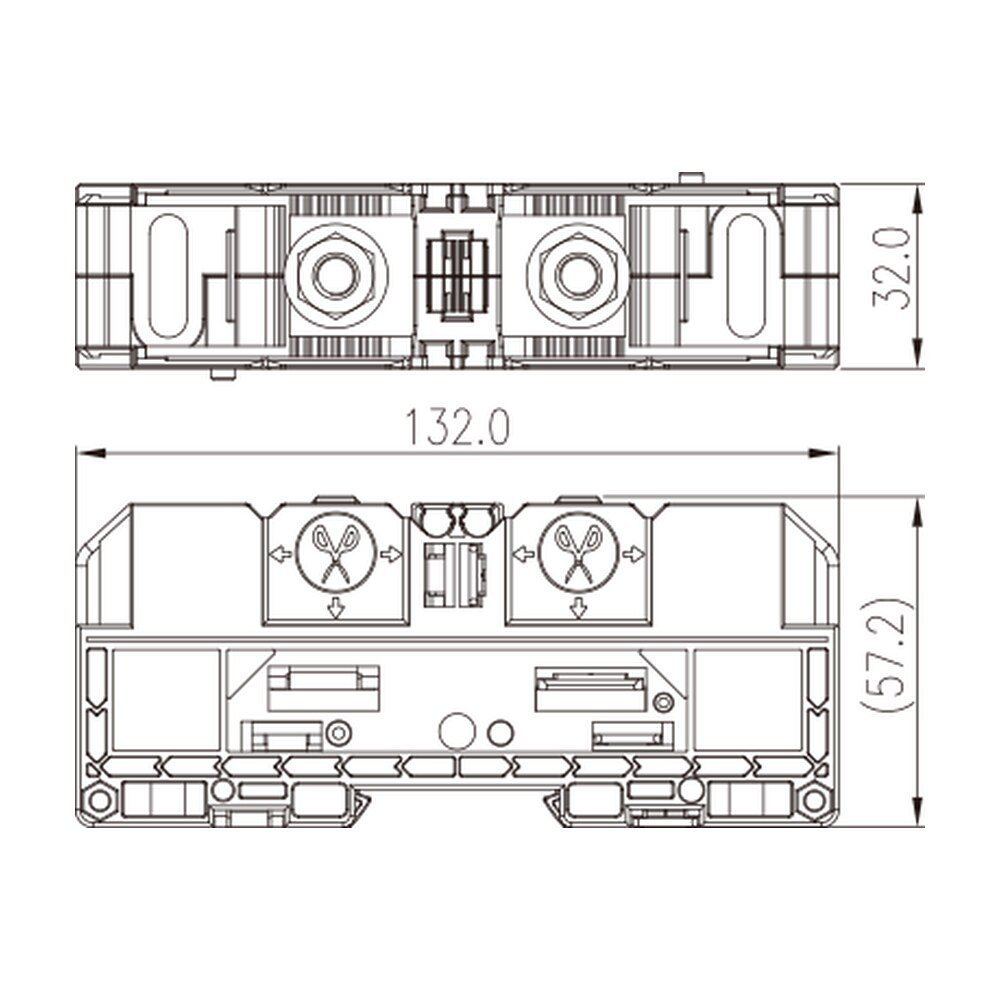

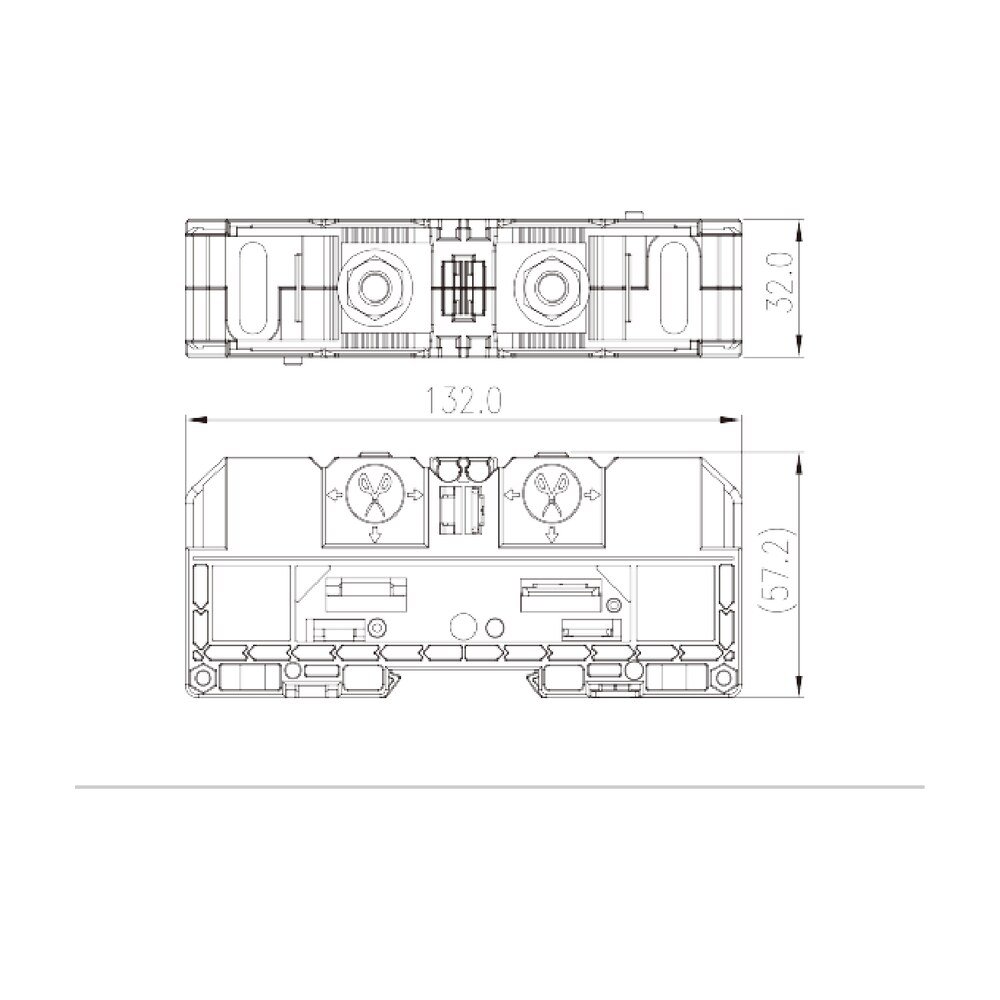

| Color | Refer to drawing |
| Connection method | Stud Connection |
| Length (mm) | 132 |
| Width (mm) | 32 |
| Height (mm) | 57.2 |
| Level | Single level |
| Connection points | 2 |
| Insulation material | PA |
|---|---|
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥500MΩ at DC 500V |
| Rated voltage (V) | 1500 |
|---|---|
| Rated current (A) | 192 |
| Rated voltage (III/3)(V) | 1500 |
| Rated impulse voltage (III/3)(KV) | 8 |
| Conductor cross section solid. min (mm²) | 2.5 |
| Conductor cross section solid.max (mm²) | 70 |
| Conductor cross section stranded. min (mm²) | 2.5 |
| Conductor cross section stranded. max (mm²) | 70 |
| Screw thread | M8 |
| Philips screwdriver size | 13X6.3 |
| Rated torque (N.m) | 6~12 |
| Recommend tightening torque. min (N.m) | 6 |
| Recommend tightening torque. max (N.m) | 12 |
| Stripping Length (mm) | The stripping length depends on the specification provided by the cablelug manufacturer |
| Mounting rail | TS-35 |
| End cover plate required | NO |
| Grounding connections | NO |
| Rated voltage (UL/CUL Group E)(V) | 1500 |
|---|---|
| Rated current (UL/CUL Group E)(A) | *Single Cable 175A / Double Cable 230A |
| Min. solid wire connection (AWG) acc. to UL/CUL | 14~2/0 |
| Max. solid wire connection AWG acc. to UL/CUL | 2/0 |
| Min. stranded wire connection AWG acc. to UL/CUL | 14 |
| Max. stranded wire connection AWG acc. to UL/CUL | 2/0 |
| Back of the hand protection (YES or NO) | NO |
|---|---|
| Finger protection (YES or NO) | NO |
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Wire Range (Group E)(AWG) | 14~2/0 |
|---|---|
| Rated voltage (Group E)(V) | 1500 |
| Rated current (Group E)(A) | *Single Cable 175A / Double Cable 230A |
| Wire Range (Group E)(AWG) | 14~2/0 |
|---|---|
| Rated voltage (Group E)(V) | 1500 |
| Rated current (Group E)(A) | *Single Cable 175A / Double Cable 230A |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | DKM70 |
|---|---|
| Category | Stud Connection |
| Block Type | Feed-through Single Level |
| Connection Method | Stud Connection |
| Level | Single level |
| Connection Points | 2 |
| Pitch (mm) | 32 |
| Rated Voltage (IEC) | 1500 |
| Rated Current (IEC) | 192 |
| Stripping Length (mm) | The stripping length depends on the specification provided by the cablelug manufacturer |
| Screw Thread | M8 |
| Mounting Rail | TS-35 |
| Length (mm) | 132 |
| Width (mm) | 32 |
| Height (mm) | 57.2 |
| Insulation Material | PA |
| Flame Rating (UL94) | V0 |
| Color | Refer to drawing |
| Operating Temperature | -40 to 120 °C |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
