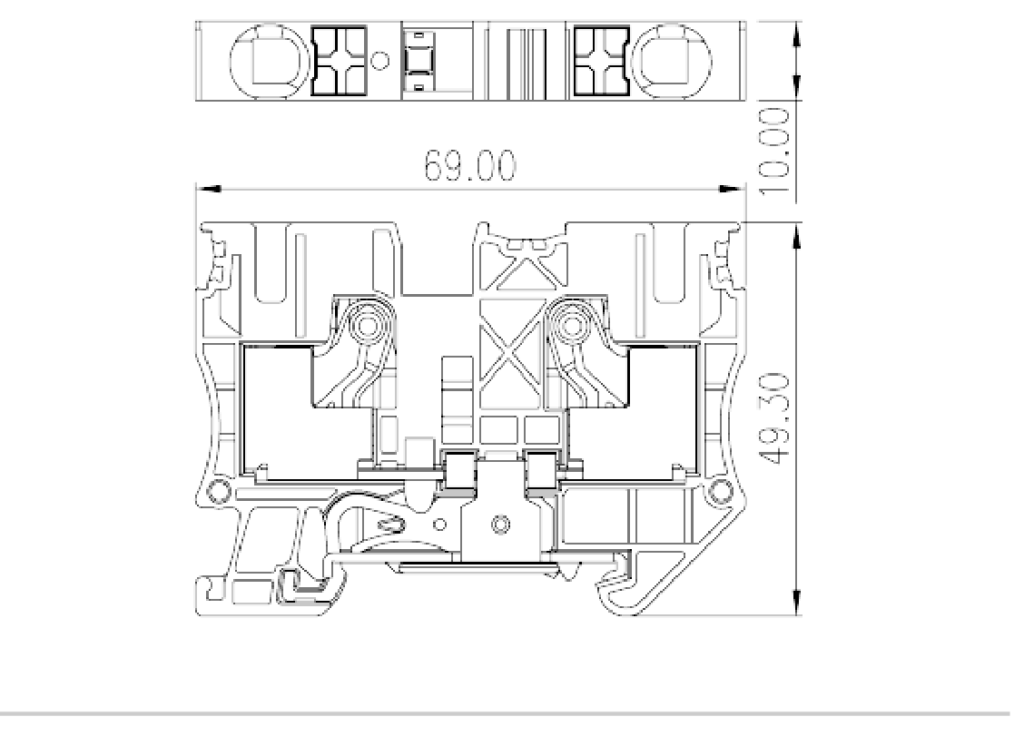

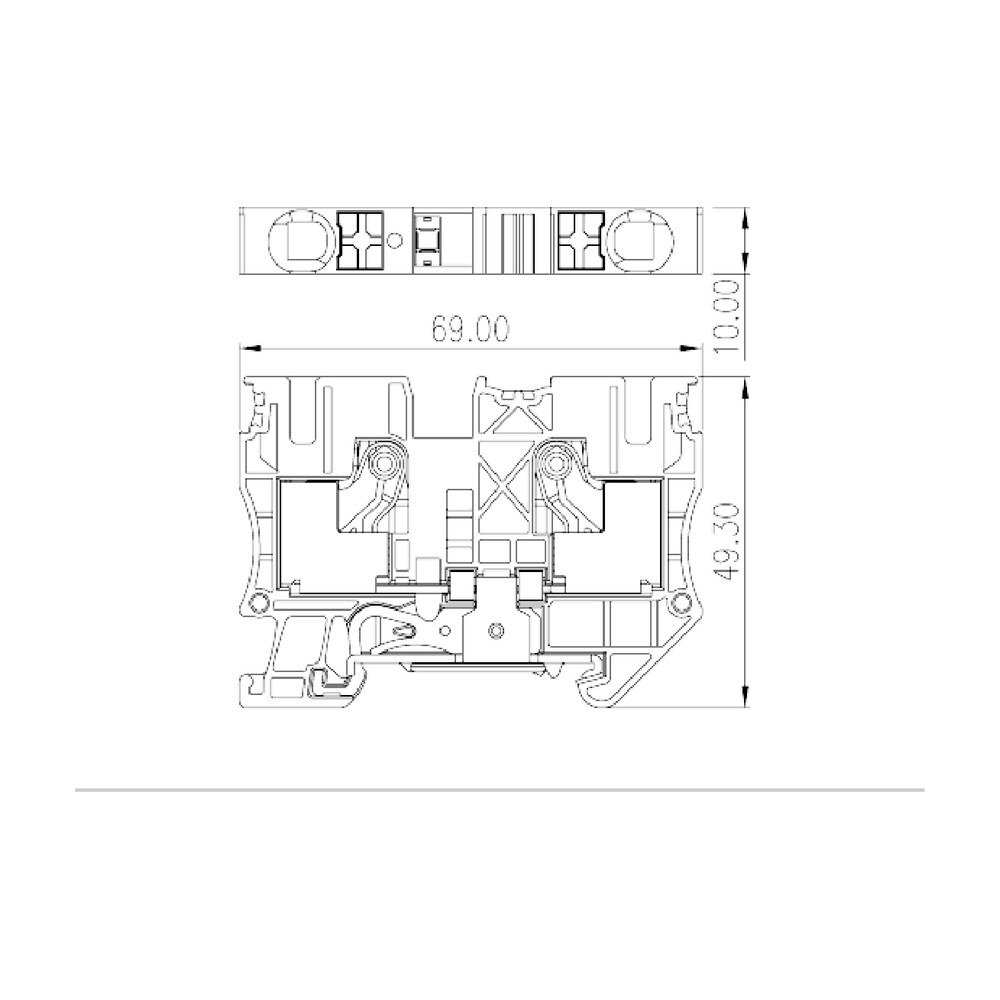

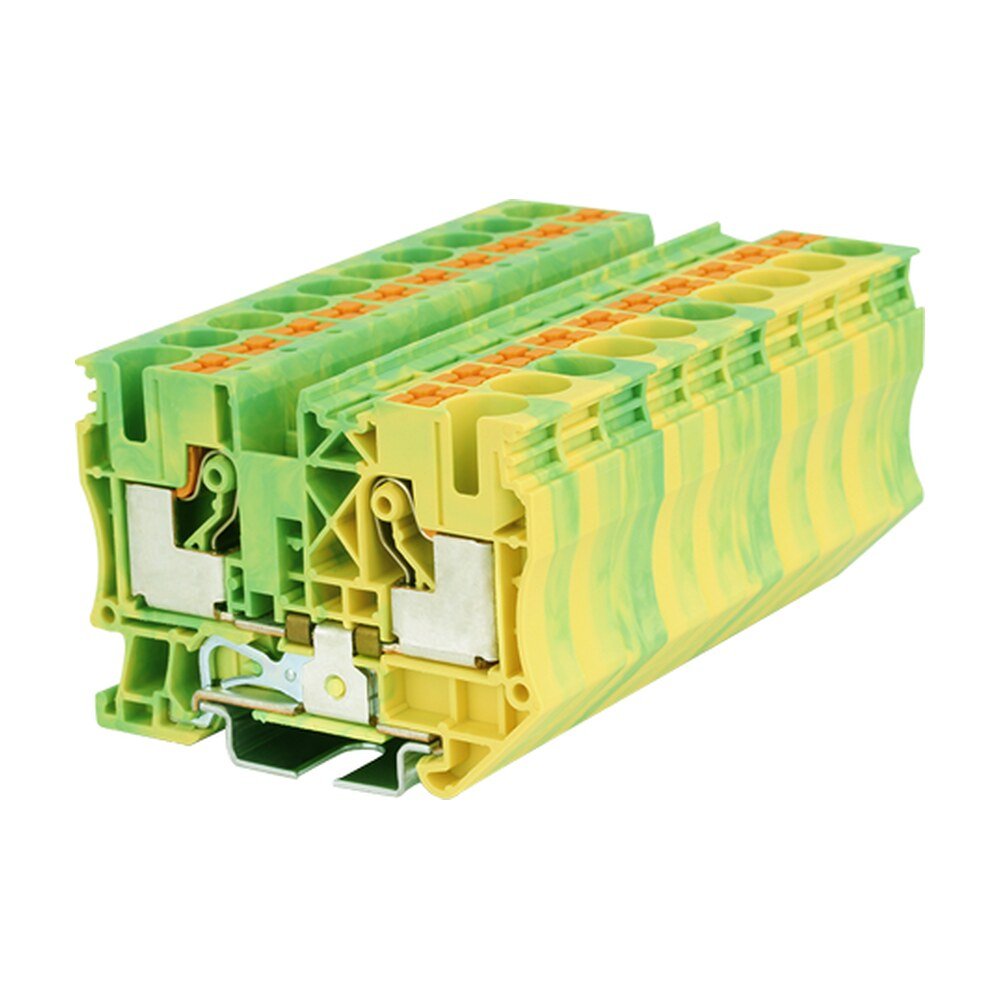

DP10-PE — Grounding Terminal Block, Push-in design, Width : 10mm, 600V. 600V, Green-Yellow (default).
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle DP10-PE — Grounding Terminal Block, Push-in Design. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.
Grounding Terminal Block, Push-in design, Width : 10mm, 600V
Published by Dinkle for the DP10-PE series.
| Category | Grounding Terminal Block |
|---|---|
| Color | Green-Yellow (default) |
| Connection method | Push-in Design |
| Type of locking | Rail Mounting |
| Length (mm) | 69 |
| Width (mm) | 10 |
| Height (mm) | 49.3 |
| Number of positions | ≧1P |
| Level | Single level |
| Connection points | 2 |
| Insulation material | PA |
|---|---|
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≧500MΩ at DC 500V |
| Rated voltage (V) | 1000 |
|---|---|
| Rated voltage (III/3)(V) | 1000 |
| Rated impulse voltage (III/3)(KV) | 8 |
| Conductor cross section solid. min (mm²) | 0.5 |
| Conductor cross section solid.max (mm²) | 16 |
| Conductor cross section stranded. min (mm²) | 0.5 |
| Conductor cross section stranded. max (mm²) | 10 |
| Conductor cross section flexible, with min ferrule without plastic sleeve (mm²) | 0.5 |
| Conductor cross section flexible, with max ferrule without plastic sleeve (mm²) | 10 |
| Conductor cross section flexible, with min ferrule with plastic sleeve (mm²) | 0.5 |
| Conductor cross section flexible, with max ferrule with plastic sleeve (mm²) | 10 |
| 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²) | 1.5 |
| 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²) | 4 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 1.0x5.5 |
| Stripping Length (mm) | 18 |
| Mounting rail | TS-35、TS-35/15 |
| End cover plate required | YES |
| Grounding connections | YES |
| Rated voltage (UL/CUL Group B)(V) | 600 |
|---|---|
| Rated voltage (UL/CUL Group C)(V) | 600 |
| Min. solid wire connection (AWG) acc. to UL/CUL | 20 |
| Max. solid wire connection AWG acc. to UL/CUL | 6 |
| Min. stranded wire connection AWG acc. to UL/CUL | 20 |
| Max. stranded wire connection AWG acc. to UL/CUL | 6 |
| Back of the hand protection (YES or NO) | YES |
|---|---|
| Finger protection (YES or NO) | YES |
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Wire Range (Group B)(AWG) | 20~6 |
|---|---|
| Rated voltage (Group B)(V) | 600 |
| Wire Range (Group C)(AWG) | 20~6 |
| Rated voltage (Group C)(V) | 600 |
| Wire Range (Group B)(AWG) | 20~6 |
|---|---|
| Rated voltage (Group B)(V) | 600 |
| Wire Range (Group C)(AWG) | 20~6 |
| Rated voltage (Group C)(V) | 600 |
| Wire Range (mm²) | 0.5~10 |
|---|---|
| Rated voltage (V) | 1000 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | DP10-PE |
|---|---|
| Category | Push-in Design |
| Block Type | Grounding Terminal Block |
| Connection Method | Push-in Design |
| Type of Locking | Rail Mounting |
| Level | Single level |
| Connection Points | 2 |
| Number of Positions | ≧1P |
| Rated Voltage (UL) | 600 |
| Wire Range (UL) | 20~6 |
| Rated Voltage (IEC) | 1000 |
| Wire Range (IEC) | 0.5~10 |
| Stripping Length (mm) | 18 |
| Mounting Rail | TS-35、TS-35/15 |
| Length (mm) | 69 |
| Width (mm) | 10 |
| Height (mm) | 49.3 |
| Insulation Material | PA |
| Flame Rating (UL94) | V0 |
| Color | Green-Yellow (default) |
| Operating Temperature | -40 to 120 °C |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
