Female Socket with 6 positions on a 3.5mm pitch and solder termination, rated 8A at 300V.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

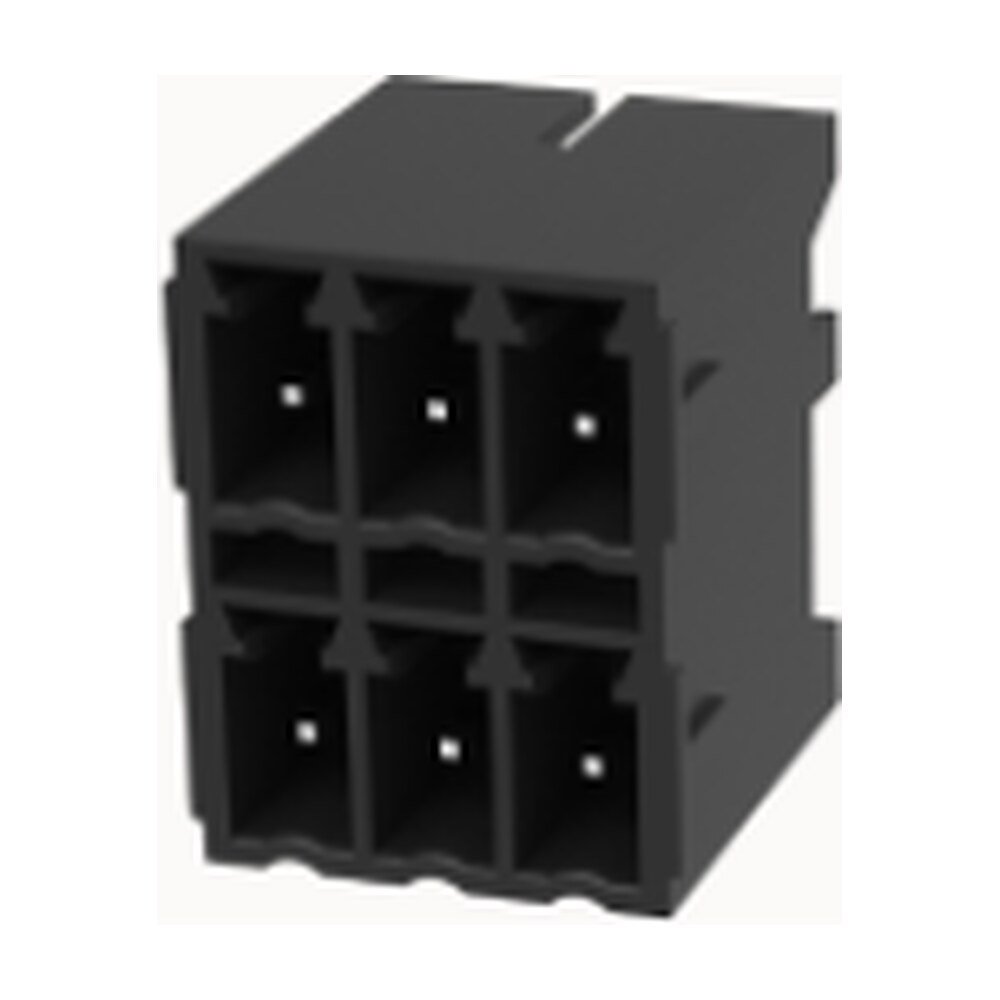

MR-15EDGRHBN-THR-3.5-06P-13-10A(H) is a Micro-Ray 15EDGRHBN-THR series euro-style pluggable terminal block (Female Sockets) with 6 positions, a 3.5mm pitch, solder termination.
Cross-references to Phoenix Contact MCDN 1,5/ 2-G1-3,5 RNP26THRR32 – 1717225. Phoenix Contact is a trademark of its owner; Micro-Ray is not affiliated with or endorsed by Phoenix Contact.
| Series | 15EDGRHBN-THR |
|---|---|
| Type | Female Sockets |
| Pitch | 3.5mm |
| Positions | 6 |
| Levels | 2 |
| Positions per Level | 3 |
| Termination | Solder |
| Mounting | Through Hole |
| Wire Entry Angle | O° |
| Current (UL) | 8A |
| Voltage (UL) | 300V |
| Current (IEC) | 8A |
| Voltage (IEC) | 250V |
| Wire Range (AWG) | |
| Wire Range (mm2) | |
| Strip Length | |
| Screw Size | |
| Screw Torque | |
| Operating Temperature | -40℃~130℃ |
| Housing Material | High temperature resistant materials |
| Contact Material | copper |
| Contact Finish | Tin |
| Flammability Rating | UL94V-0 |
| Colour | Black |
| Part Number (SKU) | MR-15EDGRHBN-THR-3.5-06P-13-10A(H) |
|---|---|
| Positions Available | 6 |
| Category | Female Sockets |
| Series | 15EDGRHBN-THR |
| Type | Female Sockets |
| Pitch | 3.5mm |
| Positions | 6 |
| Levels | 2 |
| Positions per Level | 3 |
| Termination | Solder |
| Mounting | Through Hole |
| Wire Entry Angle | O° |
| Current (UL) | 8A |
| Voltage (UL) | 300V |
| Current (IEC) | 8A |
| Voltage (IEC) | 250V |
| Operating Temperature | -40℃~130℃ |
| Housing Material | High temperature resistant materials |
| Contact Material | copper |
| Contact Finish | Tin |
| Flammability Rating | UL94V-0 |
| Colour | Black |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Parts we build to your requirement ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
