Male Plug with 2 positions on a 10.16mm pitch and screw termination, rated 52A at 600V.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.

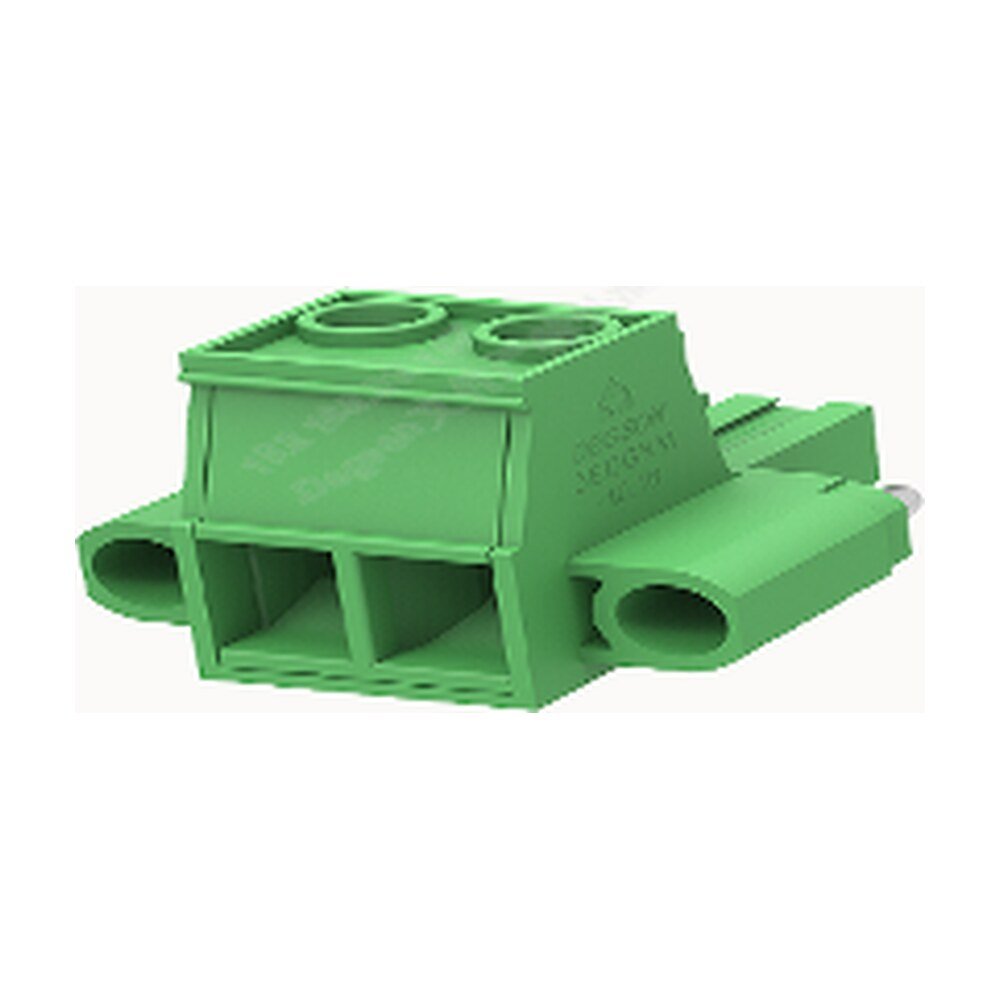

MR-5EDGKM-10.16-02P-14-00A(H) is a Micro-Ray 5EDGKM-10.16 series euro-style pluggable terminal block (Male Plugs) with 2 positions, a 10.16mm pitch, screw termination.
Cross-references to Phoenix Contact PC 16/ 2-STF-10,16-1967456. Phoenix Contact is a trademark of its owner; Micro-Ray is not affiliated with or endorsed by Phoenix Contact.
| Series | 5EDGKM-10.16 |
|---|---|
| Type | Male Plugs |
| Pitch | 10.16mm |
| Positions | 2 |
| Levels | 1 |
| Positions per Level | 2 |
| Termination | Screw |
| Mounting | Free Hanging |
| Wire Entry Angle | 0° |
| Current (UL) | 52A |
| Voltage (UL) | 600V |
| Current (IEC) | 57A |
| Voltage (IEC) | 600V |
| Wire Range (AWG) | 20~6AWG |
| Wire Range (mm2) | 0.5~10mm² |
| Strip Length | 7mm |
| Screw Size | M4 |
| Screw Torque | 1.2N.m |
| Operating Temperature | -40℃~125℃ |
| Housing Material | PA66 |
| Contact Material | Copper |
| Contact Finish | Silver |
| Flammability Rating | UL94V-0 |
| Colour | Green |
| Part Number (SKU) | MR-5EDGKM-10.16-02P-14-00A(H) |
|---|---|
| Category | Male Plugs |
| Series | 5EDGKM-10.16 |
| Type | Male Plugs |
| Pitch | 10.16mm |
| Positions | 2 |
| Levels | 1 |
| Positions per Level | 2 |
| Termination | Screw |
| Mounting | Free Hanging |
| Wire Entry Angle | 0° |
| Current (UL) | 52A |
| Voltage (UL) | 600V |
| Current (IEC) | 57A |
| Voltage (IEC) | 600V |
| Wire Range (AWG) | 20~6AWG |
| Wire Range (mm2) | 0.5~10mm² |
| Strip Length | 7mm |
| Screw Size | M4 |
| Screw Torque | 1.2N.m |
| Operating Temperature | -40℃~125℃ |
| Housing Material | PA66 |
| Contact Material | Copper |
| Contact Finish | Silver |
| Flammability Rating | UL94V-0 |
| Colour | Green |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship from our Brick, New Jersey facility. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
Send us your part number, drawing, or a description of what you need. A real person on our team will get back to you.
