Wire to Board with 2 positions on a 3.81mm pitch and screw termination, rated 10A at 300V.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.

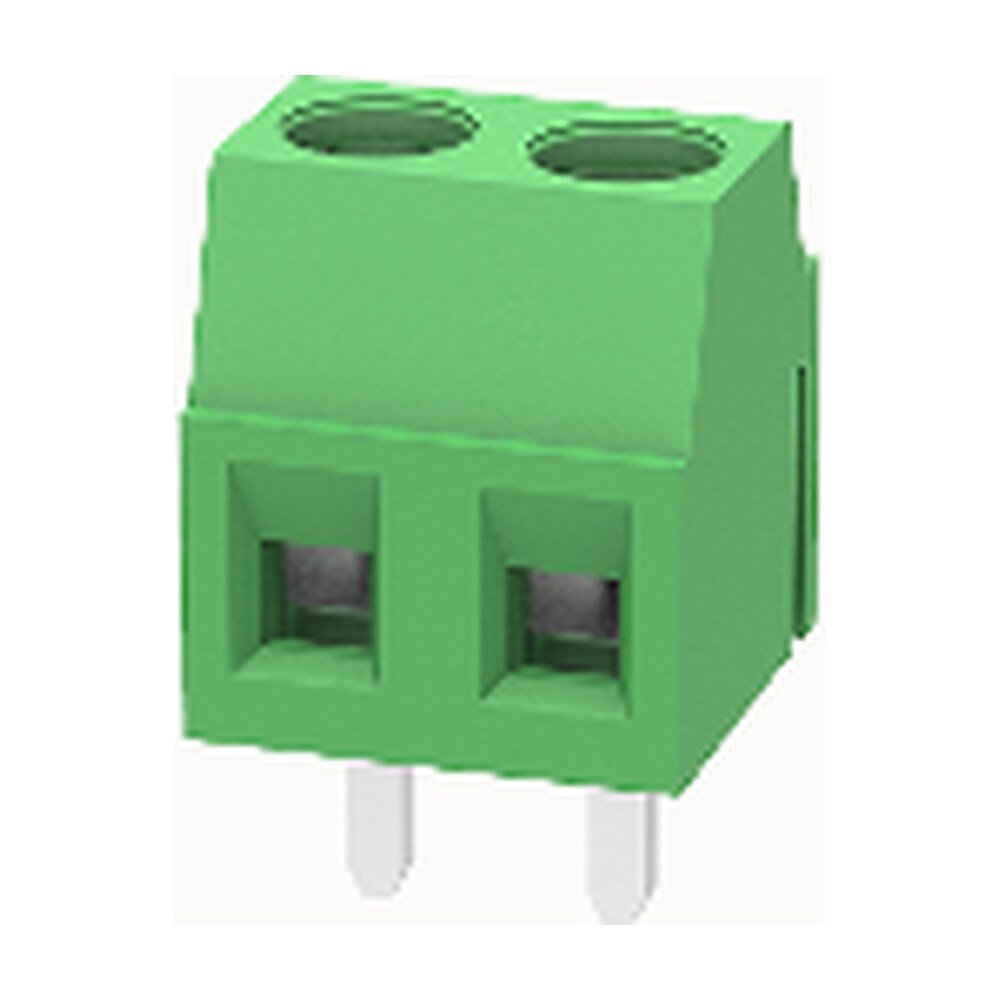

MR-DG381-3.81-02P-14-00A(H) is a Micro-Ray DG381 series euro-style pluggable terminal block (Wire to Board) with 2 positions, a 3.81mm pitch, screw termination.
Cross-references to Phoenix Contact MKDS 1/ 2-3,81-1727010. Phoenix Contact is a trademark of its owner; Micro-Ray is not affiliated with or endorsed by Phoenix Contact.
| Series | DG381 |
|---|---|
| Type | Wire to Board |
| Pitch | 3.81mm |
| Positions | 2 |
| Levels | 1 |
| Positions per Level | 2 |
| Termination | Screw |
| Mounting | Through Hole |
| Wire Entry Angle | 0° |
| Current (UL) | 10A |
| Voltage (UL) | 300V |
| Current (IEC) | 10A |
| Voltage (IEC) | 130V |
| Wire Range (AWG) | 26~16AWG |
| Wire Range (mm2) | 0.5~1.0mm² |
| Strip Length | 6mm |
| Screw Size | M2 |
| Screw Torque | 0.2N.m |
| Operating Temperature | -40℃~105℃ |
| Housing Material | PA66 |
| Contact Material | Copper alloy |
| Contact Finish | Tin |
| Flammability Rating | UL94V-0 |
| Colour | Green |
| Part Number (SKU) | MR-DG381-3.81-02P-14-00A(H) |
|---|---|
| Category | Wire to Board |
| Series | DG381 |
| Type | Wire to Board |
| Pitch | 3.81mm |
| Positions | 2 |
| Levels | 1 |
| Positions per Level | 2 |
| Termination | Screw |
| Mounting | Through Hole |
| Wire Entry Angle | 0° |
| Current (UL) | 10A |
| Voltage (UL) | 300V |
| Current (IEC) | 10A |
| Voltage (IEC) | 130V |
| Wire Range (AWG) | 26~16AWG |
| Wire Range (mm2) | 0.5~1.0mm² |
| Strip Length | 6mm |
| Screw Size | M2 |
| Screw Torque | 0.2N.m |
| Operating Temperature | -40℃~105℃ |
| Housing Material | PA66 |
| Contact Material | Copper alloy |
| Contact Finish | Tin |
| Flammability Rating | UL94V-0 |
| Colour | Green |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
