Wire to Board with 2 positions on a 5.0mm pitch and screw termination, rated 12A at 300V.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

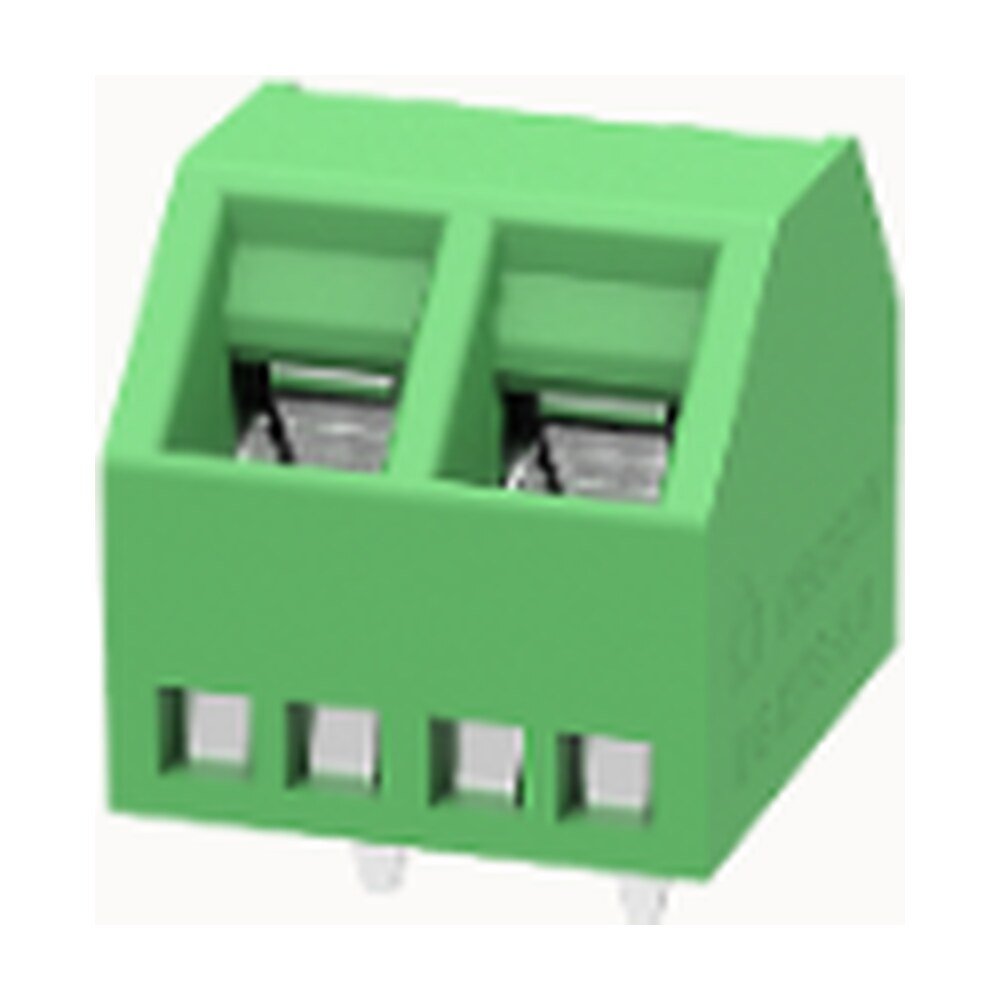

MR-DG127S-5.0-02P-14-00A(H) is a Micro-Ray DG127S series euro-style pluggable terminal block (Wire to Board) with 2 positions, a 5.0mm pitch, screw termination.
Cross-references to Phoenix Contact SMKDSN 1,5/ 2-1869062. Phoenix Contact is a trademark of its owner; Micro-Ray is not affiliated with or endorsed by Phoenix Contact.
| Series | DG127S |
|---|---|
| Type | Wire to Board |
| Pitch | 5.0mm |
| Positions | 2 |
| Levels | 1 |
| Positions per Level | 2 |
| Termination | Screw |
| Mounting | Through Hole |
| Wire Entry Angle | 45° |
| Current (UL) | 12A |
| Voltage (UL) | 300V |
| Current (IEC) | 15A |
| Voltage (IEC) | 250V |
| Wire Range (AWG) | 26~14AWG |
| Wire Range (mm2) | 0.2~1.5mm² |
| Strip Length | 6mm |
| Screw Size | M2.5 |
| Screw Torque | 0.4N.m |
| Operating Temperature | -40℃~105℃ |
| Housing Material | PA66 |
| Contact Material | Copper alloy |
| Contact Finish | Tin |
| Flammability Rating | UL94V-0 |
| Colour | Green |
| Part Number (SKU) | MR-DG127S-5.0-02P-14-00A(H) |
|---|---|
| Positions Available | 2 |
| Category | Wire to Board |
| Series | DG127S |
| Type | Wire to Board |
| Pitch | 5.0mm |
| Positions | 2 |
| Levels | 1 |
| Positions per Level | 2 |
| Termination | Screw |
| Mounting | Through Hole |
| Wire Entry Angle | 45° |
| Current (UL) | 12A |
| Voltage (UL) | 300V |
| Current (IEC) | 15A |
| Voltage (IEC) | 250V |
| Wire Range (AWG) | 26~14AWG |
| Wire Range (mm2) | 0.2~1.5mm² |
| Strip Length | 6mm |
| Screw Size | M2.5 |
| Screw Torque | 0.4N.m |
| Operating Temperature | -40℃~105℃ |
| Housing Material | PA66 |
| Contact Material | Copper alloy |
| Contact Finish | Tin |
| Flammability Rating | UL94V-0 |
| Colour | Green |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
