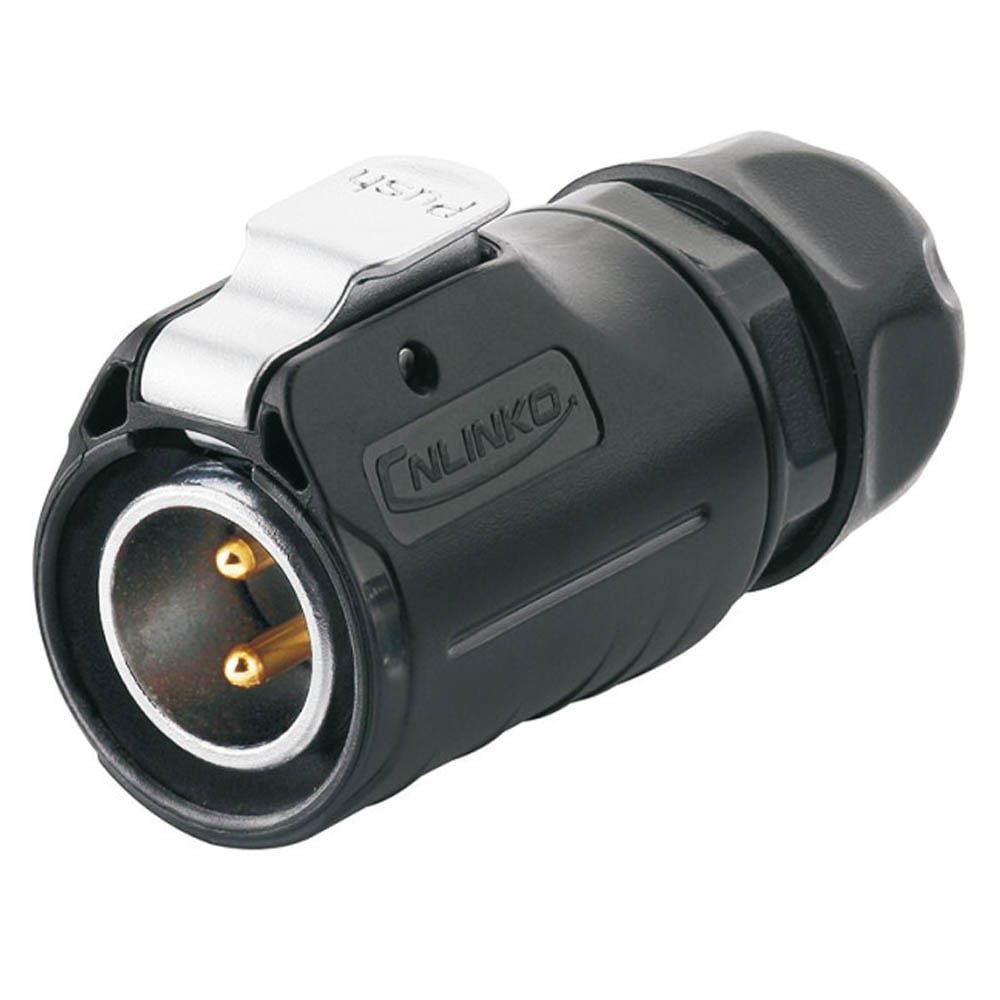

LP-20-C02PE-01-022, LP-20 Series, 2 Pin Male Power Plug

LP-20-C02PE-01-001

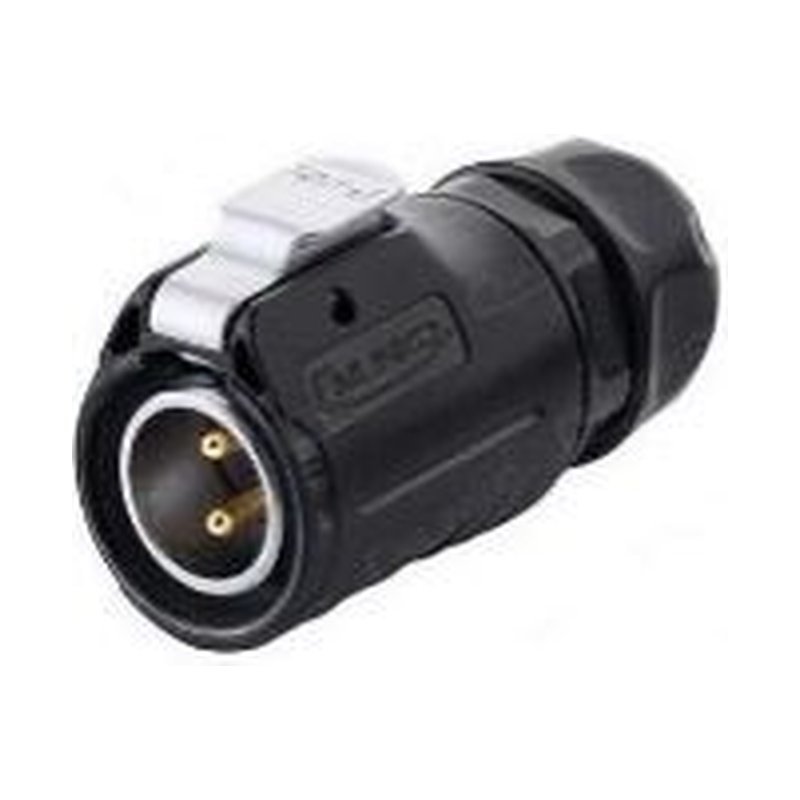

LP-20-C02PE-01-022, LP-20 Series, 2 Pin Male Power Plug - Image 2

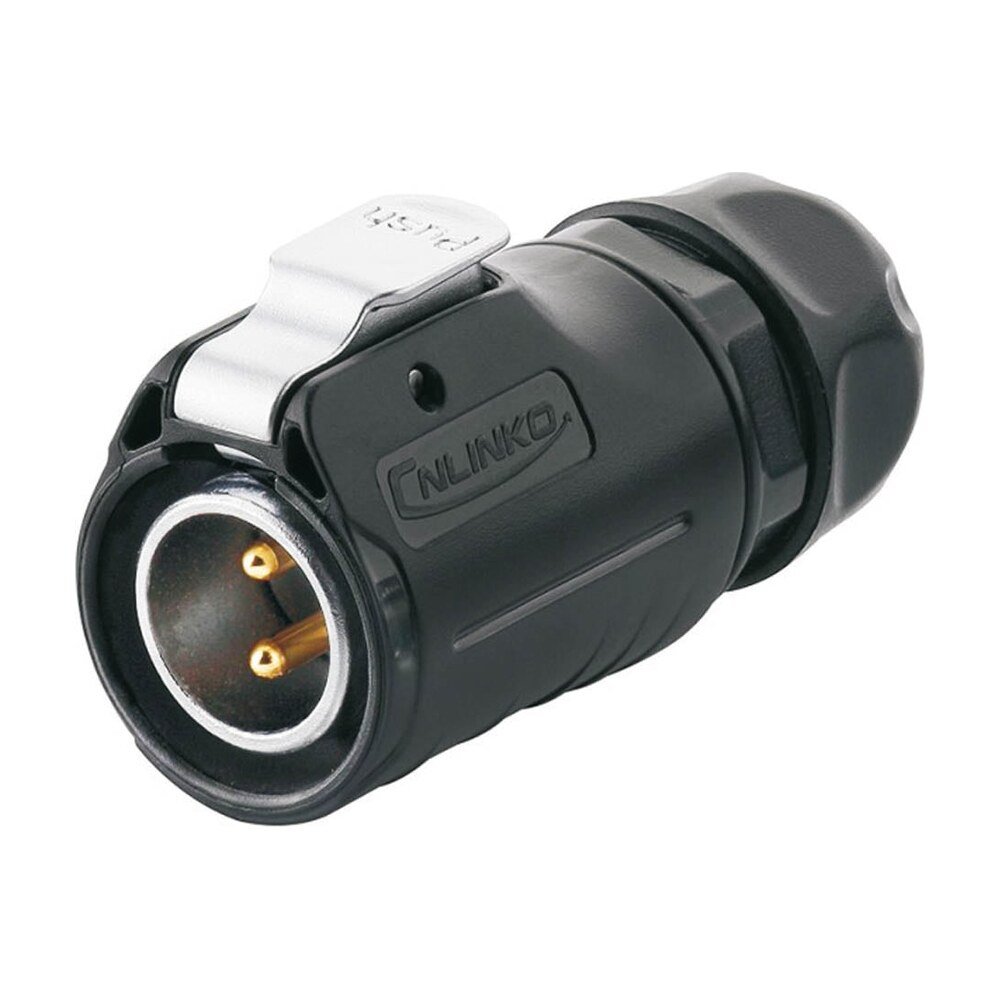

LP-20-C02PE-01-022, LP-20 Series, 2 Pin Male Power Plug - Image 3

Description

Cnlinko LP-20-C02PE-01-022 2 Pin Male Power Plug

Old Part Number: LP-20-C02PE-01-001

IP56/IP67 When Terminated

Specifications

  • Dimensions- 65 mm Length x 35 mm Height (2.56″ x 1.38″)
  • Number of Pins- 2
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 2.7mm
  • Rated Current- 20A
  • Operating Voltage- 500V
  • Contact Resistance- <1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- High Performance Plastic
  • Hardware- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Wiring Mode- Soldering

Reviews

There are no reviews yet.

Be the first to review “LP-20-C02PE-01-022, LP-20 Series, 2 Pin Male Power Plug”

Your email address will not be published. Required fields are marked *

SKU LP-20-C02PE-01-022 Category

View Product Specs

LP-20-C02PE-01-022
Old p/n: LP-20-C02PE-01-001
2 pins male plug

The Cnlinko LP-20-C02PE-01-022 is a versatile 2 pin male cable plug designed for high power applications. It can accommodate 14-12 AWG cable and is rated for 500V and 20 A. Its unique self-locking design makes it easy to use, while providing a secure, reliable connection. This plug is ideal for use in a range of industries, including audio/visual equipment, medical devices, testing and measurement equipment, and industrial control. With its outstanding performance, the Cnlinko LP-20-C02PE-01-022 is the perfect choice for any application that demands high quality and reliability.



$10.17

2 in stock

Quantity Discount
Quantity Discount Discounted price
1 - 50 - $10.17
51 - 250 4% $9.76
251 - 500 8% $9.36
501 - 1000 12% $8.95
