Part No. MR-M12-X8-06OM

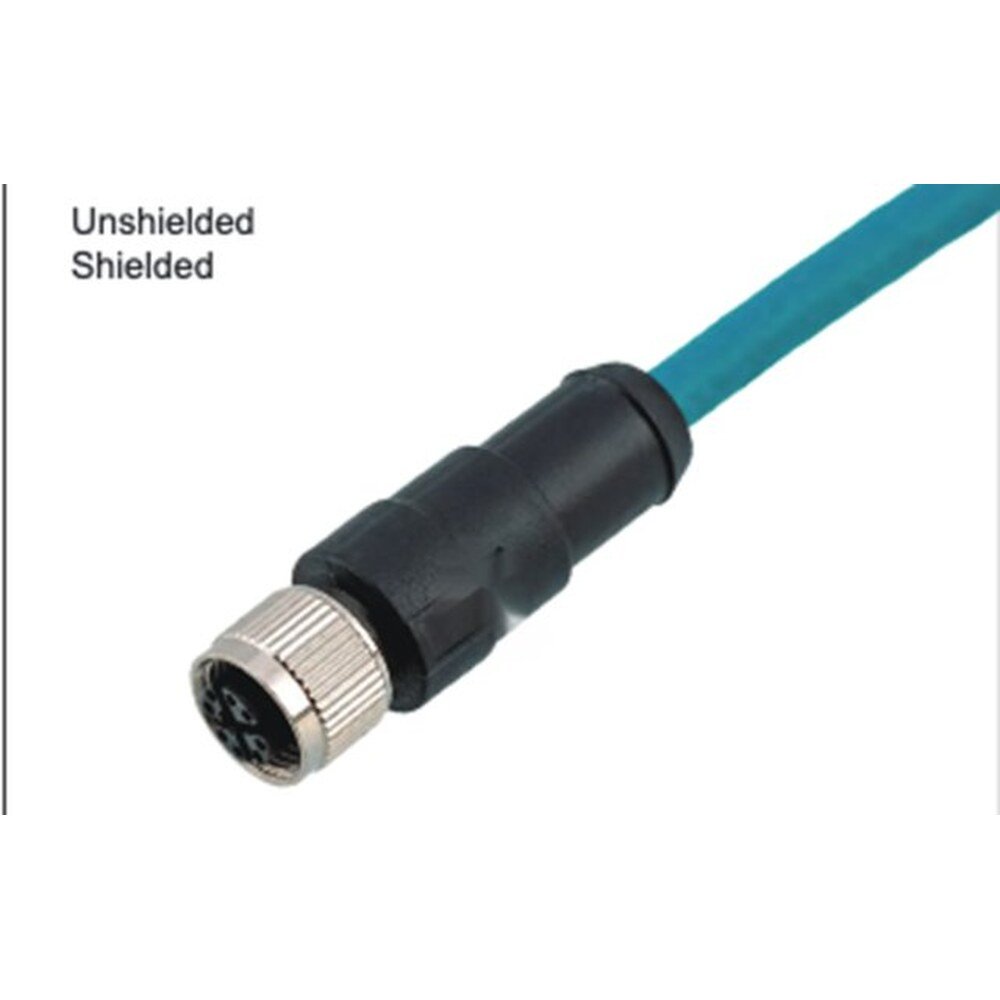

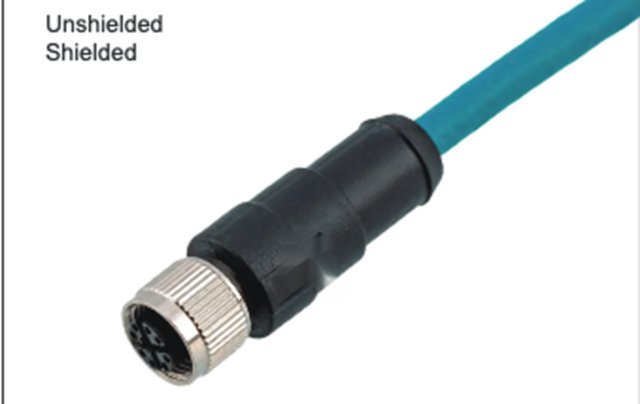

M12 8-Pin X-Coded Straight Female Connector, Overmolded, Shielded

Made to Order - typically 8-10 weeks

M12 8-Pin, X-Coding, Straight Female Connector — a one-piece overmolded body with an integral shielded cable exit, eliminating the separate gland and shell assembly. X-coding is the high-speed data variant of the M12 circular connector standard, commonly used for 10 Gbit industrial Ethernet.

  • Coding: X (high-speed data)
  • Contacts: 8-Pin
  • Gender: Female
  • Body style: Straight, overmolded
  • Shell: Overmolded, shielded
M12 8-Pin X-Coded Straight Female Connector, Overmolded, Shielded
M12 8-Pin X-Coded Straight Female Connector, Overmolded, Shielded
PDFProduct Drawing
Call for Pricing
Made to Order typically 8-10 weeks

Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales

Request a Quote

This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.

Stocked items ship from our Brick, New Jersey facility. Made-to-order items ship after production.
Need volume, a custom length, or a cross-reference? Talk to our sales account representative.

Key Features

  • M12 x 1 threaded coupling, IEC 61076-2-109 style X-coded interface
  • One-piece overmolded body simplifies installation and improves strain relief
  • Integral cable shielding for EMI/RFI protection
  • Rated up to 60V, 0.5A per contact, 26-24 AWG (0.14-0.25mm²) wire range
  • Engineered to IP67 sealing when fully mated, consistent with the M12 circular connector standard
  • Keyed X-coding orientation prevents mismating with A/B/C/D-coded M12 connectors

Applications

  • Industrial Ethernet / high-speed data links
  • Factory automation field wiring
  • Machine vision and sensor networks requiring Gigabit+ throughput

Made to order. Dimensions in technical drawing are nominal; contact us to confirm for critical-fit applications.

Part Number (SKU)MR-M12-X8-06OM
CategoryM12 Series A, B, C, D Coded Connectors and Cables
AvailabilityMade to Order
Typical Lead Time8-10 weeks
