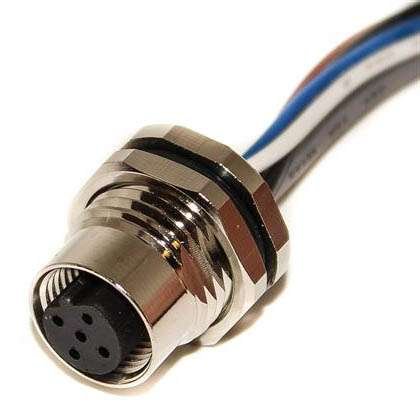

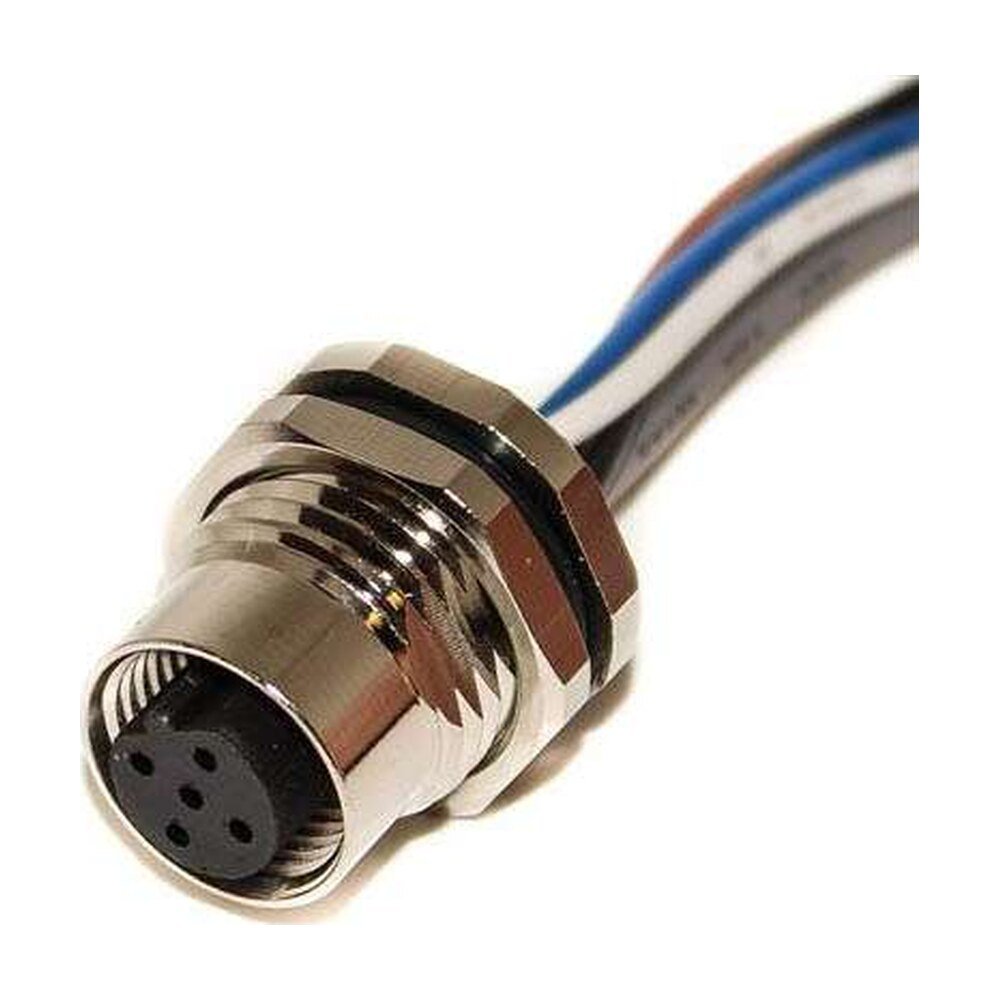

The Micro-Ray M12 B-coded 5-position female receptacle cable features open-end leads for quick and reliable terminations in industrial and automation systems. Built with nickel-plated brass housing, UL1007 22AWG hook-up wire, and rated IP67/IP68 waterproof, this 0.5-meter cable delivers durable, high-quality performance for sensors, actuators, and control equipment.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.
The Micro-Ray M12 B-coded 5-position female receptacle to open-end cable assembly is designed for dependable signal and power connectivity in demanding industrial environments. This high-quality cable ensures stable performance for automation systems, sensors, and process control applications.
Built to IEC 61076-2-101 standards, it provides rugged IP67/IP68 waterproof protection, preventing dust and moisture ingress for reliable use in harsh conditions. The nickel-plated brass connector shell offers superior corrosion resistance, while UL1007 22AWG hook-up wire provides excellent electrical integrity and flexibility.
With a 0.5-meter (1.64-foot) length, this M12 cable assembly is ideal for compact installations that require a B-coded M12 female connector on one end and an open wire termination for easy integration into control panels or field wiring.
Connector Type: 5-Position Female Straight Receptacle to Open End
Coding: B (Euro AC)
Shell Size: M12 × 1.0 Thread
Cable Length: 0.5 Meters (1.64 Feet)
Wire Leads: UL1007 22AWG Hook-Up Wire
Voltage Rating: 30V–60V
Orientation: Straight
Material: Nickel-Plated Brass
Standard Compliance: IEC 61076-2-101
Waterproof Rating: IP67/IP68
Weight: 28.64 g
RoHS Compliance: 3 Compliant, Exemption 6c
Industrial automation and process control
Sensor and actuator wiring
Instrumentation systems
Power and signal connections in harsh or outdoor environments
| Part Number (SKU) | New M12 Panel Mount Connector 5 Pin Female Open Ended Cables |
|---|---|
| Pins Available | 5 |
| Category | M12 Cables |
| Connector Type | 5-Position Female Straight Receptacle to Open End |
| Coding | B (Euro AC) |
| Shell Size | M12 × 1.0 Thread |
| Cable Length | 0.5 Meters (1.64 Feet) |
| Wire Leads | UL1007 22AWG Hook-Up Wire |
| Voltage Rating | 30V–60V |
| Orientation | Straight |
| Material | Nickel-Plated Brass |
| Standard Compliance | IEC 61076-2-101 |
| Waterproof Rating | IP67/IP68 |
| Weight | 28.64 g |
| RoHS Compliance | 3 Compliant, Exemption 6c |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
