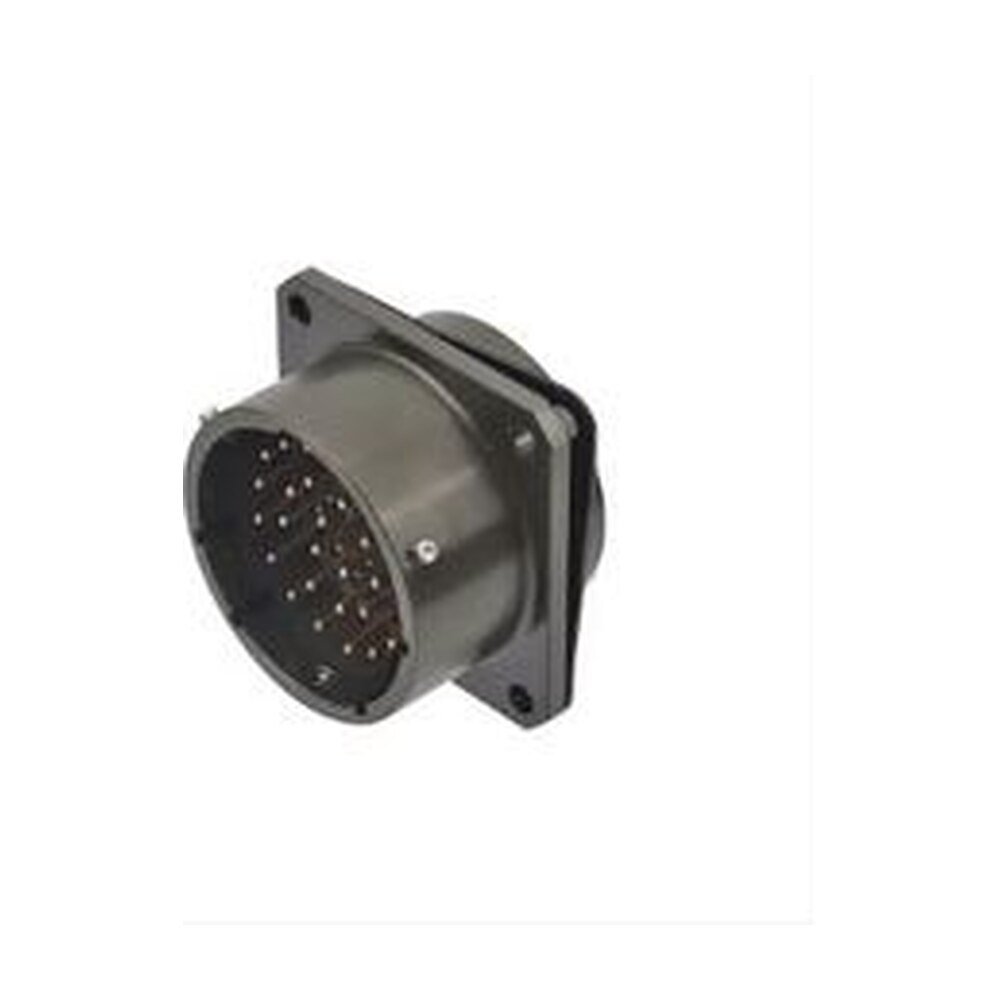

Box mount connector receptacle, MIL-DTL-5015 style: shell size 20, 27 pin contacts, 1-3/16-18 UNEF coupling thread. For industrial use. Call for pricing.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Built to the MIL-DTL-5015 style envelope. For industrial use only. This is a commercial part: it is not qualified or certified to the military specification, is not QPL listed, and is not supplied with a certificate of conformance to MIL-DTL-5015. The manufacturer confirms RoHS and REACH compliance.
See all 21 MIL connectors: MS3116 straight plugs and MS3112 box mount receptacles, shell 8 to 24.
Dimensions in the technical drawing are nominal; contact us to confirm for critical-fit applications. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
| Part Number (SKU) | MR-MS3112-20-27P |
|---|---|
| Pins Available | 27 |
| MIL Standard Part Number | MS3112-20-27P |
| Category | 26482 |
| Dimensions | 0.83 × 1.37 × 1.37 in |
| Type | Box mount receptacle |
| Series | MS3112, MIL-DTL-5015 style |
| Shell size | 20 |
| Contacts | 27, pin |
| Coupling thread | 1-3/16-18 UNEF |
| Availability | Please call for lead-time |
| Typical Lead Time | 6-8 weeks |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Parts we build to your requirement ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
