4.20mm Dual-Row Receptacle Housing, Dual Row, 6 Circuits, UL 94V, Natural, Wire to Board Power Connector.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.
4.20mm Dual-Row Receptacle Housing, Dual Row, 6 Circuits, UL 94V, Natural, Wire to Board Power Connector. Similar to Mini-Fit 39-01-2020
MR-1149-02-XX-XX

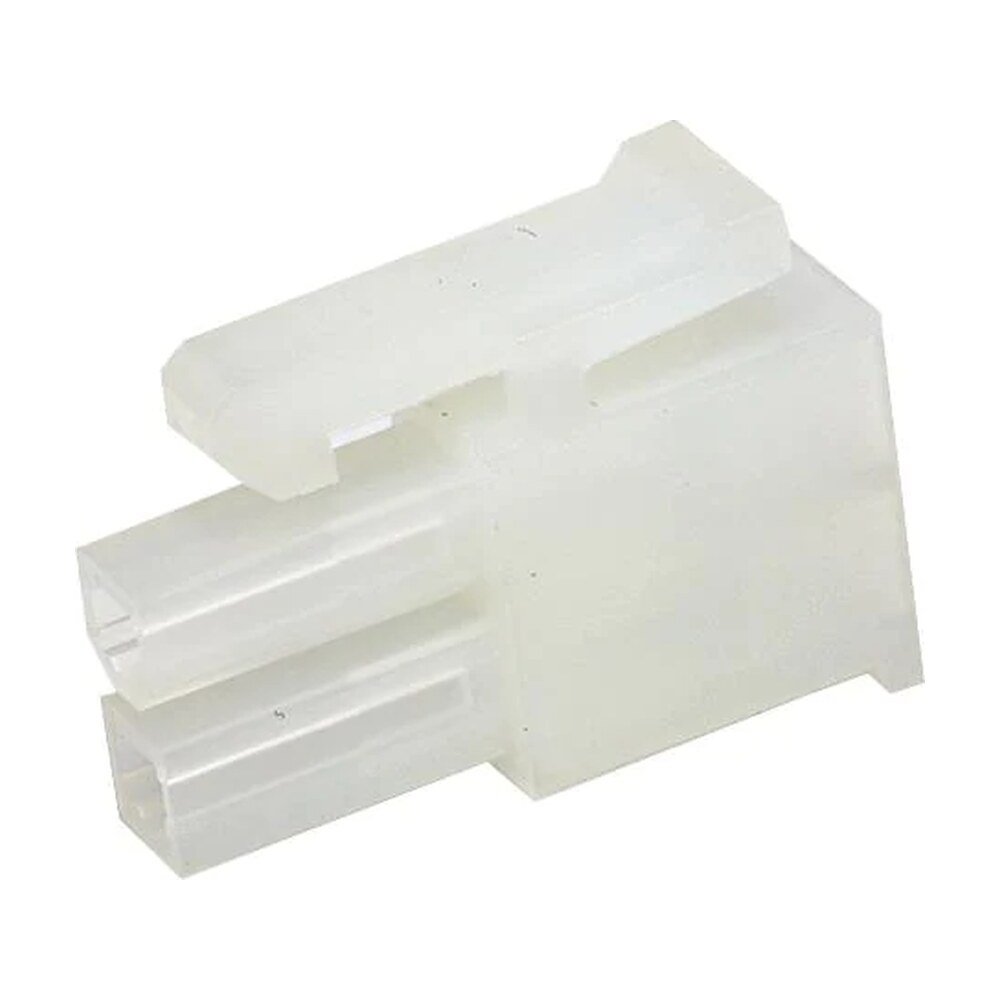

4.20mm Dual-Row Receptacle Housing, Dual Row, 2 Circuits, UL 94V, Natural, Wire to Board Power Connector.
Current: 7A AC/DC
Withstanding Voltage:1500V AC/minuteInsulation
Resistance: 1000MΩ min
Temperature Range: -40℃ to +105℃
Contact Resistance: 20mΩ max
Applicable Wires: AWG#16~#24
| Part Number (SKU) | MR-1149-02 |
|---|---|
| Circuits Available | 6 |
| Category | Connectors, Electronic Connectors, MR-1149-06, Receptacle Housing, Dual Row, 6 Circuits |
| Current | 7A AC/DC |
| Resistance | 1000MΩ min |
| Temperature Range | -40℃ to +105℃ |
| Contact Resistance | 20mΩ max |
| Applicable Wires | AWG#16~#24 |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
