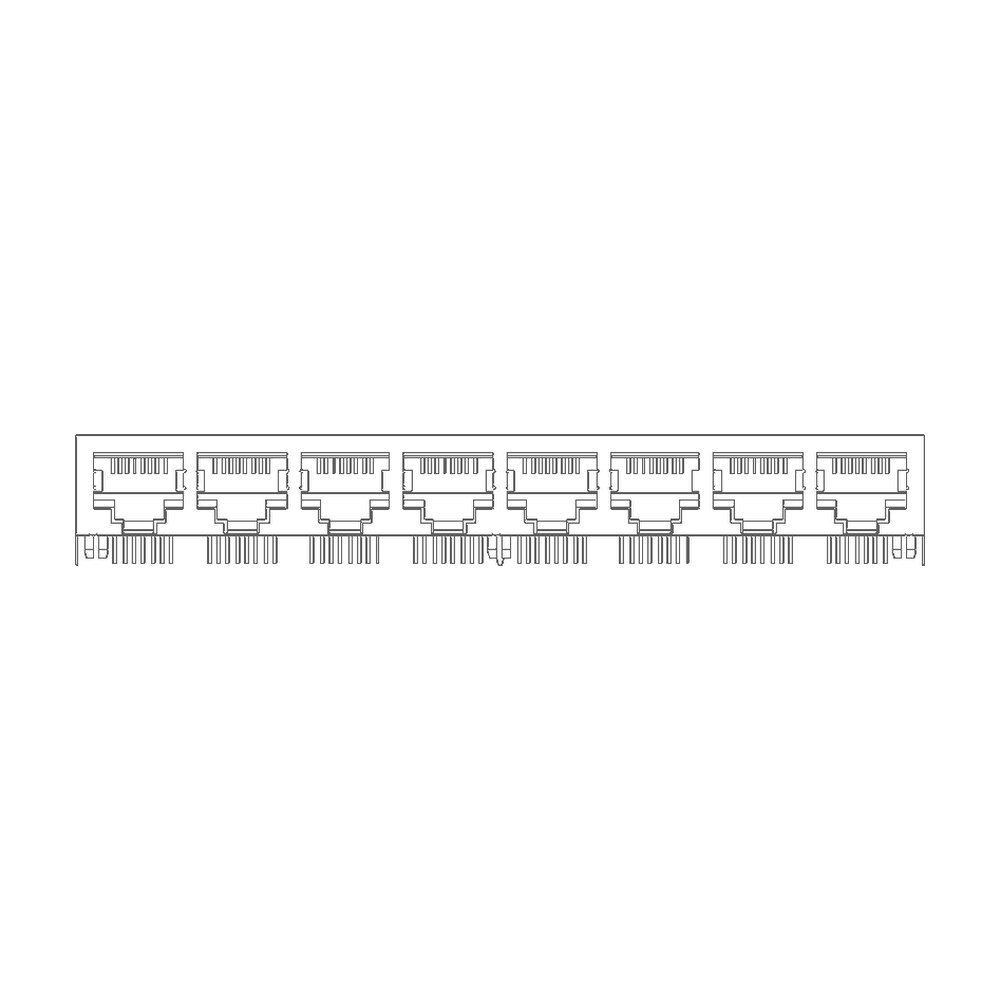

Ganged 8 port RJ45 modular jack on 13.97 mm port centres, shielded, through-hole right angle side entry (114.94 mm bar).
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.
Ganged 8 port RJ45 modular jack on 13.97 mm port centres, shielded, through-hole right angle side entry (114.94 mm bar).
| Ports | 8 (1 x 8 ganged) |
|---|---|
| Positions / contacts | 8P8C |
| Bar length | 114.94 mm |
| Port centres | 13.97 mm |
| Signal pins | 64 |
| Shielding | Shielded, 0.25 mm nickel plated copper alloy |
| Mounting | THT right angle, side entry |
| LEDs | No |
| Integrated magnetics | No |
| Housing | PBT or nylon |
| Availability | Stock to 10 weeks |
Specifications are taken from the Micro-Ray drawing for this part. Dimensions in millimetres.
| Part Number (SKU) | MR-59-05-01 |
|---|---|
| Category | Multi-Port RJ45 Jacks |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship from our Brick, New Jersey facility. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
