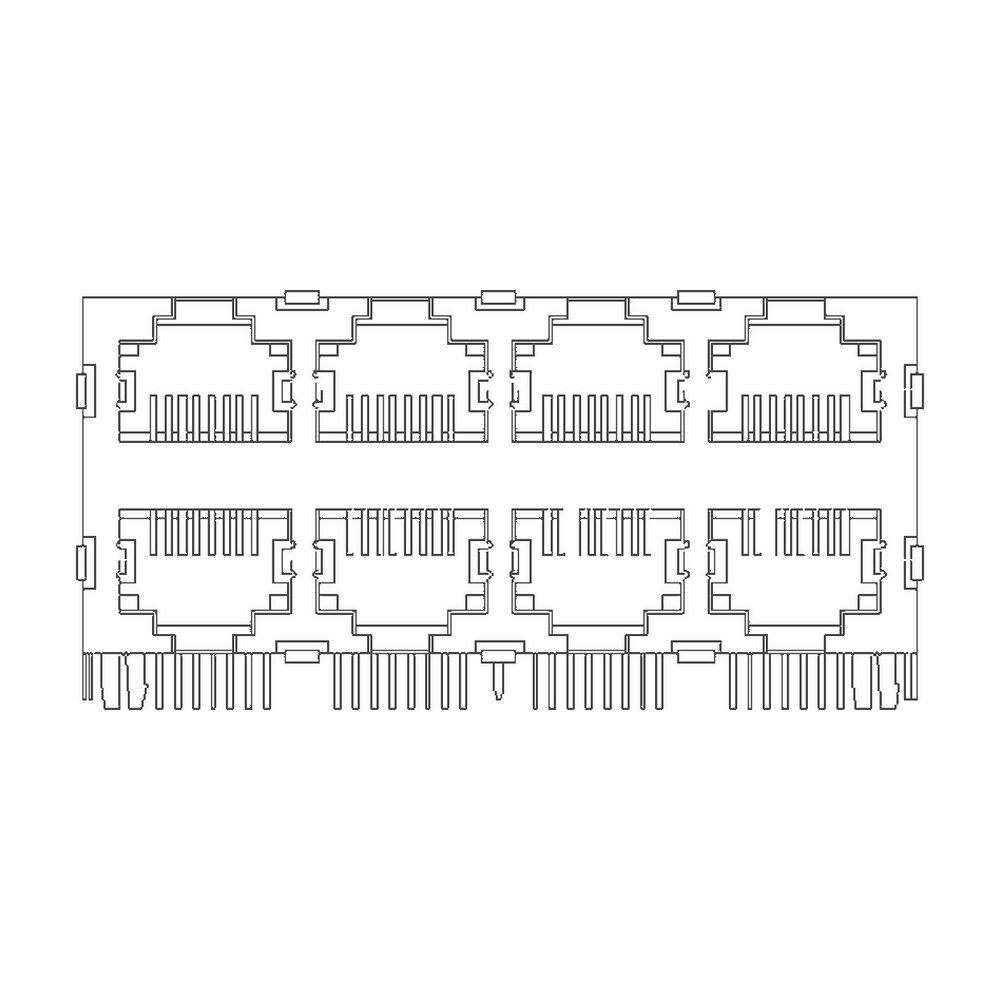

Stacked two-high RJ45 modular jack, 2 x 4 (8 ports), shielded, through-hole right angle side entry. Three top EMI spring tabs.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Stacked two-high RJ45 modular jack, 2 x 4 (8 ports), shielded, through-hole right angle side entry. Three top EMI spring tabs.
| Ports | 8 (2 x 4 stacked) |
|---|---|
| Signal pins | 64 |
| Body size | 59.19 W x 25.3 D x 28.5 H |
| Port centres | 13.97 mm |
| LEDs | No |
| Positions / contacts | 8P8C |
| Shielding | Shielded, 0.25 mm nickel plated copper alloy |
| Mounting | THT right angle, side entry |
| Integrated magnetics | No |
| Housing | PBT or nylon |
| Availability | Please call for pricing and availability |
Specifications are taken from the Micro-Ray drawing for this part. Dimensions in millimetres.
| Part Number (SKU) | MR-59-06-05 |
|---|---|
| Ports Available | 8 |
| Also ordered as | YH-59-06-05 |
| Category | Multi-Port RJ45 Jacks |
| Dimensions | 0.996 × 2.33 × 1.122 in |
| Ports | 8 (2 x 4 stacked) |
| Signal pins | 64 |
| Body size | 59.19 W x 25.3 D x 28.5 H |
| Port centres | 13.97 mm |
| LEDs | No |
| Positions / contacts | 8P8C |
| Shielding | Shielded, 0.25 mm nickel plated copper alloy |
| Mounting | THT right angle, side entry |
| Integrated magnetics | No |
| Housing | PBT or nylon |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
