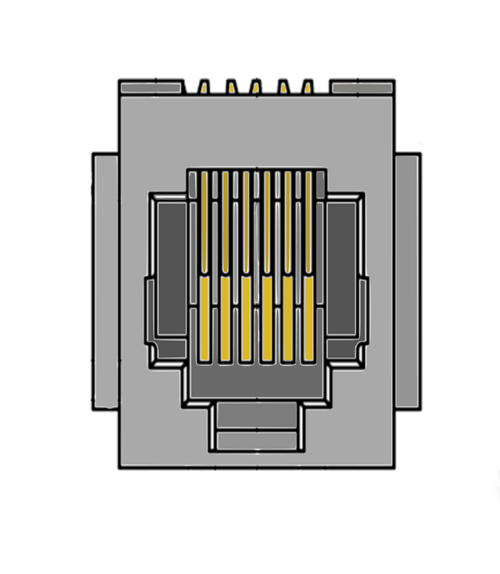

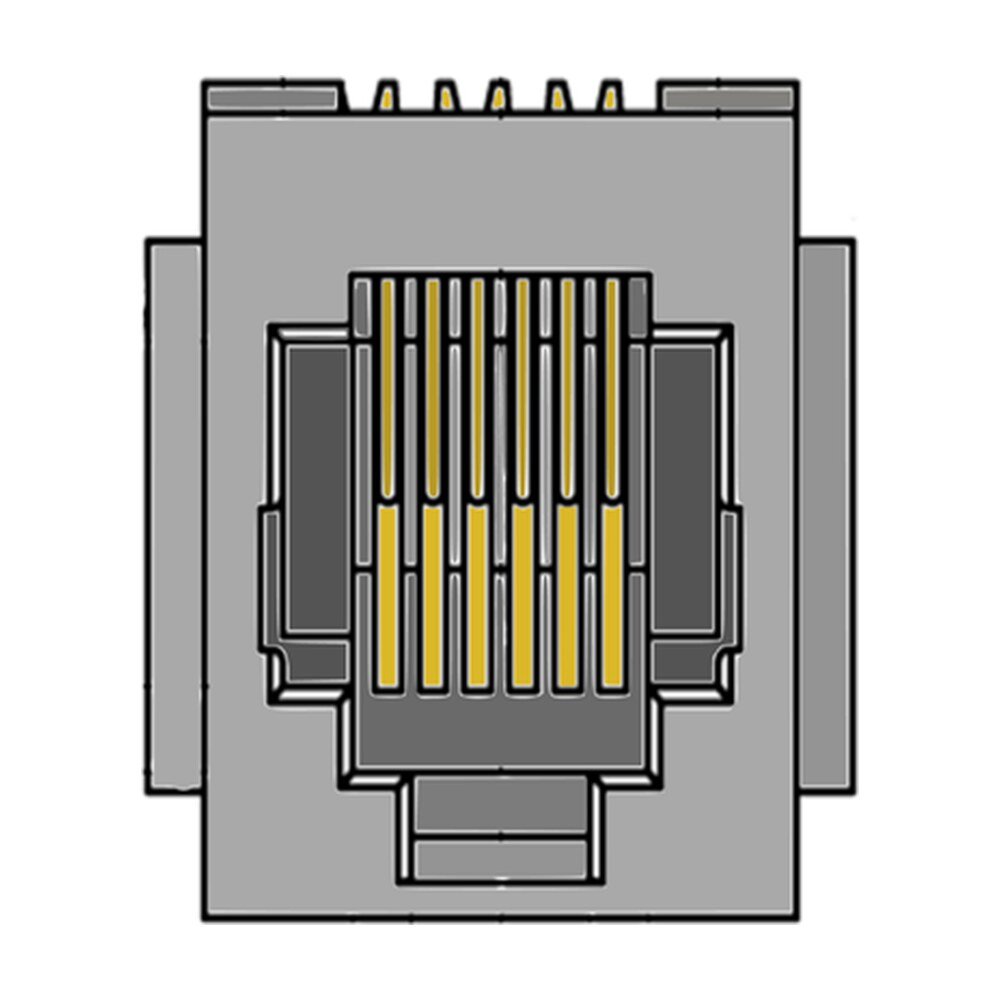

The MR-960502 is a top-entry 6P6C modular jack, the six-position body used for RJ11 and RJ12 wiring, for mounting on a printed circuit board.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-960502 is a top-entry 6P6C modular jack, the six-position body used for RJ11 and RJ12 wiring, for mounting on a printed circuit board.
Top entry means the mating plug enters from above the board rather than across the board edge. That suits designs where the port faces the top face of the enclosure, and designs where the board edge is already committed to other connectors.
Six-position jacks are used for telephone and voice wiring, serial links and control connections in telecom, building and instrumentation equipment.
Micro-Ray builds the MR-960 modular jack series in top, side and front entry, and in 4P4C, 6P6C and 8P8C contact arrangements, so a board can be laid out around the orientation that fits rather than around whatever is available.
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | MR-960502 |
|---|---|
| Category | Modular Telephone Jacks, Ethernet Connectors, RJ11, RJ12 and RJ45 Single Port Connectors, RJ12 |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship from our Brick, New Jersey facility. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
