MR-A111922-D-10-R2 HDMI v2.1 receptacle, right-angle, 19 circuits, gold (Au) plated contacts, without flange, surface mount (SMT), supplied on tape and reel.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Please call for pricing and availability

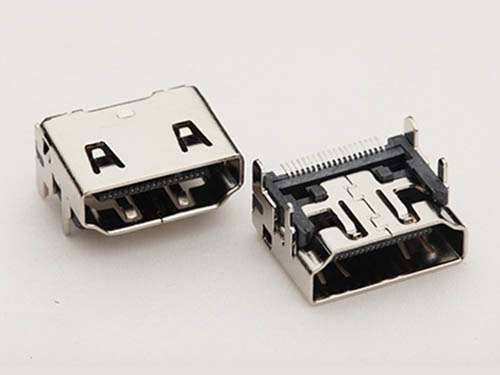

The MR-A111922-D-10-R2 is an HDMI v2.1 receptacle with a 19-circuit, 19-pin layout in a right-angle, surface-mount (SMT) body. It is supplied without a flange and packaged on tape and reel.
Contacts are gold (Au) plated. The right-angle orientation mounts the connector horizontally on the board, and the surface-mount footprint suits automated assembly.
Features:
Cross reference. The Micro-Ray MR-A111922-D-10-R2 is offered as an equivalent to Molex 208658-1061, and is listed by distributors as DigiKey 900-2086581061CT-ND, Mouser 538-208658-1061, Newark 6075047, 42AH2512 and MOL208658-1061. Full cross-reference table ›
| HDMI version | HDMI 1.4 |
|---|---|
| Connector type | A-Type |
| Terminal type | SMT |
| Shell foot type | DIP |
| Shell material | Copper alloy |
| On-board height (mm) | 6.18 |
| Shell foot length (mm) | 1.95 |
| Total length (mm) | 11.87 |
| Centre height (mm) | 3.41 |
| Rating | 0.5A/40V |
| PCB reference thickness (mm) | 1.6 |
| Packing | REEL |
| Pieces per reel/tray | 300 |
| Pieces per box | 3000 |
| Gold plating available | 1/3/5/15/30u" |
| MOQ (Kpcs) | 30 |
| Part Number (SKU) | MR-A111922-D-10-R2 |
|---|---|
| Pins Available | 19 |
| Also ordered as | A111922-C(D)-XX-R |
| Category | Cross Reference, HDMI Connector Sockets, (SMT) Surface mount, (DIP) Through Hole HDMI Jacks |
| Connector Type | Type A |
| HDMI Version | HDMI 1.4 |
| Mounting Style | On-board horizontal (right-angle) |
| Termination | Surface mount (SMT) |
| Shell Foot Type | Through-hole (DIP) |
| Shell Material | Copper alloy |
| Contact Gold Plating (available) | 1, 3, 5, 15 or 30 µin |
| Voltage / Current Rating | 0.5 A / 40 V |
| On-Board Height | 6.18 mm |
| Shell Foot Length | 1.95 mm |
| Overall Length | 11.87 mm |
| Center Height | 3.41 mm |
| Reference PCB Thickness | 1.6 mm |
| Packing | Reel |
| Minimum Packing Quantity | 300 pcs per reel |
| Quantity per Carton | 3,000 pcs |
| Circuits | 19 |
| Orientation | Right-angle |
| Contact plating | Gold (Au) |
| Flange | Without flange |
| Packaging | Tape and reel |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
