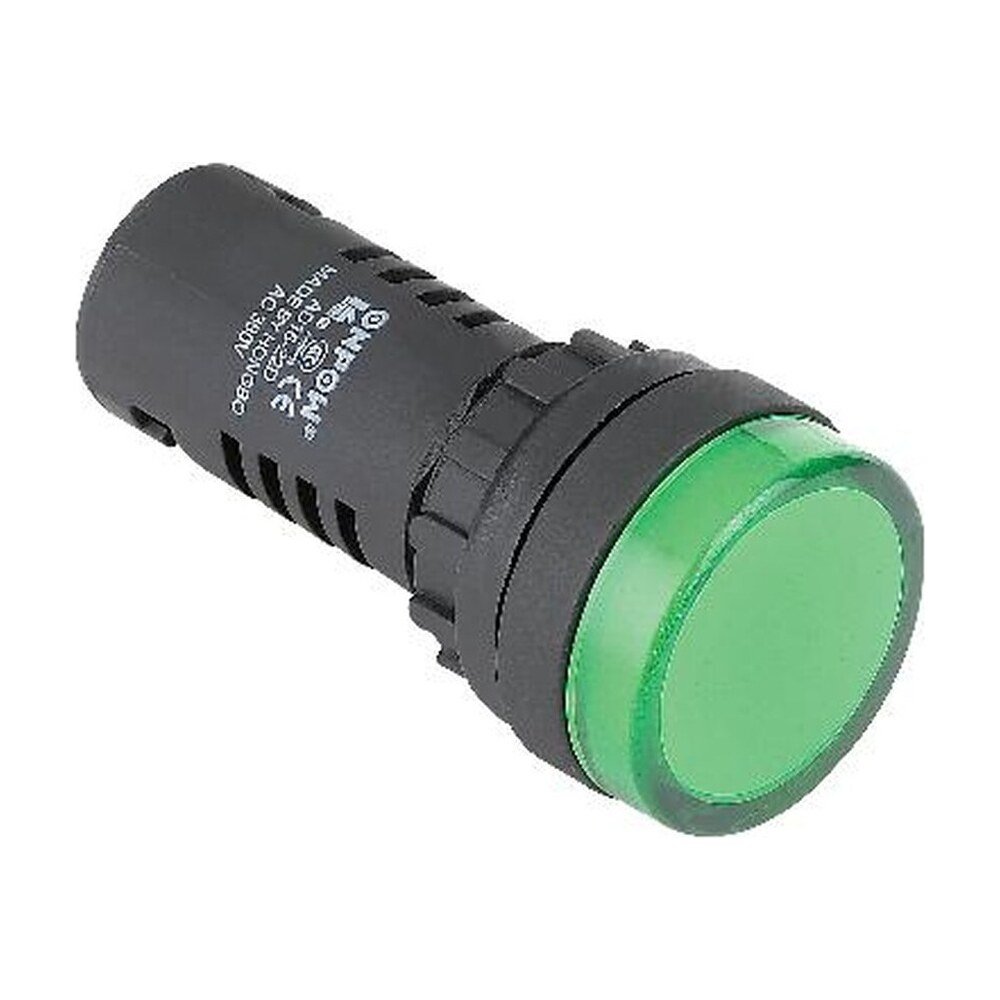

MR-AD16-22D - ×22 mm Pilot Indicator - Standard Length.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-AD16-22D is a 22 mm LED pilot indicator with a polycarbonate lens and shock-proof screw terminals, AC/DC or AC, standard, anti-interference or capacitor-discharge, IP40 or IP65.
Ordering. The ordering code is MR-AD16-22D-X-X-X-X: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); voltage (6V = AC/DC 6 V, 12V = AC/DC 12 V, 24V = AC/DC 24 V, 110V = AC/DC 110 V, 220V = AC/DC 220 V, 380V = AC/DC 380 V, AC110V = AC 110 V, AC220V = AC 220 V, AC380V = AC 380 V); voltage dropping (none = Standard, K = Anti-interference, F = Capacitor discharge); protection (none = IP40, P = IP65). The part numbers are listed below.
Still being confirmed. Which voltages the anti-interference (K) and capacitor-discharge (F) versions are offered in is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-AD16-22D |
|---|---|
| Also ordered as | AD16-22D |
| Category | Indicator Lights, Switches |
| Ordering code | MR-AD16-22D-X-X-X-X |
| Type | Pilot indicator, LED |
| Series | AD16 pilot indicators |
| Operating environment | −25 °C to +55 °C, altitude below 2000 m |
| Lamp type | LED |
| LED life | 40,000 hours min |
| Voltage fluctuation | ±20 % (110 V and above) |
| Rated impulse withstand voltage | 2.5 kV (AC RMS), 1 min |
| Frequency (AC) | 50 Hz to 60 Hz |
| Rated current | 20 mA max |
| Brightness | 100 cd/m² min |
| Comparative tracking index | CTI 100 min |
| Insulation resistance | 5 MΩ (Ui up to 60 V), 50 MΩ (60 V to 660 V) |
| AC frequency | AC types 50 Hz to 60 Hz only |
| Anti-interference type | Starting voltage 35 V to 45 V; higher starting voltage to order |
| Circuit | Built-in resistor on AC/DC types; capacitor on AC types |
| Connection note | Use a 2.5 × 0.8 mm plug with protective cover where possible; if soldering, iron below 30 W and within 3 s |
| Lens material | High-strength polycarbonate |
| Mounting hole | Ø22 mm (also fits a 25 mm hole) |
| Bezel | Ø29 mm |
| Panel thickness | 6 mm max |
| Head length | 13 mm |
| Body length behind panel | 50 mm |
| Terminals | Screw terminals; anti-electric-shock structure |
| Protection class | IP40 standard, IP65 to order (P) |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-AD16-22D is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-AD16-22D-R-6V | Red led colour, AC/DC 6 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-R-6V-P | Red led colour, AC/DC 6 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-R-6V-K | Red led colour, AC/DC 6 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-R-6V-K-P | Red led colour, AC/DC 6 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-R-6V-F | Red led colour, AC/DC 6 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-R-6V-F-P | Red led colour, AC/DC 6 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-R-12V | Red led colour, AC/DC 12 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-R-12V-P | Red led colour, AC/DC 12 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-R-12V-K | Red led colour, AC/DC 12 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-R-12V-K-P | Red led colour, AC/DC 12 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-R-12V-F | Red led colour, AC/DC 12 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-R-12V-F-P | Red led colour, AC/DC 12 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-R-24V | Red led colour, AC/DC 24 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-R-24V-P | Red led colour, AC/DC 24 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-R-24V-K | Red led colour, AC/DC 24 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-R-24V-K-P | Red led colour, AC/DC 24 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-R-24V-F | Red led colour, AC/DC 24 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-R-24V-F-P | Red led colour, AC/DC 24 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-R-110V | Red led colour, AC/DC 110 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-R-110V-P | Red led colour, AC/DC 110 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-R-110V-K | Red led colour, AC/DC 110 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-R-110V-K-P | Red led colour, AC/DC 110 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-R-110V-F | Red led colour, AC/DC 110 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-R-110V-F-P | Red led colour, AC/DC 110 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-R-220V | Red led colour, AC/DC 220 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-R-220V-P | Red led colour, AC/DC 220 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-R-220V-K | Red led colour, AC/DC 220 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-R-220V-K-P | Red led colour, AC/DC 220 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-R-220V-F | Red led colour, AC/DC 220 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-R-220V-F-P | Red led colour, AC/DC 220 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-R-380V | Red led colour, AC/DC 380 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-R-380V-P | Red led colour, AC/DC 380 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-R-380V-K | Red led colour, AC/DC 380 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-R-380V-K-P | Red led colour, AC/DC 380 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-R-380V-F | Red led colour, AC/DC 380 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-R-380V-F-P | Red led colour, AC/DC 380 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-R-AC110V | Red led colour, AC 110 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-R-AC110V-P | Red led colour, AC 110 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-R-AC110V-K | Red led colour, AC 110 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-R-AC110V-K-P | Red led colour, AC 110 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-R-AC110V-F | Red led colour, AC 110 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-R-AC110V-F-P | Red led colour, AC 110 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-R-AC220V | Red led colour, AC 220 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-R-AC220V-P | Red led colour, AC 220 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-R-AC220V-K | Red led colour, AC 220 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-R-AC220V-K-P | Red led colour, AC 220 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-R-AC220V-F | Red led colour, AC 220 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-R-AC220V-F-P | Red led colour, AC 220 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-R-AC380V | Red led colour, AC 380 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-R-AC380V-P | Red led colour, AC 380 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-R-AC380V-K | Red led colour, AC 380 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-R-AC380V-K-P | Red led colour, AC 380 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-R-AC380V-F | Red led colour, AC 380 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-R-AC380V-F-P | Red led colour, AC 380 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-G-6V | Green led colour, AC/DC 6 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-G-6V-P | Green led colour, AC/DC 6 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-G-6V-K | Green led colour, AC/DC 6 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-G-6V-K-P | Green led colour, AC/DC 6 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-G-6V-F | Green led colour, AC/DC 6 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-G-6V-F-P | Green led colour, AC/DC 6 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-G-12V | Green led colour, AC/DC 12 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-G-12V-P | Green led colour, AC/DC 12 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-G-12V-K | Green led colour, AC/DC 12 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-G-12V-K-P | Green led colour, AC/DC 12 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-G-12V-F | Green led colour, AC/DC 12 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-G-12V-F-P | Green led colour, AC/DC 12 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-G-24V | Green led colour, AC/DC 24 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-G-24V-P | Green led colour, AC/DC 24 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-G-24V-K | Green led colour, AC/DC 24 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-G-24V-K-P | Green led colour, AC/DC 24 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-G-24V-F | Green led colour, AC/DC 24 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-G-24V-F-P | Green led colour, AC/DC 24 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-G-110V | Green led colour, AC/DC 110 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-G-110V-P | Green led colour, AC/DC 110 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-G-110V-K | Green led colour, AC/DC 110 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-G-110V-K-P | Green led colour, AC/DC 110 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-G-110V-F | Green led colour, AC/DC 110 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-G-110V-F-P | Green led colour, AC/DC 110 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-G-220V | Green led colour, AC/DC 220 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-G-220V-P | Green led colour, AC/DC 220 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-G-220V-K | Green led colour, AC/DC 220 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-G-220V-K-P | Green led colour, AC/DC 220 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-G-220V-F | Green led colour, AC/DC 220 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-G-220V-F-P | Green led colour, AC/DC 220 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-G-380V | Green led colour, AC/DC 380 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-G-380V-P | Green led colour, AC/DC 380 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-G-380V-K | Green led colour, AC/DC 380 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-G-380V-K-P | Green led colour, AC/DC 380 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-G-380V-F | Green led colour, AC/DC 380 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-G-380V-F-P | Green led colour, AC/DC 380 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-G-AC110V | Green led colour, AC 110 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-G-AC110V-P | Green led colour, AC 110 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-G-AC110V-K | Green led colour, AC 110 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-G-AC110V-K-P | Green led colour, AC 110 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-G-AC110V-F | Green led colour, AC 110 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-G-AC110V-F-P | Green led colour, AC 110 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-G-AC220V | Green led colour, AC 220 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-G-AC220V-P | Green led colour, AC 220 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-G-AC220V-K | Green led colour, AC 220 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-G-AC220V-K-P | Green led colour, AC 220 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-G-AC220V-F | Green led colour, AC 220 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-G-AC220V-F-P | Green led colour, AC 220 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-G-AC380V | Green led colour, AC 380 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-G-AC380V-P | Green led colour, AC 380 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-G-AC380V-K | Green led colour, AC 380 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-G-AC380V-K-P | Green led colour, AC 380 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-G-AC380V-F | Green led colour, AC 380 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-G-AC380V-F-P | Green led colour, AC 380 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-Y-6V | Yellow led colour, AC/DC 6 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-Y-6V-P | Yellow led colour, AC/DC 6 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-Y-6V-K | Yellow led colour, AC/DC 6 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-Y-6V-K-P | Yellow led colour, AC/DC 6 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-Y-6V-F | Yellow led colour, AC/DC 6 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-Y-6V-F-P | Yellow led colour, AC/DC 6 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-Y-12V | Yellow led colour, AC/DC 12 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-Y-12V-P | Yellow led colour, AC/DC 12 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-Y-12V-K | Yellow led colour, AC/DC 12 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-Y-12V-K-P | Yellow led colour, AC/DC 12 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-Y-12V-F | Yellow led colour, AC/DC 12 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-Y-12V-F-P | Yellow led colour, AC/DC 12 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-Y-24V | Yellow led colour, AC/DC 24 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-Y-24V-P | Yellow led colour, AC/DC 24 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-Y-24V-K | Yellow led colour, AC/DC 24 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-Y-24V-K-P | Yellow led colour, AC/DC 24 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-Y-24V-F | Yellow led colour, AC/DC 24 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-Y-24V-F-P | Yellow led colour, AC/DC 24 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-Y-110V | Yellow led colour, AC/DC 110 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-Y-110V-P | Yellow led colour, AC/DC 110 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-Y-110V-K | Yellow led colour, AC/DC 110 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-Y-110V-K-P | Yellow led colour, AC/DC 110 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-Y-110V-F | Yellow led colour, AC/DC 110 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-Y-110V-F-P | Yellow led colour, AC/DC 110 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-Y-220V | Yellow led colour, AC/DC 220 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-Y-220V-P | Yellow led colour, AC/DC 220 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-Y-220V-K | Yellow led colour, AC/DC 220 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-Y-220V-K-P | Yellow led colour, AC/DC 220 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-Y-220V-F | Yellow led colour, AC/DC 220 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-Y-220V-F-P | Yellow led colour, AC/DC 220 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-Y-380V | Yellow led colour, AC/DC 380 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-Y-380V-P | Yellow led colour, AC/DC 380 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-Y-380V-K | Yellow led colour, AC/DC 380 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-Y-380V-K-P | Yellow led colour, AC/DC 380 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-Y-380V-F | Yellow led colour, AC/DC 380 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-Y-380V-F-P | Yellow led colour, AC/DC 380 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-Y-AC110V | Yellow led colour, AC 110 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-Y-AC110V-P | Yellow led colour, AC 110 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-Y-AC110V-K | Yellow led colour, AC 110 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-Y-AC110V-K-P | Yellow led colour, AC 110 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-Y-AC110V-F | Yellow led colour, AC 110 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-Y-AC110V-F-P | Yellow led colour, AC 110 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-Y-AC220V | Yellow led colour, AC 220 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-Y-AC220V-P | Yellow led colour, AC 220 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-Y-AC220V-K | Yellow led colour, AC 220 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-Y-AC220V-K-P | Yellow led colour, AC 220 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-Y-AC220V-F | Yellow led colour, AC 220 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-Y-AC220V-F-P | Yellow led colour, AC 220 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-Y-AC380V | Yellow led colour, AC 380 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-Y-AC380V-P | Yellow led colour, AC 380 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-Y-AC380V-K | Yellow led colour, AC 380 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-Y-AC380V-K-P | Yellow led colour, AC 380 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-Y-AC380V-F | Yellow led colour, AC 380 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-Y-AC380V-F-P | Yellow led colour, AC 380 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-B-6V | Blue led colour, AC/DC 6 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-B-6V-P | Blue led colour, AC/DC 6 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-B-6V-K | Blue led colour, AC/DC 6 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-B-6V-K-P | Blue led colour, AC/DC 6 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-B-6V-F | Blue led colour, AC/DC 6 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-B-6V-F-P | Blue led colour, AC/DC 6 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-B-12V | Blue led colour, AC/DC 12 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-B-12V-P | Blue led colour, AC/DC 12 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-B-12V-K | Blue led colour, AC/DC 12 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-B-12V-K-P | Blue led colour, AC/DC 12 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-B-12V-F | Blue led colour, AC/DC 12 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-B-12V-F-P | Blue led colour, AC/DC 12 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-B-24V | Blue led colour, AC/DC 24 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-B-24V-P | Blue led colour, AC/DC 24 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-B-24V-K | Blue led colour, AC/DC 24 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-B-24V-K-P | Blue led colour, AC/DC 24 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-B-24V-F | Blue led colour, AC/DC 24 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-B-24V-F-P | Blue led colour, AC/DC 24 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-B-110V | Blue led colour, AC/DC 110 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-B-110V-P | Blue led colour, AC/DC 110 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-B-110V-K | Blue led colour, AC/DC 110 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-B-110V-K-P | Blue led colour, AC/DC 110 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-B-110V-F | Blue led colour, AC/DC 110 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-B-110V-F-P | Blue led colour, AC/DC 110 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-B-220V | Blue led colour, AC/DC 220 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-B-220V-P | Blue led colour, AC/DC 220 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-B-220V-K | Blue led colour, AC/DC 220 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-B-220V-K-P | Blue led colour, AC/DC 220 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-B-220V-F | Blue led colour, AC/DC 220 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-B-220V-F-P | Blue led colour, AC/DC 220 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-B-380V | Blue led colour, AC/DC 380 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-B-380V-P | Blue led colour, AC/DC 380 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-B-380V-K | Blue led colour, AC/DC 380 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-B-380V-K-P | Blue led colour, AC/DC 380 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-B-380V-F | Blue led colour, AC/DC 380 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-B-380V-F-P | Blue led colour, AC/DC 380 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-B-AC110V | Blue led colour, AC 110 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-B-AC110V-P | Blue led colour, AC 110 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-B-AC110V-K | Blue led colour, AC 110 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-B-AC110V-K-P | Blue led colour, AC 110 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-B-AC110V-F | Blue led colour, AC 110 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-B-AC110V-F-P | Blue led colour, AC 110 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-B-AC220V | Blue led colour, AC 220 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-B-AC220V-P | Blue led colour, AC 220 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-B-AC220V-K | Blue led colour, AC 220 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-B-AC220V-K-P | Blue led colour, AC 220 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-B-AC220V-F | Blue led colour, AC 220 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-B-AC220V-F-P | Blue led colour, AC 220 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-B-AC380V | Blue led colour, AC 380 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-B-AC380V-P | Blue led colour, AC 380 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-B-AC380V-K | Blue led colour, AC 380 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-B-AC380V-K-P | Blue led colour, AC 380 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-B-AC380V-F | Blue led colour, AC 380 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-B-AC380V-F-P | Blue led colour, AC 380 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-W-6V | White led colour, AC/DC 6 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-W-6V-P | White led colour, AC/DC 6 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-W-6V-K | White led colour, AC/DC 6 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-W-6V-K-P | White led colour, AC/DC 6 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-W-6V-F | White led colour, AC/DC 6 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-W-6V-F-P | White led colour, AC/DC 6 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-W-12V | White led colour, AC/DC 12 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-W-12V-P | White led colour, AC/DC 12 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-W-12V-K | White led colour, AC/DC 12 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-W-12V-K-P | White led colour, AC/DC 12 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-W-12V-F | White led colour, AC/DC 12 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-W-12V-F-P | White led colour, AC/DC 12 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-W-24V | White led colour, AC/DC 24 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-W-24V-P | White led colour, AC/DC 24 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-W-24V-K | White led colour, AC/DC 24 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-W-24V-K-P | White led colour, AC/DC 24 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-W-24V-F | White led colour, AC/DC 24 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-W-24V-F-P | White led colour, AC/DC 24 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-W-110V | White led colour, AC/DC 110 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-W-110V-P | White led colour, AC/DC 110 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-W-110V-K | White led colour, AC/DC 110 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-W-110V-K-P | White led colour, AC/DC 110 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-W-110V-F | White led colour, AC/DC 110 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-W-110V-F-P | White led colour, AC/DC 110 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-W-220V | White led colour, AC/DC 220 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-W-220V-P | White led colour, AC/DC 220 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-W-220V-K | White led colour, AC/DC 220 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-W-220V-K-P | White led colour, AC/DC 220 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-W-220V-F | White led colour, AC/DC 220 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-W-220V-F-P | White led colour, AC/DC 220 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-W-380V | White led colour, AC/DC 380 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-W-380V-P | White led colour, AC/DC 380 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-W-380V-K | White led colour, AC/DC 380 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-W-380V-K-P | White led colour, AC/DC 380 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-W-380V-F | White led colour, AC/DC 380 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-W-380V-F-P | White led colour, AC/DC 380 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-W-AC110V | White led colour, AC 110 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-W-AC110V-P | White led colour, AC 110 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-W-AC110V-K | White led colour, AC 110 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-W-AC110V-K-P | White led colour, AC 110 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-W-AC110V-F | White led colour, AC 110 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-W-AC110V-F-P | White led colour, AC 110 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-W-AC220V | White led colour, AC 220 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-W-AC220V-P | White led colour, AC 220 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-W-AC220V-K | White led colour, AC 220 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-W-AC220V-K-P | White led colour, AC 220 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-W-AC220V-F | White led colour, AC 220 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-W-AC220V-F-P | White led colour, AC 220 V voltage, Capacitor discharge voltage dropping, IP65 protection |
| MR-AD16-22D-W-AC380V | White led colour, AC 380 V voltage, Standard voltage dropping, IP40 protection |
| MR-AD16-22D-W-AC380V-P | White led colour, AC 380 V voltage, Standard voltage dropping, IP65 protection |
| MR-AD16-22D-W-AC380V-K | White led colour, AC 380 V voltage, Anti-interference voltage dropping, IP40 protection |
| MR-AD16-22D-W-AC380V-K-P | White led colour, AC 380 V voltage, Anti-interference voltage dropping, IP65 protection |
| MR-AD16-22D-W-AC380V-F | White led colour, AC 380 V voltage, Capacitor discharge voltage dropping, IP40 protection |
| MR-AD16-22D-W-AC380V-F-P | White led colour, AC 380 V voltage, Capacitor discharge voltage dropping, IP65 protection |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
Send us your part number, drawing, or a description of what you need. A real person on our team will get back to you.
