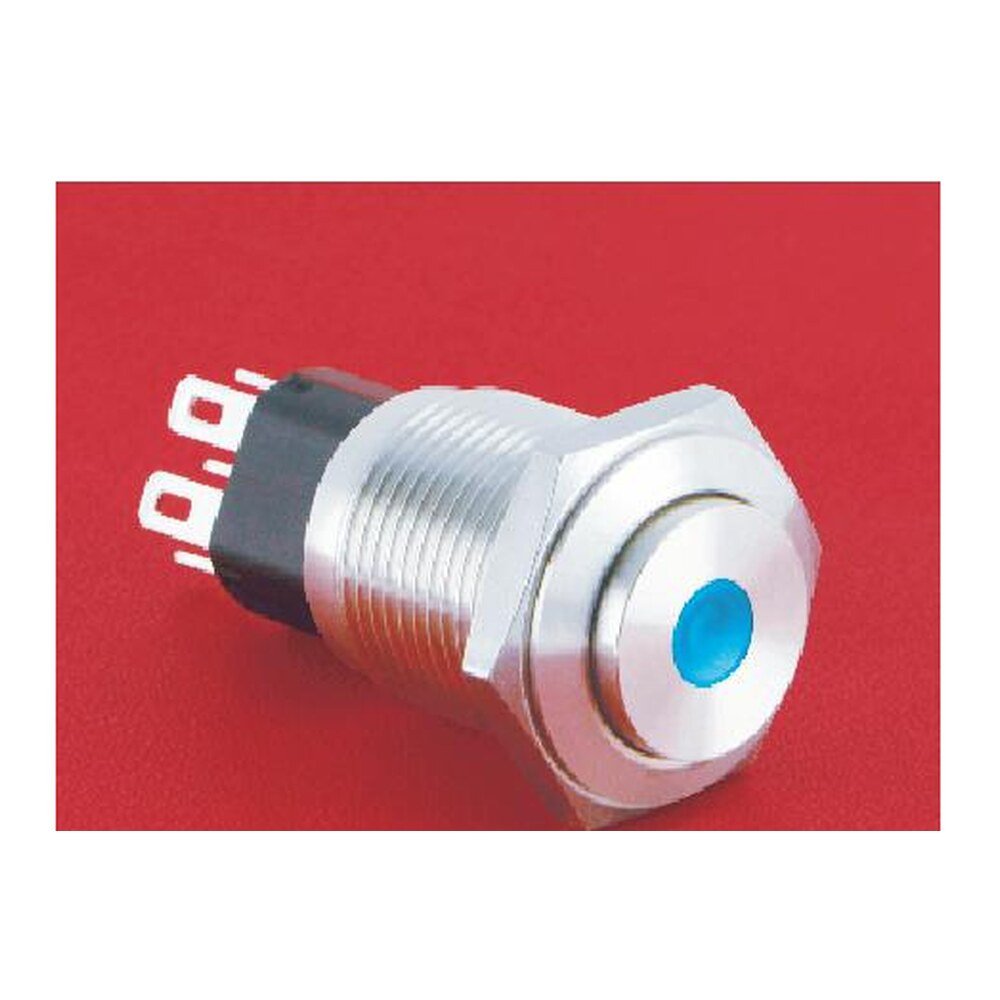

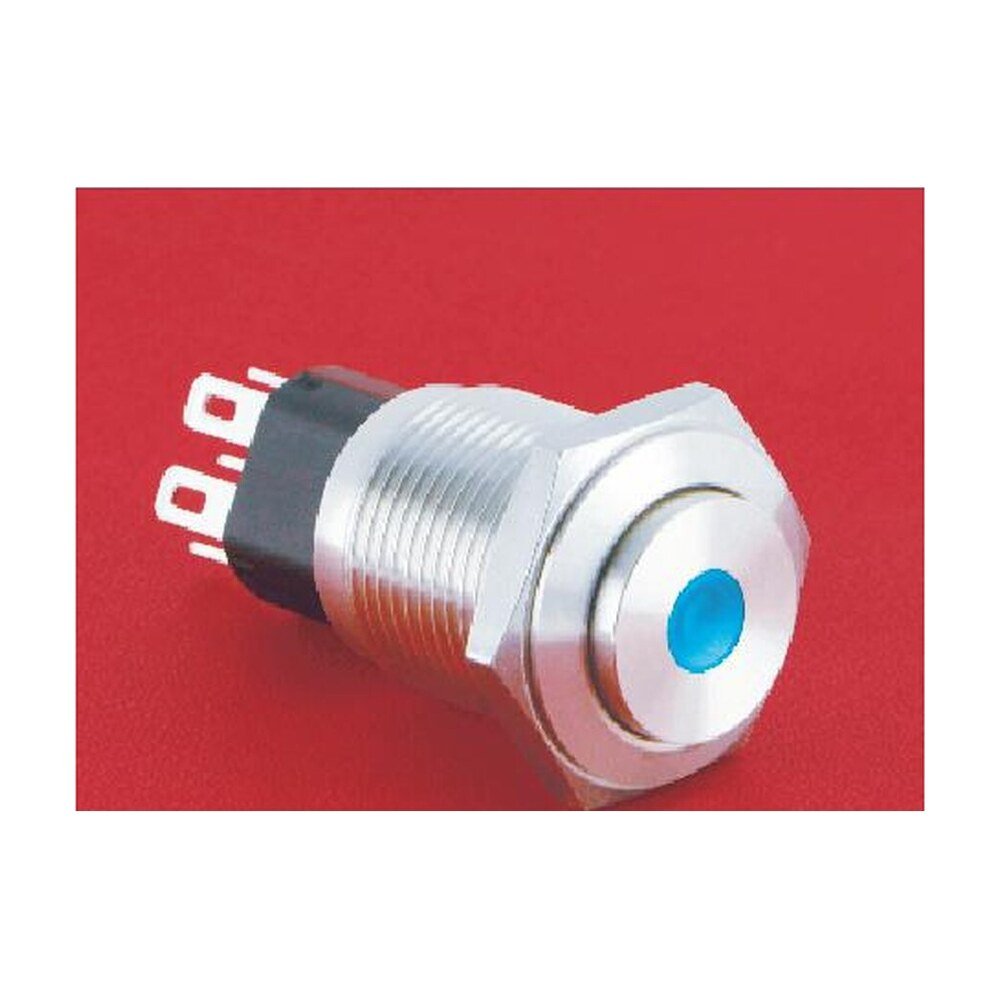

MR-GQ16-KH-11D - 16 mm Metal Push Button - High Round Head, Dot Illuminated, 1NO1NC Changeover.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-GQ16-KH-11D is the dot-illuminated, raised-head 16 mm changeover push button, with a Ø5 mm lit dot in five colours at 6 V to 220 V.
Ordering. The ordering code is MR-GQ16-KH-11XD-J-X-X-X: each X is replaced by the option you need - operation (none = Momentary, Z = Latching); led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V); housing (C = Brass, chrome plated, S = Stainless steel). The part numbers are listed below.
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ16-KH-11D |
|---|---|
| Also ordered as | GQ16-KH-11D |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ16-KH-11XD-J-X-X-X |
| Series | GQ16-K |
| Contact structure | 1NO1NC (SPDT, quick action) |
| Switch rating | 0.5 A at 220 V |
| Rated insulation voltage Ui | 250 V |
| Thermal current Ith | 3 A |
| Minimum load | 3 V AC/DC, 5 mA (reference) |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 500,000 cycles |
| Electrical life | 50,000 cycles |
| Operation travel | 3 mm approx |
| Operating force | 1.7 N approx |
| Nut torque | 0.6 Nm approx |
| Base material | PA |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP40 (IP65 can be customised), IK08 |
| Standards | GB/T 14048.5-2017 CCC 20201201000016, EN 61058-1:2018, CE UDEM/M.2021.206.C62197 |
| Panel cut-out | Ø16 mm |
| Mounting | M16 × 1 threaded bush |
| Bezel diameter | Ø18 mm |
| Bezel height | 8 mm max |
| Across flats | 21.8 mm |
| Head shape | H = high round |
| Termination | Solder tab (wiring patch) 2 × 0.5 mm |
| Body length behind panel | 32 mm |
| Accessory | Sealing cover M12-16H |
| Operation type | Z = latching, no letter = momentary |
| Illuminated type | D = dot illuminated |
| Lens diameter | Ø5 mm |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 % |
| LED colour | R red, G green, Y yellow, B blue, W white |
| LED voltage | 6 V, 12 V, 24 V, 110 V, 220 V |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-GQ16-KH-11D is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-GQ16-KH-11D-J-R-6V-C | Momentary operation, red led colour, 6 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-R-6V-S | Momentary operation, red led colour, 6 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-R-12V-C | Momentary operation, red led colour, 12 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-R-12V-S | Momentary operation, red led colour, 12 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-R-24V-C | Momentary operation, red led colour, 24 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-R-24V-S | Momentary operation, red led colour, 24 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-R-110V-C | Momentary operation, red led colour, 110 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-R-110V-S | Momentary operation, red led colour, 110 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-R-220V-C | Momentary operation, red led colour, 220 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-R-220V-S | Momentary operation, red led colour, 220 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-G-6V-C | Momentary operation, green led colour, 6 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-G-6V-S | Momentary operation, green led colour, 6 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-G-12V-C | Momentary operation, green led colour, 12 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-G-12V-S | Momentary operation, green led colour, 12 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-G-24V-C | Momentary operation, green led colour, 24 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-G-24V-S | Momentary operation, green led colour, 24 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-G-110V-C | Momentary operation, green led colour, 110 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-G-110V-S | Momentary operation, green led colour, 110 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-G-220V-C | Momentary operation, green led colour, 220 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-G-220V-S | Momentary operation, green led colour, 220 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-Y-6V-C | Momentary operation, yellow led colour, 6 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-Y-6V-S | Momentary operation, yellow led colour, 6 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-Y-12V-C | Momentary operation, yellow led colour, 12 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-Y-12V-S | Momentary operation, yellow led colour, 12 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-Y-24V-C | Momentary operation, yellow led colour, 24 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-Y-24V-S | Momentary operation, yellow led colour, 24 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-Y-110V-C | Momentary operation, yellow led colour, 110 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-Y-110V-S | Momentary operation, yellow led colour, 110 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-Y-220V-C | Momentary operation, yellow led colour, 220 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-Y-220V-S | Momentary operation, yellow led colour, 220 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-B-6V-C | Momentary operation, blue led colour, 6 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-B-6V-S | Momentary operation, blue led colour, 6 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-B-12V-C | Momentary operation, blue led colour, 12 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-B-12V-S | Momentary operation, blue led colour, 12 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-B-24V-C | Momentary operation, blue led colour, 24 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-B-24V-S | Momentary operation, blue led colour, 24 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-B-110V-C | Momentary operation, blue led colour, 110 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-B-110V-S | Momentary operation, blue led colour, 110 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-B-220V-C | Momentary operation, blue led colour, 220 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-B-220V-S | Momentary operation, blue led colour, 220 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-W-6V-C | Momentary operation, white led colour, 6 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-W-6V-S | Momentary operation, white led colour, 6 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-W-12V-C | Momentary operation, white led colour, 12 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-W-12V-S | Momentary operation, white led colour, 12 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-W-24V-C | Momentary operation, white led colour, 24 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-W-24V-S | Momentary operation, white led colour, 24 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-W-110V-C | Momentary operation, white led colour, 110 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-W-110V-S | Momentary operation, white led colour, 110 v led voltage, stainless steel housing |
| MR-GQ16-KH-11D-J-W-220V-C | Momentary operation, white led colour, 220 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11D-J-W-220V-S | Momentary operation, white led colour, 220 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-R-6V-C | Latching operation, red led colour, 6 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-R-6V-S | Latching operation, red led colour, 6 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-R-12V-C | Latching operation, red led colour, 12 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-R-12V-S | Latching operation, red led colour, 12 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-R-24V-C | Latching operation, red led colour, 24 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-R-24V-S | Latching operation, red led colour, 24 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-R-110V-C | Latching operation, red led colour, 110 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-R-110V-S | Latching operation, red led colour, 110 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-R-220V-C | Latching operation, red led colour, 220 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-R-220V-S | Latching operation, red led colour, 220 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-G-6V-C | Latching operation, green led colour, 6 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-G-6V-S | Latching operation, green led colour, 6 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-G-12V-C | Latching operation, green led colour, 12 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-G-12V-S | Latching operation, green led colour, 12 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-G-24V-C | Latching operation, green led colour, 24 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-G-24V-S | Latching operation, green led colour, 24 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-G-110V-C | Latching operation, green led colour, 110 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-G-110V-S | Latching operation, green led colour, 110 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-G-220V-C | Latching operation, green led colour, 220 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-G-220V-S | Latching operation, green led colour, 220 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-Y-6V-C | Latching operation, yellow led colour, 6 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-Y-6V-S | Latching operation, yellow led colour, 6 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-Y-12V-C | Latching operation, yellow led colour, 12 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-Y-12V-S | Latching operation, yellow led colour, 12 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-Y-24V-C | Latching operation, yellow led colour, 24 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-Y-24V-S | Latching operation, yellow led colour, 24 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-Y-110V-C | Latching operation, yellow led colour, 110 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-Y-110V-S | Latching operation, yellow led colour, 110 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-Y-220V-C | Latching operation, yellow led colour, 220 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-Y-220V-S | Latching operation, yellow led colour, 220 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-B-6V-C | Latching operation, blue led colour, 6 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-B-6V-S | Latching operation, blue led colour, 6 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-B-12V-C | Latching operation, blue led colour, 12 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-B-12V-S | Latching operation, blue led colour, 12 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-B-24V-C | Latching operation, blue led colour, 24 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-B-24V-S | Latching operation, blue led colour, 24 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-B-110V-C | Latching operation, blue led colour, 110 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-B-110V-S | Latching operation, blue led colour, 110 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-B-220V-C | Latching operation, blue led colour, 220 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-B-220V-S | Latching operation, blue led colour, 220 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-W-6V-C | Latching operation, white led colour, 6 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-W-6V-S | Latching operation, white led colour, 6 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-W-12V-C | Latching operation, white led colour, 12 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-W-12V-S | Latching operation, white led colour, 12 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-W-24V-C | Latching operation, white led colour, 24 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-W-24V-S | Latching operation, white led colour, 24 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-W-110V-C | Latching operation, white led colour, 110 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-W-110V-S | Latching operation, white led colour, 110 v led voltage, stainless steel housing |
| MR-GQ16-KH-11ZD-J-W-220V-C | Latching operation, white led colour, 220 v led voltage, brass, chrome plated housing |
| MR-GQ16-KH-11ZD-J-W-220V-S | Latching operation, white led colour, 220 v led voltage, stainless steel housing |
